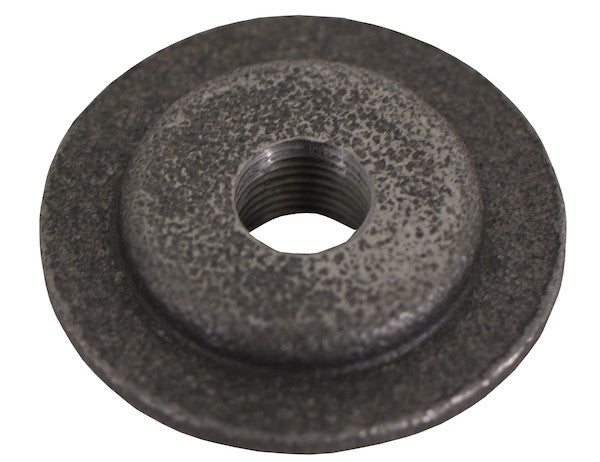

The Forged Welding Flange from Buyers Products features solid, rugged, forged steel construction in a variety of sizes to meet your reservoir fabrication needs. Use the flanges when fabricating your own hydraulic reservoir or adding a port to an existing reservoir. Choose from a wide range of sizes to match your requirements.
Specifications
| Construction | Forged |
|---|---|
| Finish | Plain |
| Material | Carbon Steel |
| Outer Diameter | 3.375 |
| Pilot | 2.625 |
| Size | 2.00 |
| Thickness | - |
Advanced Technical Overview: 2 Inch NPTF Steel Forged Welding Flange for Hydraulic Reservoir Systems
This comprehensive technical description details the engineering specifications, material properties, manufacturing processes, and application considerations for the 2 Inch NPTF Steel Forged Welding Flange. Designed by Buyers Products, this component is engineered to provide superior structural integrity and leak-proof connections in demanding hydraulic reservoir fabrication and modification projects. Its robust design and precise manufacturing make it an indispensable element for professionals requiring unparalleled reliability in fluid power systems.
Forged Construction: Enhancing Mechanical Performance and Durability
The hallmark of this flange is its forged construction. Forging is a manufacturing process that involves shaping metal using localized compressive forces, typically performed with a hammer or press. Unlike casting, where molten metal is poured into a mold, forging mechanically deforms solid metal, resulting in a continuous grain flow that follows the contours of the part. This critical distinction imparts several profound mechanical advantages to the flange.
Firstly, the forging process refines the grain structure of the carbon steel, eliminating internal voids, porosity, and other defects often associated with cast components. This denser, more uniform microstructure significantly enhances the material’s tensile strength, yield strength, and fatigue resistance. For a component subjected to the dynamic pressures and vibrations inherent in hydraulic systems, this translates directly into a substantially longer service life and reduced risk of premature failure. The homogeneous structure also improves the material’s ductility and toughness, making the flange less susceptible to brittle fracture under stress, particularly in environments with fluctuating temperatures or shock loads.
Secondly, the continuous grain flow produced by forging aligns the material’s inherent strengths along the directions of principal stress. This anisotropic enhancement ensures that the flange can withstand higher operational stresses without permanent deformation or catastrophic failure. The robust, solid nature derived from forging is directly responsible for the "rugged" characteristic highlighted in the product's foundational description, providing an unwavering foundation for critical hydraulic connections.
Material Excellence: Carbon Steel for Industrial Strength
The selection of carbon steel as the primary material for this forged welding flange is predicated on its outstanding balance of mechanical properties, cost-effectiveness, and weldability. Carbon steel, primarily an alloy of iron and carbon (typically up to 2.1% by weight), is widely favored in industrial applications for its high strength-to-weight ratio and durability. For forged flanges, specific grades such as ASTM A105 are commonly employed, known for their excellent forgeability and suitability for high-pressure, high-temperature service in piping systems. While the exact grade is not specified, the use of "Carbon Steel" implies a material engineered for robust performance.
The material's inherent hardness provides excellent resistance to wear and abrasion, crucial for components integrated into systems where fluid flow, even if quiescent within a reservoir, can introduce particulate matter. Furthermore, carbon steel exhibits commendable elasticity, allowing it to withstand repeated stress cycles without permanent deformation, which is vital for the dynamic operating conditions of hydraulic reservoirs. Its thermal conductivity is also advantageous, as it contributes to the overall thermal management of the reservoir system by facilitating heat dissipation through the flange structure.
The "Plain" finish indicates that the carbon steel is provided without any protective coating, such as galvanization or paint. This choice is deliberate and advantageous for welding applications. A plain finish ensures optimal metallurgical bonding during the welding process, as there are no foreign materials or oxides to impede weld penetration or introduce defects. While a plain finish necessitates subsequent corrosion protection in corrosive environments, it provides the cleanest and most effective surface for strong, reliable welded joints. Post-installation, appropriate painting or coating can be applied to mitigate oxidation and extend the aesthetic and functional life of the exposed steel.
NPTF Thread Standard: The Dryseal Advantage for Hydraulic Integrity
The "NPTF" designation in the product title is a critical technical specification, denoting National Pipe Taper Fuel thread. This is a highly specialized variant of the National Pipe Thread (NPT) standard, specifically engineered for dryseal applications where leakage prevention is paramount without the reliance on thread sealants. The "F" in NPTF signifies "Fuel" or "Dryseal," underscoring its intended use in critical fluid transfer systems, particularly hydraulic and pneumatic lines where even minor leaks can lead to system inefficiency, safety hazards, or environmental contamination.
The fundamental principle behind NPTF's superior sealing capability lies in its precisely controlled thread geometry. Both the external (male) and internal (female) NPTF threads are tapered at a 1°47' (1.7899°) angle from the centerline. This taper ensures that as the male and female threads are engaged and tightened, the flanks and crests of the threads are forced into intimate contact, creating a mechanical interference fit that forms a metal-to-metal seal. Unlike standard NPT threads, which may require sealants (such as PTFE tape or pipe dope) to fill potential helical leak paths at the thread roots and crests, NPTF threads are manufactured with specific crest and root truncations designed to allow the crest of the male thread to deform and compress into the root of the female thread, and vice-versa, achieving a reliable seal without additional compounds.
This dryseal capability is particularly valuable in hydraulic systems for several reasons. Firstly, it reduces assembly time and complexity, as the need for precise sealant application is minimized or eliminated. Secondly, it prevents the introduction of sealant particles into the hydraulic fluid, which can contaminate the system, foul filters, or damage sensitive components like pumps and valves. Thirdly, in high-pressure or high-vibration environments, the mechanical interference of NPTF threads often provides a more robust and enduring seal than sealant-dependent NPT connections. For hydraulic reservoirs, where consistent fluid integrity is non-negotiable, the NPTF standard offers a significant advantage in ensuring long-term, leak-free operation of connected components like pumps, pressure gauges, and return lines.
2 Inch Nominal Pipe Size: Understanding System Integration
The "2 Inch" dimension refers to the Nominal Pipe Size (NPS) of the flange, a standard North American designation for pipe and pipe fitting sizes. It is crucial to understand that NPS is a non-dimensional number that corresponds to the pipe's approximate inside diameter, not its actual measured diameter. For a 2-inch NPS pipe or fitting, the actual outside diameter (OD) will typically be 2.375 inches (60.3 mm), with the inner diameter varying based on the pipe schedule (wall thickness). In the context of this flange, the 2-inch NPTF port is designed to accept or connect to 2-inch NPS piping or components with corresponding 2-inch NPTF male threads.
This standardized sizing is paramount for interchangeability and system design. It ensures that components from different manufacturers can be reliably integrated into a cohesive hydraulic system. The 2-inch size dictates flow capacity, pressure drop characteristics, and compatibility with a vast range of hydraulic accessories such as suction strainers, return line filters, and large-bore hoses. For a hydraulic reservoir, a 2-inch port is typically employed for main suction lines to the pump, large return lines, or for significant drain/fill points, facilitating high flow rates necessary for efficient system operation and heat management.
Precision Dimensions: Outer Diameter (3.375) and Pilot (2.625)
The provided dimensions, Outer Diameter (OD) of 3.375 inches and a Pilot diameter of 2.625 inches, are critical for the precise fabrication and welding of this flange into a reservoir wall. The Outer Diameter (3.375 inches) represents the overall width of the flange body. This dimension is important for determining the footprint of the flange on the reservoir surface and for planning the welding joint. A larger OD typically indicates a more substantial flange body, contributing to its structural integrity and providing ample surface area for a robust circumferential weld.
The Pilot diameter (2.625 inches) refers to a machined recess or projection on the flange that helps center the flange within a pre-drilled or cut hole in the reservoir wall. This feature is vital for achieving concentric alignment during installation. When fabricating a hydraulic reservoir, a hole slightly larger than the pilot diameter would be cut into the steel plate. The pilot then fits snugly into this hole, ensuring the flange is perfectly centered before welding. This precise alignment is critical for several reasons: it ensures that the NPTF thread axis is perpendicular to the reservoir wall, preventing eccentric loading on the connecting pipe, and facilitates an even weld bead around the entire circumference, maximizing joint strength and integrity. The difference between the outer diameter and the pilot diameter defines the shoulder of the flange that rests against the reservoir wall, providing the primary surface for the fillet weld.
Application in Hydraulic Reservoir Fabrication: Engineered for Performance
The primary application of this 2 Inch NPTF Steel Forged Welding Flange is the fabrication or modification of hydraulic reservoirs. Hydraulic reservoirs are fundamental components of any hydraulic system, serving multiple critical functions: storing the hydraulic fluid, dissipating heat generated by the system, allowing for air release, settling contaminants, and providing a stable foundation for other hydraulic components. The integrity and design of the reservoir significantly impact the overall efficiency, longevity, and reliability of the hydraulic system.
When fabricating a custom hydraulic reservoir, designers require robust and versatile connection points for various lines and components. This welding flange provides an ideal solution for creating durable NPTF ports for:
- Suction Lines: Connecting the reservoir to the main hydraulic pump, often requiring large diameters like 2 inches to minimize pressure drop and prevent cavitation.
- Return Lines: Facilitating the flow of fluid back into the reservoir after performing work, often equipped with diffusers or filters.
- Drain Ports: For complete fluid evacuation during maintenance.
- Fill Ports: For adding or replenishing hydraulic fluid.
- Accessory Ports: For pressure gauges, temperature sensors, breather caps, fluid level indicators, and other auxiliary equipment requiring a reliable threaded connection.
The "rugged, forged steel construction" ensures that these connection points can withstand the internal pressures of the hydraulic system, external vibrations, and the mechanical stresses of connected components without deforming or failing. The NPTF dryseal thread further guarantees that these critical entry and exit points remain leak-free, preventing fluid loss, contamination, and the associated operational issues. For custom fabricators, this flange offers the flexibility to design reservoirs tailored to specific application requirements, ensuring optimal performance and compliance with industry standards. For maintenance professionals, it provides a dependable solution for adding new ports or replacing damaged ones on existing reservoirs, thereby extending the service life of valuable equipment.
Installation and Quality Assurance
Proper installation of this welding flange is crucial to harness its full design potential. Given its plain finish carbon steel construction, the flange is optimally prepared for welding. The welding process should be performed by qualified welders utilizing appropriate welding procedures, such as Shielded Metal Arc Welding (SMAW), Gas Metal Arc Welding (GMAW), or Gas Tungsten Arc Welding (GTAW), in accordance with industry standards like AWS D1.1 for structural steel welding. Adequate surface preparation, including cleaning and deburring of both the flange and the reservoir wall, is essential to achieve a sound, defect-free weld joint. Preheating may be necessary depending on the wall thickness of the reservoir and the welding procedure, to prevent cracking and ensure proper fusion.
Post-welding inspection, including visual examination for defects, porosity, and undercuts, is recommended. For critical applications, non-destructive testing methods such as dye penetrant inspection or magnetic particle testing can be employed to verify weld integrity. Once welded, the NPTF thread ensures a secure connection for mating components. While designed for a dryseal, the use of a compatible, high-quality pipe thread sealant can be considered for added assurance in extreme pressure or vibration environments, provided the sealant does not compromise the hydraulic fluid. Post-installation, the plain steel flange should be painted or coated to protect against environmental corrosion.
Buyers Products is renowned for its commitment to manufacturing high-quality industrial components. This 2 Inch NPTF Steel Forged Welding Flange is a testament to that dedication, engineered to meet the rigorous demands of industrial hydraulic applications. Its adherence to recognized thread standards, coupled with the inherent advantages of forged carbon steel, positions it as a reliable, long-lasting solution for any hydraulic system design or repair project. Its robust nature minimizes maintenance requirements and contributes to the overall safety and operational efficiency of the machinery it serves. This flange is an investment in the reliability and longevity of your hydraulic infrastructure, offering peace of mind through superior engineering and construction.
