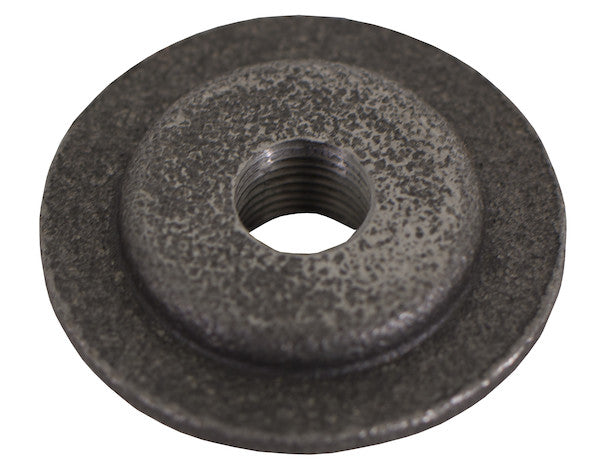

The Forged Welding Flange from Buyers Products features solid, rugged, forged steel construction in a variety of sizes to meet your reservoir fabrication needs. Use the flanges when fabricating your own hydraulic reservoir or adding a port to an existing reservoir. Choose from a wide range of sizes to match your requirements.
Specifications
| Construction | Forged |
|---|---|
| Finish | Plain |
| Material | Carbon Steel |
| Outer Diameter | 5.812 |
| Pilot | 4.719 |
| Size | 4.00 |
| Thickness | - |
Advanced Technical Overview: 4 Inch NPTF Steel Forged Welding Flange for Hydraulic Systems
The 4 Inch NPTF Steel Forged Welding Flange represents a critical component in the design and fabrication of robust hydraulic fluid power systems, particularly in the construction or modification of hydraulic reservoirs. Engineered for superior performance and longevity, this flange combines the metallurgical advantages of forged carbon steel with the precise sealing capabilities of the NPTF thread standard, ensuring a reliable and leak-free connection point for demanding industrial applications.
Material Science: The Superiority of Forged Carbon Steel
The foundation of this flange's exceptional performance lies in its material: forged carbon steel. Carbon steel, primarily an alloy of iron and carbon (typically up to 2.1% by weight), offers a compelling balance of strength, ductility, and cost-effectiveness. For piping components such as this flange, the specific grade is often akin to ASTM A105, a standard specification for forged carbon steel piping components, valves, flanges, and fittings intended for high-temperature service, although its properties make it equally suitable for ambient and fluctuating temperature hydraulic applications.
The forging process itself is paramount to the material's integrity. Unlike casting, which involves pouring molten metal into a mold, or machining from plate, forging involves subjecting solid metal to localized compressive forces using hammers or presses. This process refines the grain structure of the steel, aligning the metallurgical grains along the contours of the flange. This grain flow orientation significantly enhances the material's mechanical properties, particularly in terms of tensile strength, impact resistance, and fatigue life. Forging eliminates internal porosity, gas pockets, and other casting defects that can act as stress concentrators and lead to premature failure under dynamic loads or pressure pulsations inherent in hydraulic systems. The result is a uniformly dense, structurally sound component with superior resistance to crack propagation and catastrophic failure, a critical consideration in safety-sensitive hydraulic applications where fluid containment and system reliability are non-negotiable.
The carbon content within the steel contributes directly to its hardness and strength, while maintaining sufficient ductility to withstand stress and absorb energy without brittle fracture. This specific type of carbon steel offers excellent weldability, a key characteristic for a welding flange. Proper welding procedures, including pre-heating for thicker sections and appropriate filler metals, ensure that the weld joint achieves strength comparable to the base material, forming a monolithic structure with the reservoir wall.
The NPTF Standard: Ensuring Dryseal Connections
The designation "NPTF" (National Pipe Taper Fuel, sometimes referred to as Dryseal National Pipe Taper) indicates a specific type of tapered pipe thread designed to create a leak-proof seal without the need for thread sealant, particularly for fluid power applications. While thread sealants or PTFE tape are often used as an added precaution or lubricant, the NPTF design ensures metal-to-metal contact between the crests and roots of the threads, as well as the flanks, when properly tightened. This differs significantly from standard NPT (National Pipe Taper) threads, which rely on sealant to fill the helical leak path that arises from crest-to-root clearance.
The "4 Inch" specification refers to the nominal pipe size (NPS), which is a standardized dimension for pipes and fittings. It's important to understand that the 4-inch designation is a nominal value, not an exact measurement of any specific diameter of the thread or opening. Instead, it corresponds to a pipe with a specific outside diameter and wall thickness that allows for standardized flow rates and connection compatibility. For a 4-inch NPTF thread, the major and minor diameters, pitch diameter, and taper per foot are precisely defined by ASME B1.20.3 standard to ensure interoperability between components from various manufacturers. The tapered design, with threads typically tapering at 1 in 16 (0.75 inch per foot), ensures that as the male and female threads are tightened, they wedge together, creating an interference fit that effectively blocks fluid pathways.
In hydraulic systems, where fluids are often under high pressure and subject to vibration and temperature fluctuations, the integrity of every connection is paramount. An NPTF connection, when correctly made, provides exceptional sealing performance, minimizing the risk of costly and hazardous leaks. This dryseal capability is particularly advantageous in environments where contamination from thread sealants could be problematic, or where rapid assembly and disassembly are required.
Flange Design and Reservoir Integration
This 4 Inch NPTF Steel Forged Welding Flange is specifically engineered for reservoir fabrication. Its design features, including the Outer Diameter (5.812 inches) and Pilot Diameter (4.719 inches), are critical for its integration into a hydraulic tank or vessel. The pilot diameter refers to a machined boss or shoulder that fits precisely into a corresponding hole cut into the reservoir wall. This pilot ensures accurate alignment of the flange relative to the reservoir opening, facilitating precise positioning for subsequent welding operations. Furthermore, it provides a stable bearing surface, enhancing the structural integrity of the connection by distributing mechanical stresses more evenly across the tank wall.
The outer diameter provides ample surface area for a robust fillet weld or a full penetration weld to secure the flange to the reservoir. The plain finish of the carbon steel means the flange comes free of any coatings or platings, which is ideal for welding. Coatings like paint or galvanization would need to be meticulously removed before welding to prevent contamination of the weld pool, ensure proper fusion, and avoid the generation of hazardous fumes. The plain finish streamlines the fabrication process, allowing for immediate preparation and welding.
When incorporating this flange into a hydraulic reservoir, the welding procedure is critical. Common practices involve Gas Metal Arc Welding (GMAW/MIG), Shielded Metal Arc Welding (SMAW/Stick), or Gas Tungsten Arc Welding (GTAW/TIG), depending on the fabricator's preference and equipment. Pre-heating of the flange and reservoir material may be necessary, especially for thicker sections or in colder environments, to prevent rapid cooling of the weld and reduce the risk of hydrogen embrittlement and cracking. A multi-pass weld ensures sufficient penetration and build-up, creating a high-strength, leak-proof joint capable of withstanding the dynamic pressures and vibrations inherent in hydraulic systems. Post-weld inspection, including visual examination, dye penetrant testing, or even ultrasonic testing for critical applications, confirms the integrity of the weld.
Applications in Hydraulic Systems
Hydraulic reservoirs serve as the storage vessel for hydraulic fluid, providing fluid to the pump, accommodating volume changes due to cylinder extension/retraction and thermal expansion, and allowing for fluid de-aeration and contaminant settling. The ability to customize a reservoir with strategically placed ports is essential for system efficiency and maintenance. This 4 Inch NPTF flange provides a standardized, durable interface for:
- Suction Lines: Connecting large diameter suction lines from the reservoir to the hydraulic pump, often requiring larger ports to minimize pressure drop and prevent cavitation.
- Return Lines: Allowing hydraulic fluid to return from the system back to the reservoir, typically below the fluid level to prevent aeration.
- Drain Ports: Facilitating fluid drainage for maintenance and fluid changes.
- Auxiliary Component Integration: Providing connection points for filters, heaters, coolers, level indicators, temperature sensors, and pressure transducers, all of which are vital for monitoring and maintaining optimal hydraulic fluid conditions.
The robust construction and secure sealing of this flange ensure that these critical connections remain steadfast, preventing fluid loss, air ingress, and system contamination, all of which can lead to premature component wear, reduced efficiency, and costly downtime.
Technical Specifications in Detail
- Construction: Forged: As detailed, forging enhances the material's structural integrity, creating a component with superior strength, ductility, and fatigue resistance compared to other manufacturing methods. This is particularly vital for components that are permanently welded into a pressure vessel like a hydraulic reservoir, where reliability is paramount.
- Finish: Plain: The absence of a surface coating ensures optimal weldability. It eliminates the need for additional surface preparation, saving time and labor in the fabrication process and ensuring a clean, strong metallurgical bond between the flange and the reservoir material.
- Material: Carbon Steel: Chosen for its excellent mechanical properties, including high tensile strength, good impact resistance, and cost-effectiveness. Its compatibility with standard hydraulic fluids and its inherent weldability make it an ideal choice for this application.
- Outer Diameter: 5.812 inches: This dimension defines the overall footprint of the flange on the reservoir surface. It provides sufficient material around the bore and pilot for a strong weld and structural stability, distributing the forces acting on the NPTF connection over a larger area of the reservoir wall.
- Pilot: 4.719 inches: The pilot diameter is a precision-machined feature that serves to accurately center the flange within a pre-cut hole in the reservoir wall. This precise fit simplifies installation, ensures proper alignment of the NPTF port, and provides a stable base for welding, guaranteeing concentricity and reducing the risk of distortion during fabrication.
- Size: 4.00 inches (NPTF): This nominal size indicates the thread specification. It dictates the compatibility with 4-inch NPTF male fittings, enabling the connection of appropriately sized hydraulic piping and components. The large bore allows for high flow rates, crucial for pump suction lines or high-volume return lines where minimizing pressure drop is essential for system efficiency.
- Thickness: -: While not explicitly quantified as a single dimension, the thickness of a forged welding flange is inherently optimized through its design and manufacturing process. The robust forged construction ensures that the wall thickness around the threaded bore and across the body of the flange is sufficient to withstand the internal and external forces encountered in typical hydraulic reservoir applications. Its structural integrity is a direct result of the controlled material distribution achieved during forging, ensuring adequate material where stresses are highest and providing the necessary rigidity for the welded connection.
Quality and Performance Assurance
Buyers Products is committed to delivering components that meet stringent quality standards. This 4 Inch NPTF Steel Forged Welding Flange undergoes rigorous quality control checks throughout the manufacturing process, from material selection to final dimension verification. Adherence to industry standards for thread geometry, material composition, and forging quality ensures that each flange performs reliably under the demanding conditions of hydraulic applications. The consistent quality minimizes variation, simplifying design and fabrication for engineers and welders.
Conclusion
The 4 Inch NPTF Steel Forged Welding Flange is an indispensable component for professionals engaged in the fabrication or modification of hydraulic reservoirs. Its advanced design, rooted in forged carbon steel construction and precision NPTF threading, offers unparalleled strength, leak resistance, and ease of integration. By providing a secure, high-integrity port, this flange enables the efficient and reliable operation of hydraulic systems, underscoring its value as a critical element for demanding industrial and mobile equipment applications. Its robust engineering ensures long-term performance, contributing significantly to the overall durability and safety of the hydraulic machinery it serves.
