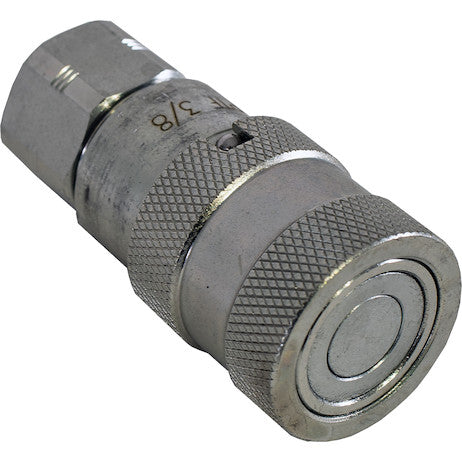

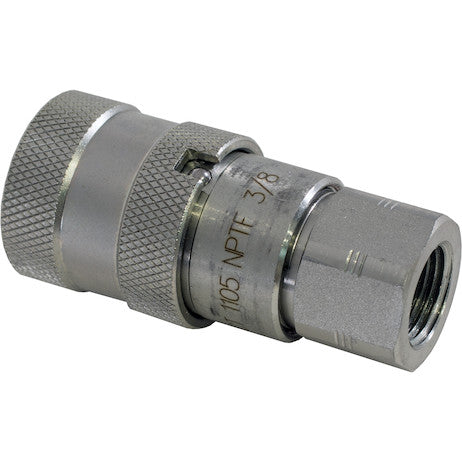

The Female Flush-Face Coupler from Buyers Products is easy to connect with a simple push. There's no need to retract the sleeve. Manufactured to ISO 16028 specs, the coupler has a 5000 PSI rating and a 4 to 1 safety factor. It has several key safety and operational features that protect your system. Its locking sleeve prevents accidental disconnection while in operation. The coupler also is designed to prevent air inclusion upon connection and spillage upon disconnection. A push-on rubber dust protector for the coupler side helps keep contaminants from entering the hydraulic system.
Specifications
| Coupler Material | Carbon Steel |
|---|---|
| Flow Rate (GPM) | 25 |
| Type | NPT |
| Wing Material | Carbon Steel |
The 1/2 Inch Female Flush-Face Coupler with a 1/2 Inch NPT Port represents a critical component in modern hydraulic systems, engineered to deliver unparalleled performance, reliability, and safety. This product is meticulously designed to address the demanding requirements of various industrial and mobile hydraulic applications, where maintaining system integrity and operational efficiency is paramount. Its designation as a flush-face coupler signifies a superior design paradigm that offers distinct advantages over traditional poppet or ball-type couplers, primarily in minimizing fluid spillage and preventing air inclusion.
At its core, the flush-face design eliminates cavities and recesses present in conventional quick-release couplings. Upon disconnection, the mating faces of the coupler and nipple are flat and smooth, effectively reducing the volume of trapped fluid that can be released into the environment. This non-spill characteristic is not merely an environmental benefit, reducing potential ground contamination and adherence to stringent environmental regulations, but also a significant safety advantage. Minimizing hydraulic fluid spills mitigates slip hazards on work sites, reduces the risk of skin irritation for operators, and keeps equipment cleaner, thereby extending the lifespan of seals and components by preventing abrasive contamination. Furthermore, the absence of fluid loss helps maintain system fluid levels, reducing the frequency of top-ups and associated operational costs.
Equally vital is the prevention of air inclusion during the connection process. Air is a highly compressible medium, and its presence in a hydraulic system can lead to numerous detrimental effects, including reduced system efficiency, erratic operation, cavitation damage to pumps and other components, increased noise, and premature wear of seals and bearings. The sophisticated internal valving mechanism of this flush-face coupler ensures that when the female coupler and its corresponding male nipple are joined, air pockets are expelled before the fluid path is fully opened. This meticulous engineering ensures a clean, air-free connection, thereby preserving the volumetric efficiency and responsiveness of the hydraulic system.
Compliance with the ISO 16028 standard is a cornerstone of this coupler's design, guaranteeing interchangeability with other flush-face couplings manufactured to the same specification, regardless of the brand. This standardization is crucial for operators and maintenance personnel, as it simplifies part sourcing and reduces the complexity of managing diverse equipment fleets. ISO 16028 specifies critical dimensions, performance criteria, and testing methods, ensuring that couplers meet rigorous standards for pressure rating, flow capacity, and operational characteristics. This adherence provides a level of assurance regarding the coupler's quality, durability, and compatibility within a global industrial context, facilitating seamless integration into existing hydraulic circuits.
The robust pressure rating of 5000 PSI (Pounds per Square Inch) underscores the coupler's capability to operate reliably in high-pressure hydraulic environments. This rating is not merely a theoretical maximum but an indicator of the engineered strength and integrity of the component under dynamic operational stresses. Coupled with a 4:1 safety factor, this product offers an exceptional margin of safety. A 4:1 safety factor implies that the ultimate burst pressure of the coupler is at least four times its stated working pressure. This substantial safety margin is critical in preventing catastrophic failures due to unexpected pressure spikes, fatigue, or material degradation over time, thereby protecting both equipment and personnel. Such a high safety factor is particularly important in applications where sudden load changes, impacts, or demanding duty cycles are common, ensuring sustained performance under the most challenging conditions.
The material selection for critical components, specifically carbon steel, is integral to achieving this high-pressure capability and overall robustness. Carbon steel offers an excellent balance of tensile strength, yield strength, and fatigue resistance, making it an ideal choice for hydraulic components subjected to significant internal pressures and external forces. Its inherent mechanical properties contribute to the coupler's long-term durability and resistance to wear and tear. While carbon steel is known for its strength, it is typically surface-treated, often with plating (e.g., zinc or nickel), to enhance its corrosion resistance in various operating environments, ensuring that external elements do not compromise the structural integrity or operational performance over time. The "Wing Material" specified as Carbon Steel in the table likely refers to internal locking mechanisms or structural supports within the coupler, reinforcing the overall durable construction.
A flow rate capacity of 25 GPM (Gallons Per Minute) for this 1/2-inch coupler is a significant performance metric, indicating its ability to handle substantial fluid volumes without excessive pressure drop or generating undue heat. In hydraulic systems, the flow rate directly impacts the speed and responsiveness of actuators (cylinders and motors). A well-matched flow rate capacity ensures that the system can perform its intended tasks efficiently, minimizing energy losses and preventing system overheating. Excessive pressure drop across a coupler can lead to reduced power output, increased energy consumption, and premature wear of hydraulic fluid due to thermal degradation. The design of this coupler is optimized to facilitate smooth fluid passage, even at higher flow rates, thereby preserving system efficiency and component longevity.
The 1/2 Inch NPT (National Pipe Taper) port type is a widely recognized and utilized threading standard in North America for joining pipes and fittings. NPT threads are designed to create a leak-proof seal when tightened, as the tapered threads compress upon engagement, forming a metal-to-metal seal. The 1/2-inch size refers to the nominal pipe size, which is a standard dimension for hydraulic conduits. This choice of port ensures broad compatibility with a vast array of hydraulic hoses, tubes, and other components, simplifying system design and maintenance. Proper installation of NPT fittings typically involves the use of thread sealant or PTFE tape to ensure a reliable, leak-free connection, especially in high-pressure applications. The precision machining of these NPT threads on the coupler ensures a robust and durable connection to the hydraulic circuit.
Ease of connection is a standout operational feature of this flush-face coupler. The "push-to-connect" mechanism, which eliminates the need to retract a sleeve, significantly enhances user convenience and operational speed. In many hydraulic applications, quick and frequent connection and disconnection of implements or tools are necessary. The ability to simply push the male nipple into the female coupler until it latches streamlines these processes, reducing operator fatigue and increasing productivity. This design is particularly beneficial in scenarios where operators are wearing gloves or working in confined spaces, where manipulating a traditional sleeve might be challenging.
Complementing the push-to-connect feature is the integrated locking sleeve. This critical safety mechanism provides an additional layer of security, actively preventing accidental disconnection during operation. Hydraulic systems often operate under dynamic conditions involving vibration, shock loads, and varying pressure surges. Without a robust locking mechanism, there is a risk of spontaneous disengagement, which could lead to sudden loss of hydraulic power, uncontrolled movement of machinery, and potentially severe injuries or damage. The locking sleeve engages automatically upon connection and provides a positive lock that requires a deliberate action to disengage, ensuring that the connection remains secure even in the most demanding environments.
The inclusion of a push-on rubber dust protector further emphasizes the commitment to system longevity and reliability. Contamination is one of the leading causes of hydraulic system failure. Even microscopic particles of dirt, dust, or moisture can abrade internal components, clog filters, and degrade hydraulic fluid properties. When the coupler is disconnected, the open port becomes vulnerable to ingress of environmental contaminants. The rubber dust protector acts as a physical barrier, sealing off the coupler face and preventing foreign particles from entering the hydraulic circuit. This simple yet effective accessory is vital for maintaining the cleanliness of the hydraulic fluid, thereby extending the life of pumps, valves, cylinders, and other sensitive components, and ultimately reducing maintenance costs and downtime.
The design and manufacturing excellence embedded in this 1/2 Inch Female Flush-Face Coupler are evident in its meticulous construction and performance specifications. Each unit undergoes stringent quality control processes to ensure that it meets or exceeds the specified ISO 16028 standards. Precision machining is employed to achieve the tight tolerances required for the flush-face sealing surfaces and the internal valving mechanisms, which are critical for preventing spills and air inclusion. The heat treatment processes applied to the carbon steel components are carefully controlled to optimize material hardness, strength, and wear resistance, ensuring that the coupler can withstand millions of connection/disconnection cycles and prolonged exposure to high-pressure fluid pulses.
This coupler is ideally suited for a broad spectrum of applications across various industries. In construction, it is indispensable for connecting hydraulic attachments such as hammers, grapples, and compactors to excavators and skid steers, where quick changeovers are essential for operational flexibility. Agricultural machinery, including tractors and implements like plows, seeders, and loaders, relies heavily on these couplers for efficient power transfer and attachment versatility. In the utility sector, for equipment such as aerial lifts and trenchers, the non-spill feature is particularly valuable for protecting environmentally sensitive areas and ensuring operator safety. Industrial settings, including manufacturing plants and material handling facilities, benefit from the quick-connect capabilities for various hydraulic tools and test benches. Mobile hydraulic applications, in general, where equipment is frequently reconfigured or serviced in the field, find this coupler design to be a significant asset due to its robustness and user-friendly features.
Proper installation, operation, and maintenance are crucial to maximizing the service life and performance of the 1/2 Inch Female Flush-Face Coupler. When installing, ensure that the mating NPT port on the hydraulic hose or rigid tubing is clean and free of burrs or debris. Apply an appropriate thread sealant to the male NPT threads to guarantee a leak-proof connection. Avoid overtightening, as this can damage the threads or deform the coupler body, compromising its integrity. During operation, always ensure that the coupler and its corresponding male nipple are fully engaged and that the locking sleeve has securely latched before pressurizing the system. For disconnection, follow the manufacturer's guidelines, typically involving a deliberate retraction of the locking sleeve before separating the halves.
Routine maintenance should include regular inspection of the coupler faces, seals, and the locking sleeve for any signs of wear, damage, or contamination. The rubber dust protector should be utilized whenever the coupler is disconnected to prevent the ingress of foreign particles. Any damage to the sealing surfaces or internal components warrants immediate replacement to prevent fluid leaks, air ingress, or catastrophic failure. While the carbon steel construction is durable, environmental factors such as extreme temperatures, corrosive agents, or abrasive dust can impact its lifespan. Periodic cleaning and protective treatments, if applicable, can further extend the coupler's operational life.
In conclusion, the 1/2 Inch Female Flush-Face Coupler with a 1/2 Inch NPT Port from Buyers Products is an exemplary piece of hydraulic engineering. Its adherence to ISO 16028 standards, robust 5000 PSI pressure rating with a 4:1 safety factor, efficient 25 GPM flow rate, and premium carbon steel construction collectively establish it as a highly reliable and safe choice for demanding hydraulic applications. The ingenious push-to-connect mechanism, combined with a secure locking sleeve, significantly enhances operational convenience and safety. Crucially, its flush-face design actively prevents both air inclusion upon connection and fluid spillage upon disconnection, protecting hydraulic systems from contamination and operators from hazards. The added protection of a rubber dust protector further safeguards the system's longevity. This coupler is not just a component; it is an investment in the efficiency, safety, and longevity of hydraulic machinery, providing peace of mind through its robust design and superior performance characteristics.
