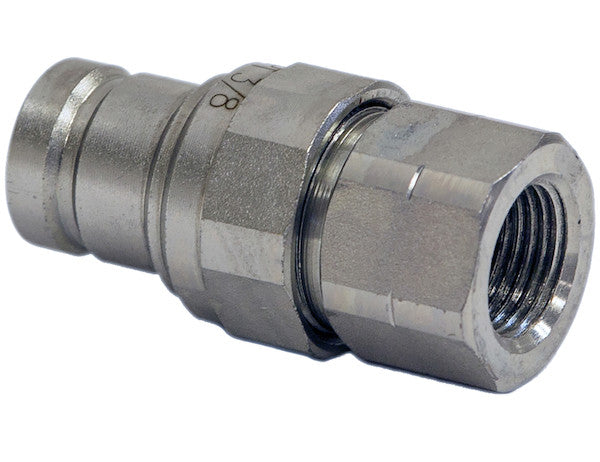

The Male Flush-Face Coupler from Buyers Products is easy to connect with a simple push. There's no need to retract the sleeve. Manufactured to ISO 16028 specs, the coupler has a 5000 PSI rating and a 4 to 1 safety factor. It has several key safety and operational features that protect your system. Its locking sleeve prevents accidental disconnection while in operation. The coupler also is designed to prevent air inclusion upon connection and spillage upon disconnection. A push-on rubber dust protector for the coupler side helps keep contaminants from entering the hydraulic system.
Specifications
| Coupler Material | Carbon Steel |
|---|---|
| Flow Rate (GPM) | 45 |
| Size | - |
| Type | NPT |
| Wing Material | - |
In the demanding world of hydraulic systems, the efficiency, reliability, and safety of connection points are paramount. The 1/2 Inch Male Flush-Face Coupler with 3/4 Inch NPT Port from Buyers Products represents a state-of-the-art solution engineered to meet and exceed these critical requirements. This comprehensive technical description will delve into the specific features, engineering principles, material science, and operational advantages that make this coupler an indispensable component for a wide array of hydraulic applications.
Advanced Hydraulic Connection Technology: The Flush-Face Paradigm
Traditional hydraulic quick-disconnect couplers often utilize poppet or ball-valve designs, which, while effective, can present certain challenges, particularly concerning fluid spillage and contaminant ingress. The flush-face design, epitomized by this Buyers Products coupler, addresses these issues directly. Characterized by its flat mating surfaces, a flush-face coupler creates a minimal void when disconnected, significantly reducing fluid loss to the environment and preventing air from entering the hydraulic circuit. This design is not merely a convenience but a strategic engineering choice that contributes to environmental protection, operational cleanliness, and the longevity of hydraulic components.
Adherence to the ISO 16028 standard is a cornerstone of this coupler's design philosophy. ISO 16028 specifies the dimensions, performance requirements, and test methods for quick-action couplings for hydraulic applications, particularly for those with flush faces. By manufacturing to this internationally recognized standard, Buyers Products ensures universal compatibility with other ISO 16028 compliant nipples/plugs, simplifying system integration and offering peace of mind regarding interchangeability across various equipment manufacturers. This compliance also guarantees a baseline of performance characteristics, including pressure integrity and sealing effectiveness, critical for demanding hydraulic environments.
Key Design Specifications and Their Operational Impact
1/2 Inch Coupler Size and Male Configuration
The designation "1/2 Inch Male Flush-Face Coupler" refers to the nominal diameter of the coupler's hydraulic flow path and its gender. The 1/2 inch size is a common dimension in many medium-duty hydraulic systems, indicating its capacity to handle a substantial volume of fluid flow. This sizing is crucial for matching the coupler to the overall flow requirements of the hydraulic circuit, ensuring that it does not become a restrictive bottleneck that could reduce system efficiency or generate excessive heat. A male coupler is designed to connect with a corresponding female nipple or plug, forming a secure and leak-tight union. Understanding the gender of the coupler is fundamental for proper system design and component selection.
3/4 Inch NPT Port for Robust System Integration
The "3/4 Inch NPT Port" specifies the type and size of the thread used to connect the coupler to a hydraulic hose or rigid piping. NPT, or National Pipe Taper, is a widely adopted standard for tapered threads used in North America for sealing pipes and fittings. The tapered design of NPT threads allows them to form a mechanical seal when tightened, as the flanks of the male and female threads wedge together. While NPT connections benefit from the application of thread sealant (such as PTFE tape or pipe dope) to ensure a leak-free seal, their robust mechanical engagement makes them highly suitable for high-pressure hydraulic applications. The 3/4 inch size indicates a larger bore connection to the hydraulic circuit, which complements the 1/2 inch coupler size by minimizing restriction at the connection point, allowing the specified 45 GPM flow rate to be achieved efficiently. This careful sizing ensures optimal fluid transfer from the hose or pipe into the coupler.
Pressure Rating and Safety Factor: Engineered for Resilience
A critical specification for any hydraulic component is its pressure rating. This coupler boasts a formidable 5000 PSI (Pounds per Square Inch) rating, signifying its capability to safely withstand system pressures up to this limit. This high-pressure capacity makes it suitable for heavy-duty applications found in construction, agriculture, and industrial machinery where substantial forces are generated by hydraulic actuators. Beyond the nominal pressure rating, the inclusion of a 4 to 1 safety factor is a testament to the coupler's robust engineering. A 4:1 safety factor means that the ultimate bursting pressure of the coupler is at least four times its stated working pressure. For this coupler, the theoretical burst pressure would exceed 20,000 PSI. This substantial safety margin is designed to account for unforeseen pressure spikes, dynamic loads, material fatigue over time, and potential manufacturing variances, thereby ensuring the longevity of the component and, more critically, the safety of personnel operating the equipment. This factor is crucial in preventing catastrophic failures that could lead to injury, equipment damage, and significant downtime.
Flow Rate (45 GPM): Optimizing Hydraulic Performance
The specified flow rate of 45 GPM (Gallons Per Minute) is a key performance indicator that defines the coupler's volumetric capacity. In hydraulic systems, flow rate directly correlates with the speed of actuators (e.g., cylinder extension/retraction speed, hydraulic motor RPM). A 45 GPM capacity is indicative of a coupler suitable for systems requiring rapid operation or supplying fluid to larger hydraulic components. Maintaining an adequate flow rate through the coupler is essential to prevent pressure drop, excessive heat generation, and cavitation within the hydraulic fluid, all of which can degrade system performance and accelerate component wear. Engineers must ensure that the coupler's flow rate capacity aligns with or exceeds the maximum flow demands of the hydraulic system to maintain optimal operational efficiency.
Material Science: The Strength of Carbon Steel
The selection of Carbon Steel as the coupler material is a deliberate choice rooted in its superior mechanical properties for hydraulic applications. Carbon steel offers an excellent balance of strength, hardness, and durability, which are critical for components subjected to high pressures and repetitive mechanical stresses. Its high tensile strength ensures that the coupler can withstand the expansive forces exerted by pressurized hydraulic fluid without deformation or failure. Furthermore, carbon steel exhibits good fatigue resistance, essential for components that undergo constant pressure cycling. To enhance its inherent properties and provide resistance against corrosion, carbon steel components in hydraulic systems are typically surface treated, often with plating processes such such as zinc or nickel plating. These treatments create a protective barrier against rust and environmental degradation, extending the coupler's service life, especially in outdoor or harsh operational environments. The robustness of carbon steel ensures that the coupler maintains its structural integrity and performance characteristics throughout its operational lifespan.
Operational Features: Enhancing User Experience and System Integrity
Effortless "Push-to-Connect" Mechanism
A standout feature of this coupler is its "easy to connect with a simple push" mechanism, eliminating the need to retract a sleeve manually. This ergonomic design significantly improves operational efficiency and reduces operator fatigue. Internally, this is achieved through a carefully engineered valving system and spring-loaded components. When the male and female halves are brought together, the internal valves are automatically opened by the engaging forces, allowing fluid flow. This intuitive connection method is particularly beneficial in scenarios where operators wear gloves, work in confined spaces, or need to connect/disconnect frequently, streamlining workflows and minimizing the potential for improper connections. The absence of a traditional sleeve retraction mechanism also reduces the number of moving parts exposed to the environment, potentially enhancing reliability.
Locking Sleeve for Uninterrupted Operation
The integrated locking sleeve is a crucial safety feature that prevents accidental disconnection during operation. In dynamic hydraulic environments, vibrations, sudden impacts, or hose tension can inadvertently disengage couplers. The locking sleeve, once engaged, provides a positive mechanical lock, securing the connection and ensuring continuous fluid flow. This prevents not only the loss of hydraulic power but also potentially dangerous fluid spills and "hose whip" incidents, where a suddenly disconnected pressurized hose can flail dangerously. This feature underscores the commitment to operational safety and system reliability, safeguarding both equipment and personnel.
Prevention of Air Inclusion and Fluid Spillage
Two of the most significant challenges in hydraulic quick-connect operations are air inclusion upon connection and fluid spillage upon disconnection. This Buyers Products coupler is meticulously designed to counteract both:
- Air Inclusion: When air enters a hydraulic system, it can lead to several detrimental effects, including cavitation (formation of vacuum bubbles that implode, causing damage), reduced system efficiency, spongy actuator response, increased noise, and accelerated wear on pumps and other components. The flush-face design, combined with precision internal valving, minimizes the air pocket between the coupler halves, ensuring that virtually no air is introduced into the system during connection. This is a critical factor for maintaining the purity and performance of hydraulic fluid.
- Fluid Spillage: Spillage of hydraulic fluid is a concern from environmental, safety, and economic perspectives. Environmentally, leaks contribute to soil and water contamination. Safety-wise, spilled fluid creates slip hazards. Economically, fluid loss translates to increased operational costs and the need for frequent refills. The flush-face design inherently minimizes spillage by presenting flat, sealed surfaces upon disconnection, effectively trapping residual fluid within the coupler bodies. This feature makes the coupler an environmentally responsible and cost-effective choice.
Push-On Rubber Dust Protector: A Simple Yet Vital Defense
Contamination is the single largest cause of hydraulic system failure. Even microscopic particles can abrade precision components, leading to wear and premature failure. The inclusion of a push-on rubber dust protector for the coupler side is a simple yet highly effective measure in preventative maintenance. This cap prevents dust, dirt, moisture, and other environmental contaminants from entering the coupler bore when it is disconnected. By keeping the internal surfaces clean, it helps to maintain the integrity of the seals, prolong the life of the coupler, and, most importantly, prevent contaminants from migrating into the main hydraulic circuit when the coupler is reconnected. This small accessory plays a significant role in upholding the overall cleanliness and longevity of the hydraulic system.
Applications Across Industries
The robust construction, high-pressure rating, contamination control features, and ease of use make the 1/2 Inch Male Flush-Face Coupler with 3/4 Inch NPT Port suitable for a diverse range of demanding applications:
- Construction Equipment: Excavators, loaders, bulldozers, and other heavy machinery frequently utilize auxiliary hydraulic attachments that require quick and reliable connection. The coupler's resistance to shock, vibration, and contamination is ideal for the harsh construction site environment.
- Agricultural Machinery: Tractors, harvesters, and implements often feature multiple hydraulic lines for various functions. The flush-face design prevents soil and debris from entering the system, which is crucial for maintaining the delicate internal components of agricultural hydraulics.
- Mobile Hydraulics: Any vehicle-mounted hydraulic system, from utility trucks to forestry equipment, benefits from the ease of connection and the safety features of this coupler, ensuring stable operation during transport and use.
- Industrial Equipment: In manufacturing plants and industrial settings, where quick tooling changes or modular hydraulic systems are employed, this coupler provides a clean and efficient connection solution.
- Waste and Recycling Equipment: Often operating in dirty environments, equipment such as compactors and balers require durable, contamination-resistant hydraulic connections.
- Rental Fleets: For equipment that sees frequent connection/disconnection by various operators, the intuitive push-to-connect and locking features enhance user safety and reduce the likelihood of damage due to improper handling.
Installation, Maintenance, and System Integration
Proper installation is crucial for maximizing the performance and lifespan of the coupler. When connecting the 3/4 Inch NPT port to a hose or pipe, it is essential to use appropriate thread sealant and apply the correct torque specifications to achieve a leak-free seal without over-stressing the material. Over-tightening can deform threads and create stress concentrations, potentially leading to premature failure, while under-tightening will result in leaks. It is recommended to consult technical manuals or industry best practices for NPT thread installation.
For maintenance, the flush-face design inherently simplifies cleaning as there are no deep recesses for dirt to accumulate. Regular inspection of the coupler surfaces for scratches, dents, or wear is advisable. The rubber dust protector should be utilized whenever the coupler is disconnected to maintain internal cleanliness. Periodically checking the locking sleeve for proper function ensures continued safety against accidental disconnection.
When integrating this coupler into an existing hydraulic system, it is vital to verify compatibility with the system's operating pressure, fluid type, and flow rate requirements. The 1/2 inch coupler size and 45 GPM flow rate should be matched with corresponding system parameters to prevent efficiency losses or component strain. As a male coupler, it must be paired with an ISO 16028 compliant female nipple/plug of the same nominal size for optimal performance and secure connection.
Conclusion: A Pinnacle of Hydraulic Connector Technology
The 1/2 Inch Male Flush-Face Coupler with 3/4 Inch NPT Port from Buyers Products stands as a testament to advanced hydraulic engineering. Its adherence to the ISO 16028 standard, combined with a robust 5000 PSI pressure rating and a 4:1 safety factor, ensures unparalleled reliability and safety in demanding applications. The choice of carbon steel provides exceptional durability, further enhanced by protective treatments. Features such as the intuitive push-to-connect mechanism, secure locking sleeve, and meticulous design to prevent air inclusion and fluid spillage directly address critical operational challenges, leading to improved system efficiency, reduced environmental impact, and lower maintenance costs. The inclusion of a simple yet effective dust protector underscores a holistic approach to system integrity and longevity. For professionals seeking a high-performance, durable, and user-friendly hydraulic connection solution, this Buyers Products flush-face coupler is an exemplary choice, delivering consistent performance and peace of mind across various industrial, agricultural, and mobile hydraulic applications.
