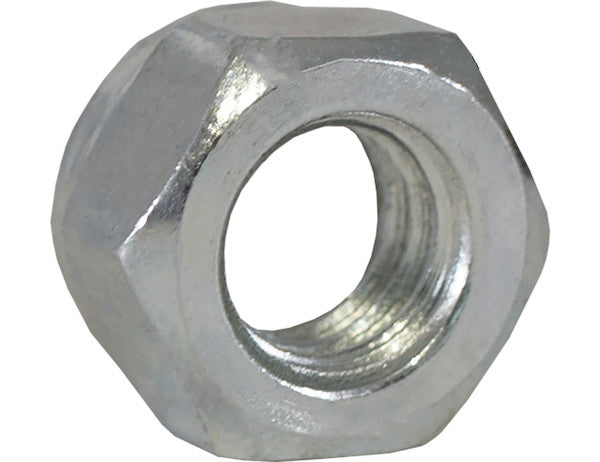

FNE031018034 - 5/16-18 Nylock Nut for 3008745 Ball Stud

Buyers Products Nylock Nut for Ball Stud must be purchased separately from Buyers Products Ball Stud and Gas Spring except for 3023460.

Specifications

The 5/16-18 Nylock Nut: Precision Fastening for the 3008745 Ball Stud

The 5/16-18 Nylock Nut, specifically designed for seamless integration with the Buyers Products 3008745 Ball Stud, represents a critical component in countless mechanical assemblies requiring secure, vibration-resistant fastening. This specialized nut is engineered to provide superior locking performance, ensuring the integrity and safety of connections, particularly in dynamic environments characteristic of commercial vehicle, industrial, and heavy-duty equipment applications. Its meticulous design and material selection underscore its role as a reliable element within complex systems, demanding precise engineering and dependable functionality.

Understanding the Nylock Mechanism

At the core of this fastener's efficacy is the "Nylock" locking mechanism, a design revered for its robust resistance to loosening caused by vibration, shock, and temperature fluctuations. A Nylock nut, also known as a nylon-insert lock nut or elastic stop nut, incorporates a polymer ring, typically made from nylon, strategically positioned within the nut's threads at one end. When the nut is threaded onto a bolt or stud, the internal diameter of the nylon insert is intentionally smaller than the major diameter of the thread. As the bolt engages with this insert, the nylon material deforms elastically around the threads.

This deformation creates a compressive force against the bolt threads, establishing a powerful friction lock that effectively resists rotational movement. Unlike traditional locking washers that rely on spring tension or deformation against the bearing surface, the Nylock mechanism provides a continuous, positive locking action along the length of the engaged nylon insert. This inherent design prevents the nut from backing off, even under severe vibratory loads, which is a paramount consideration in applications involving moving parts, such as gas springs, linkages, and structural supports.

The nylon insert also serves additional benefits, including an improved sealing effect against minor fluid ingress and a degree of electrical insulation, although its primary function remains thread locking. It is crucial to note that while Nylock nuts offer excellent resistance to loosening, the effectiveness of the nylon insert can diminish with repeated use, particularly if subjected to excessive torque or extreme temperatures. For critical applications, it is often recommended to use a new Nylock nut upon reassembly to ensure optimal locking performance.

Thread Specification: 5/16-18 UNC

The specification "5/16-18" is fundamental to the nut's compatibility and functional performance. "5/16" denotes the nominal major diameter of the nut and the corresponding stud in inches. This fractional representation translates to approximately 0.3125 inches. "18" refers to the thread pitch, specifically 18 threads per inch (TPI). This combination signifies a Unified National Coarse (UNC) thread series. UNC threads are characterized by their larger thread depth and wider flanks compared to fine threads (UNF), which makes them less susceptible to damage from cross-threading, easier to assemble in field conditions, and generally stronger in termsile and shear strength applications due to the larger root area.

The selection of a coarse thread for components like ball studs and their mating nuts is often predicated on the need for robust engagement, resistance to stripping, and ease of manufacturing. Precision in thread manufacturing, adhering to standards such as ASME B1.1 for Unified Inch Screw Threads, ensures that the nut provides a snug, accurate fit with the 3008745 Ball Stud. Proper thread engagement is not merely about mechanical fit; it directly influences the load distribution across the threads and, consequently, the overall strength and fatigue life of the joint. Mismatched threads or compromised thread integrity can lead to premature failure, making the 5/16-18 UNC specification a critical determinant of system reliability.

Material Composition: Carbon Steel

This 5/16-18 Nylock Nut is fabricated from carbon steel, a material chosen for its exceptional balance of strength, durability, and cost-effectiveness. Carbon steel, primarily an alloy of iron and carbon, can be engineered to exhibit a wide range of mechanical properties through variations in carbon content and heat treatment processes. For fastener applications, medium to high carbon steel grades (e.g., SAE Grade 5 or Grade 8 equivalent, or ASTM A563 Grade A or C) are commonly employed, providing the necessary tensile strength and hardness to withstand significant clamping forces and operational stresses without yielding or fracturing.

The inherent toughness of carbon steel allows the nut to absorb and distribute loads effectively, making it suitable for applications where the fastener may experience dynamic forces or shock. While plain carbon steel does possess some inherent resistance to wear, its primary advantage lies in its structural integrity. Its widespread availability and ease of manufacture through processes such as cold forming and machining contribute to the economical production of high-volume fasteners. The selection of carbon steel for this Nylock nut ensures that it can reliably perform its critical fastening function within the intended operational parameters of the 3008745 Ball Stud.

Finish and Color: Plain Black

The nut is specified with a "Plain" finish and "Black" color. A plain finish, also referred to as a "mill finish" or "self-color," indicates that the fastener has not undergone any significant post-manufacturing surface treatment such as plating (e.g., zinc, chrome) or coating (e.g., phosphating, galvanizing). In the context of carbon steel, a plain finish typically means the surface retains its natural appearance from the manufacturing process, possibly with a light protective oil film applied to prevent flash rust during storage and transit.

The "Black" color often results from this light oiling or a very thin phosphate coating that enhances initial corrosion resistance and provides a uniform dark appearance without significant build-up that could affect thread tolerances. While plain finished fasteners offer excellent thread engagement without the risk of hydrogen embrittlement sometimes associated with plating processes, they provide minimal inherent corrosion resistance in highly corrosive environments. For applications in such conditions, additional protective measures, such as painting the assembled component, applying corrosion-inhibiting greases, or selecting fasteners with specialized coatings, may be necessary. The plain black finish is typically chosen for applications where the aesthetic is secondary, where the component will be painted after assembly, or where the operating environment is relatively dry and benign.

Integration with the 3008745 Ball Stud and Gas Springs

The 5/16-18 Nylock Nut is specifically engineered as the ideal mating fastener for the Buyers Products 3008745 Ball Stud. Ball studs are fundamental components in mechanical linkages, providing a pivot point for articulation and rotation, commonly found in automotive hoods, tailgates, industrial equipment access panels, and various control mechanisms. They are frequently used in conjunction with gas springs (also known as gas struts or gas shocks), which utilize compressed gas and oil to provide controlled motion, support, and damping. Gas springs typically feature a ball socket end fitting that snaps onto a ball stud, facilitating smooth, controlled movement while allowing for angular misalignment.

The secure fastening of the 3008745 Ball Stud to its mounting surface is paramount for the safe and reliable operation of the entire assembly. A loose or improperly secured ball stud can lead to catastrophic failure, resulting in unsupported loads, damage to equipment, or even injury. The Nylock nut's anti-vibration properties are particularly critical here, as gas spring applications often involve repeated cycles of extension and compression, which generate significant dynamic loads and vibrations. The sustained friction lock provided by the nylon insert ensures that the ball stud remains firmly attached, maintaining the integrity of the linkage and the functionality of the gas spring over its operational lifespan.

The product description clearly states that this Nylock Nut must be purchased separately from the Buyers Products Ball Stud and Gas Spring, except for specific integrated assemblies like 3023460. This highlights a modular approach to component supply, allowing for flexibility in inventory management and replacement, while emphasizing the critical role of each individual part in constructing a robust system. This separation ensures that users can replace only the necessary components, optimize costs, and maintain precise specifications.

Technical Considerations and Best Practices for Installation

Proper installation of the 5/16-18 Nylock Nut is crucial for maximizing its performance and longevity. Adherence to best practices is not merely recommended but often mandated for safety-critical applications:

1. Torque Specifications: The most critical aspect of installation is applying the correct torque. Over-torquing can damage the nylon insert, strip threads, or compromise the integrity of the stud or mounting surface. Under-torquing will not create sufficient clamping force, reducing the effectiveness of the Nylock mechanism and increasing the risk of loosening. Consult the manufacturer's torque specifications for the 3008745 Ball Stud or the overall assembly to ensure optimal performance. Torque values are often provided based on fastener size, grade, and desired clamping load.
2. Thread Condition: Ensure that both the nut and the ball stud threads are clean, free of debris, burrs, or damage. Contaminants can create false torque readings and impede proper thread engagement, compromising the locking action of the nylon insert.
3. Lubrication: While plain nuts might be installed dry, some applications may call for thread lubrication to achieve more accurate torque values and prevent galling. However, it is essential to use lubricants sparingly and ensure they are compatible with the nylon insert, as some chemicals can degrade the polymer. If lubrication is used, torque specifications must be adjusted accordingly, as friction modifiers significantly alter the relationship between applied torque and developed clamping force.
4. Single-Use Nature: Although Nylock nuts can often be reused a limited number of times, their locking effectiveness diminishes with each cycle as the nylon insert progressively deforms. For critical applications, particularly after disassembly for maintenance or repair, it is strongly recommended to replace the Nylock nut with a new one to guarantee optimal locking performance.
5. Temperature Limits: The nylon insert has specific temperature limitations. Exposure to prolonged high temperatures (typically above 250°F or 121°C) can cause the nylon to soften, melt, or degrade, leading to a loss of locking capability. Ensure the operating environment falls within the specified temperature range for the nylon material.
6. Inspection: Regularly inspect all fasteners in dynamic assemblies. Look for signs of corrosion, deformation, cracking, or any indication of loosening. Early detection of issues can prevent system failure and enhance safety.

Quality Assurance and Compliance

Buyers Products, as a reputable manufacturer, adheres to stringent quality control standards in the production of its components, including this 5/16-18 Nylock Nut. Fasteners of this nature are typically manufactured in compliance with internationally recognized standards such as ISO (International Organization for Standardization), ASTM (American Society for Testing and Materials), and SAE (Society of Automotive Engineers) guidelines. These standards dictate material composition tolerances, thread dimensions, mechanical properties (e.g., tensile strength, proof load), and testing methodologies, ensuring consistency and reliability across batches.

The use of carbon steel, coupled with precise manufacturing processes like cold heading and thread rolling, ensures that each nut meets the specified dimensional and performance requirements. Quality assurance processes, including dimensional checks, material composition analysis, and functional tests (such as torque-tension and vibration resistance tests), are integral to verifying that the Nylock nut will perform as expected in demanding applications. This commitment to quality ensures that when paired with the 3008745 Ball Stud, the assembly forms a dependable and durable connection.

Comparative Analysis: Nylock Nuts vs. Other Locking Methods

While various methods exist for securing threaded fasteners against loosening, the Nylock nut offers distinct advantages for specific applications:

• Lock Washers (Split, External Tooth, Internal Tooth): These rely on spring tension or biting into the mating surfaces to provide friction. They can be effective but may lose effectiveness under extreme vibration or if not installed correctly. Unlike Nylock nuts, they don't provide a positive lock directly on the threads.
• Castle Nuts with Cotter Pins: Extremely secure, relying on a mechanical interlock through a hole in the bolt and slots in the nut. This method is highly reliable for critical applications but requires precise alignment and the additional step of inserting a pin, making assembly more time-consuming.
• Adhesive Threadlockers: Chemical compounds that cure to fill the gaps between threads, creating a strong bond. They offer excellent vibration resistance and sealing but can make disassembly difficult, require cure time, and are often single-use.
• Jam Nuts: Two nuts tightened against each other to create friction and prevent loosening. This method works well but requires additional vertical space and two separate nuts, adding complexity and weight.
• Distorted Thread Nuts (e.g., Stover Nuts): These nuts have a deformed top thread that creates an interference fit. Similar to Nylock nuts in principle but rely on metal-on-metal friction, which can be more abrasive and less consistent than a polymer insert.

The Nylock nut distinguishes itself by offering a consistent, reliable, non-galling friction lock through the polymer insert, without requiring additional components (like washers or pins) or curing time (like threadlockers). Its ease of installation, coupled with its excellent vibration resistance, makes it a preferred choice for applications where a secure, robust, yet potentially disassemblable connection is required, such as those involving gas springs and ball studs.

Conclusion

The 5/16-18 Nylock Nut for the 3008745 Ball Stud is far more than a simple fastener; it is a precisely engineered component critical to the safety, functionality, and longevity of various mechanical systems. Its robust carbon steel construction, plain black finish, and, most importantly, its advanced Nylock locking mechanism collectively contribute to a fastener that stands up to the rigors of dynamic applications. By preventing vibrational loosening and ensuring a steadfast connection for components like ball studs and gas springs, this Nylock nut plays an indispensable role in maintaining operational integrity and mitigating the risks associated with fastener failure. When selecting components for demanding environments, the choice of a high-quality, application-specific fastener like this 5/16-18 Nylock Nut is a decision that directly impacts performance, reliability, and ultimately, user safety.
