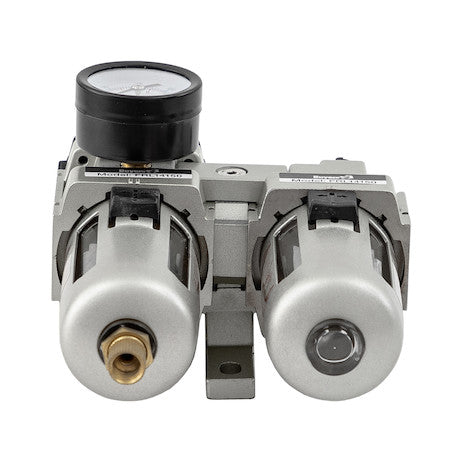

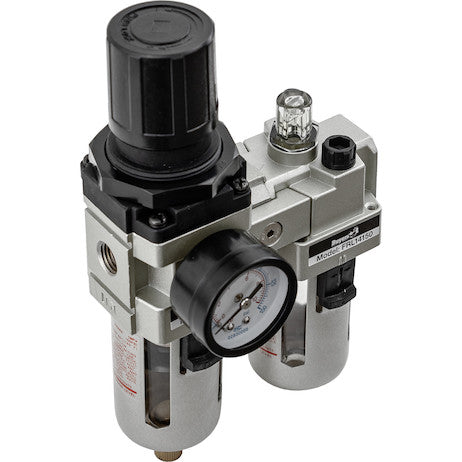

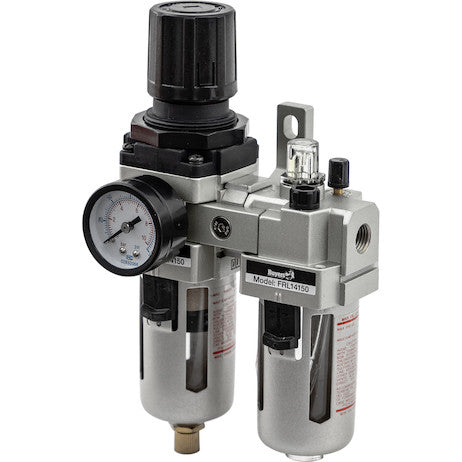

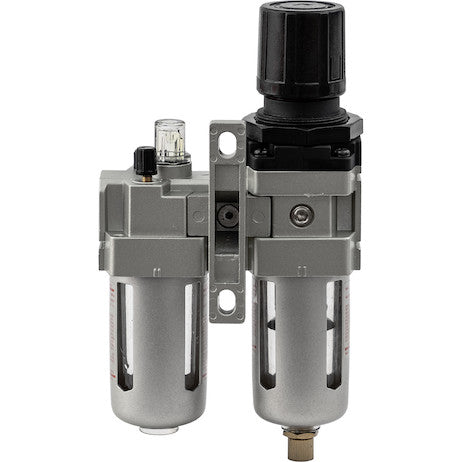

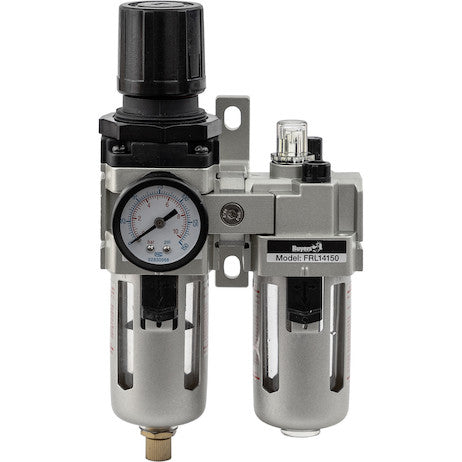

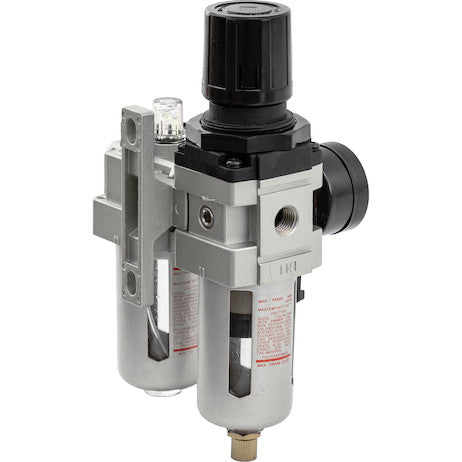

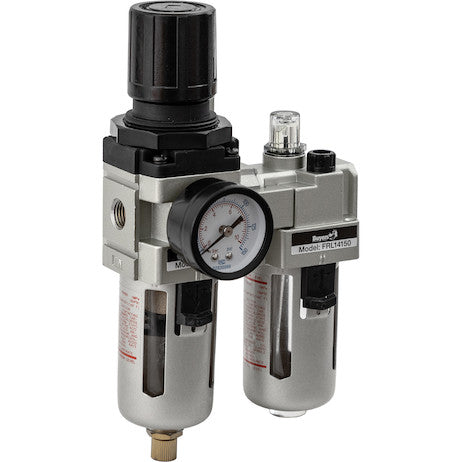

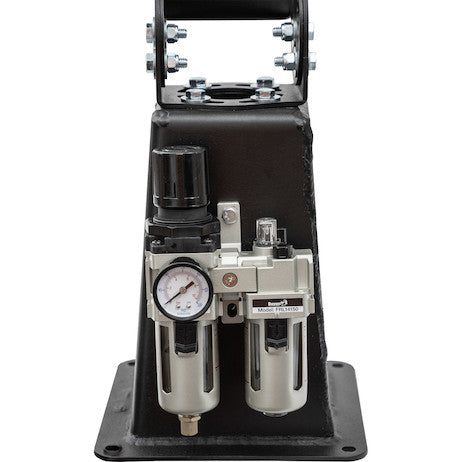

FRL14150 - Filter/Regulator/Lubricator - 1/4 NPT

Buyers Products Air Filter Regulator/Lubricator regulates pressure and keeps air clear in your pneumatic system. The die-cast, modular design has built-in mounts and a replaceable filter which traps particles and moisture to keep system running smoothly. The lubricator holds oil to keep seals from drying out and can be completely unbolted for easy cleaning. This Filter/Regulator/Lubricator includes quick detaching metal bowls with a sight glass and a 50-150 PSI gauge. It is rated for temperatures ranging from 41??F to 140??F

Specifications

Optimizing Pneumatic System Performance with the Buyers Products 1/4 NPT Filter/Regulator/Lubricator (FRL)

In the realm of industrial automation, manufacturing, and various service industries, pneumatic systems are indispensable for their reliability, power, and operational flexibility. However, the performance and longevity of these systems are critically dependent on the quality of the compressed air supplied. The Buyers Products Filter/Regulator/Lubricator (FRL) with a 1/4 NPT connection is engineered as a comprehensive solution to condition compressed air, ensuring optimal operation, extended equipment lifespan, and enhanced safety for pneumatic tools and machinery. This technical exposition delves into the intricate functions, design advantages, and operational benefits of this essential FRL unit.

The Foundational Role of Air Preparation Units

Compressed air, while a versatile energy source, often contains impurities that can significantly degrade the performance and lifespan of pneumatic components. These contaminants typically include solid particulate matter (dust, rust, pipe scale), water (in liquid and vapor forms), and compressor oil carryover. Left unchecked, these elements can lead to premature wear of seals, corrosion of internal components, erratic valve operation, reduced tool efficiency, and costly downtime. An FRL unit integrates three vital functions—filtration, pressure regulation, and lubrication—into a single, cohesive module, providing a robust defense against these detrimental factors.

Precision Filtration: The Air Filter Component

The primary function of the filter in the Buyers Products FRL is to meticulously remove airborne contaminants from the compressed air stream. This unit employs a sophisticated filtration mechanism designed to capture both solid particulates and liquid aerosols, primarily water and oil. The "replaceable filter" is a cornerstone of this design, ensuring sustainable performance and simplified maintenance.

Upon entering the filter bowl, compressed air undergoes a centrifugal separation process. A deflector or baffle induces a swirling motion in the air, forcing heavier liquid droplets (condensate) and larger solid particles against the inner wall of the bowl due to centrifugal force. These contaminants then spiral down into the quiescent zone at the bottom of the bowl, preventing re-entrainment into the air stream. The "quick detaching metal bowls with a sight glass" facilitate easy visual inspection of accumulated condensate and simplified draining procedures.

Following this initial separation, the air passes through a porous filter element. While the specific micron rating is not detailed, typical industrial FRL filters range from 5 to 40 microns, effectively trapping finer solid particles that escaped centrifugal action. This multi-stage filtration is critical for:

• Preventing Abrasive Wear: Solid particles, even microscopic ones, act as abrasives, causing wear to the internal surfaces of cylinders, valves, and other moving parts.
• Mitigating Corrosion: Moisture, a ubiquitous byproduct of compressed air generation, is a primary driver of corrosion. Effective filtration significantly reduces the presence of liquid water, thereby extending the life of metallic components and preventing rust formation.
• Ensuring Consistent Operation: Contaminants can foul orifices, clog small passages, and interfere with the smooth movement of internal valve spools, leading to erratic or complete failure of pneumatic devices.

The "die-cast" material of the filter housing provides exceptional strength and resistance to pressure, ensuring structural integrity even under demanding operational conditions. Regular monitoring via the sight glass and timely replacement of the filter element are paramount to maintaining peak filtration efficiency and system health.

Accurate Pressure Regulation: The Regulator Component

Consistent and stable air pressure is fundamental to the precise and efficient operation of pneumatic tools and machinery. The regulator component within the Buyers Products FRL is designed to reduce and maintain a desired downstream pressure, irrespective of fluctuations in the upstream (inlet) pressure or variations in airflow demand. The integrated "50-150 PSI gauge" offers clear, real-time feedback on the regulated output pressure, allowing for precise adjustment.

At its core, a pressure regulator operates through a delicate balance of forces. An adjustable spring exerts downward pressure on a diaphragm or piston, which in turn acts upon a valve seat. When the downstream pressure falls below the set point, the force exerted by the spring overcomes the upward force from the downstream air pressure, opening the valve and allowing more air to flow. Conversely, if the downstream pressure rises above the set point, the increased pressure pushes against the diaphragm, compressing the spring and partially or fully closing the valve. This dynamic equilibrium ensures a stable output pressure.

The "1/4 NPT" port size specifies the nominal diameter of the threaded connection, which is crucial for determining compatibility with existing pneumatic systems and influencing flow rate characteristics. For a 1/4 NPT connection, this FRL is ideally suited for a wide range of smaller to medium-sized pneumatic applications where precise pressure control between 50 and 150 PSI is required.

Benefits of precise pressure regulation include:

• Equipment Protection: Over-pressurization can damage sensitive pneumatic components, reducing their service life and potentially leading to catastrophic failure.
• Consistent Performance: Tools and actuators perform optimally at their specified operating pressures. Maintaining this consistency ensures repeatable operations, quality output, and predictable cycle times.
• Energy Efficiency: Operating pneumatic equipment at the lowest effective pressure minimizes air consumption, leading to significant energy savings and reduced compressor workload.
• Enhanced Safety: Stable pressure prevents unexpected surges or drops that could compromise operational safety.

Proactive Lubrication: The Lubricator Component

While clean, regulated air is essential, many pneumatic tools and actuators benefit significantly from the introduction of a controlled amount of lubricating oil into the airstream. The lubricator element of the Buyers Products FRL is engineered to precisely atomize oil into a fine mist, which is then carried by the compressed air to lubricate internal moving parts of downstream pneumatic components. This is particularly vital for tools such as air motors, impact wrenches, grinders, and cylinders that rely on constant lubrication to minimize friction and wear.

The lubricator functions on the Venturi principle. As compressed air flows through a constricted passage within the lubricator body, its velocity increases, creating a localized pressure drop (Venturi effect). This pressure differential draws oil from the reservoir through a pickup tube and into a sight feed dome, where it can be visually monitored. A needle valve typically controls the oil drip rate, allowing for fine-tuning based on application requirements. The oil is then atomized into the main airstream, forming a mist that coats the internal surfaces of pneumatic components.

Key features of this lubricator include:

• Oil Reservoir: The unit effectively "holds oil" within its robust "metal bowls," ensuring a sufficient supply for continuous lubrication. The "sight glass" is critical for visually monitoring the oil level, signaling when a refill is necessary to prevent dry operation.
• Prevention of Seal Drying: Lubrication keeps elastomeric seals (O-rings, gaskets) pliable and prevents them from drying out, cracking, or losing their sealing integrity, which is a common cause of internal air leakage and reduced efficiency.
• Reduced Friction and Wear: A thin film of oil reduces metal-to-metal contact within moving parts like piston rods, valve spools, and rotating elements, significantly extending their operational life.
• Easy Maintenance: The design allows the lubricator to be "completely unbolted for easy cleaning," a crucial advantage for maintaining system hygiene and preventing sludge buildup from old oil or contaminants. The "quick detaching metal bowls" also simplify refilling and cleaning procedures.

It is important to use only compatible pneumatic-grade oils with the correct viscosity to avoid damaging seals or forming undesirable residues. Over-lubrication can be as detrimental as under-lubrication, leading to messy work environments and potential contamination of products, highlighting the importance of the adjustable drip rate.

Modular Design and Robust Construction

The Buyers Products FRL boasts a "die-cast, modular design" with "built-in mounts," underscoring its engineering for durability, adaptability, and ease of integration. Modular FRL units offer distinct advantages over individual components:

• Simplified Installation: The built-in mounts eliminate the need for custom brackets or complex piping arrangements, streamlining the setup process.
• Space Efficiency: Combining filter, regulator, and lubricator into a single compact unit reduces the overall footprint required for air preparation, a valuable consideration in constrained industrial spaces.
• Enhanced System Integrity: The integrated design minimizes potential leak points associated with multiple connections between separate components, improving overall system efficiency and reducing air loss.
• Simplified Maintenance: The modularity allows for easier access to individual components for inspection, cleaning, or replacement without disturbing the entire air line.

The "die-cast" construction, typically involving aluminum or zinc alloys, provides superior strength-to-weight ratio, excellent dimensional stability, and resistance to corrosion and mechanical shock. This robust material choice, combined with "metal bowls," ensures the unit can withstand the rigors of demanding industrial environments, contrasting with plastic bowls that might be susceptible to cracking or chemical attack in certain applications.

Operational Parameters and Environmental Considerations

The specified operational temperature range of "41°F to 140°F" (5°C to 60°C) highlights the FRL's suitability for a broad spectrum of indoor industrial environments. This range ensures the integrity of internal seals, the stability of the filter element, and the consistent viscosity of lubricating oils within specified limits. Operating outside this range can lead to reduced performance, premature component wear, or even system failure. For instance, temperatures below 41°F can cause condensate to freeze, obstructing air flow and damaging components, while excessively high temperatures can degrade seals and lubricants.

The "1/4 NPT" (National Pipe Taper) threading standard provides a secure, leak-proof connection commonly used in North American pneumatic systems. This universal standard ensures compatibility with a vast array of pneumatic tools, hoses, and system components, facilitating straightforward integration.

Applications and Industry Relevance

The Buyers Products FRL is an essential component across numerous sectors:

• Manufacturing and Automation: Powering assembly lines, robotic grippers, pneumatic cylinders, and control valves.
• Automotive Service and Repair: Supplying conditioned air to impact wrenches, spray guns, tire changers, and lifts.
• Woodworking: Driving nail guns, sanders, and other pneumatic woodworking tools.
• HVAC Systems: Controlling dampers, valves, and actuators in commercial and industrial heating, ventilation, and air conditioning systems.
• General Industrial Maintenance: For various pneumatic tools used in facility upkeep and repair.

In each of these applications, the consistent delivery of clean, regulated, and lubricated air directly translates to improved productivity, reduced operational costs, and extended capital equipment lifespan.

Installation and Maintenance Best Practices

To maximize the efficacy and lifespan of the Buyers Products FRL, proper installation and diligent maintenance are critical:

• Installation Location: The FRL should be installed as close as possible to the point of use to minimize pressure drop and re-contamination. It should be positioned downstream of any major air dryer or aftercooler, and upstream of the specific pneumatic tools or machinery it is intended to protect.
• Orientation: Filters and lubricators are typically designed for vertical installation to ensure proper drainage of condensate and efficient oil atomization.
• Draining: The filter's metal bowl with sight glass allows for visual monitoring of condensate. Regular draining (manual or automatic, if an auto-drain variant is used) is vital to prevent water from re-entering the airstream.
• Filter Element Replacement: Over time, filter elements become saturated with trapped particles, leading to increased pressure drop and reduced filtration efficiency. Regular inspection and replacement are necessary, guided by visual inspection or a pressure drop indicator (if equipped).
• Lubricator Oil Management: The sight glass provides an easy way to check the oil level. Refill promptly with the recommended pneumatic-grade oil, ensuring the correct viscosity. Adjust the drip rate to match the lubrication requirements of downstream equipment.
• Pressure Gauge Calibration: While robust, gauges can drift over time. Periodic checks against a known standard can ensure the accuracy of pressure readings.
• Cleaning: The "completely unbolted for easy cleaning" feature of the lubricator allows for thorough removal of oil residues or contaminants, preventing blockages and ensuring smooth operation.

Conclusion

The Buyers Products Filter/Regulator/Lubricator with a 1/4 NPT connection represents an indispensable investment for any enterprise relying on pneumatic technology. By synergistically integrating advanced air filtration, precise pressure regulation, and effective lubrication into a durable, modular, die-cast unit, it offers a robust solution for enhancing pneumatic system performance, extending equipment life, and minimizing operational overhead. Its thoughtful design, incorporating quick-detaching metal bowls, a clear sight glass, and an integrated pressure gauge, prioritizes both functionality and ease of maintenance. For sustained efficiency, reliability, and safety in pneumatic operations, the Buyers Products FRL stands as a testament to professional-grade air preparation.
