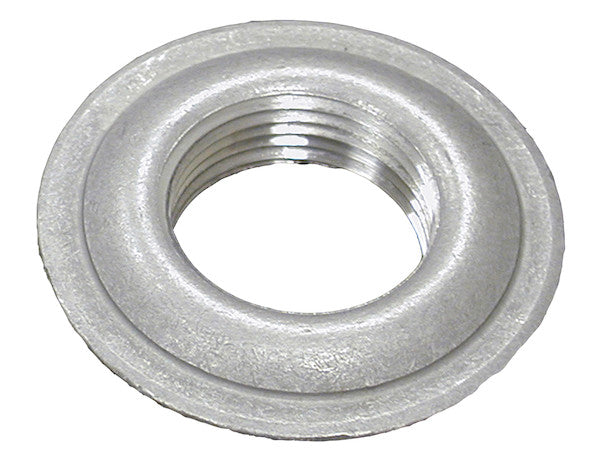

FS025 - 1/4 Inch NPTF Steel Stamped Welding Flange

The Stamped Welding Flange from Buyers Products comes in aluminum, steel, and stainless steel in a variety of sizes to meet your reservoir installation needs. Use the flanges when fabricating your own hydraulic reservoir, or adding a port to an existing reservoir. Choose from a wide range of sizes, materials, ODs, and thicknesses to match your requirements.

Specifications

Advanced Technical Description: 1/4 Inch NPTF Steel Stamped Welding Flange for Hydraulic Systems

The Buyers Products 1/4 Inch NPTF Steel Stamped Welding Flange represents a critical component in the design and fabrication of robust hydraulic fluid reservoirs and custom fluid handling systems. Engineered for precision and durability, this specific flange is meticulously designed to provide a secure and leak-tight port connection in applications demanding high integrity and reliable performance. Its construction from carbon steel, combined with a stamped manufacturing process and adherence to NPTF threading standards, underscores its suitability for a wide array of industrial, mobile, and agricultural hydraulic systems.

Understanding the NPTF Thread Standard: Precision and Sealing Integrity

The designation "NPTF" stands for National Pipe Taper Fuel, sometimes referred to as Dryseal Pipe Thread. This specific thread standard is paramount for applications where a metallic, mechanical seal is required without the use of additional thread sealants or compounds. Unlike standard NPT (National Pipe Taper) threads, which rely on thread sealant to fill the clearances between the crests and roots of the mating threads, NPTF threads are designed to achieve a dryseal connection through mechanical deformation. This is accomplished by carefully controlling the truncation of the thread crests and roots, ensuring that when the male and female threads are torqued together, they create an interference fit at both the crest-to-root and flank-to-flank interfaces. This metal-to-metal contact path effectively eliminates spiral leakage inherent in standard NPT connections, making NPTF ideal for critical applications involving fuels, hydraulic fluids, refrigerants, and other volatile or high-pressure media where sealant contamination or failure could have severe consequences.

The 1/4 Inch nominal size refers to the internal diameter of the pipe or port it is designed to connect to, not the actual thread diameter. For a 1/4-inch NPTF connection, the major diameter of the external thread is approximately 0.540 inches, with a taper of 3/4 inch per foot (1 in 16 on the radius). The thread pitch is 18 threads per inch. These precise geometric specifications, governed by standards such as ASME B1.20.1 and SAE J476, ensure interchangeability and consistent sealing performance across various components. The dryseal capability of NPTF is particularly advantageous in hydraulic systems, where hydraulic fluid contamination by thread sealant can lead to operational failures, filter clogging, and premature wear of sensitive components like pumps and valves. By eliminating the need for sealant, the NPTF flange offers a cleaner, more reliable, and often more robust connection, simplifying assembly and reducing the risk of costly system downtime.

Material Selection: Carbon Steel for Robust Performance

This welding flange is manufactured from carbon steel, a material renowned for its excellent balance of strength, ductility, and cost-effectiveness. Carbon steel, primarily an alloy of iron and carbon, typically contains carbon content up to 2.1% by weight, along with minor amounts of other alloying elements such as manganese, silicon, sulfur, and phosphorus. The specific grade of carbon steel chosen for such a component is optimized for weldability, allowing for seamless integration into reservoir structures, typically constructed from similar steel plates.

Key properties of carbon steel that make it ideal for this application include:

• High Tensile Strength: Provides excellent resistance to pulling forces and ensures structural integrity under the dynamic pressures inherent in hydraulic systems.
• Good Yield Strength: Resists permanent deformation under load, maintaining the flange's shape and sealing integrity.
• Excellent Weldability: Carbon steel is highly amenable to various welding processes (e.g., GMAW, SMAW, GTAW), enabling strong, metallurgical bonds with reservoir walls without significant pre- or post-weld heat treatment in many cases.
• Ductility: Allows for the stamping manufacturing process and contributes to the material's ability to withstand shock loads without brittle fracture.
• Fatigue Resistance: Important for components subjected to cyclic loading in hydraulic applications.
• Cost-Effectiveness: Compared to stainless steel or specialized alloys, carbon steel offers a more economical solution without compromising critical performance requirements for many hydraulic applications.

While the plain finish of this carbon steel flange means it is susceptible to oxidation (rust) in the presence of moisture and oxygen, this is a common characteristic. In many hydraulic reservoir installations, the flange will either be contained within the oil bath, which provides a protective layer, or the entire reservoir system will undergo a post-fabrication finishing process, such as painting or powder coating, which will protect the exposed plain carbon steel surfaces from environmental corrosion.

The Stamped Manufacturing Process: Efficiency and Consistency

The "Stamped" designation for this welding flange refers to its method of manufacture, which involves cold forming metal sheet or plate using presses and dies. This process contrasts with machining from solid bar stock or forging, offering distinct advantages for this specific component:

• Cost-Efficiency: Stamping is a highly efficient manufacturing method for high-volume production, significantly reducing per-unit cost compared to machining, which involves removing material, or forging, which requires more complex tooling and heat.
• Material Utilization: Stamping typically results in less material waste than machining, contributing to lower production costs and environmental impact.
• Dimensional Consistency: Once the dies are proven, stamped components exhibit exceptional dimensional accuracy and repeatability from part to part. This consistency is crucial for ensuring proper fit-up during assembly and reliable welding performance.
• Enhanced Mechanical Properties: The cold-forming process involved in stamping can induce work hardening, which refines the grain structure and can increase the material's yield strength and hardness in critical areas, thereby enhancing the flange's structural integrity without compromising weldability.
• Smooth Finish: Stamping can produce components with relatively smooth surfaces, which is advantageous for welding and general aesthetics.

The combination of these benefits makes stamping an optimal choice for producing standardized components like this welding flange, ensuring a balance of performance, reliability, and economic viability.

Functional Application: Welding Flange in Hydraulic Reservoir Fabrication

As a "Welding Flange," its primary function is to provide a robust, weldable interface for connecting threaded components to a flat surface, most commonly the wall of a hydraulic reservoir. Hydraulic reservoirs are fundamental to any hydraulic system, serving as a storage tank for hydraulic fluid, dissipating heat, allowing air and contaminants to separate from the fluid, and providing a stable base for pumps and other components. The integrity of these reservoirs, particularly at connection points, is critical for system performance and longevity.

This flange facilitates the creation of various ports in a reservoir, including:

• Inlet/Outlet Ports: For connecting main hydraulic lines to and from the pump and system.
• Return Line Ports: Where hydraulic fluid returns from the system to the reservoir.
• Drain Ports: For periodic fluid changes and maintenance.
• Gauge Ports: For mounting pressure gauges, temperature sensors, or fluid level indicators.
• Breather Ports: To allow the reservoir to breathe, often with an air filter, to prevent vacuum or pressure buildup and minimize contamination.

The design includes a "Pilot" diameter of 0.755 inches. This pilot feature is a critical design element. It is a precisely machined or formed raised collar on the welding side of the flange that fits into a pre-drilled or cut hole in the reservoir wall. The pilot ensures accurate alignment and concentricity of the flange relative to the opening, simplifying installation and ensuring that the NPTF thread is perpendicular to the reservoir surface. This precise positioning is essential for proper engagement with mating components and for achieving high-quality welds. The Outer Diameter of 1.770 inches provides ample surface area for a strong perimeter weld, while the Thickness of 0.134 inches is optimized for compatibility with typical reservoir wall thicknesses, allowing for proper weld penetration and structural integration.

Installation and Welding Best Practices

Proper installation of this welding flange is paramount to ensuring the long-term reliability of the hydraulic system. The process typically involves:

1. Surface Preparation: The reservoir wall area where the flange will be welded must be thoroughly cleaned to remove all oil, grease, paint, rust, and scale. This ensures optimal weld penetration and minimizes weld defects.
2. Hole Preparation: A hole matching the pilot diameter (0.755 inches) must be accurately cut into the reservoir wall. The edges of this hole should be deburred to eliminate sharp edges that could interfere with the fit or create stress concentrations.
3. Flange Placement: The flange is then inserted into the prepared hole, with the pilot ensuring correct alignment.
4. Welding Process: Given the carbon steel material, common welding processes such as Gas Metal Arc Welding (GMAW/MIG), Shielded Metal Arc Welding (SMAW/Stick), or Gas Tungsten Arc Welding (GTAW/TIG) are suitable. A full-penetration fillet weld is typically recommended around the entire circumference of the flange where it meets the reservoir wall. This type of weld ensures maximum strength and a leak-proof seal. Weld parameters (current, voltage, travel speed, filler material) must be carefully selected based on the thickness of the reservoir material and the flange to ensure proper fusion without excessive heat input, which could cause distortion.
5. Inspection: After welding, the joint should be visually inspected for continuity, proper bead profile, absence of porosity, cracks, or undercut. For critical applications, pressure testing or dye penetrant inspection may be employed to verify weld integrity.
6. Post-Weld Treatment: If the reservoir is to be painted or coated, any weld spatter should be removed, and the area cleaned.

The plain finish of the flange provides an ideal surface for direct welding without the need for pre-grinding off coatings, further simplifying the fabrication process.

Compatibility and System Integration

The 1/4 Inch NPTF Steel Stamped Welding Flange is engineered for broad compatibility within hydraulic systems. Its standardized NPTF threading ensures that it can reliably mate with a wide range of industry-standard hydraulic fittings, sensors, valves, and other components that feature male NPTF threads of the corresponding size. This interoperability is crucial for system designers and maintenance professionals, allowing for flexibility in component selection and ease of repair.

The robust carbon steel construction is suitable for operating environments typically encountered in hydraulic applications, handling a range of operating pressures and temperatures. While the specific pressure rating is highly dependent on the quality of the weld and the thickness of the reservoir wall, a properly installed flange will generally match or exceed the pressure capabilities of the 1/4 inch NPTF connection itself, which can be considerable for typical hydraulic system pressures (e.g., up to several thousand PSI, depending on fitting design). Its resilience to vibration and mechanical stress, inherent in mobile and industrial hydraulic machinery, ensures long-term integrity.

Long-Term Value and Manufacturer Assurance

As a product from Buyers Products, this welding flange benefits from a legacy of quality and reliability in commercial truck and trailer equipment, as well as broader industrial applications. The company’s commitment to providing durable and effective solutions for hydraulic systems is reflected in the thoughtful design and material selection of this component. The combination of cost-effective stamped carbon steel, precise NPTF threading, and a robust design for welding integration, positions this flange as an essential and dependable component for both original equipment manufacturers (OEMs) and those involved in custom fabrication and aftermarket repairs.

In summary, the 1/4 Inch NPTF Steel Stamped Welding Flange offers a technically sound, economically viable, and exceptionally reliable solution for creating secure, dryseal threaded ports in hydraulic reservoirs and other fluid containment vessels. Its specific attributes—1/4 inch NPTF for leak-proof connections, durable carbon steel for strength and weldability, and a stamped construction for consistency and cost-efficiency—make it an indispensable component for high-performance hydraulic applications where integrity and longevity are paramount.
