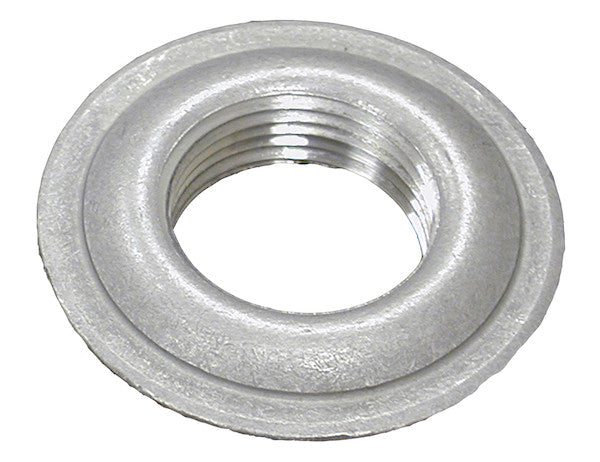

FS038 - 3/8 Inch NPTF Steel Stamped Welding Flange

The Stamped Welding Flange from Buyers Products comes in aluminum, steel, and stainless steel in a variety of sizes to meet your reservoir installation needs. Use the flanges when fabricating your own hydraulic reservoir, or adding a port to an existing reservoir. Choose from a wide range of sizes, materials, ODs, and thicknesses to match your requirements.

Specifications

The 3/8 Inch NPTF Steel Stamped Welding Flange represents a critical component in the precise and robust fabrication of fluid power systems, particularly hydraulic reservoirs and other high-demand liquid containment units. Engineered by Buyers Products, this specific flange combines advanced manufacturing techniques with carefully selected materials and industry-standard threading to ensure exceptional performance, longevity, and system integrity. This detailed technical description will delve into the specific attributes of this flange, its manufacturing process, material science, application benefits, and best practices for installation, providing a comprehensive understanding for engineers, fabricators, and procurement specialists.

Precision Engineering and Design for Optimal Performance

At the core of the 3/8 Inch NPTF Steel Stamped Welding Flange's utility is its meticulously designed profile and adherence to strict dimensional tolerances. The flange is characterized by its 3/8-inch nominal pipe size (NPS), which dictates the flow capacity and compatibility with standard piping systems. The thread type, NPTF (National Pipe Taper Fuel, or Dryseal), is a critical element for fluid power applications. Unlike standard NPT threads, NPTF threads are designed for a mechanical seal through thread deformation, eliminating the need for thread sealants in many applications. This "dryseal" capability is paramount in hydraulic systems where contamination from PTFE tape or liquid sealants could lead to operational issues, valve blockages, or component wear. The tapered design ensures a progressively tightening fit, creating a robust, leak-proof metal-to-metal seal under pressure, a non-negotiable requirement for hydraulic and pneumatic integrity. This 3/8-inch size is versatile, commonly employed for return lines, drain ports, sensor connections, or auxiliary line taps where moderate flow rates are required.

The flange's geometry includes an Outer Diameter (OD) of 1.770 inches and a Pilot of 0.755 inches. The pilot diameter is particularly significant as it facilitates precise concentric alignment with the pre-drilled hole in the reservoir wall prior to welding. This ensures that the threaded port is perfectly centered, reducing stress concentrations, promoting uniform weld penetration, and simplifying the connection of hydraulic fittings. The overall Thickness of 0.134 inches provides ample material for structural rigidity and ensures a strong, reliable weld joint capable of withstanding operational pressures and vibrations typically encountered in heavy-duty mobile and industrial hydraulic applications.

Material Science: The Strength of Carbon Steel

The selection of Carbon Steel as the primary material for this welding flange is a deliberate choice driven by a balance of mechanical properties, weldability, and cost-effectiveness suitable for demanding industrial environments. Carbon steel offers excellent tensile strength and yield strength, providing the structural integrity necessary for pressure-containing applications. Its inherent hardness and durability contribute to the longevity of the component, resisting wear and deformation over extended operational cycles. For applications such as hydraulic reservoirs, where structural rigidity and resistance to dynamic loads are essential, carbon steel provides a robust foundation.

Furthermore, carbon steel exhibits superior weldability, which is paramount for a "welding flange." The plain finish, as specified, means the flange arrives without any pre-applied coatings, primers, or platings that would otherwise need to be removed prior to welding. This simplifies the fabrication process, ensuring optimal adhesion and fusion during the welding operation. Common welding processes such as Gas Metal Arc Welding (GMAW/MIG), Shielded Metal Arc Welding (SMAW/Stick), or Gas Tungsten Arc Welding (GTAW/TIG) can be effectively employed with carbon steel, allowing fabricators flexibility in their approach. Post-welding, the plain carbon steel surface is receptive to a wide range of protective coatings, such as painting, powder coating, or galvanizing, to enhance corrosion resistance and integrate with the overall finish of the hydraulic reservoir or equipment chassis. While Buyers Products also offers flanges in aluminum and stainless steel for specific application requirements, the carbon steel variant offers an ideal combination of strength and economic viability for a vast array of hydraulic and industrial fluid containment scenarios where a high-strength, readily weldable material is preferred.

Manufacturing Excellence: The Stamping Process

The "Stamped" construction method for this welding flange is a testament to efficient, high-volume manufacturing that yields consistent and precise components. Stamping involves placing a flat sheet of metal (in this case, carbon steel) into a press where a tool and die shape it into the desired form. This process offers several distinct advantages:

• Cost-Effectiveness: Stamping is a highly efficient manufacturing method, particularly for high production volumes, as it minimizes material waste and requires less energy per unit compared to machining from solid stock. This translates to a more economical product for the end-user.
• Dimensional Consistency: Once the tooling is established, stamping produces parts with exceptional dimensional accuracy and repeatability. This ensures that every 3/8 Inch NPTF Steel Stamped Welding Flange conforms precisely to the specified Outer Diameter, Pilot diameter, Thickness, and thread dimensions, which is vital for seamless integration and reliable performance in critical applications.
• Material Properties: The cold-working process involved in stamping can enhance certain mechanical properties of the steel, such as its strength and hardness, in the formed areas.
• Smooth Edges: Stamping typically results in clean, well-defined edges, which reduces the need for extensive secondary finishing operations, making the flange ready for immediate use.

The stamped construction ensures that the material is distributed optimally for strength around the threaded port and the welding surface, contributing to the flange's overall robustness and structural integrity. This manufacturing technique ensures that the flange can withstand the rigorous demands of hydraulic systems, including fluctuating pressures, vibrations, and thermal cycling, without compromising its structural integrity or sealing capability.

Applications and Versatility in Fluid Power Systems

The 3/8 Inch NPTF Steel Stamped Welding Flange is an indispensable component in a broad spectrum of fluid power and industrial applications, primarily focusing on the creation and modification of liquid reservoirs. Its robust design and specialized NPTF threading make it particularly suitable for:

• Hydraulic Reservoir Fabrication: This is the primary application. When designing and constructing custom hydraulic reservoirs, engineers need reliable ports for various connections: return lines, drain plugs, pressure transducer connections, temperature sensor ports, or auxiliary equipment hook-ups. This flange provides a secure, leak-proof interface that can be welded directly into the steel tank wall, ensuring fluid containment and system integrity. The 3/8-inch NPTF size is ideal for lower flow auxiliary lines or instrumentation.
• Adding Ports to Existing Reservoirs: For existing hydraulic systems that require modification, upgrades, or repairs, this welding flange offers a practical solution. It allows fabricators to add new hydraulic connections or replace damaged ones without extensive modification to the entire reservoir. This flexibility is invaluable for system retrofits, expanding functionality, or addressing evolving operational needs.
• Fuel Tanks and Storage Tanks: Beyond hydraulics, the NPTF dryseal thread makes this flange suitable for fuel tanks (diesel, gasoline, hydraulic oil) and other liquid storage tanks where positive sealing without chemical sealants is preferred or mandated. Its steel construction is compatible with a wide range of petroleum-based fluids.
• Pneumatic Systems: Although NPTF is commonly associated with liquids, it is also highly effective in high-pressure pneumatic systems where absolute leak prevention is critical to maintain system efficiency and safety.
• Custom Fabrication Projects: Industrial fabricators and OEM manufacturers frequently utilize such flanges in custom machinery, agricultural equipment, construction vehicles, and material handling systems where specialized fluid handling interfaces are required. Its adaptability allows for bespoke solutions tailored to unique design specifications.

The ability to weld this component directly into a steel structure provides a permanent and highly durable connection, often superior in strength and sealing capability to bolt-on or mechanical clamp arrangements in high-stress environments. This ensures that the integrity of the fluid containment system is maintained under dynamic operating conditions, preventing costly leaks, environmental contamination, and operational downtime.

Installation and Best Practices for Welding

Proper installation of the 3/8 Inch NPTF Steel Stamped Welding Flange is crucial to ensure its long-term reliability and leak-free performance. The following best practices are recommended:

• Surface Preparation: Before welding, both the flange and the contact area on the reservoir wall must be meticulously cleaned. All grease, oil, rust, paint, or other contaminants must be removed to ensure a strong, porosity-free weld. A plain finish on the flange simplifies this step significantly.
• Hole Preparation: A precisely cut hole in the reservoir wall is essential. The pilot diameter of 0.755 inches on the flange provides a guide for proper alignment. The hole in the reservoir should be slightly larger than the pilot but smaller than the OD, allowing the pilot to seat firmly and concentrically.
• Alignment and Fixturing: Utilize the pilot feature of the flange to achieve perfect concentricity with the prepared hole. Employ clamps or tack welds to temporarily secure the flange in position, ensuring it is square and flush with the reservoir surface before final welding. This prevents distortion and ensures optimal thread alignment for subsequent fittings.
• Welding Procedure:
  • Process Selection: GMAW (MIG) is often preferred for its speed and efficiency, while GTAW (TIG) offers greater precision and aesthetic appeal, particularly for thinner materials. SMAW (Stick) can also be used, especially in field repairs.
  • Filler Material: Select a filler material compatible with carbon steel, typically an ER70S-6 wire for MIG/TIG or an E7018 electrode for Stick, to ensure strong metallurgical bonding and ductility.
  • Heat Management: Control heat input to minimize distortion of the reservoir wall and the flange itself. Multiple passes with appropriate interpass cooling may be necessary for thicker materials or to distribute heat evenly.
  • Penetration: Ensure full penetration welds around the entire circumference of the flange for maximum strength and a leak-proof seal.
• Post-Weld Inspection: After welding and cooling, visually inspect the weld for any defects such as cracks, porosity, or undercut. For critical applications, pressure testing of the reservoir (hydrostatic or pneumatic, following safety protocols) is highly recommended to confirm leak-free operation before system commissioning.
• Corrosion Protection: Since the flange has a plain carbon steel finish, it is susceptible to corrosion. After welding and inspection, the entire assembly, including the flange and weld area, should be properly cleaned, primed, and coated (e.g., painted, powder coated, or otherwise treated) to prevent rust and ensure long-term durability, especially in outdoor or harsh environments.

Quality and Reliability: The Buyers Products Standard

Buyers Products is renowned for its commitment to delivering high-quality, durable components for the work truck and industrial equipment markets. The 3/8 Inch NPTF Steel Stamped Welding Flange embodies this commitment, designed and manufactured to meet the rigorous demands of professional applications. The use of robust carbon steel, combined with the precision of the stamping process and adherence to NPTF threading standards, ensures that this flange will perform reliably under various operating conditions, including high pressures, vibrations, and temperature fluctuations. Fabricators and system integrators can rely on the consistent quality of these flanges to contribute to the overall integrity and longevity of their hydraulic reservoirs and fluid power systems. By choosing this stamped welding flange, users are investing in a component that facilitates efficient fabrication, provides superior sealing characteristics, and offers enduring performance in the most challenging industrial environments.

Conclusion

The 3/8 Inch NPTF Steel Stamped Welding Flange from Buyers Products is a meticulously engineered, robust, and essential component for modern fluid power system fabrication. Its combination of a precise 3/8-inch NPTF dryseal thread, durable carbon steel construction, and efficient stamped manufacturing process offers significant advantages for creating reliable and leak-proof ports in hydraulic reservoirs, fuel tanks, and other fluid containment units. The carefully specified outer diameter, pilot feature, and thickness facilitate accurate installation and strong weld integrity, while the plain finish optimizes the welding process. Whether for custom builds or system modifications, this flange provides engineers and fabricators with a dependable solution that ensures operational safety, system longevity, and adherence to stringent industry standards. Its technical merits and practical advantages make it a superior choice for professional applications where performance and reliability are paramount.
