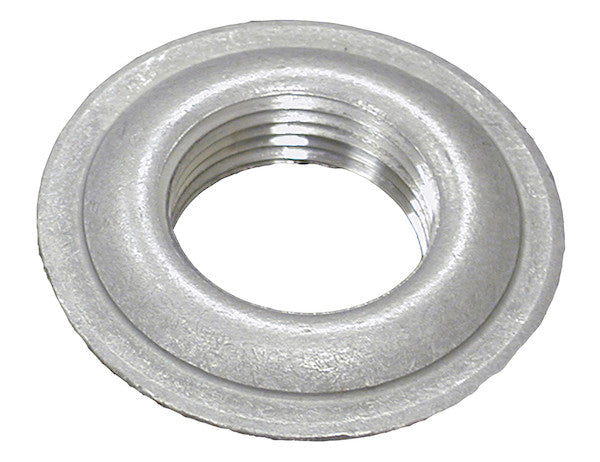

The Stamped Welding Flange from Buyers Products comes in aluminum, steel, and stainless steel in a variety of sizes to meet your reservoir installation needs. Use the flanges when fabricating your own hydraulic reservoir, or adding a port to an existing reservoir. Choose from a wide range of sizes, materials, ODs, and thicknesses to match your requirements.
Specifications
| Construction | Stamped |
|---|---|
| Finish | Plain |
| Material | Carbon Steel |
| Outer Diameter | 2.350 |
| Pilot | 1.135 |
| Size | .75 |
| Thickness | 0.134 |
Comprehensive Technical Overview: 3/4 Inch NPTF Steel Stamped Welding Flange
The 3/4 Inch NPTF Steel Stamped Welding Flange from Buyers Products represents a critical component in the design, fabrication, and maintenance of robust fluid transfer systems, particularly hydraulic reservoirs. Engineered for superior performance and durability, this flange is meticulously crafted to provide a secure, leak-free connection point in demanding industrial and mobile applications. Its specific combination of material, manufacturing process, thread type, and connection method makes it an indispensable asset for professionals seeking reliable integration solutions for hydraulic circuits.
Material Excellence: Carbon Steel for Enduring Performance
At the core of this flange's exceptional performance is its material composition: high-quality carbon steel. Carbon steel is renowned in engineering applications for its superior mechanical properties, including high tensile strength, excellent yield strength, and remarkable toughness. These attributes are paramount in hydraulic systems where components are routinely subjected to significant internal pressures, external forces, and dynamic loads. The inherent strength of carbon steel ensures that the flange can withstand the operational stresses without deformation or failure, thereby maintaining system integrity over prolonged periods.
Beyond its mechanical strength, carbon steel offers excellent weldability, a crucial factor for a component designed for permanent welded installation. Its metallurgical composition allows for strong, metallurgical bonds with common reservoir materials, minimizing the risk of weld defects such as cracking or porosity. This facilitates a robust connection that is resistant to vibration and fatigue, common challenges in mobile hydraulic applications. Furthermore, carbon steel exhibits good fatigue resistance, meaning it can endure repeated stress cycles without material degradation, a vital characteristic for components in pulsating fluid systems.
While the flange features a "Plain" finish, indicative of its readiness for welding, carbon steel provides a cost-effective solution without compromising structural integrity. For applications where corrosion resistance is a primary concern, the plain carbon steel surface allows for post-welding treatments such as painting, powder coating, or other surface passivation techniques tailored to the specific environmental conditions and fluid compatibility requirements. This flexibility in finishing options further enhances its adaptability across diverse operational contexts, ensuring longevity and optimal performance even in challenging corrosive or abrasive environments.
Precision Manufacturing: The Stamping Process
The 3/4 Inch NPTF Welding Flange is produced using a precision stamping process. Stamping is a manufacturing technique where a sheet of metal (in this case, carbon steel) is shaped into a desired form using a press and a die. This method offers several distinct advantages that are critical for components used in high-performance fluid systems.
Firstly, stamping ensures exceptional dimensional consistency and repeatability across large production volumes. This means that each flange produced will conform to the precise specifications, guaranteeing interchangeability and predictable performance. For system integrators and fabricators, this consistency translates into easier installation, reduced fit-up issues, and improved overall manufacturing efficiency. The tooling used in stamping is designed for high accuracy, ensuring that critical dimensions such as the outer diameter, pilot diameter, and thickness are held within tight tolerances.
Secondly, stamping is a highly cost-effective manufacturing process for mass production. This economic efficiency allows for the provision of high-quality components at a competitive price point, making the 3/4 Inch NPTF Steel Stamped Welding Flange an accessible solution for a wide range of applications without compromising on quality or performance. The process also optimizes material utilization, minimizing waste and contributing to the overall cost-effectiveness.
Thirdly, the stamping process imparts beneficial work hardening to the material, which can further enhance the mechanical strength and durability of the flange. While the base material, carbon steel, is already robust, the cold working during stamping refines its microstructure, increasing its resistance to deformation and wear. The controlled nature of the stamping operation also results in a consistent surface finish, which is conducive to quality welding and potential post-processing steps.
The Welding Flange Advantage: Secure and Permanent Connections
As a "Welding Flange," this component is designed for permanent attachment to a hydraulic reservoir or other pressure vessel through a welding process. This method of connection is highly favored in demanding applications due to its inherent strength, leak integrity, and resistance to dynamic stresses.
A properly executed weld creates a metallurgical bond between the flange and the parent material of the reservoir, forming a monolithic structure. This eliminates potential leak paths that might be present with mechanical fasteners or threaded connections alone, offering unparalleled reliability in containing hydraulic fluids under pressure. The robust nature of a welded connection also provides superior resistance to vibration, shock, and thermal cycling, which are prevalent in mobile and heavy industrial hydraulic systems. Unlike bolted connections that can loosen over time or require re-torquing, a welded joint, once correctly formed, maintains its integrity throughout the operational life of the system.
The "Plain" finish of the carbon steel flange is ideal for welding. It means the surface is free of coatings, oils, or oxides that could contaminate the weld pool and compromise weld quality. Proper preparation involves standard cleaning and beveling techniques applicable to carbon steel, allowing for either fillet welds or full penetration welds depending on the specific application requirements and pressure ratings of the system. The design of the flange, particularly its thickness and pilot, facilitates a sound weld joint geometry, enabling fabricators to achieve high-quality, defect-free welds with relative ease and confidence.
Understanding 3/4 Inch NPTF: The Dryseal Thread Standard
A critical specification for this flange is its 3/4 Inch NPTF thread type. NPTF stands for National Pipe Taper Fuel, often referred to as "Dryseal" pipe threads. This designation is crucial for understanding its sealing capabilities and application suitability, especially within fluid power systems.
The fundamental characteristic of NPTF threads, like standard NPT (National Pipe Taper) threads, is their tapered geometry. This taper allows the male and female threads to wedge together, creating a mechanical seal as the connection is tightened. However, NPTF threads are specifically designed to provide a more reliable, metal-to-metal dryseal without the need for thread sealants in certain applications, hence the "Dryseal" nomenclature. This is achieved through stricter controls on the crest and root truncations of the threads, ensuring maximum contact and deformation between the mating components.
The "Dryseal" feature of NPTF threads is particularly advantageous in fuel systems and critical hydraulic applications where the introduction of thread sealants could potentially contaminate the fluid or where sealants might degrade under specific operating conditions (e.g., high temperature, aggressive fluids). While NPTF threads are designed for a dryseal, it is common practice, and often recommended, to use a compatible thread sealant (such as PTFE tape or anaerobic thread locker) to ensure absolute leak-proof connections, especially in high-pressure hydraulic systems where even minute leaks are unacceptable. The 3/4 inch nominal pipe size denotes a standard industry dimension, ensuring compatibility with a vast array of fittings, hoses, and other components adhering to this standard.
Proper installation of NPTF threaded connections is paramount. Over-tightening can damage the threads, while under-tightening can lead to leaks. Adherence to manufacturer-recommended torque specifications and ensuring proper thread engagement are essential to achieve the intended sealing performance. The precision of the stamped flange's NPTF thread ensures a consistent and accurate mating surface, facilitating correct assembly and reliable operation.
Detailed Dimensional Analysis and Engineering Significance
The specified dimensions of this 3/4 Inch NPTF Steel Stamped Welding Flange are not arbitrary; each measurement plays a vital role in its functionality, integration, and performance within a hydraulic system.
Nominal Pipe Size (NPS) - 3/4 Inch (.75): This refers to the inside diameter of a pipe of a certain schedule, serving as a general reference dimension. For this flange, it dictates the flow capacity of the port and its compatibility with standard 3/4 inch NPTF fittings and components. A 3/4 inch port is suitable for a wide range of flow rates encountered in auxiliary hydraulic circuits, return lines, suction lines, or sensor ports, balancing flow capacity with spatial considerations.
Outer Diameter (OD) - 2.350 inches: The overall external dimension of the flange. This measurement is crucial for design and layout considerations. It dictates the amount of space required for the flange on the reservoir wall and influences the weld joint design. A sufficiently large OD ensures adequate surface area for a strong weld and provides a stable base for the threaded connection, distributing stresses effectively across the reservoir wall. It also needs to be considered when positioning multiple ports to prevent interference.
Pilot - 1.135 inches: The pilot diameter is a critically important feature for precise installation. A pilot, or locating boss, is a protruding cylindrical feature designed to fit into a pre-drilled or cut hole in the reservoir wall. The 1.135-inch pilot ensures accurate concentric alignment of the flange relative to the opening in the reservoir. This precision alignment is essential for several reasons: it guarantees that the threaded port is perfectly perpendicular to the reservoir surface, facilitates a consistent and uniform weld gap, and prevents misalignments that could induce undue stress on the connection or hinder the mating of other components. Furthermore, the pilot helps to center the flange during the welding process, minimizing distortion and simplifying the fabrication task.
Thickness - 0.134 inches: The material thickness of the flange directly impacts its structural integrity, pressure handling capabilities, and weldability. A thickness of 0.134 inches (approximately 1/8 inch) provides sufficient rigidity to resist deformation under clamping and welding stresses, and importantly, under the operating pressures of typical hydraulic systems. It also allows for a substantial weld bead, contributing to the strength and leak-proof nature of the connection. The chosen thickness balances structural requirements with manufacturing feasibility through stamping, ensuring robustness without excessive material use.
Applications and System Integration
The primary application for the 3/4 Inch NPTF Steel Stamped Welding Flange, as highlighted, is in the fabrication and modification of hydraulic reservoirs. This includes:
- New Reservoir Construction: For original equipment manufacturers (OEMs) building custom hydraulic power units or mobile equipment, these flanges provide standardized, reliable ports for suction lines, return lines, drain plugs, pressure gauges, temperature sensors, and other auxiliary connections.
- Existing Reservoir Modification: In maintenance or upgrade scenarios, this flange allows for the addition of new ports to existing reservoirs. This could be necessary for installing new monitoring equipment, integrating additional hydraulic functions, or replacing a damaged, corroded, or non-standard port.
Beyond hydraulic reservoirs, the inherent robustness and leak-proof characteristics of NPTF welding flanges make them suitable for other industrial fluid transfer applications where a secure, permanent, and high-pressure connection is required. This may include certain fuel tanks, lubrication systems, or industrial process fluid tanks, provided the material compatibility with carbon steel is ensured.
Engineering Considerations for Optimal Performance
When integrating this 3/4 Inch NPTF Steel Stamped Welding Flange into a system, several engineering considerations are critical to ensure optimal performance and longevity:
- Weld Quality: The strength and leak integrity of the connection depend entirely on the quality of the weld. Proper welding procedures, including pre-heating (if necessary for thicker reservoir walls), appropriate filler material, controlled heat input, and post-weld inspection, are essential.
- Pressure Rating: While the flange itself is robust, the overall pressure rating of the port will be limited by the weakest link in the system, typically the reservoir wall thickness and the integrity of the weld. Engineers must calculate system pressures and select appropriate components and welding methods accordingly.
- Vibration and Shock: In mobile and heavy industrial applications, components are exposed to constant vibration and occasional shock loads. The welded connection formed with this steel flange is highly resistant to these dynamic forces, contributing significantly to system reliability.
- Corrosion Protection: Given its plain carbon steel finish, if the flange is exposed to corrosive environments or corrosive fluids internally, appropriate post-welding surface treatments (e.g., painting, e-coating, chemical passivation) must be applied to prevent rust and ensure long-term integrity.
- Fluid Compatibility: While carbon steel is compatible with most standard hydraulic oils, it's crucial to verify compatibility with any specialized or aggressive fluids to prevent internal corrosion or degradation.
Conclusion
The 3/4 Inch NPTF Steel Stamped Welding Flange from Buyers Products is a precisely engineered component designed for the most demanding fluid power applications. Its selection of high-grade carbon steel, combined with the efficiency and accuracy of the stamping manufacturing process, results in a flange that offers exceptional strength, consistent dimensions, and reliable performance. The NPTF dryseal thread standard provides a secure connection, while the welding configuration ensures a permanent, leak-proof integration into hydraulic reservoirs and similar vessels. With careful attention to installation and environmental factors, this flange delivers superior operational integrity, making it an indispensable choice for engineers, fabricators, and maintenance professionals committed to building and maintaining high-quality, dependable hydraulic systems.
