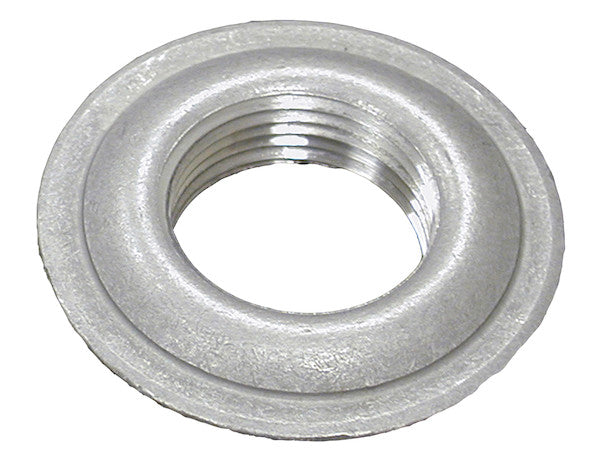

The Stamped Welding Flange from Buyers Products comes in aluminum, steel, and stainless steel in a variety of sizes to meet your reservoir installation needs. Use the flanges when fabricating your own hydraulic reservoir, or adding a port to an existing reservoir. Choose from a wide range of sizes, materials, ODs, and thicknesses to match your requirements.
Specifications
| Construction | Stamped |
|---|---|
| Finish | Plain |
| Material | Carbon Steel |
| Outer Diameter | 2.360 |
| Pilot | 1.385 |
| Size | 1.00 |
| Thickness | 0.134 |
Advanced Technical Overview: 1 Inch NPTF Steel Stamped Welding Flange for Hydraulic Systems
The 1 Inch NPTF Steel Stamped Welding Flange represents a critical component in the robust design and fabrication of hydraulic fluid reservoirs and integrated fluid power systems. Engineered for precision and durability, this specific flange is meticulously manufactured from carbon steel, utilizing an advanced stamping process to ensure consistent quality and optimal performance under demanding operational conditions. Its primary function is to provide a secure, leak-proof port for fluid ingress or egress, or for the integration of sensors and other auxiliary devices, directly welded onto a reservoir wall or other steel structures.
Understanding the technical nuances of this welding flange begins with its material composition. Carbon steel is selected for its exceptional mechanical properties, which include high tensile strength, excellent weldability, and superior fatigue resistance. These characteristics are paramount in hydraulic applications where components are frequently subjected to fluctuating pressures, vibrations, and thermal cycles. While plain carbon steel, as indicated by its "Plain" finish, offers substantial structural integrity, its natural susceptibility to corrosion in certain environments means that appropriate post-welding treatments, such as painting, coating, or cathodic protection, may be considered for prolonged service life in corrosive atmospheres. The specific grade of carbon steel chosen for such applications typically balances strength, ductility, and cost-effectiveness, ensuring a reliable and economical solution for system integrators and fabricators.
Manufacturing Process: Stamped Construction
The "Stamped" construction method is a defining feature of this flange, offering distinct advantages over alternative manufacturing techniques like forging or machining from solid stock. Stamping is a cold-forming process where a sheet of carbon steel is precisely cut and formed into the desired shape using a die and press. This method allows for high-volume production with excellent repeatability and tight dimensional tolerances, leading to cost efficiencies without compromising structural integrity. Key benefits of stamped flanges include:
- Material Efficiency: Stamping typically generates less material waste compared to machining, contributing to lower manufacturing costs and reduced environmental impact.
- Consistent Quality: The controlled nature of the stamping process ensures that each flange exhibits uniform mechanical properties and dimensional accuracy, which is crucial for predictable performance and ease of installation.
- Optimized Grain Structure: While not as pronounced as in forging, stamping can align the material's grain structure to enhance strength and resistance to fatigue in critical areas.
- Smooth Surfaces: Stamped parts generally possess good surface finishes, which can aid in welding preparation and overall aesthetic quality.
The relatively thin yet robust profile achieved through stamping, at 0.134 inches, is perfectly suited for integrating into reservoir walls where a balance between strength, weight, and weldability is essential. This thickness provides ample material for a strong fusion weld while minimizing distortion to the reservoir structure during the welding process.
Precision Engineering: Dimensions and NPTF Thread Standard
The dimensional specifications of the 1 Inch NPTF Steel Stamped Welding Flange are critical for its precise function and integration. The outer diameter (OD) of 2.360 inches provides a substantial surface area for welding, ensuring a strong, continuous bead that can withstand internal system pressures and external stresses. This generous OD also helps distribute welding heat, reducing the likelihood of localized material stress or warpage.
The pilot diameter, measuring 1.385 inches, serves a crucial role in installation. The pilot is a raised or recessed feature that helps center the flange within a pre-cut hole in the reservoir wall. This precise centering is vital for several reasons: it ensures correct alignment of the threaded port relative to the fluid flow path, facilitates consistent weld gap control around the flange, and significantly simplifies the welding process by providing a stable fit-up. Proper piloting minimizes the risk of misalignment, which could otherwise lead to uneven stress distribution in the weld, potential leaks, or inefficient flow dynamics within the hydraulic system.
The "1 Inch NPTF" designation is central to the functionality of this flange. NPTF stands for National Pipe Taper Fuel, a specific type of tapered pipe thread designed for mechanical sealing without the use of a separate sealant. The taper of the threads allows for a metal-to-metal seal as the male and female threads are tightened, creating an interference fit that is highly resistant to leakage under pressure. This self-sealing characteristic is particularly advantageous in hydraulic systems where maintaining fluid integrity and preventing external contamination are paramount. While NPTF threads are designed for a dry seal, thread sealants or PTFE tape are often still recommended or required for optimal performance in high-pressure or critical applications, serving as a lubricant during assembly and providing an additional layer of sealing security.
The 1-inch nominal size refers to the internal diameter of the pipe or component it is designed to connect, influencing the flow rate and pressure capacity. A 1-inch port is commonly used for medium-flow return lines, suction lines for smaller pumps, auxiliary power take-off (PTO) connections, or for the integration of medium-sized filtration units and pressure gauges within industrial and mobile hydraulic equipment. The robust nature of the carbon steel and the secure welding connection ensure that this port can withstand significant hydraulic pressures encountered in typical applications.
Applications in Hydraulic Systems
The utility of the 1 Inch NPTF Steel Stamped Welding Flange extends across a broad spectrum of hydraulic applications, primarily focused on the construction and modification of fluid reservoirs. Hydraulic reservoirs are not merely storage tanks; they are integral components that facilitate heat dissipation, allow for fluid de-aeration, and provide a stable volume of fluid for the hydraulic pump. The proper integration of ports is crucial for the efficient and reliable operation of the entire system.
Key application scenarios include:
- Custom Hydraulic Reservoir Fabrication: When designing and constructing bespoke hydraulic reservoirs for specialized machinery or unique space constraints, these flanges offer the flexibility to position ports exactly where needed for suction lines, return lines, drain plugs, level gauges, and breathers. This customization capability is invaluable in industries ranging from agriculture and construction to mining and material handling, where standard off-the-shelf reservoirs may not meet specific design requirements.
- Adding Ports to Existing Reservoirs: In many instances, existing hydraulic systems require upgrades or modifications. This might involve adding a new hydraulic circuit, integrating advanced filtration systems, incorporating additional sensors for condition monitoring, or establishing new return paths. The welding flange allows for the secure and permanent addition of a new port to an existing steel reservoir, extending the functionality and adaptability of the system without necessitating a complete reservoir replacement.
- Fluid Transfer and Connection Points: Beyond reservoirs, these flanges can be employed in other steel structures where a robust, threaded connection point is required for fluid transfer. This could include manifold blocks, auxiliary tanks, or custom fabricated pipe runs that need a branch connection for instrumentation or bypass lines.
- OEM and Aftermarket Integration: Both original equipment manufacturers (OEMs) and aftermarket service providers utilize these flanges for their inherent versatility and strength. OEMs can streamline their production processes, while aftermarket technicians can perform reliable repairs and upgrades in the field.
The plain finish of the carbon steel allows for customization of the final surface treatment after welding, enabling seamless integration with the aesthetic and protective coating requirements of the overall machinery.
Installation and Welding Best Practices
The successful integration of the 1 Inch NPTF Steel Stamped Welding Flange hinges on proper installation techniques, particularly the welding process. Carbon steel flanges are highly weldable, but adherence to best practices is essential to ensure a strong, leak-free, and durable connection.
- Surface Preparation: Before welding, both the flange and the surface of the reservoir (or structure) must be meticulously cleaned. This involves removing all rust, scale, paint, oil, grease, and any other contaminants that could compromise weld quality. Grinding or wire brushing the weld area to bright metal is highly recommended.
- Fit-Up and Alignment: A precisely cut hole in the reservoir wall, matching the pilot diameter of the flange, is critical. The flange should fit snugly into this hole. The pilot diameter of 1.385 inches helps guide the flange into correct concentric alignment. Tack welding the flange in several spots first ensures proper positioning before laying a continuous weld bead.
- Welding Process: Common welding methods suitable for carbon steel include Gas Metal Arc Welding (GMAW/MIG), Shielded Metal Arc Welding (SMAW/Stick), and Gas Tungsten Arc Welding (GTAW/TIG). The choice often depends on equipment availability, welder skill, material thickness, and desired aesthetic. For robust connections on hydraulic reservoirs, MIG welding is often preferred for its speed and efficiency, while TIG can provide extremely clean and precise welds.
- Filler Material: Select a filler metal compatible with the carbon steel of the flange and the reservoir. ER70S-6 is a common choice for MIG/TIG, and E7018 or E6010 for Stick, offering good strength and ductility.
- Penetration and Bead Quality: Aim for full penetration of the weld into both the flange and the reservoir material, ensuring a strong metallurgical bond. The weld bead should be uniform, free of porosity, undercut, or excessive spatter. Proper heat input is essential to prevent burn-through on thinner reservoir walls or excessive distortion.
- Cooling: Allow the welded assembly to cool slowly and naturally to minimize residual stresses and potential distortion. Forced cooling should generally be avoided.
- Post-Weld Inspection: After cooling, visually inspect the weld for any defects. For critical hydraulic applications, a leak test of the reservoir is mandatory before filling with hydraulic fluid. This can be done by filling the reservoir with water and applying air pressure, or using dye penetrant testing on the weld itself.
- Corrosion Protection: Given the plain finish of the carbon steel, apply a protective coating (e.g., paint, powder coating) to the entire reservoir, including the flange and weld area, immediately after welding and cleaning to prevent rust and ensure long-term durability.
Advantages and System Integration
The 1 Inch NPTF Steel Stamped Welding Flange offers several distinct advantages that contribute to the overall reliability and efficiency of hydraulic systems:
- Robust Construction: Manufactured from carbon steel and utilizing a stamping process, these flanges are inherently strong and capable of withstanding the mechanical stresses and pressures typical of hydraulic applications.
- Leak-Free Performance: The NPTF tapered thread design, combined with proper welding, ensures a highly reliable, self-sealing connection that minimizes the risk of fluid leakage, which is crucial for operational safety and environmental protection.
- Cost-Effectiveness: The stamped manufacturing process makes these flanges an economical choice for high-volume applications without sacrificing quality or performance. Carbon steel is also a more cost-effective material compared to stainless steel or specialized alloys for many standard applications.
- Versatile Application: Their adaptability for both new reservoir fabrication and existing system modifications makes them an invaluable component for a wide range of hydraulic equipment.
- Ease of Integration: The precisely engineered pilot diameter simplifies installation, ensuring accurate alignment and reducing labor time during assembly.
- Chemical Compatibility: Carbon steel is compatible with a wide range of hydraulic fluids, including mineral oil-based and many synthetic fluids, making it a versatile choice for diverse system requirements.
Maintenance and Longevity
While the flange itself is designed for long-term durability, the longevity of the entire connection depends on ongoing system maintenance and environmental considerations. Regular inspection of welded joints for any signs of fatigue cracking, corrosion, or leaks is advisable, especially in high-vibration or corrosive environments. For applications where the plain carbon steel might be exposed to moisture or harsh chemicals, ensuring the integrity of any applied protective coatings is paramount. The NPTF threaded connection should also be checked periodically for tightness, though the self-sealing nature and general stability of a well-made connection mean frequent adjustments are usually not necessary.
Conclusion
The 1 Inch NPTF Steel Stamped Welding Flange from Buyers Products is an indispensable component for professionals involved in hydraulic system design, fabrication, and maintenance. Its robust carbon steel construction, efficient stamped manufacturing, precision NPTF threading, and carefully engineered dimensions provide a reliable, cost-effective, and versatile solution for creating secure fluid ports. By adhering to proper installation and welding procedures, this flange facilitates the construction of highly efficient and durable hydraulic reservoirs and systems, ensuring optimal performance and extended service life in demanding industrial and mobile applications. Its technical specifications affirm its role as a fundamental building block for resilient fluid power infrastructures, offering unmatched integration flexibility and dependable operational integrity.
