The Stamped Welding Flange from Buyers Products comes in aluminum, steel, and stainless steel in a variety of sizes to meet your reservoir installation needs. Use the flanges when fabricating your own hydraulic reservoir, or adding a port to an existing reservoir. Choose from a wide range of sizes, materials, ODs, and thicknesses to match your requirements.
Specifications
| Construction | Stamped |
|---|---|
| Finish | Plain |
| Material | Carbon Steel |
| Outer Diameter | 2.868 |
| Pilot | 1.740 |
| Size | 1.25 |
| Thickness | 0.134 |

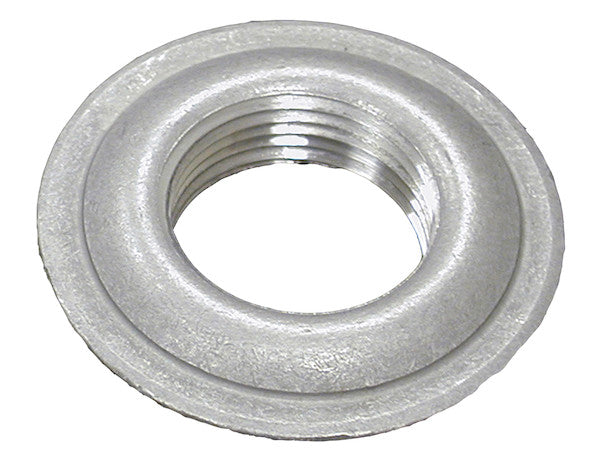

The 1-1/4 Inch NPTF Steel Stamped Welding Flange represents a critical component in the design and fabrication of robust hydraulic fluid power systems, specifically for reservoir construction and modification. Engineered for demanding industrial and mobile applications, this flange is meticulously manufactured from carbon steel through a precision stamping process, ensuring superior material integrity and consistent dimensional accuracy. Its primary function is to provide a secure, leak-proof port for the integration of hydraulic lines, sensors, or other auxiliary components into a hydraulic reservoir. The NPTF (National Pipe Taper Fuel) thread standard is specifically chosen for its inherent dryseal capabilities, which are paramount in applications where even minimal fluid leakage can compromise system performance, safety, and environmental compliance.
Advanced Technical Overview: The 1-1/4 Inch NPTF Steel Stamped Welding Flange
Understanding NPTF Threading for Hydraulic Systems
The designation "NPTF" stands for National Pipe Taper Fuel, a specific type of pipe thread critical for achieving a robust, leak-free seal without the necessity of thread sealant for many applications. Unlike standard NPT (National Pipe Taper) threads, NPTF threads feature a design that allows for mechanical sealing by deforming the crests of the male thread into the roots of the female thread upon tightening. This metal-to-metal interference, combined with the taper, creates a "dryseal" connection, effectively preventing helical leakage paths that are common with standard NPT threads, which rely solely on sealants to fill the gaps. For hydraulic reservoirs, where consistent fluid containment and prevention of air ingress are vital, the NPTF standard is indispensable. The 1-1/4 inch size indicates the nominal inside diameter of the pipe or port it is designed to connect, signifying its capacity for fluid flow within the hydraulic circuit. This specific size is commonly utilized for return lines, suction lines for smaller pumps, drain ports, or instrument ports, offering a balance between flow rate and compact design.
Material Specification: Carbon Steel for Durability and Weldability
The choice of carbon steel as the primary material for this welding flange is strategic, offering a compelling balance of mechanical strength, ductility, and excellent weldability. Carbon steel, primarily an alloy of iron and carbon (with carbon content typically up to 2.1% by weight), provides high tensile strength and yield strength, enabling the flange to withstand the static and dynamic stresses associated with hydraulic fluid pressures, system vibrations, and thermal cycling. The plain finish of the carbon steel signifies that the flange is provided without any additional coatings or treatments, making it ideal for direct welding applications. This untreated surface facilitates optimal weld penetration and fusion, ensuring a metallurgical bond with the reservoir wall that is free from contaminants. The inherent characteristics of carbon steel also offer good resistance to wear and abrasion, contributing to the long-term durability of the connection point. While plain carbon steel does not possess inherent corrosion resistance comparable to stainless steel, it is compatible with a wide range of hydraulic fluids and can be readily painted or coated post-installation to mitigate external corrosion, aligning with the typical material choices for hydraulic reservoirs themselves.
Precision Manufacturing: The Stamping Process
The "stamped" construction method is a key attribute of this flange, indicative of its manufacturing precision and cost-effectiveness. Stamping is a cold-forming process where sheet metal, in this case, carbon steel, is placed into a press and a tool and die surface forms the metal into a desired shape. This method offers several distinct advantages for components like welding flanges:
- Dimensional Consistency: Stamping ensures extremely tight tolerances and repeatable dimensions across large production batches. This is critical for reliable fitment, weld preparation, and interchangeability.
- Material Efficiency: The stamping process is highly efficient in material utilization, minimizing waste compared to subtractive manufacturing methods like machining from solid bar stock.
- Surface Finish: Stamped components typically exhibit a smooth, uniform surface finish, which is advantageous for welding as it reduces the need for extensive pre-weld preparation and promotes consistent weld bead formation.
- Mechanical Properties Enhancement: Cold working during the stamping process can enhance the mechanical properties of the carbon steel, such as increased yield strength and hardness, through strain hardening.
- Cost-Effectiveness: For high-volume production, stamping is a highly economical process, allowing manufacturers to offer technically advanced components at competitive prices.
Dimensional Analysis and Functional Implications
- Outer Diameter (2.868 inches): This dimension defines the overall footprint of the flange and, more importantly, provides the necessary surface area for welding to the reservoir wall. A sufficiently large OD ensures that the heat-affected zone (HAZ) during welding is managed effectively and that the structural integrity around the port is maintained, distributing stresses over a broader area.
- Pilot Diameter (1.740 inches): The pilot is a critical feature designed to precisely locate and align the flange within a prepared opening in the reservoir. It ensures concentricity of the threaded port relative to the hole in the tank, simplifying installation and preventing misalignment issues that could compromise sealing or flow characteristics. It acts as a guide, ensuring the flange sits flush and correctly before welding.
- Thickness (0.134 inches): The flange thickness directly impacts its structural rigidity and ability to withstand internal and external forces. A thickness of 0.134 inches provides adequate material for robust weld penetration, preventing warping during welding and offering sufficient strength to prevent deformation under typical operating pressures and mechanical stresses imparted by connected fittings and hoses. This thickness is carefully selected to balance strength with efficient material use and weldability to common reservoir wall thicknesses.
- Size (1.25 inches NPTF): This nominal pipe size dictates the flow capacity through the port. A 1-1/4 inch NPTF port is versatile, suitable for various hydraulic functions where moderate to high flow rates are required, such as return lines from hydraulic actuators or low-pressure suction lines to auxiliary pumps. The tapered thread ensures compatibility with a vast array of standardized hydraulic fittings and components.
Application in Hydraulic Reservoir Design and Fabrication
This 1-1/4 Inch NPTF Steel Stamped Welding Flange is engineered as an indispensable component for both the fabrication of new hydraulic reservoirs and the modification of existing ones. Hydraulic reservoirs are fundamental to any fluid power system, serving multiple critical functions:
- Fluid Storage: Holding the system's hydraulic fluid supply.
- Heat Dissipation: Allowing the fluid to cool.
- Contaminant Settling: Providing a quiescent zone for particulate contaminants to settle.
- Air Separation: Facilitating the release of entrained air from the fluid.
Installation and Welding Best Practices
Proper installation of the welding flange is paramount to ensuring the integrity and longevity of the hydraulic reservoir. Key considerations for welding include:
- Surface Preparation: The reservoir wall and the flange's welding surface must be thoroughly cleaned of any scale, rust, paint, oil, or other contaminants that could compromise weld quality. Grinding or wire brushing to achieve a clean, bright metal surface is essential.
- Joint Design: For optimal strength and penetration, a full penetration fillet weld or a groove weld (if the reservoir wall thickness permits) is recommended. The flange's design provides an ideal surface for such welds.
- Welding Process: Carbon steel is highly weldable using various processes, including Gas Metal Arc Welding (GMAW/MIG), Shielded Metal Arc Welding (SMAW/Stick), or Gas Tungsten Arc Welding (GTAW/TIG). The choice depends on the welder's skill, equipment availability, and desired aesthetic/penetration.
- Heat Management: Controlling heat input during welding is crucial to prevent distortion of the flange or the reservoir wall. Preheating may be beneficial for thicker reservoir materials, and proper interpass temperature control is recommended.
- Fit-up and Alignment: Utilizing the pilot diameter of the flange, it should be precisely aligned and clamped in position before welding to ensure concentricity and a flush fit against the reservoir wall.
- Post-Weld Inspection: After cooling, the weld should be visually inspected for continuity, porosity, cracks, and proper bead profile. Non-destructive testing (NDT) such as dye penetrant inspection can be employed to detect surface flaws, ensuring a hermetic seal.
Performance and Reliability in Hydraulic Systems
The reliability of a hydraulic system is directly proportional to the quality and integrity of its components, and this 1-1/4 Inch NPTF Steel Stamped Welding Flange plays a pivotal role in maintaining that standard. A high-quality port connection contributes to:
- Leak Prevention: The combination of the NPTF dryseal thread and a properly executed weld drastically minimizes the risk of fluid leakage, which can lead to environmental contamination, reduced system efficiency, and potential safety hazards.
- System Efficiency: By preventing air ingress, the flange helps maintain the hydraulic fluid's integrity, ensuring optimal pump performance and preventing cavitation, which can cause significant damage and reduce operational efficiency.
- Component Longevity: Securely mounted fittings connected to robust flanges reduce stress on hose assemblies and other connected components, extending their service life and reducing maintenance requirements.
- Structural Integrity: The robust carbon steel construction and strong weld provide excellent resistance to external impacts, vibration, and internal pressure fluctuations, maintaining the reservoir's structural integrity over time.
