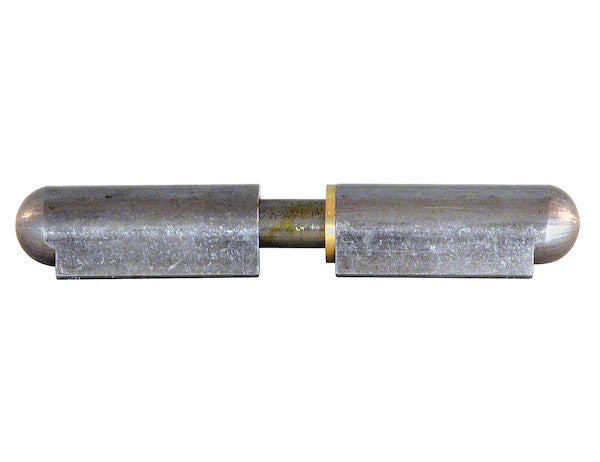

FSP100 - Steel Weld-On Bullet Hinge with Steel Pin and Brass Bushing - 0.77 x 3.94 Inch

Buyers Products Steel Weld-On Bullet Hinge (also known as a lift-hinge) is ideal for trailer doors/gates and tool cabinets. The hinge is constructed from steel with a steel pin and brass bushing. They are available in multiple sizes to fit your application. Please contact Customer Service for further information.

Specifications

Advanced Technical Overview: Steel Weld-On Bullet Hinge with Steel Pin and Brass Bushing - 0.77 x 3.94 Inch

The Buyers Products Steel Weld-On Bullet Hinge, often referred to as a lift-off hinge due to its characteristic ability to allow for simple door removal, represents a robust and highly durable solution for a multitude of heavy-duty applications. Engineered for environments demanding superior strength, security, and longevity, this specific model, with its nominal dimensions of 0.77 inches in thickness and 3.94 inches in overall length, is a prime example of precision manufacturing tailored for rigorous industrial, commercial, and automotive use. Its construction from high-grade steel, complemented by a hardened steel pin and a low-friction brass bushing, ensures optimal performance under sustained operational stress.

Design Philosophy and Material Science

The fundamental design of the bullet hinge prioritizes maximum load-bearing capability and resistance to environmental degradation. The choice of materials is central to achieving these objectives. The hinge body itself is fabricated from solid steel, a material renowned for its exceptional tensile strength, yield strength, and inherent toughness. Steel's ability to withstand significant static and dynamic loads, including impacts and continuous vibration, makes it an ideal choice for critical structural components on vehicles, machinery, and secure enclosures. The solid cylindrical design, characteristic of bullet hinges, distributes stress uniformly across its length, minimizing localized strain concentrations that could lead to premature failure in less robust designs. Furthermore, the inherent weldability of steel facilitates a permanent and incredibly strong attachment to the parent structure, creating an integrated joint that often surpasses the strength of bolted alternatives.

Central to the rotational mechanics of this hinge is the utilization of a carbon steel pin. Carbon steel is selected for its high hardness and wear resistance, properties crucial for an axial component subjected to continuous shear and bending forces during articulation. The precise machining of the pin ensures a snug fit within the bushing, minimizing play and contributing to a smooth, stable pivot action. The pin's integrity is paramount for the hinge's longevity, as it endures the cumulative abrasive wear and fatigue cycles inherent in repeated opening and closing movements. With a specified pin diameter of 0.39 inches and distinct pin lengths A (1.65 inches) and B (1.16 inches), the design allows for specific clearances and operational configurations, contributing to the hinge's adaptability in diverse installations.

Perhaps the most critical tribological element of this hinge is the brass bushing. Positioned between the steel hinge leaves and the steel pin, the brass bushing serves several vital functions. Firstly, brass, an alloy of copper and zinc, possesses excellent natural lubricity properties, significantly reducing the coefficient of friction between the rotating steel components. This reduction in friction translates directly into smoother operation, requiring less force to actuate the hinged component. Secondly, brass exhibits superior anti-galling characteristics compared to steel-on-steel contact. Galling, a form of severe adhesive wear, occurs when two metal surfaces slide against each other under pressure, leading to material transfer and surface damage. The presence of a brass bushing effectively prevents this phenomenon, preserving the integrity of both the steel pin and the hinge body. Thirdly, brass offers enhanced corrosion resistance, particularly in environments where moisture or certain chemicals might accelerate oxidation of steel components. This multi-faceted role of the brass bushing ensures prolonged operational life, consistent performance, and minimal maintenance requirements, especially important given the absence of an integrated grease fitting in this particular model, signifying a design optimized for lower maintenance cycles in appropriate applications.

Weld-On Installation: Precision and Durability

The designation "weld-on" is a defining characteristic of this hinge, dictating its installation methodology and inherent structural advantages. Unlike bolt-on or screw-on hinges, which rely on mechanical fasteners and may be susceptible to loosening, vibration-induced fatigue, or tampering, a weld-on hinge creates a monolithic bond with the mounting surface. This fusion not only provides exceptional shear and tensile strength but also results in a highly secure and tamper-resistant attachment. The permanence of a welded connection is critical in applications where the hinged component is subject to high dynamic loads, severe vibrations, or where security against unauthorized removal is a primary concern.

Proper installation of a weld-on bullet hinge requires specialized welding equipment and skilled personnel. The process involves precisely aligning the hinge components on the desired surfaces of the door/gate and the frame/cabinet, followed by carefully executing continuous, high-integrity welds. The specific welding process (e.g., MIG, TIG, Stick) will depend on the base material thickness, accessibility, and desired weld aesthetics, but the objective remains consistent: to achieve full penetration and a strong metallurgical bond. Prior to welding, thorough surface preparation, including cleaning and potentially beveling the edges, is essential to ensure weld quality and prevent porosity or inclusions that could compromise strength. Post-welding inspection, which may include visual, dye penetrant, or even ultrasonic testing, is recommended to verify the integrity of the welded joint and confirm that no heat-affected zone (HAZ) issues have compromised the parent materials. The flush-mount capability of weld-on bullet hinges also contributes to a cleaner aesthetic and minimizes protrusion, reducing potential snag points or vulnerability to external impact.

Dimensional Specifications and Application Matching

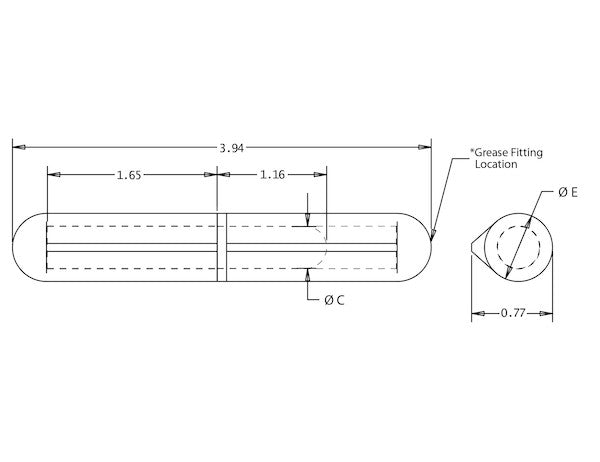

This particular variant of the Steel Weld-On Bullet Hinge is precisely dimensioned at 0.77 inches in thickness and 3.94 inches in overall hinge length. These specific metrics are crucial for engineers and fabricators in determining the hinge's suitability for particular applications. The 0.77-inch thickness refers to the robust cross-sectional dimension of the hinge body, which directly correlates with its structural rigidity and resistance to bending under heavy loads. This substantial thickness ensures that the hinge can effectively transfer forces from the hinged component to the mounting structure without deformation or fatigue.

The 3.94-inch hinge length, combined with an overall diameter of 0.63 inches, provides an adequate surface area for robust welding and ensures sufficient distribution of stress along the pivot axis. The precise lengths of the pin (Pin Length A: 1.65 inches; Pin Length B: 1.16 inches) are critical for calculating the effective pivot point and ensuring proper clearances for the hinged element, especially in lift-off configurations. The consistent adherence to these dimensions throughout the manufacturing process guarantees interchangeability and reliable performance across multiple units. While this product page details a specific size, Buyers Products offers an array of dimensions, underscoring the importance of selecting the appropriate hinge size based on the specific weight, dimensions, and operational requirements of the door, gate, or panel to be supported. Undersized hinges can lead to premature failure, while oversized hinges may be unnecessarily cumbersome or costly.

Operational Advantages and Performance Characteristics

The combination of robust steel construction, a high-strength steel pin, and a low-friction brass bushing endows this bullet hinge with a range of superior operational advantages:

1. Exceptional Durability and Longevity: The inherent strength and wear resistance of steel, coupled with the anti-galling properties of brass, ensures an extended service life even under continuous, heavy usage and in challenging environmental conditions. The materials are selected to resist deformation, abrasion, and fatigue.
2. High Load-Bearing Capacity: The solid steel construction and weld-on attachment method provide an unparalleled ability to support substantial static and dynamic loads. This makes it ideal for heavy trailer doors, industrial gates, and weighty equipment covers where structural integrity is non-negotiable.
3. Smooth and Consistent Articulation: The precisely machined carbon steel pin rotating within the brass bushing minimizes friction, resulting in remarkably smooth and quiet operation. This consistency in movement is maintained over the hinge's lifespan, preventing binding or jerking actions.
4. Enhanced Security: The permanent, welded attachment mitigates vulnerabilities associated with exposed fasteners, making the hinged component significantly more resistant to forced entry or tampering, which is critical for cargo security on trailers or the protection of valuable tools in cabinets.
5. Corrosion Resistance: While the primary hinge body is steel, which can be susceptible to rust if untreated, the brass bushing offers inherent corrosion resistance in the critical pivot area. For the steel components, standard industrial coatings or paints can be applied post-installation to provide comprehensive environmental protection against elements like moisture, road salts, or chemicals.
6. Lift-Off Functionality: As a lift-hinge, it facilitates easy removal of the hinged component (e.g., a door or gate) without requiring disassembly of the hinge itself. This feature is invaluable for maintenance access, component replacement, or temporary removal for larger cargo loading, enhancing operational flexibility.

Diverse Application Scenarios

The versatility and ruggedness of the Steel Weld-On Bullet Hinge make it indispensable across a broad spectrum of industrial, commercial, and transportation applications:

• Trailer Manufacturing and Repair: Crucial for heavy-duty utility trailers, enclosed cargo trailers, flatbed trailers, and livestock trailers. It secures rear gates, side doors, and ramp gates that endure constant vibration, impact, and exposure to adverse weather during transit. Its robust construction ensures that valuable cargo or livestock remains secure.
• Industrial and Agricultural Gates: Essential for securing heavy perimeter gates at manufacturing plants, warehouses, construction sites, and agricultural facilities. These hinges can support large, weighty gate panels that see frequent operation and are exposed to harsh outdoor conditions, providing both security and reliable access.
• Tool Cabinets and Storage Boxes: For professional-grade toolboxes, utility cabinets on service vehicles, and storage lockers in industrial settings, where security, frequent access, and the ability to support heavily loaded doors are paramount. The weld-on nature prevents easy removal of the door by unauthorized personnel.
• Heavy Machinery and Equipment Enclosures: Used for access panels, battery compartments, engine covers, and equipment doors on construction machinery, agricultural equipment, and specialized vehicles. These hinges provide durable articulation for components that require periodic access for maintenance or operation, often in dirty, high-vibration environments.
• Utility and Electrical Boxes: For securing doors on outdoor utility boxes, electrical enclosures, and control cabinets where weather resistance and tamper-proofing are critical for protecting sensitive components and ensuring public safety.
• Custom Fabrication Projects: An ideal component for bespoke fabrication, offering designers and engineers a reliable, high-strength pivot point for custom doors, hatches, or panels in various structural assemblies.

Technical Considerations for Optimal Integration

For engineers and fabricators, successful integration of the Buyers Products Steel Weld-On Bullet Hinge necessitates careful consideration of several technical factors:

1. Load Capacity and Distribution: It is imperative to accurately calculate the weight and dimensions of the hinged component to ensure that the selected hinge size and quantity can safely accommodate the load. Multiple hinges may be required for very wide or heavy doors to distribute the load evenly and prevent undue stress on individual hinges. Consideration should be given to static loads, dynamic loads (during opening/closing), and potential impact loads.
2. Environmental Exposure: While steel offers excellent structural properties, its inherent susceptibility to corrosion must be addressed, particularly for outdoor or corrosive industrial environments. Post-welding surface treatments such as galvanizing, powder coating, or specialized paint systems are crucial for extending the life of the steel components. The brass bushing offers good localized corrosion resistance, complementing the overall durability.
3. Welding Parameters: The choice of welding process, filler material, current, voltage, and travel speed must be optimized for the specific grades of steel being joined (hinge material to parent structure). Proper pre-heating and post-welding cooling procedures may also be necessary to prevent cracking or distortion, especially with thicker materials or certain alloy steels.
4. Alignment and Fit-up: Precise alignment of the hinge components before welding is critical for smooth operation and preventing premature wear. Misalignment can induce binding, uneven load distribution, and accelerated wear on the pin and bushing. Fixturing tools should be employed to maintain dimensional accuracy during the welding process.
5. Maintenance Schedule: Although this hinge lacks a grease fitting, implying a lower maintenance requirement for many applications, severe duty or high-cycle applications may still benefit from periodic external lubrication of the pin/bushing interface to maximize lifespan and maintain optimal performance. The appropriate lubricant type (e.g., lithium grease, dry film lubricant) should be selected based on environmental conditions and operating temperatures.
6. Safety Standards: For critical applications, compliance with relevant industry safety standards and regulations regarding hinged access points, especially in machinery or vehicles, should be verified. The robust construction contributes positively to safety by ensuring reliable closure and structural integrity.

Conclusion

The Buyers Products Steel Weld-On Bullet Hinge with Steel Pin and Brass Bushing, specifically the 0.77 x 3.94 Inch model, embodies a pinnacle of robust engineering for demanding articulation requirements. Its meticulously selected material composition – solid steel for structural integrity, a hardened carbon steel pin for rotational resilience, and a low-friction brass bushing for smooth, enduring operation – collectively delivers a product of exceptional performance. The weld-on installation methodology ensures a permanently secure and tamper-resistant attachment, critical for applications where security and structural fortitude are paramount. From heavy trailer doors and industrial gates to secure tool cabinets and specialized machinery enclosures, this hinge is engineered to provide reliable, maintenance-conscious service across a spectrum of challenging environments. Its precise dimensions facilitate versatile integration, while the availability of multiple sizes allows for tailored solutions to meet diverse load and application specifications. For professionals seeking a high-performance, durable, and secure hinge solution that stands the test of time and operational rigor, this product represents a definitive choice, reflecting Buyers Products' commitment to quality and functional excellence.
