FSP150 - Steel Weld-On Bullet Hinge with Steel Pin and Brass Bushing - 0.98 x 5.91 Inch

Buyers Products Steel Weld-On Bullet Hinge (also known as a lift-hinge) is ideal for trailer doors/gates and tool cabinets. The hinge is constructed from steel with a steel pin and brass bushing. They are available in multiple sizes to fit your application. Please contact Customer Service for further information.

Specifications

Advanced Technical Overview: Buyers Products Steel Weld-On Bullet Hinge (0.98 x 5.91 Inch)

The Buyers Products Steel Weld-On Bullet Hinge, characterized by its robust construction and precision engineering, represents an optimal solution for demanding articulation requirements in industrial, commercial, and heavy-duty automotive applications. This particular model, with its nominal dimensions of 0.98 inches in overall thickness (or maximum outer diameter) and 5.91 inches in length, is meticulously designed to provide superior strength, durability, and a smooth operational lifespan. Its inherent "lift-hinge" functionality, combined with the permanent security of weld-on installation, distinguishes it as a preferred choice for scenarios requiring both high load-bearing capacity and the ability for facile door or gate removal.

Material Science and Engineering for Optimized Performance

High-Grade Steel Body Construction

The primary structural component of this bullet hinge is crafted from high-grade steel, chosen for its exceptional mechanical properties. Steel, primarily an alloy of iron and carbon, offers an unparalleled balance of tensile strength, yield strength, and impact resistance. The specific steel alloy utilized for the hinge body ensures optimal weldability, a critical factor for achieving a structurally integral and durable bond with the application's base material. This material selection translates directly into enhanced load-bearing capabilities, resistance to deformation under dynamic stresses, and an extended service life in arduous operating environments. The inherent rigidity of steel minimizes flex and distortion, maintaining precise alignment of hinged components over time, which is essential for consistent functionality and security. While steel provides outstanding structural integrity, it is important to note that its inherent corrosion resistance is moderate; therefore, appropriate post-installation finishing or coatings may be required depending on the environmental exposure to mitigate oxidation and enhance aesthetic longevity.

Carbon Steel Pin: The Articulation Core

At the heart of the hinge's articulation mechanism is a precisely machined carbon steel pin, featuring a diameter of 0.51 inches. Carbon steel is specifically selected for this critical component due to its high hardness and wear resistance, which are crucial for minimizing material degradation at the point of rotation. The pin's material composition ensures it can withstand significant shear forces and repeated torsional stresses without succumbing to fatigue or permanent deformation. Its robust nature is pivotal in maintaining the structural integrity of the hinge assembly under both static and dynamic loads. The interaction between the hardened steel pin and the brass bushing is a finely tuned system, engineered to optimize friction reduction and wear characteristics, thereby ensuring sustained smooth operation and extending the overall life cycle of the hinge.

Brass Bushing: The Low-Friction Interface

Integral to the smooth and durable operation of the Buyers Products bullet hinge is the inclusion of a brass bushing. With a bushing material of brass, this component serves as a critical interface between the rotating steel pin and the static steel hinge body. Brass, an alloy primarily composed of copper and zinc, is renowned for its excellent tribological properties, including a low coefficient of friction and superior wear resistance, particularly when paired with steel. This combination significantly reduces galling, seizing, and frictional heat generation during hinge articulation, which are common failure modes in less sophisticated designs. The brass bushing provides a self-lubricating effect to some extent, and its inherent corrosion resistance contributes to maintaining optimal performance even in environments where moisture or corrosive agents might compromise other materials. Furthermore, brass possesses good thermal conductivity, dissipating any localized heat build-up effectively, thereby preserving the material integrity of both the pin and the bushing itself. This thoughtful material pairing directly contributes to the hinge's exceptional longevity and operational reliability, minimizing the need for frequent maintenance.

Design and Engineering Principles of the Bullet Hinge

Form Factor and Functional Advantages

The distinctive "bullet" design of this hinge offers several engineering advantages. Its cylindrical, compact form factor minimizes protrusion, allowing for flush mounting and a clean aesthetic integration into the application. This design also inherently distributes stress evenly across the hinge body, preventing localized points of high stress concentration that can lead to premature failure in other hinge types. The overall diameter of the hinge, measuring 0.98 inches (as per the thickness specification), ensures a substantial cross-section for structural rigidity, while the hinge length of 5.91 inches provides an extended bearing surface for the pin and bushing, maximizing load distribution and stability. The internal barrel diameter, specified as 0.79 inches, indicates the robust housing for the pin and bushing assembly.

Lift-Off Mechanism: Enhanced Functionality

A key functional attribute of this bullet hinge is its "lift-off" or "lift-hinge" capability. This design allows for the easy separation of the hinged component (e.g., a door or gate) from its fixed frame by simply lifting it off the pivot pin once it is in an open position. This feature is exceptionally valuable in applications requiring periodic or rapid removal of access panels, doors, or covers for maintenance, cargo loading, or specialized access. For instance, on trailer doors or utility vehicle cabinets, the ability to quickly detach the door can greatly facilitate access to the interior or enable the removal of oversized items. This mechanism is achieved through the distinct separation of the male and female halves of the hinge, with Pin Length A (2.48 inches) and Pin Length B (1.57 inches) indicating the dimensions of these separable components. The absence of a grease fitting, specified as 'No', implies that initial lubrication or periodic manual lubrication may be required, depending on the application and environmental conditions, or that the inherent self-lubricating properties of the brass bushing are deemed sufficient for the intended use profile.

Weld-On Installation: Uncompromising Strength and Security

Advantages of Welded Attachment

The designation "Weld-On" is not merely an installation method but a fundamental aspect of the hinge's performance profile. Welding offers a permanent, monolithic bond between the hinge and the parent material, typically steel structures. This method provides several critical advantages over bolted or riveted alternatives:

1. Superior Structural Integrity: A properly executed weld creates a joint that can be as strong, if not stronger, than the base materials themselves. This eliminates the potential for fastener loosening, shearing, or fatigue failure often associated with mechanical attachments, particularly under dynamic loads, vibration, or impact.
2. Enhanced Load Transfer: Welding ensures uniform load distribution across the entire contact area, preventing stress concentrations that can occur around bolt holes. This is crucial for applications involving heavy doors, gates, or components subjected to significant forces.
3. Tamper Resistance and Security: A welded hinge is inherently more secure, as it cannot be easily removed by unauthorized personnel without specialized cutting tools. This provides an additional layer of security for cargo containers, tool cabinets, and other sensitive enclosures.
4. Streamlined Aesthetics: Welded installations often result in a cleaner, more integrated appearance, without visible bolt heads or rivets, contributing to a professional and finished look.
5. Corrosion Resistance at the Joint: When properly welded and finished, the joint itself is less susceptible to crevice corrosion or ingress of moisture, which can degrade mechanically fastened joints.

Welding Considerations and Best Practices

While offering significant benefits, weld-on installation demands specific expertise and adherence to proper welding procedures. Considerations include:

• Material Compatibility: Ensuring the hinge's steel alloy is compatible with the parent structure's steel for a sound metallurgical bond.
• Surface Preparation: Thorough cleaning of welding surfaces, removing rust, paint, oil, and other contaminants to prevent weld defects and ensure maximum joint strength.
• Welding Process Selection: Appropriate selection of welding method (e.g., MIG, TIG, Stick) based on material thickness, access, and required weld quality.
• Heat Management: Careful control of heat input to minimize distortion, warping, and the formation of brittle heat-affected zones (HAZ) in both the hinge and the parent structure. Pre-heating or post-weld heat treatment may be required for certain high-carbon steels or thick sections.
• Qualified Personnel: Welding should ideally be performed by certified or experienced welders to ensure the integrity and safety of the installation.
• Post-Weld Finishing: Grinding, cleaning, and application of protective coatings (paint, powder coat, galvanization) are essential after welding to prevent corrosion and achieve the desired aesthetic.

Dimensional Analysis and Application Implications

The specific dimensions of this bullet hinge are critical to its performance envelope and suitability for various applications. The "0.98 x 5.91 Inch" in the title denotes the approximate maximum outer diameter (or thickness) and the overall length, respectively. Let's delve into the implications of these and other specifications:

• Overall Thickness (Diameter) - 0.98 inches: This dimension (also listed as "Thickness (in.)" in the specifications) refers to the largest cross-sectional dimension of the assembled hinge, effectively its overall outer diameter. A larger diameter generally correlates with increased structural rigidity and a greater capacity to resist bending and torsional stresses. This size positions the hinge for medium to heavy-duty applications where a substantial hinge body is warranted for durability.
• Hinge Length - 5.91 inches: The substantial length of 5.91 inches is crucial for distributing the load over a wider area, reducing localized stress on the mounting surface and the hinge components themselves. A longer hinge provides greater stability against racking and twisting forces, particularly on tall or wide doors/gates. It also contributes to a larger bearing surface between the pin and the bushing, enhancing wear resistance and operational longevity.
• Barrel Diameter - 0.79 inches: This specifies the outer diameter of the cylindrical barrel where the pin and bushing are housed. It indicates the robustness of the hinge's pivot mechanism and its ability to withstand radial loads.
• Pin Diameter - 0.51 inches: The generous pin diameter of 0.51 inches ensures substantial shear strength and resistance to bending under high loads. A larger pin diameter also provides a greater surface area for interaction with the bushing, further enhancing wear characteristics and extending service life.

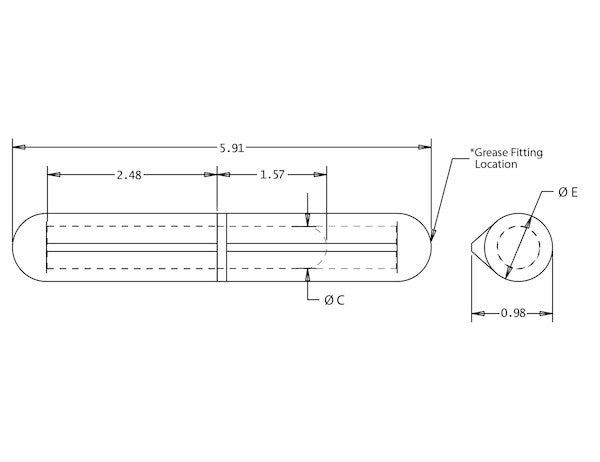

• Pin Length A (2.48 inches) & Pin Length B (1.57 inches): These lengths refer to the individual separable components of the hinge, specifically the male and female halves. Pin Length A typically corresponds to the longer, male pin component that often extends into the female barrel, while Pin Length B represents the length of the female barrel half. The combined length, when assembled, contributes to the overall 5.91-inch hinge length. These dimensions are critical for ensuring proper engagement and disengagement during the lift-off function and for adequate structural support of the hinged component.

Operational Characteristics and Performance Attributes

The combination of high-strength steel, a robust carbon steel pin, and a low-friction brass bushing endows this bullet hinge with exceptional performance characteristics:

• High Load Capacity: Engineered to withstand significant static and dynamic loads, making it suitable for heavy doors, gates, and industrial enclosures. The weld-on installation method further enhances its load-bearing capabilities by creating a rigid, integrated system.
• Smooth Articulation: The brass bushing ensures consistently smooth and quiet operation, minimizing friction and preventing binding even after prolonged use. This contributes to user comfort and reduced wear on the articulating surfaces.
• Exceptional Durability: The judicious selection of materials and precise manufacturing processes result in a hinge with superior resistance to wear, fatigue, and environmental degradation, translating into a long service life and reduced replacement costs.
• Temperature Resilience: Steel and brass components are capable of maintaining their mechanical properties across a wide range of operating temperatures, making this hinge suitable for diverse climatic conditions.

Applications and Industries

The Buyers Products Steel Weld-On Bullet Hinge is a versatile component indispensable across numerous sectors demanding robust and reliable articulation. Its design and material specifications make it particularly well-suited for:

• Commercial and Heavy-Duty Vehicle Manufacturing: Essential for trailer doors (including cargo, utility, and equipment trailers), truck bodies, RVs, and specialized vehicle access panels where strength, security, and the lift-off feature are paramount for operation and maintenance.
• Industrial Equipment and Machinery: Used on heavy machinery access doors, safety guards, equipment enclosures, and control cabinets where robust hinges are required to endure constant operation, vibration, and harsh factory environments.
• Agricultural Machinery: Ideal for gates, access panels on farm equipment, and enclosures that require durable and easily removable components for maintenance or varying operational needs.
• Security Gates and Barriers: Provides a strong, tamper-resistant hinge solution for residential, commercial, and industrial security gates, offering both reliable function and enhanced protection.
• Heavy-Duty Tool Cabinets and Storage Units: The strength and durability are critical for large, often heavily laden, tool cabinets and industrial storage containers, ensuring secure and smooth access.
• Marine and Offshore Applications (with appropriate finishing): While the core materials are robust, for highly corrosive marine environments, specific galvanization, epoxy coating, or other protective treatments would be recommended post-welding to enhance corrosion resistance.

Maintenance and Longevity Considerations

The design of this hinge, specifically the absence of a grease fitting, implies a particular maintenance strategy. While the brass bushing offers inherent low-friction and wear-resistant properties, periodic manual lubrication with a suitable grease or lubricant is recommended to maximize the hinge's lifespan and maintain optimal operating smoothness, especially in high-cycle or heavily loaded applications. Regular inspection for signs of wear, corrosion, or structural fatigue, particularly in the welded joints, is also crucial. Proper surface finishing, such as painting or powder coating, after installation is vital to protect the steel components from rust and environmental degradation, thereby ensuring the longevity and aesthetic integrity of the hinge.

Conclusion

The Buyers Products Steel Weld-On Bullet Hinge with Steel Pin and Brass Bushing, measuring 0.98 x 5.91 inches, stands as a testament to robust engineering and material science integration. Its core attributes—high-strength steel construction, a durable carbon steel pin, and a friction-reducing brass bushing—are meticulously combined to deliver a high-performance articulation solution. The weld-on attachment method ensures unparalleled structural integrity and security, while the inherent lift-off functionality provides practical advantages for a multitude of applications. This hinge is a premium choice for engineers, fabricators, and manufacturers seeking an exceptionally durable, reliable, and secure hinge mechanism for heavy-duty commercial, industrial, and specialized equipment where uncompromising performance and longevity are non-negotiable requirements. For detailed application guidance or further technical specifications, please consult Buyers Products Customer Service.
