FSP260 - Steel Weld-On Bullet Hinge with Steel Pin and Brass Bushing - 1.46 x 10.24 Inch

Buyers Products Steel Weld-On Bullet Hinge (also known as a lift-hinge) is ideal for trailer doors/gates and tool cabinets. The hinge is constructed from steel with a steel pin and brass bushing. They are available in multiple sizes to fit your application. Please contact Customer Service for further information.

Specifications

Advanced Technical Overview: Steel Weld-On Bullet Hinge with Steel Pin and Brass Bushing – 1.46 x 10.24 Inch

The Buyers Products Steel Weld-On Bullet Hinge, identified by its robust dimensions of 1.46 x 10.24 inches, represents a pinnacle of engineering for demanding articulation requirements. This industrial-grade component, also recognized as a lift-off hinge, is meticulously engineered from high-strength carbon steel for its primary structural elements, complemented by a precisely machined steel pin and a high-performance brass bushing. This strategic material combination ensures unparalleled durability, smooth operational characteristics, and extended service life in severe operational environments. Its weld-on design facilitates a permanent, high-integrity attachment, making it an indispensable solution for critical applications such as heavy-duty trailer doors, industrial gate systems, specialized utility vehicle access panels, and high-capacity tool cabinets where both strength and reliable performance are paramount.

Material Science and Engineering for Superior Performance

High-Strength Carbon Steel Construction: The Foundation of Durability

The foundational strength of this bullet hinge is derived from its premium carbon steel construction for both the main hinge body and the pivot pin. Carbon steel, known for its exceptional tensile strength, yield strength, and toughness, is the material of choice for components subjected to significant static and dynamic loads. The specific grade of carbon steel utilized is selected for optimal weldability, allowing for a robust, molecularly bonded joint with the parent structure. This method of attachment eliminates potential weaknesses associated with bolted or riveted connections, such as fastener shear, loosening under vibration, or tampering.

The inherent properties of carbon steel provide superior resistance to deformation, impact, and fatigue. In applications where shock loads or continuous vibrations are prevalent, such as on commercial trailers or construction equipment, the structural integrity afforded by steel is critical. Furthermore, the ability of carbon steel to withstand extreme temperature fluctuations without significant degradation of mechanical properties ensures consistent performance across diverse climatic conditions. While carbon steel offers immense mechanical advantages, it is susceptible to corrosion. Therefore, in environments prone to moisture, salt, or corrosive agents, appropriate surface treatments such as primers, paints, powder coatings, or specialized galvanization are highly recommended post-installation to maximize the operational lifespan and maintain aesthetic integrity.

Precision-Machined Steel Pin: The Core of Articulation

The 0.75-inch diameter carbon steel pin is the central pivot around which the hinge operates, designed to resist substantial shear forces exerted during opening and closing cycles. The precision machining of this pin ensures tight tolerances, which is crucial for minimizing play and maximizing the mechanical efficiency of the hinge. The substantial diameter of the pin is directly proportional to its shear strength, making it suitable for supporting heavy loads with minimal deflection. The choice of carbon steel for the pin complements the hinge body, ensuring material compatibility and uniform thermal expansion properties. This reduces differential stresses that could otherwise lead to premature wear or failure.

The specified Pin Length A (4.53 inches) and Pin Length B (2.87 inches) are critical for the hinge's robust design. Pin Length A typically refers to the overall effective engagement length of the pin within the hinge barrels, ensuring ample bearing surface for load distribution. Pin Length B may denote a specific segment of the pin, perhaps a chamfered or stepped section, or the effective pivot length of one barrel relative to the other. For a lift-off hinge, this configuration is instrumental in allowing one hinge leaf to be disengaged from the pin and thus the mating leaf, facilitating quick removal of the attached component (e.g., a door or gate) without requiring disassembly of the entire hinge assembly.

High-Performance Brass Bushing: The Epitome of Smooth Operation and Wear Resistance

A critical differentiator of this hinge is the inclusion of a brass bushing. Brass, an alloy primarily composed of copper and zinc, is renowned for its exceptional tribological properties, making it an ideal material for bearing surfaces. The brass bushing is precisely integrated into the steel hinge barrel, providing a low-friction interface between the stationary steel barrel and the rotating steel pin. This strategic material pairing significantly reduces the coefficient of friction, leading to several key advantages:

1. Reduced Friction and Wear: Brass exhibits inherent self-lubricating characteristics to a certain extent, meaning it can operate effectively with minimal external lubrication. This property is crucial in applications where regular maintenance might be challenging or overlooked. By minimizing metal-on-metal contact between the steel pin and the steel hinge barrel, the brass bushing dramatically extends the operational lifespan of both components by preventing galling, scoring, and abrasive wear.
2. Corrosion Resistance: Unlike steel, brass offers superior resistance to oxidation and corrosion, especially in moist or outdoor environments. This helps to protect the critical pivot point from rust formation, which could otherwise lead to seizing or increased operational resistance.
3. Vibration Damping and Noise Reduction: The inherent material properties of brass contribute to damping vibrations and reducing operational noise. This results in quieter and smoother door or gate movement, enhancing user experience and prolonging the life of the entire assembly by mitigating vibrational stresses.
4. Load Distribution: The brass bushing distributes the load from the pin over a larger surface area within the barrel, preventing localized stress concentrations and ensuring even wear.
5. Thermal Stability: Brass maintains its mechanical properties and low-friction characteristics across a wide range of operating temperatures, ensuring consistent performance from frigid cold to extreme heat.

The absence of a dedicated grease fitting on this hinge underscores the reliance on the brass bushing's self-lubricating properties. While initial factory lubrication is typically applied, the brass itself provides a sacrificial, low-friction surface. For extended operational life in extremely dirty, wet, or high-cycle applications, periodic external lubrication with a suitable grease or penetrating oil may be considered, though less frequent than with un-bushed steel-on-steel hinges.

Design Principles: The Bullet Hinge Advantage

Streamlined Bullet Profile and Lift-Off Functionality

The "bullet" designation refers to the hinge's distinctive cylindrical, streamlined profile. This design is not merely aesthetic; it confers significant functional benefits. The compact, round form factor is less prone to snagging or damage compared to traditional square-bodied hinges, making it ideal for applications in tight spaces or where exposed hardware needs to be minimized. The smooth exterior also makes cleaning easier and can contribute to a more finished appearance.

As a "lift-hinge," this design incorporates a crucial functionality: the ability to easily remove the attached door or gate by simply lifting it off the hinge pin. This feature is invaluable in scenarios requiring rapid access, maintenance, or complete removal of the door for oversized cargo, repairs, or seasonal storage. The male and female components of the hinge are precisely engineered to engage securely when the door is in place but allow for smooth disengagement when lifted, typically requiring the pin to be fixed in one leaf and the other leaf free to lift off.

Weld-On Installation: Unyielding Strength and Security

The weld-on installation method is a cornerstone of this hinge's superior performance and security. Unlike bolt-on hinges, which rely on mechanical fasteners that can loosen over time due to vibration or be compromised by tampering, weld-on hinges create a permanent, monolithic bond with the parent material. This results in:

1. Unmatched Strength: A properly executed weld joint can often be stronger than the base material itself, providing unparalleled load-bearing capacity and shear strength. This is critical for heavy doors, gates, and access panels on industrial and commercial equipment.
2. Enhanced Security: The permanent nature of the weld makes the hinge highly resistant to tampering and forced entry, a vital consideration for tool cabinets, cargo trailers, and security gates.
3. Aesthetic Integration: Weld-on hinges can offer a cleaner, more integrated appearance, as there are no visible fasteners or protruding bolt heads. This can be beneficial for both functional design and visual appeal.
4. Customizable Placement: Weld-on hinges provide greater flexibility in placement and alignment during installation, allowing for precise fitting to unique door and frame geometries.

Professional welding techniques (MIG, TIG, or Stick welding) should be employed, ensuring proper surface preparation, appropriate filler material selection, and careful heat management to prevent distortion of the base materials. Post-weld inspection is recommended to verify joint integrity.

Detailed Specifications and Their Performance Implications

The precise dimensions of this hinge are not arbitrary; they are engineered to deliver specific performance characteristics:

• Hinge Length (10.24 inches): This substantial length is crucial for distributing the weight and operational stresses of heavy doors or gates over a broad area. A longer hinge minimizes localized stress points, reducing the likelihood of material fatigue in both the hinge and the attachment points on the door and frame. It also contributes to greater stability, preventing warping or binding in large, heavy panels.
• Thickness (1.46 inches): This measurement likely refers to the overall maximum dimension when the hinge is fully assembled and closed, encompassing the barrel and any integral welding tabs or surfaces. A greater thickness implies a robust construction capable of resisting significant bending moments and impact forces. It also provides ample material for secure welding without compromising structural integrity.
• Diameter (1.10 inches): This dimension typically refers to the external diameter of the main cylindrical barrel section of the hinge. A larger barrel diameter contributes to the hinge's overall rigidity and houses the appropriately sized pin and bushing system. It allows for the integration of a larger diameter pin and thicker bushing material, both of which enhance load capacity and wear resistance.
• Pin Diameter (0.75 inches): The substantial 0.75-inch diameter of the carbon steel pin is a key indicator of this hinge's heavy-duty capability. Pin diameter directly correlates with shear strength. A larger pin can withstand greater forces without deforming or failing, making it suitable for applications with significant dynamic or static loads.

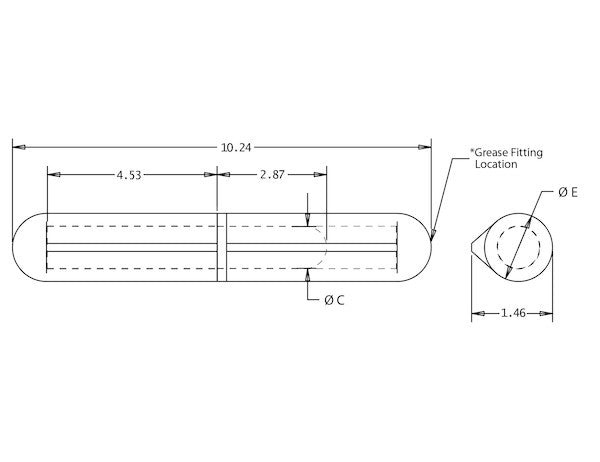

• Pin Length A (4.53 inches) and Pin Length B (2.87 inches): These specifications detail the critical dimensions of the hinge pin, which governs the articulation. Pin Length A (4.53 inches) likely denotes the total effective length of the pin that engages with the hinge barrels, providing a long bearing surface for stable rotation and efficient load transfer. Pin Length B (2.87 inches) may refer to the length of a specific segment, potentially a stepped portion of the pin, or the length of the male component that protrudes from one half of the hinge. These precise lengths ensure proper engagement, smooth lift-off functionality, and prevent excessive axial movement (play) within the hinge assembly.

Versatile Applications Across Industries

Given its robust construction and technical specifications, this Steel Weld-On Bullet Hinge is ideally suited for a broad spectrum of industrial and commercial applications:

• Heavy-Duty Trailer and Truck Doors/Gates: Essential for cargo, utility, and equipment trailers, dump truck tailgates, and other commercial vehicle access points that endure constant use and harsh road conditions.
• Industrial Tool Cabinets and Storage Units: Provides secure and durable access for heavy tool chests, industrial lockers, and custom fabricated storage solutions in workshops, factories, and service vehicles.
• Agricultural Equipment: Ideal for access panels, shields, and gates on tractors, harvesters, and other farm machinery where components are exposed to dirt, moisture, and heavy usage.
• Construction Machinery and Equipment: Suitable for engine covers, access doors, and compartments on excavators, loaders, and other heavy equipment.
• Security Gates and Access Points: The weld-on nature offers enhanced security for commercial building gates, perimeter access points, and utility enclosures.
• Custom Fabrication Projects: Provides a reliable and high-strength hinge solution for bespoke metalwork, custom trailers, and specialized industrial equipment.

Operational Performance and Maintenance Profile

The combination of high-strength steel and a brass bushing endows this hinge with an exceptional operational performance profile:

• High Load Capacity: Engineered to withstand significant axial (weight) and radial (side) loads, ensuring reliable performance even with the heaviest doors or gates.
• Exceptional Durability: Resilient against impact, abrasion, and continuous cycling, leading to a long service life even in the most demanding environments.
• Smooth and Quiet Operation: The brass bushing effectively minimizes friction and reduces metal-on-metal noise, providing fluid and consistent movement.
• Minimal Maintenance: The self-lubricating properties of the brass bushing and the robust design inherently reduce the frequency of lubrication requirements compared to non-bushed steel hinges, translating to lower operational costs and downtime.
• Vibration Resistance: The weld-on attachment and robust design ensure that the hinge remains securely in place, even under severe vibration common in mobile applications.

Installation Best Practices

For optimal performance and safety, adherence to proper installation procedures is crucial for weld-on hinges:

1. Surface Preparation: Ensure welding surfaces on both the hinge and the mating structure are clean, free of paint, rust, grease, or any contaminants that could compromise weld quality. Beveling the edges of thicker materials can improve weld penetration.
2. Alignment and Fit-Up: Precise alignment of the hinge components is paramount. Utilize clamps, jigs, or tack welds to hold the hinge in the correct position, ensuring proper gaps and angular alignment for smooth operation of the door or gate.
3. Welding Process: Employ appropriate welding techniques (MIG, TIG, or Stick) and filler materials compatible with the carbon steel of the hinge and the parent structure. Avoid excessive heat input to prevent distortion of the hinge components or the door/frame. Stitch welding or intermittent welds may be preferred over continuous welds in some cases to manage heat.
4. Post-Weld Inspection: Visually inspect all welds for uniformity, penetration, and absence of defects such as cracks, porosity, or undercut. Non-destructive testing methods may be considered for critical applications.
5. Corrosion Protection: After welding and cleaning, apply appropriate rust-preventative primers and topcoats, especially if the hinge is to be exposed to outdoor or corrosive environments. Ensure all bare steel surfaces are adequately protected.

Conclusion

The Buyers Products Steel Weld-On Bullet Hinge with Steel Pin and Brass Bushing, measuring 1.46 x 10.24 inches, is a testament to engineering excellence, designed for applications where strength, durability, and reliable articulation are non-negotiable. Its intelligent combination of high-grade carbon steel for structural integrity and a brass bushing for friction reduction and wear resistance sets it apart as a premium solution for heavy-duty requirements. The weld-on design provides a secure and tamper-resistant installation, while the lift-off functionality adds practical versatility. From the rigorous demands of commercial transportation to the critical needs of industrial equipment and security infrastructure, this hinge delivers unparalleled performance, longevity, and operational efficiency. For further technical specifications, application guidance, or volume inquiries, our dedicated Customer Service team is available to provide comprehensive support and expertise.
