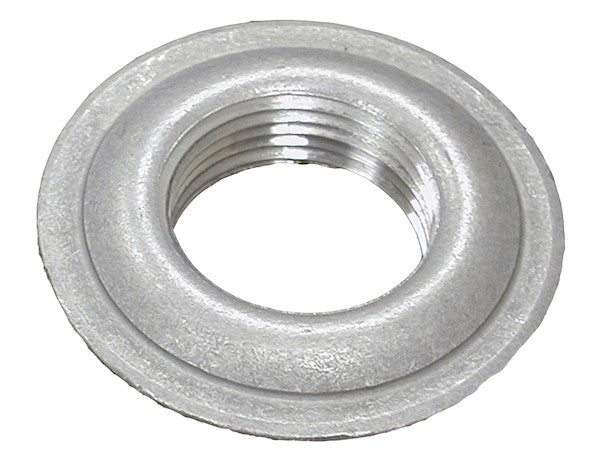

The Stamped Welding Flange from Buyers Products comes in aluminum, steel, and stainless steel in a variety of sizes to meet your reservoir installation needs. Use the flanges when fabricating your own hydraulic reservoir, or adding a port to an existing reservoir. Choose from a wide range of sizes, materials, ODs, and thicknesses to match your requirements.
Specifications
| Construction | Stamped |
|---|---|
| Finish | Plain |
| Material | Stainless Steel |
| Outer Diameter | 1.738 |
| Pilot | 0.620 |
| Size | .25 |
| Thickness | 0.134 |
Advanced Engineering and Material Science: The 1/4 Inch NPTF Stainless Steel Stamped Welding Flange
In the demanding landscape of modern fluid power systems, the integrity and reliability of every component are paramount. The 1/4 Inch NPTF Stainless Steel Stamped Welding Flange from Buyers Products represents a confluence of precision engineering, advanced material science, and manufacturing excellence, specifically designed to address the critical requirements for creating robust, leak-free threaded ports in hydraulic reservoirs and other fluid containment systems. This detailed description will delve into the technical specifications, material advantages, manufacturing processes, and application considerations that distinguish this essential component.
Unrivaled Material Selection: The Stainless Steel Advantage
The selection of stainless steel as the primary construction material for this welding flange is a deliberate choice driven by its superior mechanical properties and unparalleled resistance to degradation in challenging operational environments. Stainless steel, fundamentally an iron alloy with a minimum of 10.5% chromium content, derives its exceptional characteristics from the formation of a passive, self-repairing chromium oxide layer on its surface. This layer acts as an impervious barrier against corrosive agents, preventing rust and oxidation, which are common failure modes for standard steel components in the presence of moisture, oxygen, and various chemicals.
While the product specification simply states "Stainless Steel," it typically refers to an austenitic grade, such as 304 or 316. Grade 304 stainless steel, often the default for general-purpose applications, boasts excellent corrosion resistance to a wide range of atmospheric, fresh water, and mild chemical exposures. Its composition, primarily 18% chromium and 8% nickel, provides superior formability, making it ideal for the stamping process, and excellent weldability, ensuring a strong metallurgical bond with the reservoir material. It exhibits high tensile strength (typically 515 MPa or 75,000 psi) and yield strength (205 MPa or 30,000 psi), ensuring the flange can withstand the significant static and dynamic pressures inherent in hydraulic systems without plastic deformation or fracture.
For applications where even greater resistance to pitting and crevice corrosion is required, particularly in environments exposed to chlorides (e.g., marine applications, certain industrial chemicals), Grade 316 stainless steel, with its added molybdenum content (typically 2-3%), would be the material of choice. While this specific flange is designed for standard hydraulic reservoir use, the inherent advantages of austenitic stainless steels – including their cryogenic toughness, excellent hygiene properties (easy to clean, non-porous), and suitability for a broad range of operating temperatures – make them indispensable for maintaining fluid purity and system longevity. The "Plain" finish further underscores a commitment to the material's intrinsic qualities, eliminating the risk of coating degradation, flaking, or chemical incompatibility that could compromise hydraulic fluid integrity.
The long-term economic benefits of stainless steel cannot be overstated. While the initial cost may be marginally higher than conventional steel, its extended lifespan, reduced maintenance requirements, and resistance to catastrophic failure due to corrosion translate into a significantly lower total cost of ownership. This material choice guarantees a durable, reliable, and contaminant-resistant port, crucial for the efficient and safe operation of critical hydraulic equipment.
The Stamped Advantage: Precision and Efficiency in Manufacturing
The "Stamped" construction method specified for this welding flange is a key differentiator, offering significant advantages in terms of cost-effectiveness, consistency, and material efficiency compared to traditional machining processes. Stamping involves placing sheet metal into a press where a tool and die form it into the desired shape. This high-volume manufacturing technique yields components with highly repeatable dimensions and tolerances, which is critical for ensuring reliable fitment and weld integrity across large production runs.
One of the primary benefits of stamping is its inherent material utilization. Unlike machining, which removes material through cutting, stamping largely reconfigures the material, generating minimal scrap. This leads to reduced raw material costs and a more environmentally friendly production process. Furthermore, the stamping process can impart a favorable grain structure to the metal, potentially enhancing its mechanical properties, such as ductility and fatigue resistance, in specific orientations. The consistent thickness (0.134 inches, or approximately 11-gauge) achieved through stamping ensures a uniform welding surface and consistent structural integrity around the port.
For applications such as hydraulic reservoir flanges, where precise outer diameter (1.738 inches), pilot diameter (0.620 inches), and thread concentricity are essential for optimal performance and ease of installation, stamping offers a cost-efficient method to achieve these requirements with high accuracy. The "Plain" finish, combined with the stamping process, means the flange arrives ready for welding without the need for additional surface preparation to remove coatings or treatments, streamlining the fabrication process. This synergy between material and manufacturing method results in a high-quality, dependable component that meets stringent industrial standards without incurring the higher costs associated with extensively machined parts.
The NPTF Standard: Engineered for Dryseal Reliability
Central to the functionality and reliability of this welding flange is its 1/4 Inch NPTF (National Pipe Taper Fuel) threading. NPTF is a specialized version of the standard NPT (National Pipe Taper) thread, specifically designed to achieve a leak-tight seal without the use of pipe thread sealants, tape, or compounds. This "dryseal" capability is paramount in hydraulic systems where any contamination from sealant residues can have detrimental effects on pumps, valves, and other sensitive components, potentially leading to system failure or reduced lifespan.
The fundamental difference between NPT and NPTF lies in the precise control of the thread crests and roots. While both are tapered threads (1° 47' per side), NPTF threads are engineered with specific truncation profiles to ensure metal-to-metal interference fit at both the crest and root of the mating threads. As the male NPTF thread is tightened into a female NPTF port, the crests of one thread deform into the roots of the other, creating a mechanical seal by compressing the metal. This deformation process eliminates helical leak paths, providing a robust, hermetically sealed connection that is resistant to vibration, temperature fluctuations, and pressure cycling, which are common in hydraulic applications.
The 1/4 inch nominal size is a common dimension for auxiliary ports, pressure gauge connections, sensor ports, or smaller return lines within hydraulic reservoirs. It balances sufficient flow capacity for these functions with a compact footprint, allowing for flexible integration into various reservoir designs. The precise engineering of the 1/4 inch NPTF thread ensures that when properly assembled with a corresponding NPTF fitting, the connection will maintain fluid integrity even under high operating pressures, typically up to 3,000 psi or more, depending on the specific fitting and system design.
The advantages of NPTF threads in critical fluid power systems are substantial:
- Elimination of Sealant Contamination: Prevents hydraulic fluid contamination from disintegrating PTFE tape or liquid sealant, safeguarding system purity and component longevity.
- Enhanced Reliability: A metal-to-metal seal provides superior integrity and resistance to leaks over time, particularly in applications subject to dynamic stresses.
- Reduced Assembly Time: Simplifies installation by eliminating the time-consuming application of thread sealants.
- Chemical Compatibility: Avoids potential chemical compatibility issues between hydraulic fluids and various sealant materials.
- Safety: Minimizes environmental hazards and safety risks associated with fluid leaks.
Integrated Design: Dimensions and Structural Integrity
The physical dimensions of the 1/4 Inch NPTF Stainless Steel Stamped Welding Flange have been meticulously engineered to ensure optimal performance, ease of integration, and structural integrity when welded to a reservoir. Each specified dimension plays a crucial role in the flange's overall functionality.
The Outer Diameter (OD) of 1.738 inches defines the overall footprint of the flange. This dimension provides ample surface area for a robust, circumferential weld, which is essential for creating a permanent, leak-proof attachment to the reservoir wall. The generous OD ensures that the heat-affected zone (HAZ) of the weld is sufficiently spaced from the critical NPTF threads, minimizing the risk of heat-induced distortion that could compromise thread integrity. It also allows for adequate clearance around the threaded port for wrenches or other tooling during fitting installation and removal.
The Pilot Diameter of 0.620 inches refers to the inner diameter of the flange's central bore before the NPTF threads begin. This pilot serves several critical functions. Firstly, it provides a precise alignment guide, ensuring that the flange is perfectly centered over the pre-drilled or cut hole in the reservoir wall. This concentricity is vital for maintaining proper fluid dynamics within the reservoir, preventing turbulence or cavitation near the port which could impact system efficiency or component lifespan. Secondly, the pilot diameter is carefully designed to match the appropriate material removal for the subsequent NPTF threading process, ensuring that the thread forms correctly and achieves its dryseal capabilities. It acts as a structural collar, reinforcing the opening and providing additional material for the welding process.
The Thickness of 0.134 inches is a critical specification that speaks to the structural robustness of the stamped flange. This thickness (approximately 3.4 mm or 11 gauge) is carefully chosen to provide sufficient material for a strong, reliable weld without being excessively heavy or difficult to form. It ensures that the flange can withstand the internal pressures of the hydraulic system, as well as external forces and vibrations, without deforming or failing. Furthermore, this thickness provides adequate thread engagement depth for the 1/4 inch NPTF fitting, ensuring that the dryseal mechanism functions effectively and that the threads do not strip under appropriate tightening torque. It also offers compatibility with typical reservoir wall thicknesses, allowing for a seamless and strong weld joint.
The "Plain" finish, as noted previously, signifies the absence of any coatings or platings. This is advantageous for several reasons: it ensures optimal weldability as there are no foreign substances to interfere with the weld pool, and it guarantees that no coating can delaminate or flake off into the hydraulic fluid, maintaining system cleanliness. For stainless steel components, a plain finish relies on the inherent corrosion resistance of the material. Post-welding passivation, a chemical process to remove free iron and promote the chromium oxide layer, can be optionally performed to further enhance corrosion resistance in particularly aggressive environments.
Application and Installation Best Practices
The 1/4 Inch NPTF Stainless Steel Stamped Welding Flange is an indispensable component for a wide array of hydraulic system applications, specifically engineered for the fabrication and modification of hydraulic reservoirs. Its primary utility lies in providing a secure, leak-free, and permanent threaded port for connecting various hydraulic components such as pressure transducers, temperature sensors, sight gauges, drain valves, auxiliary lines, or bleed ports.
Fabricating New Hydraulic Reservoirs: For manufacturers and custom fabricators, these flanges offer a highly efficient and reliable method to integrate threaded connections into new reservoir designs. Their consistent dimensions and excellent weldability simplify the manufacturing process, reducing assembly time and ensuring repeatable quality across production batches. The NPTF dryseal capability removes the variability and potential contamination issues associated with sealants, leading to a cleaner and more reliable finished product.
Modifying or Repairing Existing Reservoirs: The flanges are equally valuable for retrofitting or repairing existing hydraulic reservoirs. Whether adding a new functionality (e.g., integrating a new sensor for enhanced diagnostics) or repairing a damaged original port, this welding flange provides a robust and durable solution. Its stainless steel construction ensures that the repair or modification will match or exceed the original system's integrity, extending the service life of valuable equipment.
Welding Considerations for Stainless Steel:
- Material Compatibility: Ensure the reservoir material is compatible with stainless steel welding. While the flange is stainless, welding it to a carbon steel reservoir requires careful consideration of dissimilar metal welding techniques and filler materials to prevent galvanic corrosion and ensure a strong joint. For a stainless steel reservoir, using a compatible stainless steel filler wire (e.g., 308L for 304 stainless) is crucial.
- Cleanliness: Prior to welding, both the flange and the reservoir surface must be meticulously cleaned to remove any oils, grease, dirt, paint, or oxides. Contaminants can lead to weld defects such as porosity, lack of fusion, or weakened corrosion resistance.
- Welding Process: Gas Tungsten Arc Welding (GTAW/TIG) is often preferred for stainless steel for its precision, control, and clean welds, especially on thinner materials. Gas Metal Arc Welding (GMAW/MIG) can also be used for higher production speeds.
- Heat Input Control: Stainless steel can be susceptible to sensitization (carbide precipitation) in the heat-affected zone (HAZ) if exposed to elevated temperatures for too long, reducing corrosion resistance. Proper welding techniques with controlled heat input and interpass temperatures are essential.
- Shielding Gas: Use appropriate inert shielding gases (e.g., 100% Argon for TIG, Argon/CO2 blends for MIG) to protect the weld pool from atmospheric contamination and maintain stainless steel's properties. Back purging with an inert gas may be necessary for critical applications to protect the root side of the weld.
- Post-Weld Treatment: After welding, cleaning the weld area to remove slag, spatter, and heat tint is important. For maximum corrosion resistance, passivation of the entire assembly or at least the weld zone is recommended. This involves treating the surface with an acid solution to remove free iron and re-establish the protective chromium oxide layer.
By adhering to these best practices, engineers and technicians can ensure that the 1/4 Inch NPTF Stainless Steel Stamped Welding Flange is integrated into the hydraulic system with maximum integrity, providing years of trouble-free operation.
The Enduring Value Proposition
The 1/4 Inch NPTF Stainless Steel Stamped Welding Flange stands as a testament to engineering excellence, offering a compelling value proposition for any fluid power application requiring reliable port integration. Its combination of stainless steel construction, precise NPTF dryseal threads, and cost-effective stamped manufacturing delivers unparalleled benefits:
- Superior Reliability: The NPTF dryseal thread design inherently provides a more reliable, leak-proof connection than conventional pipe threads, critical for maintaining system pressure and preventing fluid loss or environmental contamination.
- Exceptional Durability: Crafted from high-grade stainless steel, this flange offers outstanding resistance to corrosion, oxidation, and chemical degradation, ensuring a long operational life even in harsh industrial environments. Its mechanical strength withstands the dynamic stresses and pressures typical of hydraulic systems.
- Enhanced System Performance: By preventing leaks and minimizing the risk of fluid contamination from sealants, the flange contributes directly to the overall efficiency, cleanliness, and longevity of the hydraulic system, protecting expensive pumps, valves, and actuators.
- Cost Efficiency: The stamped manufacturing process delivers a high-quality component at a more economical price point than fully machined alternatives, offering significant value without compromising performance. Reduced maintenance and repair costs over the product's lifespan further enhance its economic advantage.
- Versatile Application: Its robust design and standard NPTF threading make it suitable for a broad spectrum of hydraulic reservoir fabrication and modification needs across diverse industries, from mobile equipment to industrial machinery.
- Simplified Integration: The consistent dimensions, plain finish, and excellent weldability simplify the installation process, reducing labor time and ensuring a strong, permanent bond with the reservoir.
In conclusion, the 1/4 Inch NPTF Stainless Steel Stamped Welding Flange from Buyers Products is more than just a component; it is a critical investment in the reliability, performance, and longevity of hydraulic fluid systems. Its meticulous design, premium material, and precise manufacturing ensure that it meets the rigorous demands of industrial applications, providing engineers and technicians with a dependable solution for creating and maintaining high-integrity fluid connections.
