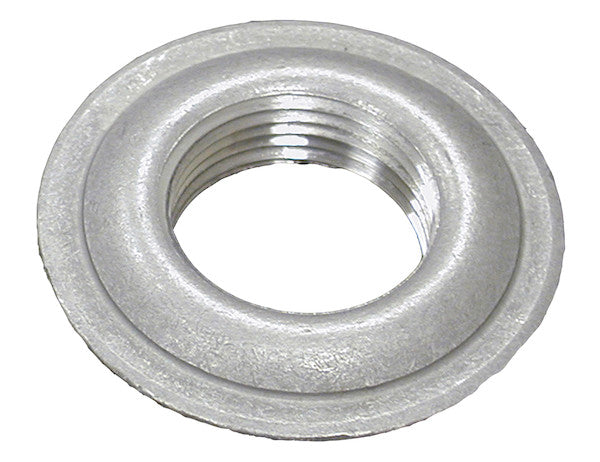

FSSW050 - 1/2 Inch NPTF Stainless Steel Stamped Welding Flange

The Stamped Welding Flange from Buyers Products comes in aluminum, steel, and stainless steel in a variety of sizes to meet your reservoir installation needs. Use the flanges when fabricating your own hydraulic reservoir, or adding a port to an existing reservoir. Choose from a wide range of sizes, materials, ODs, and thicknesses to match your requirements.

Specifications

Advanced Technical Overview: 1/2 Inch NPTF Stainless Steel Stamped Welding Flange

The 1/2 Inch NPTF Stainless Steel Stamped Welding Flange from Buyers Products represents a critical component in the design and fabrication of robust, high-integrity fluid containment and transfer systems, particularly within hydraulic applications. This meticulously engineered flange is specifically designed for integration into hydraulic reservoirs, tanks, and other fluid vessels, providing a secure and leak-proof port for connections. Its unique combination of material, threading standard, and manufacturing process ensures exceptional performance, durability, and reliability in demanding industrial environments.

Understanding the NPTF Thread Standard: Precision for Dryseal Connections

The designation "NPTF" stands for National Pipe Taper Fuel, a crucial thread standard that distinguishes this flange from conventional NPT (National Pipe Taper) fittings. While both NPT and NPTF threads are tapered, the NPTF specification is a "dryseal" thread, meaning it is designed to achieve a mechanical seal without the need for additional thread sealants or compounds for many applications. This inherent sealing capability is achieved through precise control over the thread form, major diameter, minor diameter, and pitch diameter, ensuring that the crests of the male thread crush into the roots of the female thread during assembly. This metal-to-metal interference creates an extremely tight seal, crucial for preventing leakage of fuel, hydraulic fluid, air, and other critical media.

The 1/2 inch size refers to the nominal pipe size, indicating the approximate inside diameter of the pipe or fitting. In practical terms, it defines the flow capacity and the compatible fitting dimensions. Adherence to the NPTF standard (specifically ANSI B1.20.3) is paramount for interoperability and reliable sealing, particularly in hydraulic systems where high pressures and varying temperatures are common. The tapered design allows for a strong mechanical connection that resists loosening under vibration and pressure fluctuations, contributing significantly to the overall integrity and safety of the hydraulic circuit.

Advantages of NPTF threads include:

• Enhanced Leak Prevention: The dryseal design inherently minimizes the risk of leaks, reducing fluid loss and environmental contamination.
• Reduced Assembly Time: Eliminates the need for thread sealant application, simplifying installation procedures.
• System Cleanliness: Prevents sealant residue from entering the fluid system, which can cause contamination and potential damage to sensitive components like pumps and valves.
• Robust Connection: The tapered interference fit provides a strong, vibration-resistant joint.
• High-Pressure Capability: Suitable for applications requiring elevated working pressures, common in hydraulic power units.

The 1/2 inch NPTF port on this flange ensures compatibility with a vast array of standard hydraulic fittings, valves, and sensors, facilitating straightforward integration into diverse system designs.

The Material of Choice: Stainless Steel for Unrivaled Performance

The selection of stainless steel for this welding flange is a deliberate choice, driven by the demanding operational conditions prevalent in hydraulic and industrial environments. Stainless steel, an alloy primarily composed of iron, chromium, and often nickel, molybdenum, and other elements, is renowned for its exceptional properties. The presence of a minimum of 10.5% chromium creates a thin, passive oxide layer on the surface, providing inherent corrosion resistance. While the specific grade of stainless steel (e.g., 304, 316) is not explicitly stated, both are commonly used in industrial applications, offering superior resistance to rust, oxidation, and chemical degradation compared to plain carbon steel.

Key advantages of utilizing stainless steel in hydraulic systems and reservoirs include:

• Superior Corrosion Resistance: Stainless steel effectively resists degradation from hydraulic fluids, water, mild acids, alkalis, and atmospheric exposure. This extends the lifespan of the flange and, consequently, the entire reservoir and hydraulic system, even in corrosive outdoor or industrial settings.
• High Strength and Durability: Stainless steel exhibits excellent tensile strength and yield strength, allowing the flange to withstand significant mechanical stresses, internal pressures, and external impacts without deformation or failure. This ensures the structural integrity of the connection point.
• Temperature Resilience: It maintains its mechanical properties across a broad spectrum of temperatures, from sub-zero to elevated operating conditions often encountered in industrial machinery. This prevents material embrittlement or softening that could compromise the seal.
• Hygienic Properties: Stainless steel is non-porous and easy to clean, resisting the accumulation of contaminants. While particularly critical in food, pharmaceutical, and medical industries, this also benefits hydraulic systems by preventing particulate generation or chemical reactions with the fluid.
• Aesthetic Appeal and Low Maintenance: The inherent corrosion resistance eliminates the need for painting or protective coatings, reducing maintenance requirements and contributing to a clean, professional appearance.

For hydraulic reservoirs, the use of stainless steel ensures that the fluid's integrity is maintained, preventing contamination from rust or material degradation, which could otherwise lead to premature wear of pumps, valves, and actuators. It is an investment in the long-term reliability and efficiency of the entire hydraulic system.

Manufacturing Precision: The Stamped Construction Method

The term "Stamped" refers to the manufacturing process by which this flange is produced. Stamping, or pressing, involves placing a flat sheet of metal (in this case, stainless steel) into a press where a tool and die form it into the desired shape. This method is highly efficient for producing consistent, high-volume components with precise dimensions. The process typically involves several stages:

• Blanking: Cutting the basic shape of the flange from a larger sheet.
• Piercing: Punching the central hole for the NPTF thread and potentially the pilot hole.
• Forming/Coining: Shaping the flange to its final contours, including the specific features required for welding and mounting.

The advantages of stamped construction for this welding flange are significant:

• Cost-Effectiveness: Stamping is a highly automated process, making it exceptionally economical for mass production. This translates to a more accessible price point without compromising quality.
• Dimensional Consistency: The use of precise dies ensures that each flange produced is dimensionally identical, critical for repeatable welding processes and uniform fitment. This consistency minimizes variations that could lead to alignment issues or welding difficulties.
• Material Efficiency: Stamping often results in minimal material waste compared to machining from solid bar stock, contributing to sustainability and cost savings.
• Enhanced Mechanical Properties: The cold working inherent in the stamping process can improve the mechanical properties of the stainless steel, such as increased hardness and tensile strength, due to strain hardening.
• Excellent Surface Finish: Stamped parts typically have a smooth surface finish, which is ideal for subsequent welding operations as it reduces the need for extensive surface preparation.

While other manufacturing methods like forging or casting exist for flanges, stamping is particularly well-suited for this type of integration flange where high volume, consistent dimensional accuracy, and cost efficiency are paramount. The "Plain" finish further indicates that the flange is free of coatings or platings, presenting a clean stainless steel surface directly ready for welding.

The Function and Application of a Welding Flange

A welding flange is designed to be permanently joined to a pipe, vessel, or structure through a welding process, creating a robust and leak-proof connection point. This specific 1/2 Inch NPTF Stainless Steel Stamped Welding Flange serves as a critical interface for adding ports to hydraulic reservoirs, fuel tanks, oil sumps, or other fluid containment systems. Its design facilitates the integration of threaded components such as pumps, filters, return lines, suction lines, drain plugs, pressure gauges, level indicators, and other auxiliary equipment.

The application of this flange is central to the custom fabrication and modification of hydraulic reservoirs. Rather than relying on pre-fabricated reservoirs with fixed port configurations, engineers and technicians can utilize these welding flanges to precisely position ports according to specific system requirements. This flexibility is invaluable in:

• Custom Hydraulic Power Units: Tailoring reservoir designs to fit specific machinery envelopes or operational demands.
• Equipment Upgrades and Modifications: Adding new components or enhancing existing systems on industrial machinery, agricultural equipment, construction vehicles, and material handling equipment.
• Fluid Transfer Systems: Creating connection points for various fluid types beyond just hydraulic oil, such as water, coolants, or chemical solutions where stainless steel's corrosion resistance is beneficial.

Proper welding techniques are essential for successful integration. For stainless steel, methods like TIG (Tungsten Inert Gas) or MIG (Metal Inert Gas) welding are commonly employed. Key considerations during welding include:

• Material Compatibility: Using appropriate stainless steel filler metals to ensure a strong, corrosion-resistant weld joint.
• Cleanliness: Thorough cleaning of the flange and reservoir surface to remove contaminants that could compromise weld quality.
• Heat Management: Controlling heat input to prevent distortion of the flange or reservoir wall and to maintain the metallurgical properties of the stainless steel.
• Shielding Gas: Utilizing inert shielding gases (e.g., argon) to protect the molten weld pool from atmospheric contamination.
• Post-Weld Treatment: Passivation of the weld area may be necessary to restore the corrosion resistance that might be locally diminished during the welding process.

The ability to weld this flange directly onto a vessel wall ensures a permanent, high-strength connection that can withstand the operational pressures and vibrations inherent in fluid power systems, thereby minimizing the risk of fatigue failures or leaks.

Detailed Examination of Specifications

The provided specifications offer critical insights into the design and functional parameters of this 1/2 Inch NPTF Stainless Steel Stamped Welding Flange:

• Construction: Stamped: As discussed, this indicates a cost-effective, high-volume manufacturing process ensuring dimensional consistency and good material properties.
• Finish: Plain: The absence of coatings or platings simplifies welding preparation and ensures direct metal-to-metal contact for optimal weld integrity.
• Material: Stainless Steel: Confirms the use of a highly corrosion-resistant, durable, and temperature-resilient alloy suitable for demanding applications.
• Outer Diameter (OD): 1.740 inches: This dimension specifies the overall width of the flange. A larger OD provides a more substantial surface area for welding to the reservoir wall, contributing to the strength and stability of the connection. It also dictates the clearance required for mounting.
• Pilot: 0.910 inches: The pilot diameter refers to a smaller, precisely machined or stamped hole or concentric feature on the flange. Its primary purpose is to provide an accurate centering guide when positioning the flange on the vessel wall prior to welding. This ensures concentricity between the NPTF port and the hole cut into the reservoir, critical for proper flow alignment and aesthetic integration. A precisely aligned pilot minimizes installation errors and contributes to a clean, professional finish.
• Size: 0.50 (1/2 Inch NPTF): This reiterates the nominal pipe thread size and standard, ensuring compatibility with standard 1/2 inch NPTF fittings and components.
• Thickness: 0.134 inches: This dimension defines the material gauge of the flange. A thickness of 0.134 inches (approximately 1/8 inch or 10 gauge) provides sufficient rigidity and structural integrity to withstand the stresses of welding and subsequent operational pressures. It ensures that the flange does not deform under load and provides an adequate base for a strong, full-penetration weld to the reservoir material.

These specifications collectively define a flange that is engineered for precise fitment, robust performance, and long-term reliability in its intended applications.

Versatility Across Industries and Applications

While primarily designed for hydraulic reservoir installations, the attributes of the 1/2 Inch NPTF Stainless Steel Stamped Welding Flange make it suitable for a diverse array of industrial and commercial applications:

• Hydraulic and Pneumatic Systems: Essential for custom porting in fluid power reservoirs, accumulators, and pneumatic tanks.
• Industrial Machinery: Integration into lubrication systems, cooling circuits, and fuel tanks of heavy equipment, manufacturing machinery, and power generation units.
• Chemical Processing: Due to stainless steel's excellent chemical resistance, it can be used in tanks and vessels handling various non-corrosive to mildly corrosive chemicals.
• Food and Beverage Industry: Where hygienic conditions and corrosion resistance to cleaning agents are paramount.
• Marine Applications: Resisting saltwater corrosion for fuel, water, and hydraulic systems on boats and offshore platforms.
• Custom Fabrication and OEM: Providing a standardized, reliable component for original equipment manufacturers and custom fabrication shops building bespoke fluid handling systems.

The ability to reliably add a 1/2 inch NPTF port to virtually any weldable vessel significantly expands the design possibilities for engineers and fabricators.

Commitment to Quality and Reliability

Buyers Products is recognized for its commitment to delivering high-quality, durable components for demanding applications. This 1/2 Inch NPTF Stainless Steel Stamped Welding Flange exemplifies this commitment through:

• Precision Manufacturing: The stamped construction ensures consistent dimensional accuracy, critical for reliable sealing and ease of installation.
• Material Excellence: The use of stainless steel guarantees superior corrosion resistance, strength, and longevity, reducing maintenance and replacement costs over the product's lifespan.
• Adherence to Standards: The NPTF thread specification complies with industry standards (e.g., ANSI B1.20.3), ensuring interoperability and a dependable dryseal connection.
• Robust Design: The combination of thickness, OD, and pilot diameter provides a structurally sound component capable of withstanding operational stresses.

By choosing this welding flange, users invest in a component that contributes directly to the efficiency, safety, and longevity of their fluid systems. Its design not only facilitates system construction but also enhances the overall integrity, helping to prevent costly leaks and operational downtime.

Installation Best Practices and Maintenance

For optimal performance and longevity, correct installation and periodic review are essential. Prior to welding, ensure the mounting surface on the reservoir is clean, free of oil, grease, paint, or rust, to achieve a strong, contaminant-free weld. Utilize appropriate welding parameters and filler materials recommended for stainless steel. After welding, if desired for aesthetic or functional reasons, the weld area can be ground smooth, and passivation may be considered to restore the full corrosion resistance of the stainless steel surface.

When connecting NPTF fittings to the flange, ensure proper thread engagement. While NPTF is a dryseal thread, a small amount of an appropriate thread sealant (compatible with the system fluid) can be used for added assurance, particularly in applications with extreme vibration or pressure cycling, though it is not strictly required for the seal itself. Avoid over-tightening, as this can damage the threads or deform the flange. Regular inspection of the weld joint and threaded connections for any signs of leakage or fatigue will ensure sustained performance of the fluid system.

Conclusion

The 1/2 Inch NPTF Stainless Steel Stamped Welding Flange from Buyers Products is a meticulously engineered component that serves as a cornerstone for creating high-performance, durable, and reliable fluid containment systems. Its specific features – the leak-proof NPTF dryseal thread, the robust and corrosion-resistant stainless steel material, and the precise stamped construction – combine to deliver a superior solution for fabricating new hydraulic reservoirs or upgrading existing ones. By providing a secure, adaptable, and long-lasting connection point, this flange empowers engineers and fabricators to achieve optimal system design and operational excellence in the most demanding industrial applications.
