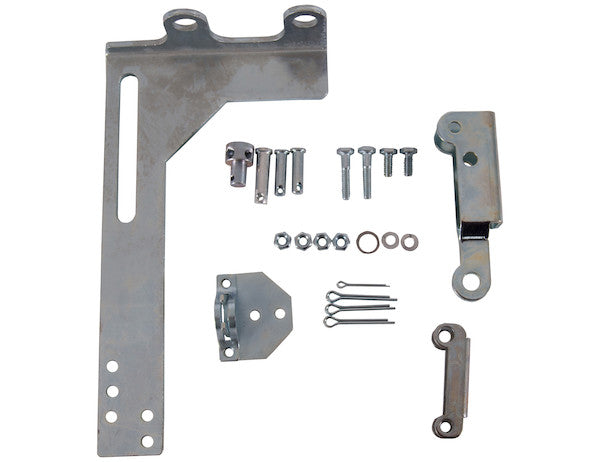

The H102CK Pump Connection Kit for H102 Series Pump from Buyers Products connects a control cable to Buyers Products H102 or Permco?? DMR300/DMR400 Series direct mount pumps. Kits are available with clockwise or counter-clockwise rotation.
Specifications
| Works with Cable Type | 5200 Series & 6200 Series |
| Compatible Cable Thread Size (in.) | 1/4-28 & 5/16-24 |
| Works w/Cable Travel (in.) | 3" |
| Rotation | Counterclockwise |
| Connects To | Buyers H102 Series, Permco DMD300 and DMD400 Series Direct Mount Pumps |
The Counterclockwise Connection Kit, specifically designated for the H102 Series Pump, represents a critical component in ensuring precise and reliable hydraulic system control. Engineered by Buyers Products, this H102CK kit is designed to establish a robust and accurate mechanical linkage between an operational control cable and compatible direct mount hydraulic pumps, primarily the Buyers Products H102 Series and the Permco DMR300/DMR400 Series. The designation "counterclockwise" is fundamental, indicating the specific rotational direction of the pump's input shaft for which this kit is calibrated, a critical factor for correct system integration and functionality in various mobile and industrial hydraulic applications.
At its core, this connection kit serves as an interface, translating linear motion from a control cable into the precise mechanical input required by the pump's control mechanism. In hydraulic systems, direct mount pumps like the H102 series are frequently used in applications requiring compact design, high power density, and direct drive from a power take-off (PTO) or engine. The H102CK kit ensures that the operator's input, whether from a cab-mounted lever or a remote control, is accurately transmitted to the pump, enabling precise control over hydraulic fluid flow and pressure. This precision is paramount for applications such as snow plows, salt spreaders, dump trucks, and various utility vehicles where controlled hydraulic power is essential for operational efficiency and safety.
The technical specifications of the H102CK kit highlight its compatibility and robust design. It is engineered to integrate seamlessly with both 5200 Series and 6200 Series control cables. This broad compatibility underscores its versatility, allowing it to be used in a wide array of existing and new hydraulic control systems. The distinction between 5200 and 6200 series cables often relates to their construction, environmental sealing, and resistance to wear, indicating that the kit is designed to accommodate different levels of operational demands and environmental conditions. The critical aspect of cable compatibility ensures that the mechanical linkage maintains its integrity and responsiveness over extended periods of use.
Furthermore, the kit's compatibility with specific cable thread sizes is a key engineering detail for ensuring a secure and reliable connection. It is designed to work with cables featuring 1/4-28 and 5/16-24 thread sizes. These thread specifications are standard in the industrial and mobile hydraulic control cable industry, reflecting a commitment to interchangeability and ease of maintenance. The 1/4-28 thread is a fine thread specification, often chosen for its ability to provide a secure, vibration-resistant connection, while the 5/16-24 is also a fine thread, common for applications requiring robust mechanical connections. The precise threading ensures that the cable end can be securely fastened to the kit's lever or arm, eliminating play and ensuring direct, unhindered transmission of motion.
The specified "Works w/Cable Travel (in.)" of 3 inches is another crucial parameter. This dimension defines the maximum linear displacement that the control cable can provide, which the H102CK kit is designed to effectively translate into the corresponding angular or linear movement required by the pump's control. A 3-inch travel is typical for many hydraulic control applications, offering a sufficient range of motion to actuate the pump from a minimum to a maximum flow setting. Engineers design control systems to ensure that the full range of cable travel corresponds to the full operational range of the hydraulic pump, thereby maximizing control fidelity and operational flexibility. This specification ensures that the kit will not bottom out or restrict the cable's full movement, preventing premature wear and ensuring complete control over the pump's output.
The "Rotation: Counterclockwise" specification is perhaps the most defining characteristic of this particular kit. Hydraulic pumps, depending on their internal design and intended application, are manufactured for specific rotational directions of their input shaft. For instance, a pump designed for a counterclockwise rotation when viewed from the drive shaft end will only function correctly and efficiently when driven in that direction. Mismatched rotation can lead to significant issues, including reduced efficiency, cavitation, internal damage to the pump, or even complete operational failure. Therefore, selecting the correct connection kit based on the pump's required rotation is not merely a preference but a fundamental technical requirement for system integrity. The H102CK kit is precision-engineered to align with counterclockwise rotating H102, Permco DMR300, and DMR400 series direct mount pumps, ensuring that the control mechanism is correctly oriented and actuated relative to the pump's internal valving and displacement mechanisms.
The "Connects To" specification explicitly lists the compatible pump series: Buyers H102 Series, Permco DMD300, and DMD400 Series Direct Mount Pumps. This clarity is invaluable for system integrators and maintenance personnel, eliminating guesswork and ensuring proper component matching. The Buyers H102 Series pumps are known for their robust construction and reliability in demanding mobile hydraulic environments. Similarly, Permco's DMR300 and DMR400 Series pumps are well-regarded for their heavy-duty performance and are often found in applications requiring high pressures and flows. The H102CK kit’s design accounts for the specific control interfaces and mounting geometries of these pumps, providing a perfect fit and reliable operation. This compatibility extends to the mechanical input requirements of these pumps, ensuring that the kit's lever arm or clevis attachment mates perfectly with the pump's control mechanism, whether it's a spool valve or a proportional control input.
From a materials and construction perspective, the H102CK kit is manufactured to withstand the harsh conditions typically encountered in mobile hydraulic applications. Components are typically made from durable materials such as high-strength steel or robust alloys, treated for corrosion resistance through plating or specialized coatings. This ensures longevity and consistent performance even when exposed to moisture, road salts, temperature extremes, and vibrations inherent in vehicle operation. Precision machining is critical to ensure tight tolerances, minimizing backlash and maximizing the responsiveness of the control system. The design likely incorporates robust pivot points and secure fastening mechanisms to prevent loosening over time, which could lead to loss of control or system malfunction.
Installation of the H102CK Counterclockwise Connection Kit is designed to be straightforward for qualified technicians. It typically involves securely mounting the kit to the pump's designated control interface point and then connecting the control cable. Proper torqueing of fasteners and ensuring correct cable routing are essential steps to prevent interference, excessive wear, or damage to the cable. Once installed, the system should be thoroughly tested to confirm that the pump responds accurately and smoothly across its entire operational range, corresponding to the cable's input. This validation process includes checking for full stroke utilization and verifying that there are no binding points or excessive friction in the control linkage.
The choice of a direct mount pump, often coupled with a PTO, offers several advantages that the H102CK kit facilitates. Direct mounting eliminates the need for drive shafts, couplings, and additional mounting brackets, thereby reducing complexity, weight, and potential points of failure. This compact integration is particularly beneficial in space-constrained vehicle chassis. The connection kit is an integral part of maintaining this streamlined design while providing the necessary remote control capability. It ensures that the benefits of direct mounting are not compromised by a complex or unreliable control interface.
In summary, the Counterclockwise Connection Kit for H102 Series Pump by Buyers Products is a meticulously engineered component that plays a vital role in the efficient and reliable operation of hydraulic systems utilizing H102, Permco DMR300, or DMR400 series pumps. Its technical specifications—including compatibility with 5200 and 6200 Series cables, specific thread sizes, 3-inch cable travel, and crucial counterclockwise rotation—underscore its precision and application-specific design. By providing a robust, accurate, and durable link between operator input and pump actuation, this kit ensures optimal control, performance, and longevity in demanding mobile and industrial hydraulic environments. Its design reflects a deep understanding of hydraulic system integration, emphasizing reliability, ease of installation, and precise control, making it an indispensable component for professionals seeking to optimize their hydraulic power solutions.
