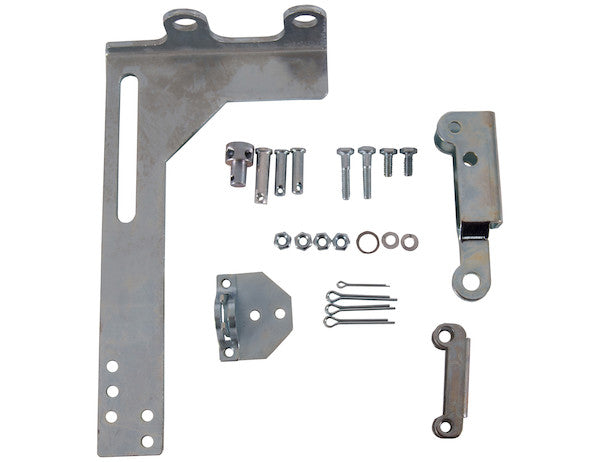

H102CKCW - Clockwise Pump Connection Kit for H102 Series Pump

The H102CK Pump Connection Kit for H102 Series Pump from Buyers Products connects a control cable to Buyers Products H102 or Permco?? DMR300/DMR400 Series direct mount pumps. Kits are available with clockwise or counter-clockwise rotation.

Specifications

The H102CK Clockwise Pump Connection Kit represents a critical component in optimizing the operational efficiency and control of hydraulic systems utilizing Buyers Products H102 Series and compatible Permco direct mount pumps. This technical exposition aims to provide a comprehensive understanding of its design, functionality, application, and the underlying engineering principles that ensure its reliable performance. Specifically designed for clockwise rotation pumps, this kit facilitates a precise and robust mechanical linkage between a control cable and the pump's actuation mechanism, thereby enabling modulated control over hydraulic fluid flow and pressure.

At its core, the H102CK kit is engineered to bridge the interface between a manual or automated control input (via a cable) and the hydraulic pump's internal valving or displacement control mechanism. The "clockwise rotation" designation is paramount, indicating that the kit is configured to interface with pumps designed to rotate in a clockwise direction when viewed from the drive shaft end. This distinction is crucial for correct installation and operation, as misaligning a connection kit with the incorrect pump rotation can lead to operational failure or damage to the pump and control system.

Design and Construction

The H102CK Pump Connection Kit is constructed from durable, high-strength materials selected for their resistance to wear, corrosion, and the harsh operating environments typical of mobile and industrial hydraulic applications. Key components typically include:

• Mounting Bracket/Adapter Plate: This component serves as the primary interface between the connection kit and the pump body. It is precisely machined to ensure a secure, rigid attachment, preventing unwanted movement or vibration during operation. The design accounts for specific bolt patterns and mounting dimensions of the Buyers H102 Series and Permco DMR300/DMR400 Series pumps.
• Lever Arm/Actuator Linkage: This is the mechanism that translates the linear motion of the control cable into the rotational or linear actuation required by the pump's control valve or displacement mechanism. For clockwise pumps, the geometry of this lever arm is specifically configured to achieve the desired response direction. It is often fabricated from hardened steel or other robust alloys to withstand repetitive cycling and high mechanical stresses.
• Cable Attachment Point: Engineered for compatibility with 5200 Series and 6200 Series control cables, this point ensures a secure and low-friction connection. The specification of compatible cable thread sizes (1/4-28 and 5/16-24 inches) highlights the versatility and precision of the attachment mechanism, accommodating common industry standards for control cables. This adaptability simplifies integration into existing control architectures.
• Fasteners and Hardware: High-grade fasteners, often self-locking or with thread-locking compounds, are included to ensure all connections remain secure under dynamic loading and vibration.

The meticulous design of each component ensures that the kit provides not only a physical connection but also a reliable mechanical transmission with minimal backlash and hysteresis. This precision is vital for maintaining fine control over hydraulic functions.

Compatibility and Application

The H102CK kit is specifically engineered for seamless integration with Buyers Products H102 Series pumps and Permco DMR300/DMR400 Series direct mount pumps. These pumps are commonly found in a wide array of mobile hydraulic applications, including:

• Snowplows and salt spreaders (dump truck applications)
• Refuse and waste management vehicles
• Construction equipment (e.g., dump bodies, auxiliary functions)
• Agricultural machinery
• Utility and service vehicles

The "direct mount" characteristic of the compatible pumps implies that they are designed to be mounted directly to a power take-off (PTO) on a vehicle's transmission or another prime mover. This direct coupling minimizes power losses and simplifies installation. The H102CK connection kit ensures that the control interface for these directly mounted pumps is equally streamlined and efficient.

The specified cable travel of 3 inches is a critical parameter. It defines the maximum linear displacement the control cable can undergo to actuate the pump's control mechanism fully. The kit is precisely calibrated to translate this 3-inch cable travel into the full operational range of the compatible pumps, whether it's modulating flow, pressure, or activating/deactivating the pump itself. This ensures that operators have complete control authority over the hydraulic output.

Functional Principles and Operational Benefits

The primary function of the H102CK Clockwise Pump Connection Kit is to enable precise and reliable control over the hydraulic pump. This is achieved through the mechanical translation of operator input (via the control cable) into a corresponding action within the pump. Key operational benefits include:

• Enhanced Control Precision: By providing a direct and low-friction linkage, the kit minimizes play and slop in the control system, allowing for finer modulation of hydraulic functions. This is particularly important in applications requiring precise positioning or speed control.
• Durability and Longevity: The robust construction materials and design principles ensure a long service life, even under continuous operation and exposure to environmental stressors such as dirt, moisture, and temperature fluctuations. This reduces downtime and maintenance costs.
• Ease of Installation and Maintenance: Designed for specific pump series, the kit offers straightforward installation with minimal specialized tooling. Its modular nature also simplifies replacement of individual components, should the need arise.
• Safety: A reliable connection kit ensures that the hydraulic system responds predictably to operator commands, enhancing operational safety by preventing unintended activations or failures to respond.
• System Integration: By accommodating industry-standard control cables (5200 and 6200 Series with specified thread sizes), the kit facilitates seamless integration into a wide range of existing vehicle control systems, simplifying upgrades or new installations.

Technical Considerations and Installation Best Practices

When installing and utilizing the H102CK Clockwise Pump Connection Kit, several technical considerations and best practices should be observed to ensure optimal performance and longevity:

• Rotation Verification: Absolutely confirm that the hydraulic pump is indeed a clockwise rotation model when viewed from the drive shaft end. Using a clockwise kit on a counter-clockwise pump will result in incorrect control response and potential damage. This can typically be determined from the pump's manufacturer specifications or by observing the drive shaft rotation during operation (if safely possible).
• Cable Routing: Proper routing of the control cable is paramount. Cables should be routed with generous bend radii to prevent kinking or excessive friction, which can lead to premature cable wear and increased control effort. Avoid routing near sharp edges, heat sources, or moving components.
• Secure Fastening: All fasteners must be torqued to the manufacturer's specified values. Over-tightening can strip threads or deform components, while under-tightening can lead to loosening under vibration. The use of thread-locking compounds on critical fasteners is recommended to prevent vibrational loosening.
• Lubrication: While the kit itself may not require extensive lubrication, ensuring the control cable operates smoothly and is adequately lubricated (if applicable to the cable type) will significantly improve the overall system responsiveness and extend the life of both the cable and the connection kit.
• Alignment: Ensure proper alignment between the control cable and the kit's attachment point. Any misalignment can introduce side loading, increasing friction and wear.
• Pre-Operation Check: After installation, a thorough pre-operation check should be performed. This includes verifying the full range of motion, checking for binding or excessive play, and confirming that the hydraulic system responds as expected to control inputs. This should be done in a safe, controlled environment.
• Environmental Protection: While the kit is robust, protecting exposed components from excessive dirt, debris, and corrosive elements can further extend its service life. Regular cleaning and inspection are advisable, especially in demanding applications.

Maintenance and Troubleshooting

Regular inspection and maintenance are key to the sustained performance of the H102CK Pump Connection Kit. Periodic checks should include:

• Visual Inspection: Look for signs of wear, corrosion, cracks, or deformation on the lever arm, mounting bracket, and cable attachment point.
• Fastener Tightness: Verify that all fasteners remain tight and secure.
• Cable Condition: Inspect the control cable for fraying, damage to the outer jacket, or excessive stiffness, all of which indicate potential failure.
• Operational Smoothness: Actuate the control cable through its full travel and observe the pump's response. Any binding, excessive friction, or erratic behavior warrants further investigation.

Troubleshooting common issues often involves:

• Stiff or Erratic Control: Often attributed to a damaged or poorly routed control cable, lack of lubrication, or foreign matter interfering with the linkage.
• Loss of Control: Could indicate a broken control cable, a disconnected linkage, or internal pump issues.
• Excessive Play/Backlash: May be due to worn pins, bushings, or loose fasteners within the connection kit or the pump's control mechanism.

In all cases, consulting the product manuals for both the connection kit and the hydraulic pump is recommended for specific troubleshooting steps and repair procedures. Replacing worn or damaged components promptly is crucial to prevent cascading failures in the hydraulic system.

Conclusion

The H102CK Clockwise Pump Connection Kit is an indispensable interface for achieving reliable and precise control over Buyers Products H102 Series and Permco DMR300/DMR400 Series direct mount hydraulic pumps. Its meticulous design, robust construction, and specific compatibility with clockwise rotation pumps, 5200/6200 series cables, and specified thread sizes underscore its role as a high-quality, professional-grade component. By adhering to proper installation guidelines and maintaining a routine inspection schedule, operators can ensure optimal performance, longevity, and safety of their hydraulic systems, ultimately contributing to enhanced productivity and reduced operational costs. This kit exemplifies the engineering precision required to seamlessly integrate diverse mechanical components into a cohesive and high-performing hydraulic control architecture.
