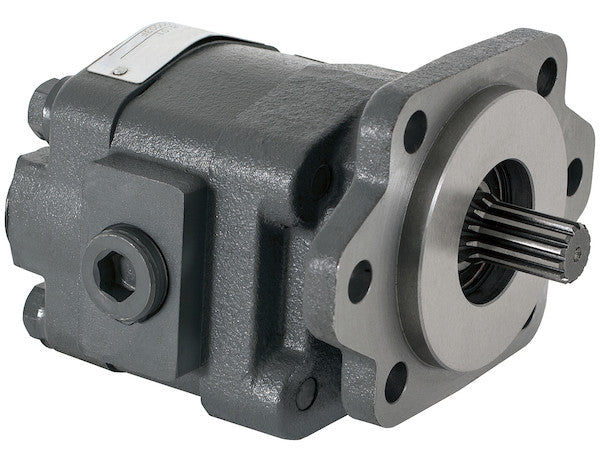

H2136101 - Hydraulic Gear Pump With 7/8-13 Spline Shaft And 1 Inch Diameter Gear

Advanced Engineering and Performance: The H21 Series Hydraulic Gear Pump

The H21 Series Hydraulic Gear Pump from Buyers Products, featuring a 7/8-13 spline shaft and 1-inch diameter gear, is a meticulously engineered, bi-rotational positive displacement pump designed for demanding hydraulic applications. Its robust cast iron construction, complemented by Teflon-coated bronze thrust plates and four internal dowels, ensures exceptional durability and structural integrity. Designed for direct mounting via an SAE B 2- or 4-bolt interface with a 4.00-inch pilot diameter, the H21 Series is capable of sustaining pressures up to 3000 PSI. This model delivers versatile flow rates, with a nominal displacement of 2 cubic inches per revolution (CIR), ranging from 6.8 GPM at 1000 RPM up to 14.28 GPM at 2100 RPM. Equipped with 1 NPT rear/side porting, this pump provides a foundational component for hydraulic systems demanding high force generation, consistent volumetric output, and reliable operation across mobile, industrial, and agricultural sectors. It embodies advanced fluid power technology built for longevity and performance.

Fundamental Principles of External Gear Pump Operation

The H21 Series operates on the proven external gear pump mechanism, recognized for its reliability and high volumetric efficiency. This positive displacement pump functions through two precisely meshing gears: a driven gear connected to the input shaft and an idler gear. As these gears rotate, an expanding volume at the inlet port draws hydraulic fluid from the reservoir. Fluid is then isolated within gear teeth cavities and carried around the pump's periphery. Upon reaching the outlet, the re-meshing gears reduce volume, positively displacing fluid under high pressure into the hydraulic circuit. The 1-inch diameter gears, with a 1.000-inch width, yield a nominal volumetric displacement of 2 cubic inches per revolution (CIR). This ensures flow rates directly proportional to input shaft speed. Flow capacities are precisely calibrated: 4.08 GPM at 600 RPM, 6.12 GPM at 900 RPM, 6.8 GPM at 1000 RPM, 8.16 GPM at 1200 RPM, 10.2 GPM at 1500 RPM, 12.24 GPM at 1800 RPM, and 14.28 GPM at 2100 RPM. Meticulous manufacturing tolerances minimize internal leakage, maximizing volumetric and mechanical efficiency under sustained high-pressure operation.

Superior Construction and Advanced Material Science

The H21 Series Hydraulic Gear Pump's robust construction and advanced material science ensure exceptional durability. Its housing is crafted from high-grade cast iron, selected for superior strength, rigidity, and vibration damping, which maintains structural stability under the maximum operating pressure of 3000 PSI. This prevents distortion and minimizes internal leakage. Cast iron's thermal conductivity aids in efficient heat dissipation, preserving fluid integrity. Internal longevity is further enhanced by Teflon-coated bronze thrust plates. These components effectively manage axial thrust forces generated by the rotating gears. The bronze substrate provides strength, while the low-friction Teflon coating reduces wear and frictional losses, improving mechanical efficiency and extending the operational life of critical mating surfaces. Four precisely engineered internal dowels reinforce structural cohesion, ensuring accurate alignment and secure retention of pump components. This prevents relative movement and deformation, guaranteeing consistent hydraulic performance in challenging applications and extending overall service life under demanding conditions.

Optimized Performance: Flow Rates and Pressure Capabilities

The H21 Series Hydraulic Gear Pump is precisely engineered to deliver a broad spectrum of flow rates and sustain high operating pressures. With a fundamental displacement of 2 cubic inches per revolution (CIR), the pump’s volumetric output is directly proportional to its rotational speed, ensuring predictable and consistent fluid delivery. For example, at 1000 RPM, it generates 6.8 GPM. Other specified flow rates include 4.08 GPM at 600 RPM, 6.12 GPM at 900 RPM, 8.16 GPM at 1200 RPM, 10.2 GPM at 1500 RPM, 12.24 GPM at 1800 RPM, and 14.28 GPM at 2100 RPM. This wide range enables precise matching of output to application requirements. Crucially, the H21 Series is designed for high-pressure applications, achieving a maximum continuous operating pressure of 3000 PSI, ideal for heavy-duty tasks requiring significant force generation. The pump's maximum permissible rotational speed is 2000 RPM; adherence is critical for preventing cavitation, minimizing heat generation, and ensuring pump longevity. This balance of efficiency, pressure, and speed positions the H21 Series as a powerful and reliable hydraulic energy source for demanding circuits.

Precision Drive: The 7/8-13 Spline Shaft and SAE B Mounting

The interface between the prime mover and the H21 Series Hydraulic Gear Pump is optimized for efficient and reliable power transmission. The pump features a robust 7/8 inch by 13 spline shaft. Spline shafts distribute torsional loads across multiple engagement points, reducing stress concentrations and minimizing shaft failure risk under high torque and shock loads. The 13 splines ensure minimal backlash, promoting smoother power transfer and extended drive system lifespan. The 7/8-inch diameter provides ample cross-sectional strength for continuous high-torque operations. For broad compatibility, the pump utilizes an industry-standard SAE B 2- or 4-bolt mounting flange, facilitating integration with diverse prime movers. The dual bolt pattern offers enhanced installation flexibility. A precisely machined 4.00-inch pilot diameter ensures accurate concentric alignment between the pump and prime mover shafts, paramount for minimizing radial loads on pump bearings and seals, thus preventing premature wear and vibration. The direct mount capability, supported by an integral bracket, streamlines installation by reducing external coupling components, contributing to a compact and efficient system. This combination ensures operational reliability and simplified integration into various hydraulic drive systems.

Unmatched Versatility: Bi-Directional Operation

A key advantage of the H21 Series Hydraulic Gear Pump is its inherent bi-directional rotational capability. Unlike many unidirectional pumps, the H21 Series operates identically and efficiently regardless of the input shaft's rotation direction (clockwise or counter-clockwise). This fundamental design attribute offers substantial practical and logistical benefits for system designers and maintenance professionals. Internally, the pump's construction is optimized for efficient fluid suction and discharge in both directions. This eliminates the necessity of stocking separate pump variants for different rotational requirements, simplifying inventory management and reducing procurement complexities. From a system design perspective, bi-directional functionality provides unparalleled flexibility, allowing engineers to design more adaptable and compact system layouts without prime mover rotational constraints. This is particularly valuable in mobile equipment with varying Power Take-Off (PTO) orientations or in industrial machinery requiring reversible hydraulic circuits. In field service, a bi-directional pump significantly reduces installation errors related to shaft rotation, minimizing downtime and accelerating repair processes. This adaptability extends the H21 Series’ suitability across a broader spectrum of hydraulic systems, ensuring peak performance and maximum operational resilience without internal modifications.

Optimized Fluid Connection: Porting and System Integration

Efficient and secure fluid connections are paramount for hydraulic system performance, a need meticulously addressed by the H21 Series Hydraulic Gear Pump’s well-designed porting options. The pump is equipped with 1 NPT (National Pipe Taper) outlet and suction ports. The NPT standard is widely favored for its robust, leak-free sealing capability, achieved through tapered threads that wedge tightly together upon tightening, preventing fluid loss and contaminant ingress. The 1-inch NPT size for both ports ensures optimal flow velocities, correlating with the pump's displacement and maximum flow rates. Correct port sizing is essential to prevent cavitation at the suction side—a damaging phenomenon caused by inadequate fluid supply—and to minimize pressure drops at the outlet, maximizing overall system efficiency. Furthermore, the H21 Series offers both rear and side porting options, providing exceptional flexibility in pump installation and hydraulic line routing. This versatility allows system designers to optimize hose and pipe configurations, accommodate constrained spatial envelopes, and tailor the hydraulic circuit to specific equipment layouts. Rear porting facilitates direct, compact connections, while side porting offers accessibility or alternative orientations. This dual-porting capability reduces the necessity for complex or restrictive adapter fittings, streamlining installation, reducing potential leakage, and contributing to a cleaner, more efficient hydraulic system layout. This thoughtful engineering of the porting system underscores the H21 Series' commitment to ease of integration and high operational performance.

Operational Best Practices and Longevity

To maximize operational life and sustain peak performance of the H21 Series Hydraulic Gear Pump, strict adherence to established best practices for hydraulic systems is essential. This includes meticulous selection and maintenance of hydraulic fluid, ensuring it meets specific viscosity requirements and contains necessary additives (anti-wear, anti-foam, anti-oxidation). Fluid cleanliness is paramount; effective filtration to manufacturer-recommended ISO standards is indispensable for preventing abrasive wear on internal components. Regular monitoring and replacement of filter elements are non-negotiable. Effective thermal management within the hydraulic system is also crucial, as excessive fluid temperatures accelerate degradation and compromise seals. Adequate heat dissipation through system coolers or properly sized reservoirs significantly contributes to pump longevity. Routine inspections should encompass checking mounting hardware for tightness, examining port connections for leaks, and monitoring for abnormal noise or vibration. Promptly addressing any deviations and adhering strictly to the manufacturer's recommended maintenance schedule, including seal replacements and fluid analysis, ensures reliable, high-performance service throughout its extensive operational lifespan. Proactive maintenance is key to optimizing return on investment through sustained productivity and minimized downtime.

Diverse Applications for Reliable Hydraulic Power

The H21 Series Hydraulic Gear Pump’s robust construction, high-pressure capability, and versatile design features make it an indispensable component across numerous demanding industries. In agriculture, it powers tractor loaders, hitch systems, and implements requiring consistent hydraulic force. For construction equipment, it serves as the hydraulic heart for skid-steer loaders, mini-excavators, and utility loaders, driving operations like bucket articulation and boom extension. Within refuse and waste management, it is specified for garbage truck compactors, hoist mechanisms, and hydraulic lift gates, where continuous heavy-duty cycling and high-force generation are constant demands. Utility and municipal fleets, including aerial lifts, service cranes, and snowplow hydraulics, benefit from its dependable performance for critical infrastructure maintenance. In commercial trucking and transportation, these pumps are integral to Power Take-Off (PTO) systems, enabling the operation of dump trailers, wet-line kits, and car carriers. Its bi-directional capability enhances utility in systems requiring reversible operations. The H21 Series is also ideal for material handling equipment like forklifts and industrial conveyors, where precise lifting and movement are critical for safety and efficiency. Its proven reliability ensures uninterrupted performance across these diverse and critical hydraulic applications.

Conclusion: Uncompromising Performance and Value

In summation, the H21 Series Hydraulic Gear Pump, with its 7/8-13 spline shaft and 1-inch diameter gear, epitomizes advanced hydraulic engineering and enduring performance. Its strategic integration of high-grade cast iron construction, low-friction Teflon-coated bronze thrust plates, and a precision-machined bi-directional gear set ensures exceptional durability and efficient hydraulic power delivery. Offering versatile flow rates calibrated for diverse operational speeds and a maximum pressure capability of 3000 PSI, this pump is engineered to confidently manage the most rigorous hydraulic tasks. The industry-standard SAE B 2/4-bolt mounting, coupled with versatile 1 NPT rear/side porting options, facilitates seamless integration into virtually any hydraulic system, maximizing installation flexibility and reducing complexity. Engineered for unparalleled reliability, extensive longevity, and broad adaptability, the H21 Series provides an exemplary solution for a vast spectrum of agricultural, construction, refuse, utility, and commercial vehicle applications. It unequivocally embodies Buyers Products' unwavering dedication to furnishing high-quality, high-performance hydraulic components that empower industries to operate with superior efficiency, enhanced productivity, and ultimate peace of mind.
