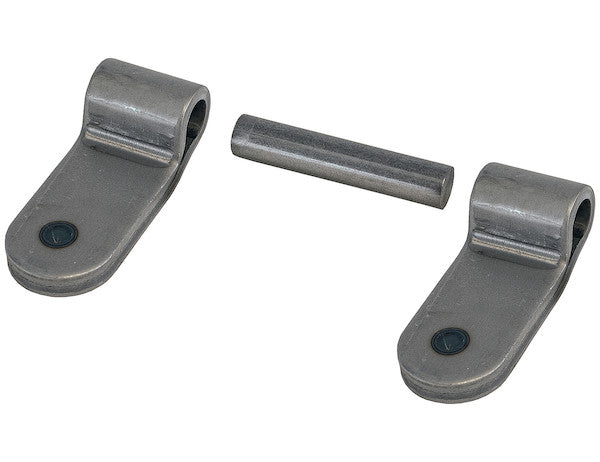

H2550 - Flush Mount Wing Style Plain Steel Butt Hinge - 2.5 x 5.5

Buyers Products Steel Butt Hinge has a flush-mounted wing style and a plain finish. The steel construction provides years of durable use. The 1/2 in. pin is not welded.

Specifications

Comprehensive Technical Overview: Flush Mount Wing Style Plain Steel Butt Hinge - 2.5 x 5.5

The Flush Mount Wing Style Plain Steel Butt Hinge, measuring 2.5 x 5.5 inches, is a robust mechanical component engineered for demanding industrial and commercial applications. This comprehensive technical description delves into the design, material science, performance characteristics, and installation considerations that define the hinge's utility and durability across diverse operational environments.

Fundamental Design and Mechanical Principles

Butt Hinge Architecture

A butt hinge is a foundational mechanical component, characterized by its two leaves or wings that abut against the edge of a moving component (e.g., door, panel) and its stationary frame. A central pin passes through the interleaved knuckles of both leaves, establishing a singular pivot axis. This design ensures controlled rotational motion, facilitating precise opening and closing. The "Flush Mount Wing Style" variant refines this concept, positioning the hinge leaves to integrate seamlessly with the mounting surfaces. This integration minimizes protrusion, contributing to a streamlined aesthetic, enhanced security, and superior load distribution, distinguishing it from surface-mounted alternatives.

Flush Mount Wing Style Configuration

The flush-mounted wing style is a key design differentiator. Its configuration allows the hinge leaves to sit level with the adjacent surfaces, offering significant functional and aesthetic advantages. Aesthetically, it provides a clean, unobtrusive profile. From a security standpoint, it reduces exposed edges and fasteners, mitigating tampering risks. Crucially, this design optimizes load transfer by distributing stress over a larger area of the substrate. The broad "wing style" leaves provide ample surface area for secure fastening, bolstering the hinge's capacity to support substantial loads and resist torsional forces. This robust load distribution minimizes localized fatigue and significantly enhances the overall structural integrity of the hinged assembly, making it ideal for applications requiring sustained heavy usage and structural stability.

Material Science: Carbon Steel for Superior Performance

The deliberate selection of Carbon Steel for this hinge reflects a strategic engineering decision, balancing high strength, exceptional durability, cost-effectiveness, and ease of processing. Carbon steel, an iron-carbon alloy containing typically up to 2.1% carbon by weight, is celebrated for its excellent mechanical properties. The material's inherent characteristics ensure high tensile and yield strengths, which are critical for components subjected to significant static and dynamic loads in industrial settings.

Key Properties of Carbon Steel in Hinge Construction:

• High Tensile Strength: Carbon steel exhibits robust resistance to pulling forces, preventing hinge failure under tension, vital for heavy doors or panels experiencing inertia or external stress.
• Excellent Yield Strength: This property ensures the material resists permanent deformation under stress, preserving the hinge's structural integrity and alignment even after repeated load cycles.
• Durability and Wear Resistance: The inherent hardness of carbon steel, particularly at the friction-prone pin and knuckle interfaces, substantially contributes to its wear resistance, extending the hinge's operational lifespan.
• Fatigue Resistance: Hinges undergo frequent cyclic loading. Carbon steel demonstrates strong fatigue resistance, allowing it to endure numerous load cycles before material degradation.
• Weldability and Fabricability: Plain carbon steel is highly amenable to welding, ensuring strong, clean bonds when integrated into steel structures. Its formability also simplifies the manufacturing process, allowing for precise shaping into the hinge's specific geometry.
• Cost-Effectiveness: Carbon steel provides a more economical solution than stainless steel or specialized alloys, offering comparable mechanical performance for many heavy-duty applications without incurring premium material costs.

The "Plain" Finish: Strategic Versatility

The "Plain" finish on this carbon steel hinge is a deliberate engineering specification, providing strategic advantages in diverse industrial applications. This designation implies the material is in its raw, uncoated state post-fabrication. While this makes it susceptible to corrosion in humid or outdoor environments without additional protection, it offers unparalleled versatility for post-processing and customization.

Advantages of a Plain Finish:

• Optimal for Welding: A plain finish is ideal for applications where the hinge will be welded directly to a steel frame or structure. It eliminates the need for pre-weld surface preparation (e.g., grinding off coatings), ensuring clean, strong, and consistent welds free from contaminants or noxious fume generation. This is crucial for custom fabrication and heavy equipment manufacturing.
• Customizable Coatings: A raw surface provides an excellent substrate for a wide range of protective or aesthetic coatings. Users can apply bespoke paint, powder coat, galvanization, or specialized chemical treatments precisely tailored to their application's environmental conditions or aesthetic demands. This ensures superior adhesion compared to attempting to coat pre-finished hinges.
• Economic Efficiency: The omission of factory-applied finishes reduces manufacturing costs, leading to a more economical product, particularly beneficial when the final application necessitates a unique finish regardless.
• Ease of Modification: For scenarios requiring minor modifications, drilling, or machining, working with plain steel is simpler and cleaner, as there is no coating to chip, peel, or interfere with tooling.

For applications exposed to moisture or corrosive agents, prompt implementation of appropriate post-installation rust prevention measures (e.g., painting, oiling, galvanizing) is essential to preserve the integrity and appearance of the plain carbon steel hinge.

Precision Dimensions: 2.5 x 5.5 Inches

The specified dimensions—"2.5 Open Width (in.)" and "5.5 Hinge Length (in.)"—are critical engineering parameters that dictate the hinge's load-bearing capacity, operational stability, and applicability across various systems.

Open Width (2.5 inches):

The open width defines the total span across both leaves when the hinge is fully extended. This dimension directly influences the mechanical advantage and leverage provided by the hinge. A 2.5-inch open width ensures substantial surface area on each leaf for secure fastening, enhancing the hinge's ability to support significant weight and resist torsional forces. It also determines the minimum clearance required between the hinged components when closed, accounting for knuckle thickness. This parameter is vital for maintaining proper assembly clearances.

Hinge Length (5.5 inches):

The 5.5-inch hinge length is crucial for effective load distribution along the axis of rotation. A longer hinge provides more fastener contact points and distributes the load over a greater vertical span, thereby mitigating concentrated stress points on both the hinge and the mounting substrate. This extended length enhances stability, reduces racking or twisting under load, and increases resistance to tear-out. This makes the hinge particularly suitable for heavier doors, panels, or hatches where consistent stability across the entire hinged edge is paramount. The 5.5-inch length, combined with the carbon steel's strength, positions this hinge for medium to heavy-duty industrial tasks.

The Critical Pin: 1/2 Inch Diameter, Loose Retention

The hinge pin is the pivotal element, facilitating all rotational motion. Its design and material properties are fundamental to the hinge's performance, durability, and maintenance characteristics.

Pin Diameter (1/2 inch):

A 1/2-inch diameter pin denotes a substantial and robust pivot. Pin diameter is directly correlated with its shear strength and resistance to bending moments. A larger diameter pin can withstand greater shear forces (forces parallel to the pin's cross-section during opening/closing) and bending stresses (forces attempting to deform the pin due to uneven loading or heavy static weight). This generous diameter ensures the hinge maintains structural integrity under heavy loads and frequent cycling, minimizing knuckle wear and preventing premature failure. It establishes a solid axis of rotation, contributing to smooth operation and extended service life.

Loose Pin Retention (Not Welded):

The "loose" or "not welded" pin retention mechanism is a deliberate design choice offering distinct functional advantages:

• Ease of Disassembly and Maintenance: A loose pin facilitates rapid and straightforward disassembly of hinged components without detaching the entire hinge from its mounting. This is invaluable for maintenance, repair, access to enclosed areas, or temporary removal of a door/panel for servicing or transport.
• Installation Flexibility: In certain installation scenarios, a loose pin can simplify alignment and mounting. Components can be individually mounted and subsequently joined by inserting the pin.
• Lubrication and Wear Management: The ability to remove the pin allows for periodic lubrication of the pin and knuckle surfaces, essential for reducing friction, preventing wear, and ensuring smooth operation, especially in high-cycle or dirty environments. It also permits inspection and, if necessary, replacement of a worn pin.
• Security Considerations: While offering significant maintenance benefits, a loose pin can present a security vulnerability if unauthorized removal is a concern. For high-security applications, alternative pin retention methods (e.g., non-removable pins, welded pins, or set screws) may be preferred, or the hinge design should restrict pin access when closed. However, for many industrial applications, the practical advantages outweigh this concern.

Performance Characteristics and Operational Durability

The synergy of high-quality carbon steel, robust dimensions, and a well-engineered pin system imbues this hinge with exceptional performance characteristics:

• High Load Capacity: Designed to support significant static and dynamic loads, making it suitable for heavy doors, gates, trailers, equipment access panels, and industrial enclosures.
• Resistance to Deformation: The material strength and hinge geometry provide excellent resistance to bending, twisting, and other forms of structural deformation under operational stresses.
• Smooth Operation: Precisely machined knuckles and the substantial 1/2-inch diameter pin ensure a consistent, low-friction pivot, facilitating smooth and reliable opening and closing, particularly when properly lubricated.
• Extended Service Life: With proper installation and maintenance, the robust steel construction is engineered to deliver years of reliable service in demanding industrial settings.

Applications and Versatility

The Flush Mount Wing Style Plain Steel Butt Hinge is ideally suited for a broad spectrum of industrial, commercial, and heavy-duty applications:

• Truck and Trailer Manufacturing: Tailgates, side panels, equipment boxes, cargo doors.
• Agricultural Machinery: Access panels, equipment covers, implement linkages.
• Construction Equipment: Enclosures for engines, hydraulic compartments, access hatches.
• Industrial Enclosures and Cabinets: Heavy-duty electrical cabinets, control panels, storage lockers in manufacturing facilities.
• Security Gates and Barriers: Providing robust pivot points for large or frequently used gates.
• Custom Fabrication Projects: Its plain finish makes it an excellent choice for bespoke machinery, fixtures, or architectural elements requiring welding or a specific post-fabrication finish.
• Marine Applications (with proper post-treatment): With appropriate coating or galvanization, these hinges can be adapted for freshwater marine use or covered saltwater environments.

Installation Best Practices

Proper installation is paramount to realizing the full strength and longevity of this hinge. Key considerations include:

1. Surface Preparation: Ensure mounting surfaces are clean, flat, and structurally sound to provide maximum contact and support for the hinge leaves.
2. Fastener Selection: Utilize appropriate high-strength fasteners (e.g., bolts, screws, rivets) compatible with the mounting substrate and capable of supporting the anticipated load. Fastener quantity and spacing should follow engineering guidelines for even stress distribution.
3. Alignment: Precise alignment of both hinge leaves is critical to prevent binding, premature wear, and operational difficulties. Misalignment can induce excessive stress on the pin and knuckles.
4. Welding Considerations: If welding, ensure proper techniques, electrode selection, and post-weld inspection to maintain structural integrity and prevent distortion.
5. Lubrication: Upon installation and periodically thereafter, lubricate the hinge pin and knuckle areas with a suitable grease or lubricant to minimize friction and wear.

Maintenance and Longevity

To maximize the service life of the Flush Mount Wing Style Plain Steel Butt Hinge, a proactive maintenance regimen is recommended:

• Regular Inspection: Periodically check for signs of wear, deformation, loose fasteners, or corrosion. Pay close attention to the hinge pin and knuckles.
• Lubrication: Re-lubricate the hinge pin and knuckles as required by operational frequency and environmental conditions. This is particularly important for loose-pin designs, where the pin can be easily removed for thorough cleaning and re-greasing.
• Corrosion Control: For plain steel hinges in corrosive environments, regularly inspect for rust. If present, remove rust and apply a protective coating (e.g., rust-inhibiting paint, primer, or heavy-duty grease).
• Fastener Torque: Ensure all fasteners remain securely tightened to prevent movement and stress on the hinge and mounting surfaces.

Conclusion

The Flush Mount Wing Style Plain Steel Butt Hinge, measuring 2.5 x 5.5 inches with a 1/2-inch loose pin, represents a convergence of robust material science, precise engineering, and practical design. Its carbon steel construction ensures exceptional strength, durability, and resistance to operational stresses, positioning it as an indispensable component for heavy-duty applications across diverse industrial sectors. The plain finish provides unmatched versatility for custom finishing and welding, while the loose pin design facilitates ease of maintenance and disassembly. This hinge is a critical structural element engineered for sustained, reliable performance in the most demanding environments, offering engineers and fabricators a dependable foundation for their challenging projects.
