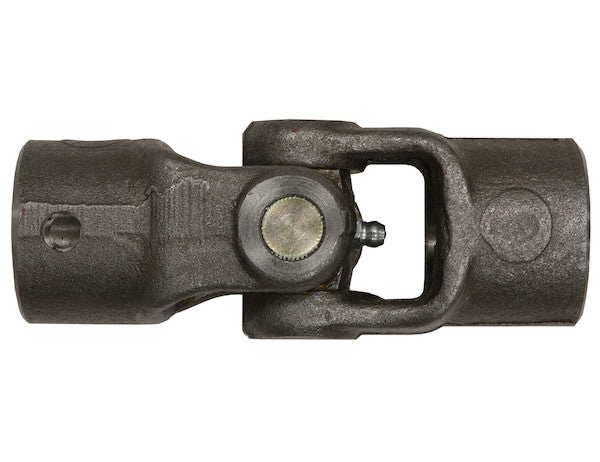

H3013X013 - H3 Standard Pin and Block Joint 3/4 Inch Round x 3/4 Inch Round

Buyers Products H3 Standard Pin and Block Joint comes fully assembled and ready for your low torque application. Its size and rating make it ideal for tarp cranks and dump tarp systems. The plain bearing U-joint is made of forged steel to provide strength and durability. It is low maintenance and ensures smooth and continuous torque transfer.

Specifications

The Buyers Products H3 Standard Pin and Block Joint, with its precise 3/4 inch round x 3/4 inch round bore configuration, represents a robust and meticulously engineered solution for angular power transmission in industrial and commercial low-torque applications. This universal joint, a fundamental component in mechanical systems, is specifically designed to facilitate the transfer of rotational motion between two shafts that are intentionally misaligned or whose relative positions change during operation. Its designation as an "H3 Standard" part signifies adherence to specific design parameters and quality assurances, ensuring reliability and compatibility within a defined range of operational requirements.

Universal joints, commonly referred to as U-joints, are critical for machinery that requires power delivery across varying angles. While several types of U-joints exist, including Cardan joints with cross-and-bearing assemblies, the pin and block joint employed in the H3 series offers distinct advantages for particular applications. This design consists of two yokes, typically forged from high-strength material, connected by a central block and two perpendicular pins. The pins articulate within bores in the yokes, allowing for angular deflection while maintaining continuous rotational coupling. This construction provides a compact form factor and inherent robustness, making it an excellent choice for environments where space is a consideration and resilience to operational stresses is paramount.

A primary characteristic that distinguishes the H3 Standard Pin and Block Joint is its suitability for "low torque applications." This rating is not merely a qualitative statement but is derived from the calculated stress capacities of its components, including the pin shear strength, bearing surface area, and material properties. In systems such as tarp cranks for commercial vehicles or dump tarp systems, the torque requirements, while significant enough to perform the function, generally fall within a range where the pin and block design excels in efficiency and longevity without the added complexity and cost of more heavily engineered cross-and-bearing U-joints designed for high-speed, high-torque, or extreme angularity scenarios. The plain bearing design further reinforces its suitability for these types of operations. Plain bearings, in contrast to rolling element bearings, utilize direct sliding or rubbing contact between surfaces, often separated by a lubricant film. In this application, they contribute to the "low maintenance" profile by being inherently robust against shock loads and contamination, which are common in mobile equipment applications. Their simpler construction also reduces manufacturing complexity and overall cost, providing an economical yet highly effective solution for the specified duty cycles.

The choice of forged steel for the U-joint's construction is a critical engineering decision that significantly contributes to its "strength and durability." Forging is a manufacturing process that involves shaping metal by localized compressive forces using hammers or dies. This process results in an optimized grain structure within the steel, aligning the grains with the direction of maximum stress during operation. This anisotropic grain flow enhances the material's mechanical properties, particularly its tensile strength, fatigue resistance, and impact strength, far beyond what can be achieved with cast or machined-from-bar components. The internal structure of forged steel is denser and free from internal voids, porosity, and inclusions often found in castings, leading to a more homogenous and reliable component. This superior material integrity ensures that the H3 joint can withstand the cyclic loading and environmental exposures typical of its intended applications, prolonging its service life and minimizing premature failure.

Further detailed in the specifications, both Yolk 1 and Yolk 2 are fabricated from carbon steel. Carbon steel is an iron-carbon alloy known for its excellent balance of strength, hardness, ductility, and cost-effectiveness. The specific grade of carbon steel would be selected based on desired mechanical properties and machinability. Its inherent workability allows for the precise machining of critical features such as the 0.750-inch round bores, keyways, and set screw holes, ensuring accurate shaft fitment and consistent performance. The "Plain" finish indicates that the components are delivered without additional surface coatings like galvanization or painting, which is often sufficient for internal components or applications where external cosmetic appearance is not a primary concern, or where users may apply their own protective coatings tailored to specific environmental conditions. This streamlined finish contributes to cost efficiency without compromising the structural integrity or functional performance of the joint.

The precise dimensional characteristics provided in the specifications table are crucial for proper integration and operational efficacy. The "Yolk 1 Bore Diameter/Width" and "Yolk 2 Bore Diameter/Width" are both specified at 0.750 inches and are of a "Round" bore type. This standardization ensures compatibility with common 3/4-inch round shafts, simplifying shaft coupling and reducing installation complexity. The "Center Line to End of Hub" dimension, at 2.563 inches for both yokes, dictates the effective engagement length with the connected shafts and influences the overall compact footprint of the joint assembly. The "Hub Diameter" of 1.69 inches further defines the spatial requirements around the shaft connection points, guiding engineers in designing adjacent components and clearances. These dimensions are not arbitrary but are precisely engineered to balance strength, space efficiency, and universal applicability for the H3 series.

For secure and positive torque transmission, both yokes feature a "Keyway at 1" with a "Keyway Size" of 0.188 inches. A keyway is a slot machined into the bore of a hub or coupling that mates with a corresponding key seated in a keyseat on the shaft. This mechanical interlock prevents relative rotation between the shaft and the yoke, ensuring that all rotational torque is effectively transferred. The "Keyway at 1" likely refers to its angular position or orientation, which is important for maintaining alignment during assembly. Furthermore, a "Set Screw Size" of 3/8-16 is specified for both yokes, with a "Set Screw Location in Relation to Keyway" at '4'. Set screws provide additional axial and rotational retention, especially important in applications subjected to vibration or dynamic loading. The specified location relative to the keyway ensures optimal clamping force distribution and prevents the key from backing out under operational stresses. This dual retention mechanism—keyway for positive torque transfer and set screw for enhanced axial and rotational security—underscores the robust design philosophy of the H3 series.

The characteristic of being "low maintenance" for the H3 Standard Pin and Block Joint is a significant operational advantage, particularly for systems like tarp cranks and dump tarp mechanisms that may not receive frequent servicing. The inherent design of plain bearings, which relies on a larger contact area compared to rolling element bearings, distributes loads more effectively and is less susceptible to brinelling or false brinelling under static or oscillating conditions. While plain bearings typically require lubrication to reduce friction and wear, the formulation of the bearing material, coupled with the design for "low torque application," implies that the joint can operate effectively over extended periods with minimal or no additional lubrication requirements after initial assembly. This contributes to reduced downtime, lower operational costs, and simplified service schedules, making it a highly practical component for commercial utility vehicles and industrial equipment where reliability in varied operating conditions is paramount.

The "fully assembled" nature of the product minimizes installation time and potential assembly errors, ensuring that the joint is ready for immediate integration into the target system. This plug-and-play capability is invaluable in manufacturing and field service environments, where efficiency and consistency are critical. By providing a pre-assembled unit, Buyers Products ensures that the critical internal clearances, pin-to-yoke fit, and overall integrity of the joint conform to factory standards, optimizing performance from the moment of deployment. This attention to detail in manufacturing and presentation reflects a commitment to delivering high-quality, dependable mechanical power transmission solutions.

In summary, the Buyers Products H3 Standard Pin and Block Joint is a precisely engineered mechanical coupling, purpose-built for low-torque angular power transmission. Its construction from forged carbon steel provides exceptional strength, durability, and resistance to fatigue, ensuring reliable operation in demanding environments. The utilization of plain bearings contributes to its low-maintenance profile and robust performance against shock loads and environmental exposure. With standardized 3/4-inch round bores and a comprehensive set of specifications for keyways and set screws, this joint offers straightforward integration into diverse systems, particularly those involving tarp cranks and dump tarp mechanisms. The "H3 Standard" designation, coupled with its fully assembled delivery, emphasizes ease of use, consistency, and long-term operational efficiency, positioning it as an ideal choice for engineers and technicians seeking a dependable and cost-effective universal joint solution.

The inherent design attributes of the H3 Pin and Block Joint, specifically the compact envelope created by its construction, make it a superior choice in space-constrained applications. Unlike some larger, more complex universal joint configurations, the pin and block mechanism allows for a relatively small radial and axial footprint. This is particularly advantageous in mobile equipment, where chassis space is often at a premium, and components must be integrated without compromising other critical systems. The robust forged steel yokes and precisely machined pins ensure that this compact design does not compromise the joint's load-carrying capacity within its specified low-torque range. This balance of size and strength is a testament to thoughtful engineering, providing maximum utility in a minimal package.

Furthermore, the operational stability of the H3 joint at varying angles is a key performance metric. While all universal joints introduce some degree of angular velocity fluctuation (known as non-constant velocity) when operating at an angle, the pin and block design is optimized for applications where angles are generally moderate and speeds are lower. For tarp systems, where the angularity might shift during deployment or retraction but typically remains within acceptable limits (often less than 25 degrees for continuous operation, and potentially higher for intermittent use), the smooth and continuous torque transfer characteristic ensures reliable and predictable system behavior. The design minimizes backlash and unwanted vibration, contributing to a more controlled and quieter operation. This is paramount for operator comfort and the longevity of the associated mechanical linkages, reducing wear on gears, motors, and other connected components.

The environmental resilience of the H3 Standard Pin and Block Joint, although implicitly conveyed through its material choice, warrants explicit mention. Components used in outdoor applications, such as those found on commercial trucks and trailers, are constantly exposed to moisture, road salt, dirt, dust, and temperature fluctuations. The solid forged carbon steel construction provides a fundamental level of resistance to these elements. While the "Plain" finish implies no specific corrosion-resistant coating is applied by default, the robust nature of the steel allows for various post-installation protective treatments if desired or required by particularly harsh environments. More importantly, the mechanical robustness of the plain bearing system means it is less susceptible to performance degradation from ingress of fine particulates compared to finely toleranced rolling element bearings. This practical durability ensures sustained functionality even when confronted with challenging real-world conditions.

From an engineering perspective, selecting the appropriate universal joint involves a careful assessment of several parameters: torque requirements (peak and continuous), operating speed, maximum angular misalignment, axial and radial loads, environmental conditions, service life expectations, and cost. The H3 Standard Pin and Block Joint, with its specific design and material choices, provides an optimal solution when these parameters align with "low torque applications" and moderate angularity. Its cost-effectiveness, derived from simpler construction and readily available carbon steel materials, makes it an attractive option for OEMs and maintenance professionals looking for a reliable component without over-engineering for capabilities beyond the application's needs. The balance struck between performance and economy is a hallmark of the H3 series.

The meticulous attention to detail in the manufacturing process of the Buyers Products H3 Standard Pin and Block Joint is evident in its consistent dimensional accuracy and material integrity. Quality control measures, from raw material inspection (carbon steel) to forging processes and final machining, ensure that each unit meets the stringent specifications. The precision of the 0.188-inch keyway and the 3/8-16 set screw threads means that shafts can be securely attached without excessive play or struggle, which is vital for preventing wear and maintaining the precise alignment necessary for smooth torque transfer. This commitment to manufacturing excellence results in a product that performs reliably from installation through its extensive service life, upholding the reputation of Buyers Products for dependable industrial hardware.

Ultimately, the Buyers Products H3 Standard Pin and Block Joint is more than just a component; it is a meticulously designed power transmission solution. Its pre-assembled state, robust forged steel and carbon steel construction, plain bearing design for low maintenance, and precise dimensional engineering for 3/4-inch round shafts make it exceptionally well-suited for its specified applications, particularly within the demanding yet practical realm of tarp cranks and dump tarp systems. It embodies a blend of engineering practicality, material science, and manufacturing quality that ensures consistent, smooth, and durable performance under conditions where angular misalignment requires a dependable and cost-effective universal joint. Its specification details offer engineers the comprehensive information required for confident integration and long-term operational success.
