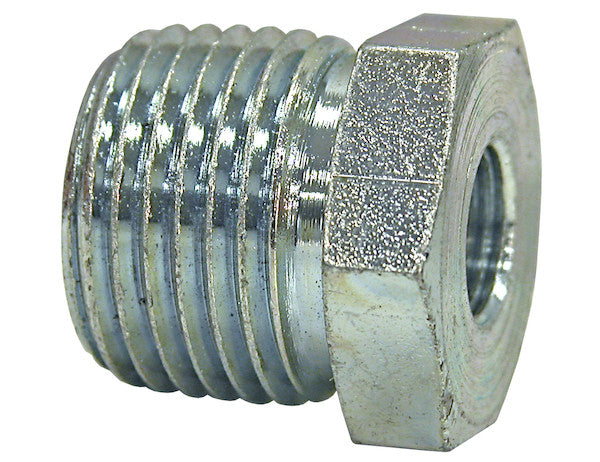

H3109X8X6 - Reducer Bushing 1/2 Inch Male Pipe Thread To 3/8 Inch Female Pipe Thread

The Reducer Bushing pipe fitting from Buyers Products is used to join two different size pipes. It features tough carbon steel construction, dryseal pipe threads for a tight, secure connection, and a corrosion-resistant zinc finish. Fitting conforms to SAE specifications. Buyers Products steel pipe fittings are rated at up to 3000 PSI depending on pipe size.

Specifications

The Reducer Bushing, precisely engineered with a 1/2 Inch Male Pipe Thread to 3/8 Inch Female Pipe Thread configuration, represents a critical component in the meticulous design and maintenance of diverse fluid transfer systems. This high-performance fitting is specifically designed to facilitate the secure and reliable interconnection of two fluid conduits or components of disparate nominal pipe sizes. Its strategic function is to allow for a reduction in flow path diameter from a larger 1/2-inch NPT male connection point to a smaller 3/8-inch NPT female connection point, thereby enabling system adaptability while maintaining optimal operational integrity and pressure dynamics. Fabricated from robust carbon steel, featuring advanced dryseal pipe threads, and protected by a superior corrosion-resistant zinc finish, this reducer bushing is engineered to meet and exceed stringent industrial demands, ensuring prolonged service life and uncompromising performance in high-pressure environments up to 3000 PSI.

Advanced Material Science: The Carbon Steel Foundation

The selection of carbon steel as the primary material for this reducer bushing is a deliberate engineering choice, underscoring its superior mechanical properties essential for demanding applications. Carbon steel, an alloy primarily composed of iron and carbon, renowned for its exceptional strength-to-weight ratio, hardness, and durability, provides the fundamental structural integrity required for high-pressure fluid systems. Its high tensile strength and yield strength ensure that the fitting can withstand significant internal and external forces without permanent deformation or catastrophic failure, making it ideal for environments where pressure fluctuations and mechanical stresses are inherent. Furthermore, carbon steel exhibits excellent machinability, allowing for the precise threading and dimensional accuracy critical for establishing leak-proof connections. This inherent robustness ensures that the fitting maintains its structural form and sealing capabilities over extended operational periods, even under cyclical loading conditions. While exhibiting a certain degree of inherent corrosion susceptibility in untreated states, this is comprehensively addressed by the subsequent advanced surface treatment, enhancing its utility across a broad spectrum of industrial applications where reliability is paramount.

Protective Layering: The Zinc Plated Finish

To augment the inherent strength of carbon steel with enhanced environmental resilience, this reducer bushing undergoes a meticulous zinc plating process. Zinc plating is an electroplating technique that deposits a thin, coherent layer of zinc onto the carbon steel substrate. This finish serves as a sacrificial coating, providing galvanic or cathodic protection to the underlying steel. In the presence of moisture or corrosive agents, the zinc preferentially oxidizes, thereby protecting the steel base metal from degradation. This significantly extends the fitting’s operational lifespan and maintains its aesthetic and functional integrity in harsh industrial environments. Beyond its primary role in corrosion mitigation, the zinc plating also imparts an attractive, uniform finish, contributing to a professional appearance. The exact thickness and type of zinc plating, often followed by chromate conversion coatings (e.g., clear, yellow, or black chromate passivation), are carefully controlled to optimize corrosion resistance and adhere to specific environmental and performance standards, ensuring long-term protection against rust and other forms of atmospheric and chemical corrosion.

Precision Threading: Understanding NPT Dryseal Technology

A cornerstone of this reducer bushing's exceptional performance is its incorporation of dryseal pipe threads, specifically designed to eliminate or significantly reduce the need for external sealants. The "dryseal" designation refers to National Pipe Taper Fuel (NPTF) threads, which are an advanced variant of the standard National Pipe Taper (NPT) thread form. Standard NPT threads create a mechanical seal through metal-to-metal interference as the tapered threads are tightened, typically requiring a thread sealant (such as PTFE tape or pipe dope) to fill any helical leak paths and ensure a leak-proof connection. NPTF threads, however, are engineered with precise crest and root truncations that, upon proper assembly and tightening, achieve a complete metal-to-metal interference fit not only on the flanks but also at the crests and roots of the threads. This intimate contact deforms the metal sufficiently to create a seal that is inherently leak-tight without the reliance on a separate sealant. This feature is particularly advantageous in critical applications where the introduction of sealants could contaminate the fluid, interfere with system performance, or simply be impractical for assembly. The 1/2-inch male NPTF thread allows for direct connection into a corresponding 1/2-inch NPTF female port, while the 3/8-inch female NPTF thread provides a secure receptacle for a 3/8-inch NPTF male connection. Adherence to these dryseal specifications ensures maximum sealing integrity, reducing installation time and the potential for costly leaks in high-pressure gas or liquid systems.

Dimensional Specifics: 1/2 Inch Male to 3/8 Inch Female Reduction

The designation "1/2 Inch Male Pipe Thread To 3/8 Inch Female Pipe Thread" refers to the Nominal Pipe Size (NPS) standard, which is a set of North American standards used to indicate the approximate diameter of pipes and fittings. It is crucial to understand that the nominal size does not correspond directly to the actual measured outside diameter (OD) or inside diameter (ID) of the pipe or fitting. Instead, it provides a convenient, standardized reference for compatibility within piping systems. In this context, the reducer bushing features a 1/2-inch male NPT connection on one side, meaning it has external tapered threads designed to screw into a 1/2-inch NPT female port. Conversely, the other side features a 3/8-inch female NPT connection, meaning it has internal tapered threads designed to receive a 3/8-inch NPT male connector. This specific configuration allows for a deliberate reduction in the flow path diameter, enabling system designers to interface larger main lines with smaller branch lines, or to connect components with varying port sizes. This adaptability is vital for optimizing flow rates, managing pressure drops, and ensuring the efficient integration of diverse hydraulic, pneumatic, or other fluid power components within a complex system architecture. The reduction is achieved seamlessly, ensuring a continuous and robust flow path without compromising the structural integrity or pressure rating of the system.

High-Pressure Capability: Rated Up To 3000 PSI

The impressive pressure rating of up to 3000 PSI (Pounds per Square Inch) for these steel pipe fittings, contingent on specific pipe size, signifies their robust design and suitability for demanding high-pressure applications. This rating is a critical performance parameter, indicating the maximum internal pressure that the fitting can safely withstand during continuous operation without experiencing material fatigue, deformation, or rupture. The ability to endure such high pressures is directly attributable to the inherent strength of the carbon steel material, the precise engineering of the fitting's geometry, and the integrity of the dryseal pipe threads. Factors influencing this rating include the material's ultimate tensile strength and yield strength, the wall thickness of the fitting, and the design factor of safety applied during its development. In fluid power systems, where high pressures are routinely utilized to generate substantial force or achieve rapid actuation, selecting components with appropriate pressure ratings is paramount for operational safety, system reliability, and preventing catastrophic failures. A 3000 PSI rating positions this reducer bushing as an ideal choice for heavy-duty hydraulic circuits, industrial pneumatic systems, and other applications demanding exceptional pressure containment capabilities, ensuring the longevity and dependable performance of the entire fluid system.

Adherence to SAE Specifications: A Benchmark of Quality

The conformity of this reducer bushing to SAE (Society of Automotive Engineers) specifications is a testament to its engineering quality, reliability, and interchangeability. SAE is a global association of engineers and technical experts in the aerospace, automotive, and commercial vehicle industries that develops standards for various components, materials, and practices. For fluid power components, SAE standards ensure that fittings meet specific criteria for dimensions, material composition, thread forms, pressure ratings, and performance characteristics. Adherence to these widely recognized industry standards guarantees that the reducer bushing will be compatible with other SAE-compliant components within a system, facilitating ease of design, assembly, and maintenance. This standardization minimizes the risk of incompatibility issues, ensuring a proper fit and consistent performance across different manufacturers' products that conform to the same specifications. For end-users, SAE compliance provides an assurance of quality, safety, and reliability, knowing that the product has been manufactured to rigorous engineering benchmarks and is suitable for its intended high-performance applications in sectors that demand uncompromising integrity, such as heavy equipment, industrial machinery, and transportation.

Diverse Industrial Applications and Versatility

The Reducer Bushing with its 1/2-inch Male NPT to 3/8-inch Female NPT configuration is an indispensable component across a vast array of industrial and commercial sectors due to its fundamental role in adapting piping and hose systems. Its primary function—to reduce the flow path diameter—is critical in optimizing fluid distribution, managing flow rates, and connecting disparate components. In hydraulic systems, these fittings are commonly employed in power units, manifold blocks, and cylinder connections to adapt pressure lines, control lines, or return lines to different port sizes, enabling complex hydraulic circuits to be built efficiently. For pneumatic systems, they facilitate the connection of air compressors to smaller diameter actuator lines or control valves, ensuring precise pressure and flow management. Within process control environments, such as chemical processing, manufacturing plants, and food & beverage facilities (where material compatibility and cleanliness are often paramount), these bushings are used to integrate sensors, gauges, and smaller instruments into main process lines. Heavy equipment and automotive applications leverage these fittings in braking systems, power steering units, and auxiliary hydraulic circuits to connect pumps, reservoirs, and actuators. Furthermore, in HVAC systems, the reducer bushing can be utilized in refrigerant lines or water circulation loops (for non-potable applications) to adjust pipe diameters as needed. Its robust construction and high-pressure rating also make it suitable for oil and gas exploration equipment, marine hydraulic steering, and various forms of industrial machinery where system adaptability and unwavering reliability are non-negotiable.

Installation Protocols and Best Practices for Optimal Performance

Proper installation is paramount to leveraging the full performance capabilities and longevity of this reducer bushing, particularly given its NPTF dryseal thread design and high-pressure rating. Before installation, it is crucial to inspect both the male and female threads for any damage, burrs, or foreign contaminants that could compromise the seal. Threads should be clean and free of debris. While NPTF threads are designed to create a seal without external sealants, some practitioners may opt for a very thin layer of high-quality thread sealant, such as PTFE tape or a liquid thread sealant, especially in extreme vibration or critical leak-sensitive applications, as an added assurance. However, excessive sealant can prevent proper thread engagement and even lead to system contamination. When assembling, hand-tighten the fitting until snug, then use a wrench to tighten further, typically 1 to 3 additional turns past hand-tight, depending on the thread size and application. Over-tightening can deform the threads, leading to stress cracking or galling, while under-tightening can result in leaks. It is essential to ensure proper alignment during installation to avoid cross-threading and to minimize induced stresses on the fitting and connecting components. After assembly, particularly in high-pressure systems, a thorough leak test (e.g., hydrostatic or pneumatic testing with appropriate safety precautions) should be conducted to confirm the integrity of all connections before the system is brought into full operation. Adherence to these protocols ensures a durable, leak-free connection, thereby maximizing system efficiency and safeguarding operational reliability.

Conclusion: An Essential Component for System Integrity

The Reducer Bushing with its 1/2 Inch Male Pipe Thread to 3/8 Inch Female Pipe Thread configuration stands as an exemplary product, meticulously engineered to fulfill a critical role in fluid power systems. Its foundation in high-grade carbon steel, fortified by a resilient zinc-plated finish, provides unparalleled strength and corrosion resistance, essential for enduring harsh industrial environments. The adoption of advanced NPTF dryseal threading technology underscores a commitment to leak-proof connections, minimizing the reliance on external sealants and streamlining assembly processes. With a robust pressure rating of up to 3000 PSI and strict adherence to SAE specifications, this fitting guarantees reliability, safety, and seamless integration within a vast array of high-performance applications, from complex hydraulic circuits to industrial process control. This reducer bushing is not merely a connector; it is a vital contributor to the overall integrity, efficiency, and longevity of any fluid transfer system, reflecting a blend of precision engineering and durable material science designed to deliver uncompromising performance.
