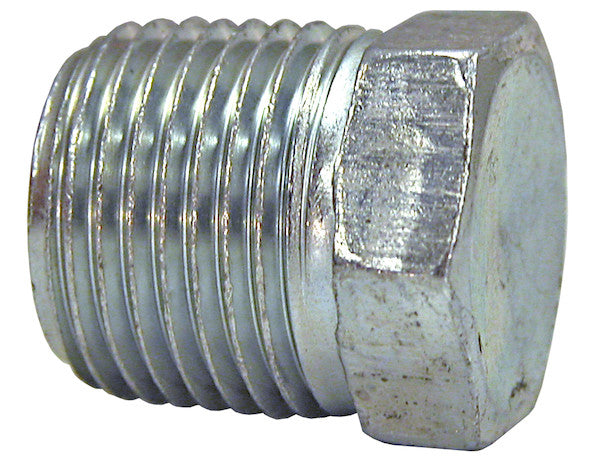

H3159X4 - Hex Head Plug 1/4 Inch Male Pipe Thread

The Hex Head Plug pipe fitting from Buyers Products features tough carbon steel construction, dryseal pipe threads for a tight, secure connection, and a corrosion-resistant zinc finish. Fitting conforms to SAE specifications. Buyers Products steel pipe fittings are rated at up to 3000 PSI depending on pipe size.

Specifications

Technical Deep Dive: Hex Head Plug 1/4 Inch Male Pipe Thread

In critical fluid power and process control applications, the integrity of every connection is paramount. The Hex Head Plug with a 1/4 Inch Male Pipe Thread, as offered by Buyers Products, represents a meticulously engineered component designed for superior performance in demanding environments. This comprehensive description delves into the technical specifications, material science, design principles, and application advantages of this essential fitting, providing a detailed understanding for engineers, procurement specialists, and maintenance professionals.

Material Science: The Robustness of Carbon Steel

At the core of this plug's durability is its construction from high-quality carbon steel. Carbon steel is an alloy primarily composed of iron and carbon, with carbon content typically ranging up to 2.1% by weight. This specific material choice is fundamental to the plug's ability to withstand significant mechanical stress and internal pressures up to 3000 PSI.

Composition and Properties:

• Strength and Hardness: Carbon steel exhibits excellent tensile strength and yield strength, making it highly resistant to deformation under high pressure. The inherent hardness contributes to its resistance against wear and abrasion, prolonging its service life in dynamic systems.
• Ductility and Weldability: While strong, carbon steel also retains sufficient ductility, allowing for robust manufacturing processes and ensuring the material can absorb energy without brittle fracture. Its good weldability, though not directly applicable to a plug's primary function, speaks to its versatility in broader system integration.
• Cost-Effectiveness: Compared to more exotic alloys like stainless steel or brass, carbon steel offers a superior strength-to-cost ratio, making it an economically viable solution for high-volume industrial applications without compromising on performance.
• Temperature Performance: Carbon steel maintains its structural integrity and mechanical properties over a broad range of operating temperatures, from cryogenic conditions to elevated heat, making it suitable for diverse industrial settings where temperature fluctuations are common.

The selection of carbon steel for this Hex Head Plug underscores a design philosophy centered on reliability, strength, and long-term performance under strenuous operational conditions.

Surface Treatment: Enhanced Protection with Zinc Plating

To further augment the inherent strength of carbon steel, the Hex Head Plug undergoes a zinc plating process, resulting in a corrosion-resistant finish. This critical surface treatment significantly extends the fitting's operational life, particularly in environments susceptible to moisture, humidity, and certain chemical exposures.

The Mechanism of Zinc Plating:

• Sacrificial Protection: Zinc plating provides cathodic or sacrificial protection. When the coating is scratched or damaged, the zinc, being more electrochemically active than steel, corrodes preferentially, thereby protecting the underlying steel base metal from rust and oxidation.
• Barrier Protection: Beyond sacrificial action, the zinc layer also acts as a physical barrier, isolating the carbon steel from corrosive elements in the surrounding environment.
• Process and Standards: The plating process typically involves electroplating, where a thin layer of zinc is deposited onto the steel surface using an electrolytic bath. The quality and thickness of the zinc plating adhere to industry standards, ensuring consistent corrosion resistance and aesthetic uniformity.
• Environmental Resilience: This zinc finish is particularly advantageous in applications within outdoor equipment, hydraulic systems, and industrial machinery where exposure to varying weather conditions or common industrial fluids necessitates robust corrosion defense. It mitigates the risk of material degradation, ensuring that the plug maintains its sealing capability and structural integrity over time.

The combination of carbon steel and zinc plating results in a fitting that offers a formidable defense against both mechanical stress and environmental corrosion, critical for maintaining system uptime and safety.

Thread Specification: Precision and Sealing with 1/4 Inch Male NPT Dryseal Threads

The most critical aspect of any pipe fitting is its thread geometry and sealing mechanism. This Hex Head Plug features a 1/4 Inch Male Pipe Thread, specifically designed as a dryseal type, which is foundational to achieving a leak-tight connection in high-pressure applications.

Understanding NPT and NPTF (Dryseal) Threads:

• National Pipe Taper (NPT): NPT threads are a U.S. standard for tapered threads used on pipes and fittings to create a fluid-tight seal. The taper of the threads (3/4 inch per foot or 1 in 16 on the diameter) allows for a mechanical interference fit between the male and female components. As the threads are tightened, the flanks compress against each other, forming a seal. While NPT threads achieve a good seal, they typically require a thread sealant (like PTFE tape or pipe dope) to fill any helical leak paths (spiral leaks) that might exist due to the inherent clearances.
• National Pipe Taper Fuel (NPTF) - Dryseal: The term "dryseal" specifically refers to NPTF threads, which are an enhanced version of NPT threads. NPTF threads are designed to provide a mechanical seal without the need for a sealant. This is achieved by controlling the crest and root truncation of both the internal and external threads to ensure a metal-to-metal interference fit at the thread crests and roots, in addition to the flank contact. This mechanical interference eliminates the spiral leak path, making the connection intrinsically leak-proof for many applications.
• Significance of Dryseal Threads: The use of dryseal threads in this Hex Head Plug is a significant technical advantage. It reduces assembly time, eliminates the potential for sealant contamination within the fluid system (which can clog filters or damage sensitive components), and ensures a more reliable and robust seal, particularly in critical hydraulic or pneumatic systems where leaks are unacceptable.
• 1/4 Inch Nominal Size: The "1/4 inch" designation refers to the nominal pipe size, which is a standard industry measurement and does not directly correspond to the actual thread diameter. For NPT threads, the actual major diameter of a 1/4-inch male thread is approximately 0.540 inches (13.72 mm). This common size is widely used across various industries for smaller lines carrying hydraulic fluid, air, or other gases, offering a balance between flow capacity and compact installation.
• Male Thread Configuration: As a "Male Pipe Thread," this plug features external threads, designed to mate with a female NPT port or fitting. This configuration is standard for sealing off unused ports or creating testing points in manifolds, valves, or other system components.

Adherence to SAE specifications for these threads ensures interchangeability with other standard NPTF components and guarantees consistent performance across different system designs.

Design Philosophy: The Functional Hex Head

The "Hex Head" design of this plug is not merely an aesthetic choice but a crucial functional element that enhances ease of installation, removal, and overall system maintainability.

Advantages of the Hex Head Design:

• Tool Compatibility: A hex head provides six flat surfaces, allowing for efficient engagement with standard wrenches (open-end, box-end, or adjustable wrenches). This widespread tool compatibility simplifies installation and removal processes, reducing specialized tool requirements.
• Torque Application: The multi-point contact offered by the hex head design allows for precise and secure torque application. This is critical for achieving the necessary thread engagement and compression in dryseal NPTF connections to ensure a leak-tight seal without over-tightening and potentially damaging the threads or fitting.
• Accessibility: While some plugs feature internal hex drives (Allen plugs) or square heads, the external hex head generally offers better accessibility in constrained spaces, as the wrench can grip from multiple angles.
• Durability of Engagement: The robust nature of the hex head makes it resistant to rounding off or stripping during installation or repeated removal, which is a common issue with less robust drive types, particularly under high torque or in corrosive conditions that might cause seized threads.

The Hex Head design is a testament to practical engineering, balancing strength, sealing integrity, and user-friendly maintenance within industrial contexts.

Performance Metrics: High-Pressure Rating up to 3000 PSI

The rating of "up to 3000 PSI" (pounds per square inch) for Buyers Products steel pipe fittings, including this Hex Head Plug, signifies its suitability for high-pressure hydraulic and pneumatic systems. This pressure rating is a critical safety and performance parameter that dictates the operational envelope of the fitting.

Factors Influencing Pressure Rating:

• Material Strength: As previously discussed, the high tensile and yield strength of carbon steel is fundamental to its ability to contain high internal pressures without deforming or failing.
• Thread Engagement and Design: The integrity of the NPTF dryseal threads, their precise manufacturing, and the complete thread engagement between the plug and the mating port are crucial. A well-designed tapered thread connection distributes stress effectively across the engaged threads.
• Wall Thickness and Geometry: The overall geometry and material thickness of the plug are designed to withstand the hoop stress and axial forces generated by internal pressure.
• Temperature Effects: While rated for 3000 PSI, this rating is typically specified at ambient temperature. At elevated temperatures, the material's strength can decrease, leading to a reduction in the safe working pressure. Engineers must consider the operating temperature range when selecting fittings for specific applications.
• Safety Factors: Industry standards often incorporate safety factors, meaning the burst pressure of the fitting is significantly higher than its rated working pressure. This provides a margin of safety against unforeseen pressure spikes or material fatigue over time.

A 3000 PSI rating places this plug firmly within the category of components suitable for heavy-duty industrial machinery, hydraulic power units, high-pressure lubrication systems, and other critical applications where system reliability under significant pressure is non-negotiable.

Standard Conformance: Adherence to SAE Specifications

The statement that the fitting "conforms to SAE specifications" is a crucial indicator of its quality, design, and manufacturing consistency. The Society of Automotive Engineers (SAE) develops and maintains technical standards for a wide range of engineering applications, particularly within the automotive, aerospace, and commercial vehicle industries.

Importance of SAE Standards:

• Interchangeability: Adherence to SAE standards ensures that this Hex Head Plug is dimensionally consistent and functionally compatible with other components designed to the same specifications. This is vital for system design, repair, and maintenance, simplifying part selection and reducing the risk of incompatibility issues.
• Quality Assurance: SAE standards often encompass material requirements, dimensional tolerances, thread specifications, and performance testing protocols. Compliance indicates that the product has been manufactured to rigorous quality control guidelines.
• Reliability and Safety: By following established engineering best practices, SAE standards contribute to the overall reliability and safety of the component in service. This is especially important in high-pressure fluid power systems where component failure can lead to significant operational disruptions, safety hazards, or environmental damage.
• Industry Recognition: SAE compliance provides confidence to engineers and purchasers, knowing that the product meets recognized industry benchmarks for design and performance.

While specific SAE standards (e.g., J514 for Hydraulic Tube Fittings, or general dimensional standards for NPTF threads) may apply, the general declaration of SAE conformance underscores the product's engineering integrity and suitability for professional applications.

Typical Applications and Use Cases

The Hex Head Plug with 1/4 Inch Male Pipe Thread is a versatile component indispensable across numerous industrial and commercial sectors. Its specific design attributes make it ideal for a variety of critical functions:

• Hydraulic Systems: Essential for sealing off unused ports in hydraulic manifolds, pumps, valves, and cylinders. This allows for system configuration flexibility, future expansion, or temporarily blocking lines during maintenance or troubleshooting.
• Pneumatic Systems: Used to close off air lines, pneumatic control panels, and air cylinders, ensuring system integrity and preventing air leaks. The dryseal thread is particularly beneficial here to prevent pressure loss.
• Instrumentation and Process Control: Ideal for sealing sensor ports, pressure gauge ports, or sampling points in process piping, providing a reliable closure for precise measurement and control systems.
• Automotive and Heavy Equipment: Widely employed in the fluid systems of trucks, construction equipment, agricultural machinery, and other heavy-duty vehicles to seal lubrication points, drain plugs, or inspection ports.
• Industrial Machinery: Integral in manufacturing equipment, machine tools, and automation systems for sealing fluid reservoirs, coolant lines, or hydraulic power units.
• Plumbing and HVAC (Non-Potable): Can be used in industrial plumbing or HVAC systems for sealing off branches, testing points, or drains in non-potable water or chemical lines.

In each of these applications, the plug's robust carbon steel construction, zinc plating, dryseal NPTF threads, and high-pressure rating ensure a secure, leak-free, and long-lasting closure.

Installation Best Practices

Proper installation is paramount to achieving the full performance and sealing integrity of the Hex Head Plug.

• Inspect Threads: Before installation, visually inspect both the male thread of the plug and the female port for any damage, burrs, or debris. Clean threads thoroughly.
• No Sealant Required (NPTF): For true NPTF (dryseal) threads, thread sealant is generally not required for a leak-tight mechanical seal. The crest-to-root interference is designed to achieve this. However, in some cases, a high-quality thread sealant or PTFE tape may be used sparingly, particularly for NPT connections that are *not* dryseal, or if additional lubrication or sealing insurance is desired, but it should not be relied upon to compensate for damaged threads or improper fit.
• Hand Tightening: Begin by threading the plug into the female port by hand. Ensure it engages smoothly without resistance, which indicates proper alignment and prevents cross-threading.
• Wrench Tightening: Once hand-tight, use an appropriate wrench on the hex head. Apply steady, firm torque. The plug should tighten progressively, and resistance will increase significantly as the tapered threads achieve their interference fit.
• Torque Specifications: While general guidance can be provided, always refer to the specific torque recommendations from the system manufacturer or fitting supplier, if available. Over-tightening can damage threads, crack the fitting or port, and compromise the seal. Under-tightening can lead to leaks.
• Avoid Over-Tightening: For 1/4 inch NPT fittings, typical turns past hand-tight range from 1 to 3 turns, depending on the material and application. The goal is a snug, firm connection where the metal-to-metal contact of the NPTF threads is fully engaged.

Adherence to these installation guidelines ensures optimal performance and longevity of the sealed connection.

Conclusion: An Engineered Solution for Reliability

The Hex Head Plug with 1/4 Inch Male Pipe Thread from Buyers Products is more than just a simple closing component; it is an engineered solution that embodies precision, durability, and reliability. From its foundation of tough carbon steel, fortified with a corrosion-resistant zinc plating, to its meticulously designed 1/4 inch Male NPTF dryseal threads, every aspect of this plug is tailored for superior performance in challenging industrial environments. Its hex head design facilitates efficient installation and maintenance, while its impressive 3000 PSI pressure rating ensures robust operation in high-pressure systems. Conforming to stringent SAE specifications, this fitting offers engineers and operators a trusted component for sealing, terminating, or temporarily closing ports in critical hydraulic, pneumatic, and process control applications. Choosing this Hex Head Plug means investing in a foundation of system integrity, minimizing the risk of leaks, and maximizing operational efficiency and safety.
