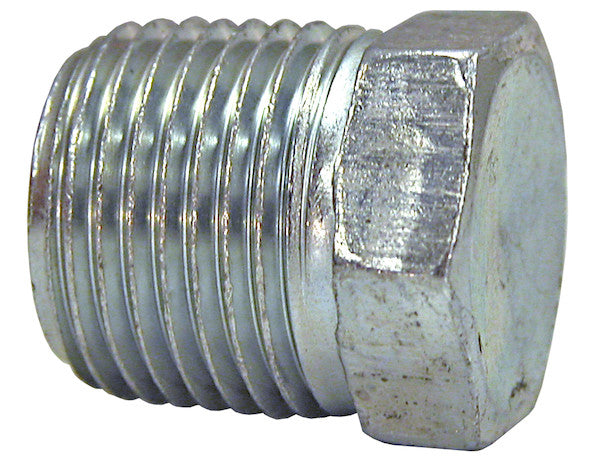

The Hex Head Plug pipe fitting from Buyers Products features tough carbon steel construction, dryseal pipe threads for a tight, secure connection, and a corrosion-resistant zinc finish. Fitting conforms to SAE specifications. Buyers Products steel pipe fittings are rated at up to 3000 PSI depending on pipe size.
Specifications
| Finish | Zinc Plated |
|---|---|
| Material | Carbon Steel |
| Shape | Hex Head |
| Side 1 | 3/8 NPT |
| Side 2 | 3/8 NPT |
| Style | M |
Advanced Technical Overview: Hex Head Plug 3/8 Inch Male Pipe Thread
The Buyers Products Hex Head Plug with a 3/8 Inch Male Pipe Thread represents a critical component in various industrial and commercial fluid transfer systems. Engineered for superior performance and reliability, this fitting is meticulously manufactured from robust carbon steel, featuring dryseal pipe threads and a corrosion-resistant zinc finish. Its design adheres strictly to SAE specifications, ensuring broad compatibility and consistent quality across diverse applications. This comprehensive description delves into the technical intricacies, material science, performance characteristics, and application versatility of this essential pipe plug, underscoring its pivotal role in maintaining system integrity and operational efficiency.
Material Science: The Superiority of Carbon Steel Construction
The foundation of this Hex Head Plug's exceptional durability lies in its carbon steel construction. Carbon steel is an alloy primarily composed of iron and carbon, with carbon content typically ranging up to 2.1% by weight. This specific composition imbues the material with a unique blend of mechanical properties highly suitable for demanding industrial applications. The inherent strength and hardness of carbon steel provide excellent resistance to mechanical stress, impact, and fatigue, making it an ideal choice for pressure-containing components like pipe fittings.
For pipe fittings, specific grades of carbon steel are often employed, such as those conforming to ASTM A105 (forged carbon steel for piping components), A234 (wrought carbon steel and alloy steel fittings for moderate and high temperature service), or similar high-strength low-alloy (HSLA) steels. These materials are selected for their optimal balance of tensile strength, yield strength, and ductility, which are crucial for maintaining structural integrity under operational pressures and temperatures. The choice of carbon steel over alternative materials like brass or certain plastics is driven by its superior strength-to-cost ratio, especially in high-pressure hydraulic or pneumatic systems where component failure is not an option. While stainless steel offers enhanced corrosion resistance, carbon steel, when properly protected by a finish such as zinc plating, delivers comparable performance in many environments at a more economical price point. This makes the Buyers Products Hex Head Plug a cost-effective yet robust solution for sealing applications.
Enhanced Protection: The Role of Corrosion-Resistant Zinc Finish
To augment the inherent strength of carbon steel and extend the service life of the Hex Head Plug, Buyers Products applies a high-quality zinc finish. Zinc plating, often performed through electroplating, is a well-established and highly effective method for providing cathodic protection against corrosion. In this process, a thin layer of zinc is deposited onto the carbon steel substrate. Zinc acts as a sacrificial anode, meaning it corrodes preferentially when exposed to corrosive environments, thereby protecting the underlying steel from rust and oxidation. This sacrificial protection is particularly vital in environments where moisture, chemicals, or atmospheric pollutants are present.
The corrosion resistance provided by zinc plating is multi-faceted. Beyond the galvanic protection, the zinc layer itself forms a stable barrier that physically isolates the steel from corrosive agents. This protective barrier significantly delays the onset of red rust, enhancing the fitting's longevity and maintaining its aesthetic and functional integrity over prolonged periods. Different types of zinc plating exist, often differentiated by post-treatment chromate conversion coatings (e.g., clear, yellow, black). While the specific chromate type isn't detailed, the general benefit of a zinc finish is consistent: robust protection against a wide spectrum of environmental challenges. This superior corrosion resistance ensures that the Hex Head Plug performs reliably in outdoor applications, industrial settings, and mobile equipment, reducing maintenance requirements and total cost of ownership.
Precision Threading: The Engineering of Dryseal Pipe Threads (NPTF)
A cornerstone of the Hex Head Plug's secure connection capability is its incorporation of dryseal pipe threads, specifically identified as 3/8 NPT in the specifications, implying NPTF (National Pipe Taper Fuel) given the "dryseal" designation. Standard NPT (National Pipe Taper) threads rely on a sealant to fill the helical gaps and create a leak-tight seal. In contrast, NPTF threads are designed to achieve a metal-to-metal interference fit, which forms a mechanical seal without the need for external thread sealants in many applications. This feature is particularly advantageous in critical fluid power systems where the introduction of sealant particles could contaminate the system or degrade performance.
The NPTF thread form differs from standard NPT in its controlled truncation of the crests and roots, and tighter dimensional tolerances. When an NPTF male thread is engaged with an NPTF female thread, the crests of one thread deform the roots of the mating thread, creating an intimate seal. This interference, combined with the inherent taper of the thread (1:16 taper, or 3/4 inch per foot), ensures that as the plug is tightened, the threads wedge together, forming a robust and leak-proof connection. The 3/8 inch nominal pipe size refers to the approximate inside diameter of the pipe with which the fitting is designed to be used, not the actual thread diameter. The "Male Pipe Thread" designation indicates that the threads are on the exterior surface of the plug, designed to screw into a corresponding female port. Adherence to standards such as ANSI B1.20.3 for NPTF threads guarantees interchangeability, precise fit, and reliable sealing performance, minimizing the risk of leaks and system downtime.
Design and Ergonomics: The Advantages of a Hex Head Configuration
The hex head design of this plug is not merely an aesthetic choice but a highly functional engineering decision. The hexagonal shape provides multiple flat surfaces that allow for easy engagement with standard wrenches, sockets, or hex keys. This design facilitates efficient and secure tightening, ensuring that the plug can be torqued to the required specification for an optimal dryseal connection. The robust nature of the hex head minimizes the risk of stripping or rounding off during installation or removal, a common issue with less optimally designed heads, particularly in high-torque applications or when dealing with corroded fittings.
Beyond ease of installation, the hex head also contributes to the overall structural integrity of the plug. The symmetrical distribution of material around the central axis of the thread helps to distribute stresses evenly when torque is applied, reducing localized stress concentrations that could lead to material fatigue or failure. For maintenance and future system modifications, the hex head provides a reliable purchase point, allowing the plug to be removed and reinstalled as needed without significant effort or specialized tools. This ergonomic consideration streamlines maintenance procedures, contributing to overall operational efficiency and reducing labor costs associated with system servicing.
Performance Metrics: Pressure Rating and SAE Conformity
A pivotal performance characteristic of the Buyers Products Hex Head Plug is its impressive pressure rating of up to 3000 PSI. This rating signifies the maximum internal pressure that the fitting can reliably withstand without permanent deformation or failure under specified conditions. The ability to endure such high pressures is a direct testament to the quality of the carbon steel material, the precision of the dryseal threads, and the robust manufacturing processes employed. It positions this plug for use in demanding hydraulic, pneumatic, and industrial process systems where high operating pressures are commonplace.
It is important to note that the exact pressure rating for any fitting can be influenced by various factors, including operating temperature, the specific medium being conveyed, and the type and size of the connecting pipe. However, a rating of up to 3000 PSI indicates a substantial safety margin for most typical applications. Furthermore, the fitting's conformity to SAE (Society of Automotive Engineers) specifications is a crucial indicator of its quality and reliability. SAE standards are globally recognized benchmarks for engineering practices in the automotive, aerospace, and commercial vehicle industries. For pipe fittings, SAE specifications often cover material requirements, dimensional tolerances, thread forms, pressure testing, and manufacturing quality control. Adherence to these standards guarantees that the Buyers Products plug meets stringent performance and safety criteria, ensuring interoperability with other SAE-compliant components and providing users with confidence in its long-term performance and safety.
Manufacturing Excellence and Quality Assurance
The production of the Buyers Products Hex Head Plug involves a series of sophisticated manufacturing processes designed to achieve precise dimensional accuracy and superior material integrity. The primary methods typically include hot forging or machining from solid bar stock. Forging involves shaping heated metal under localized compressive forces, which refines the grain structure of the carbon steel, enhancing its strength and toughness. Machining from bar stock, conversely, allows for extremely tight tolerances and intricate geometries, particularly for the critical dryseal threads.
Throughout the manufacturing cycle, rigorous quality control measures are implemented. These typically include:
1. Material Verification: Ensuring that the incoming carbon steel meets specified chemical composition and mechanical property requirements through mill test reports and potentially in-house testing.
2. Dimensional Inspection: Using precision gauging equipment to verify that all critical dimensions, especially the thread form and taper, conform to NPTF and SAE standards.
3. Thread Gauging: Specialized gauges (L1, L2, NPTF L3, NPTF J) are used to check the thread crests, roots, and taper to ensure a perfect dryseal fit.
4. Surface Finish Inspection: Visual and instrumental checks to confirm the quality and thickness of the zinc plating, ensuring effective corrosion resistance.
5. Pressure Testing: Although individual plugs are not typically pressure tested to failure, batch testing or design validation includes hydrostatic or pneumatic tests to confirm the design's ability to withstand rated pressures. This meticulous approach to manufacturing and quality assurance ensures that every Buyers Products Hex Head Plug delivers consistent, reliable performance in the field.
Versatile Applications Across Industries
The 3/8 Inch Male Pipe Thread Hex Head Plug is an indispensable component across a vast array of industrial and commercial applications. Its primary function is to seal off unused ports, terminate fluid lines, or prepare systems for future expansion without allowing leakage or contamination. Some key application areas include:
- Hydraulic Systems: Essential for blocking off auxiliary ports on pumps, valves, cylinders, and reservoirs in construction equipment, agricultural machinery, and industrial presses. The high-pressure rating makes it perfectly suited for these demanding environments.
- Pneumatic Systems: Used to cap unused air outlets, test points, or maintenance ports in compressed air distribution networks, automation equipment, and HVAC systems, ensuring no loss of pressure or ingress of contaminants.
- Oil & Gas Industry: Employed in various capacities on pipelines, drilling equipment, and processing units for temporary sealing, sampling ports, or during maintenance procedures where secure, leak-proof closure is paramount.
- Chemical Processing: While carbon steel's compatibility with aggressive chemicals is limited, zinc-plated plugs can be used in general utility lines or non-corrosive chemical transfer systems where isolation is required.
- Automotive and Heavy Equipment: Integral in engine blocks, transmissions, cooling systems, and braking systems to close off manufacturing ports, sensor openings, or fluid fill points, in line with SAE standards.
- Plumbing and HVAC: Utilized in industrial plumbing for capping lines, isolating sections during repairs, or as part of manifold assemblies to prevent fluid egress.
- Marine Applications: In non-saltwater specific environments, these plugs can seal various fluid lines, ensuring system integrity on vessels and offshore platforms, protected by the zinc coating from general moisture.
The versatility of this plug stems from its robust construction, reliable dryseal threads, and adherence to industry standards, making it a go-to solution for engineers and technicians seeking dependable sealing performance.
Installation Best Practices and Maintenance Considerations
Proper installation is paramount to achieving the full sealing potential of the Hex Head Plug with dryseal pipe threads. While NPTF threads are designed for a metal-to-metal seal, careful installation practices are still recommended:
- Thread Inspection: Before installation, visually inspect both the plug's threads and the mating female port for any damage, burrs, or foreign material. Clean threads thoroughly if necessary.
- Lubrication (Optional but Recommended): A minimal amount of high-quality thread lubricant (compatible with system fluids) can be applied to the male threads. This reduces friction during tightening, preventing galling and ensuring a more consistent and complete thread engagement, leading to a better seal. It's crucial to select a lubricant that does not interfere with the dryseal mechanism.
- Hand Tightening: Start by hand-tightening the plug into the female port until finger tight. This ensures proper thread alignment and prevents cross-threading.
- Wrench Tightening: Use an appropriately sized wrench on the hex head. Apply controlled torque, typically one to three full turns past hand-tight, or as specified by application guidelines. The goal is to achieve sufficient interference for the dryseal, but overtightening must be avoided as it can deform the threads, weaken the fitting, or even crack the mating component.
- Leak Check: After installation, especially in pressurized systems, perform a leak check to verify the integrity of the seal.
For maintenance, the zinc finish provides excellent corrosion protection, but periodic inspection in harsh environments is always good practice. If the zinc coating is visibly compromised, the plug should be assessed for continued suitability. The robust hex head design simplifies removal for system servicing or replacement, contributing to the long-term maintainability of fluid systems.
Conclusion: Uncompromising Quality and Performance by Buyers Products
The Buyers Products Hex Head Plug with 3/8 Inch Male Pipe Thread is a testament to precision engineering and robust manufacturing. From its tough carbon steel construction and corrosion-resistant zinc finish to its advanced dryseal pipe threads and adherence to SAE specifications, every aspect of this fitting is designed for maximum reliability and longevity. Its capability to withstand pressures up to 3000 PSI positions it as an essential component in high-performance hydraulic and pneumatic systems, as well as a myriad of general industrial applications. By choosing this meticulously crafted plug, engineers and system designers can ensure the integrity, safety, and operational efficiency of their fluid transfer systems, confident in the uncompromising quality and trusted performance synonymous with the Buyers Products brand. This hex head plug stands as a superior solution for sealing and terminating fluid lines, embodying durability, technical excellence, and exceptional value.
