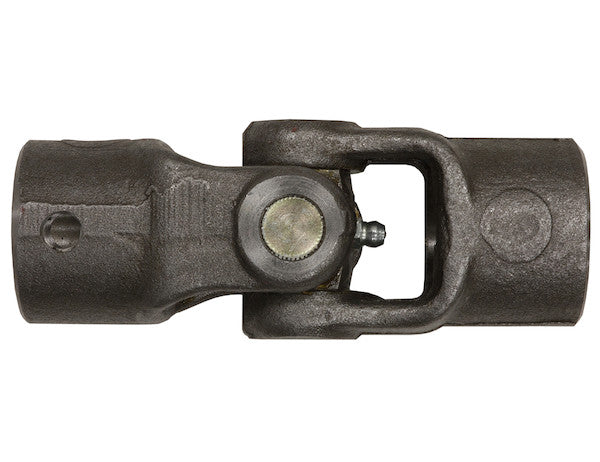

H3293X282 - H3 Standard Pin and Block Joint 1 Inch Round x 7/8 Inch Hex

Buyers Products H3 Standard Pin and Block Joint comes fully assembled and ready for your low torque application. Its size and rating make it ideal for tarp cranks and dump tarp systems. The plain bearing U-joint is made of forged steel to provide strength and durability. It is low maintenance and ensures smooth and continuous torque transfer.

Specifications

The H3 Standard Pin and Block Joint: Precision Engineered for Low-Torque Applications

The Buyers Products H3 Standard Pin and Block Joint, featuring a 1-inch round bore on one yolk and a 7/8-inch hex bore on the other, represents a robust and meticulously engineered solution for demanding low-torque power transmission systems. Designed for immediate deployment, this fully assembled universal joint is specifically tailored to deliver reliable performance in critical applications such as tarp cranks and sophisticated dump tarp systems. Its construction from forged steel, incorporating plain bearings, underscores a commitment to strength, enduring durability, and minimal maintenance requirements, all while ensuring consistent and efficient torque transfer even under angular misalignment.

Understanding the Pin and Block Joint Mechanism

A universal joint, or U-joint, is a mechanical coupling that transmits rotational power between two shafts whose axes are inclined at an angle to each other. The H3 series distinguishes itself by utilizing the pin and block design, a classic and highly effective configuration particularly well-suited for applications where angularity is present and rotational speeds are moderate to low, or where torque demands fall within its designed capacity. Unlike constant velocity (CV) joints, which maintain uniform rotational velocity regardless of angle, a universal joint exhibits slight variations in angular velocity as it rotates through its cycle. However, for many industrial and commercial applications, especially those involving tarp systems, this characteristic is well within acceptable operational parameters and often offers advantages in simplicity and cost-effectiveness.

The pin and block joint comprises two yokes, typically clevis-shaped, connected by a central cross-shaped block. Each arm of the cross block forms a bearing surface, which mates with corresponding pins extending from the yokes. In the H3 design, these are plain bearings, meaning they rely on direct contact between the journal (pin) and the bearing surface (bore in the block) with a lubricant film to reduce friction and wear. This contrasts with needle roller bearings, which employ small cylindrical rollers. The choice of plain bearings for the H3 joint is a deliberate engineering decision driven by several factors relevant to its intended use:

• Enhanced Durability: Plain bearings offer a larger contact area compared to roller bearings, distributing loads over a greater surface. This inherent robustness makes them exceptionally resistant to shock loads and impact, a common occurrence in heavy-duty applications like dump tarp systems where sudden stops or impacts can occur.
• Simplified Maintenance: While plain bearings do require lubrication, their design often allows for less frequent maintenance cycles compared to needle bearings, which can be sensitive to contamination and require more precise sealing. The H3's design prioritizes ease of long-term operation.
• Cost-Effectiveness: Manufacturing plain bearings is generally simpler and less expensive than producing precision needle roller bearings and their associated races and seals. This allows for a high-quality, durable product at a competitive price point.
• Tolerance to Contamination: In outdoor or challenging environments, the simple, robust nature of plain bearings makes them more tolerant to the ingress of dirt, dust, and moisture, which can quickly degrade the performance of more intricate rolling element bearings.

The operational principle of the pin and block joint ensures smooth and continuous torque transfer by accommodating the angular displacement between the input and output shafts. This mechanical flexibility is paramount in applications where perfect shaft alignment is either impractical or subject to dynamic changes during operation.

Advanced Material Science: Forged Steel Construction

The foundational strength and longevity of the H3 Standard Pin and Block Joint are rooted in its construction from forged steel. Forging is a manufacturing process that involves shaping metal using localized compressive forces. This process yields components with superior mechanical properties compared to cast or machined parts from bar stock:

• Optimized Grain Structure: Forging refines the metal's grain structure, aligning the grain flow with the part's contours. This imparts exceptional resistance to fatigue and impact, critical for components subjected to repetitive stresses and varying loads.
• Elimination of Internal Defects: The forging process compresses the metal, eliminating internal voids, porosity, and other defects that can weaken a part. This results in a dense, homogeneous material that performs consistently under stress.
• Superior Strength-to-Weight Ratio: Forged components typically possess higher strength and toughness than their cast counterparts, allowing for designs that are both robust and potentially lighter.
• Enhanced Durability and Longevity: The improved mechanical properties of forged steel translate directly into a longer service life, reducing the need for premature replacement and minimizing operational downtime.

The specific material employed, carbon steel, further complements the forged construction. Carbon steel is a ferrous alloy renowned for its excellent balance of strength, hardness, and ductility. Its versatility allows for various heat treatments to fine-tune its properties for specific applications. For the H3 joint, carbon steel provides the necessary tensile strength and wear resistance for the yokes and connecting block, ensuring that the joint can withstand the rotational forces and wear associated with continuous operation. The "plain" finish signifies that the steel is left in its natural state post-forging and machining, without additional coatings like paint or plating. This is often preferred in applications where the end-user may wish to apply a specific coating or where the inherent corrosion resistance of the material in its specific environment is deemed sufficient, or where cost-efficiency is prioritized.

Precision Engineering and Specific Applications

The H3 Standard Pin and Block Joint is specifically rated for low-torque applications, making it an ideal choice for machinery components that require reliable power transmission without extremely high rotational speeds or massive load capacities. Its dimensions and robust design make it perfectly suited for:

• Tarp Cranks: These systems, often found on utility trailers, agricultural equipment, and commercial trucks, require a dependable mechanism to extend and retract tarps. The U-joint accommodates the angular motion between the hand crank or motor and the tarp roller, allowing for smooth operation even if the shafts are not perfectly aligned or need to operate at an angle to clear obstructions. The H3's strength ensures it can handle the forces involved in tensioning large tarps.
• Dump Tarp Systems: Similar to tarp cranks but often subjected to harsher environmental conditions and sometimes higher operational frequencies, dump tarp systems on dump trucks, gravel trucks, and other heavy-duty vehicles rely on robust U-joints. The H3 joint provides the necessary durability to withstand repeated cycles of opening and closing tarps, protecting loads during transport. Its low-maintenance design is a significant advantage in demanding fleet operations, minimizing vehicle downtime for servicing.

The consistent and continuous torque transfer capability of the H3 joint is crucial in these applications. Any inconsistency could lead to uneven tarp deployment, premature wear on components, or even operational failure. The design ensures that power is delivered smoothly from the input shaft to the output shaft, contributing to the overall efficiency and longevity of the tarp system.

Detailed Examination of Technical Specifications

The detailed specifications of the H3 Standard Pin and Block Joint reveal a thoughtful design engineered for precise integration and long-term performance.

Series H3

The "H3" series designation indicates a specific family of universal joints from Buyers Products, typically categorizing them by size, load capacity, and intended application. This series is engineered for moderate-duty, low-torque requirements, ensuring that the components are appropriately matched to the stress profiles encountered in its target applications like tarp systems.

Yoke 1 - 1-inch Round Bore

• Bore Diameter/Width: 1 inch: This precise bore diameter ensures a snug fit with a 1-inch round shaft, which is a common standard size for many mechanical drive components. Proper fitment is critical for efficient torque transfer and to prevent slippage or excessive wear.
• Bore Type: Round: The round bore is the most common and versatile type of shaft connection, suitable for direct attachment to cylindrical shafts. It typically requires a keyway and set screw for positive engagement.
• Center Line to End of Hub: 2.563 inches: This measurement defines the overall length of the yoke from its rotational centerline to the end of its hub. This dimension is crucial for calculating the overall length of the U-joint assembly and for ensuring adequate clearance within the machinery where it will be installed.
• End of Hub to Centerline of Set Screw Hole: 0.472 inches: This specification indicates the distance from the end face of the hub to the central axis of the set screw hole. This placement is important for ensuring that the set screw engages the shaft securely and accurately, often positioned over a keyway for maximum anti-rotation.
• Finish: Plain: As discussed, a plain finish denotes the natural surface of the forged carbon steel after manufacturing. This finish is robust and economical, allowing for potential post-installation treatments or integrating seamlessly into existing uncoated systems.
• Hub Diameter: 1.69 inches: The hub diameter specifies the external dimension of the cylindrical section of the yoke that houses the shaft bore. A robust hub diameter like 1.69 inches provides sufficient material for structural integrity, housing the keyway, and accommodating the set screw without compromising the yoke's strength. It also provides bearing surface for mounting if applicable.
• Keyway at 1 inch: This indicates the axial position of the keyway along the shaft bore from a reference point, typically the end of the hub. This precise location ensures compatibility with standard keyed shafts.
• Keyway Size: 0.250 inches (1/4 inch): The keyway is a slot cut into the bore that mates with a corresponding key on the shaft. A 1/4-inch keyway provides a positive, non-slip mechanical connection for transmitting torque. Keys are essential for high-torque applications where friction alone from a set screw is insufficient.
• Material: Carbon Steel: Reaffirming the material choice, carbon steel for Yoke 1 ensures consistency in mechanical properties across the entire joint, guaranteeing uniform strength and wear resistance.
• Set Screw Location in Relation to Keyway: 4 (degrees/position): This specific measurement describes the angular orientation of the set screw hole relative to the keyway. Precision in this alignment is critical to ensure the set screw can effectively lock the key into place or exert clamping force directly onto the shaft, preventing any rotational play once assembled. The value of "4" here likely refers to an angular position, such as 90 degrees (often represented as 4 * (some unit), or a specific quadrant), or simply a numerical designator for a standard location. Assuming it means 4 positions from a reference, it's about positive and reliable locking.
• Set Screw Size: 3/8-16: The 3/8-16 UNC (Unified National Coarse) threaded set screw is a common and robust fastener. Its size indicates significant clamping force capacity, essential for securely fastening the yoke to the shaft, particularly in conjunction with the keyway.

Yoke 2 - 7/8-inch Hex Bore

• Bore Diameter/Width: 0.875 inches (7/8 inch): This specific hexagonal bore dimension is designed to mate perfectly with a 7/8-inch hex shaft. Hexagonal bores are often used where positive rotational engagement is required without the need for a separate key, or in applications involving telescoping shafts or frequent assembly/disassembly.
• Bore Type: Hex: A hex bore offers several advantages:
  • Positive Drive: The hexagonal shape inherently provides a positive, non-slip connection to a corresponding hex shaft, eliminating the need for a separate keyway for torque transmission.
  • Ease of Assembly: Hex shafts can often be inserted and removed more easily than keyed round shafts, especially in situations requiring axial movement.
  • Resistance to Rotational Slippage: The multiple contact surfaces of a hex bore provide excellent resistance to rotational slippage, even under varying loads.
  • Self-Aligning Properties: Within limits, a hex connection can offer some self-aligning capabilities during assembly.
• Center Line to End of Hub: 2.563 inches: Identical to Yoke 1, this symmetry ensures balanced load distribution and simplifies design considerations for the overall U-joint assembly, maintaining a consistent form factor.
• End of Hub to Centerline of Set Screw Hole: 0.472 inches: Again, mirroring Yoke 1, this consistent placement ensures proper engagement of the set screw. For hex bores, the set screw still serves to prevent axial movement of the shaft within the bore, providing an additional layer of security.
• Finish: Plain: Consistent with Yoke 1, the plain finish maintains manufacturing economy and material integrity.
• Hub Diameter: 1.69 inches: The identical hub diameter across both yokes contributes to the robust construction and symmetrical aesthetic of the H3 joint. This ensures uniform strength characteristics across the entire unit.
• Keyway at 1 inch: While a hex bore itself provides positive torque transfer, a keyway (and its corresponding set screw) can still be incorporated for specific design requirements, such as an additional layer of anti-rotation or for integration with a transitional component. In many hex applications, the hex bore itself negates the primary need for a keyway, but its inclusion here might serve as a universal feature or for specialized installation scenarios.
• Material: Carbon Steel: Material consistency across both yokes ensures uniform strength, ductility, and manufacturing characteristics for the entire universal joint.
• Set Screw Location in Relation to Keyway: 4 (degrees/position): Similar to Yoke 1, this detail is critical for proper set screw engagement, whether for locking a key or directly securing the hex shaft against axial movement.
• Set Screw Size: 3/8-16: The same robust set screw size as Yoke 1 ensures strong and reliable shaft retention, crucial for maintaining the integrity of the power transmission system.

Performance and Operational Advantages

The H3 Standard Pin and Block Joint delivers several key performance and operational advantages:

• Reliable Torque Transfer: Engineered to provide smooth and consistent torque transfer, minimizing power loss and ensuring predictable operation in low-torque systems.
• Accommodates Angular Misalignment: Effectively transmits power between shafts that are not perfectly coaxial, crucial for flexible machinery designs and setups where perfect alignment is not practical.
• Exceptional Durability: The combination of forged steel, carbon steel material, and plain bearings results in a U-joint that can withstand significant wear, impact, and repetitive stress cycles over an extended operational lifetime.
• Low Maintenance: The plain bearing design, while requiring periodic lubrication, is inherently robust and less prone to failure from shock loads or minor contaminants compared to more delicate bearing types, translating to reduced maintenance intervals and lower total cost of ownership.
• Ready for Installation: Arriving fully assembled, the H3 joint minimizes installation time and complexity, allowing for quicker integration into new or existing systems.
• Versatile Connection: The combination of a 1-inch round bore with a keyway and a 7/8-inch hex bore provides flexibility for connecting various types of shafts commonly found in industrial and mobile equipment.

Installation, Maintenance, and Longevity

The "fully assembled" nature of the H3 Pin and Block Joint significantly streamlines the installation process. Users can integrate the component directly into their drive lines without needing to assemble individual U-joint components. Proper installation involves:

1. Ensuring that the input and output shafts are clean and free of burrs.
2. Aligning the shafts correctly to mate with the round and hex bores.
3. Inserting the appropriate key into the round bore's keyway, if using a keyed shaft.
4. Securing both shafts using the provided 3/8-16 set screws, ensuring they are tightened to the manufacturer's recommended torque specifications to prevent slippage.
5. Verifying that the operating angle of the joint remains within its designed limits to prevent premature wear and ensure smooth operation. While robust, universal joints have inherent angular limitations, typically ranging from 10 to 25 degrees for optimal performance, depending on speed and load.

For maintenance, while the plain bearings contribute to a "low maintenance" profile, it is prudent to establish a routine inspection schedule. This should include checking for:

• Signs of wear on the yokes or block.
• Looseness in the shaft connections (set screws).
• Any unusual noise or vibration during operation.
• Adequate lubrication, if the plain bearings are designed for periodic greasing. Although often designed for minimal intervention in this application, consultation of specific lubrication guidelines is recommended.

The forged carbon steel construction provides inherent resistance to the rigors of industrial environments. However, for applications exposed to highly corrosive elements or abrasive dust, additional protective measures, such as protective coatings or boots, may extend the joint's service life beyond its standard expectations. By adhering to proper installation practices and a sensible maintenance regimen, the H3 Standard Pin and Block Joint is engineered to provide many years of dependable service, minimizing downtime and optimizing operational efficiency for its intended applications.

Conclusion

The H3 Standard Pin and Block Joint with its 1-inch round and 7/8-inch hex bores is a meticulously designed and robust universal joint, purpose-built for the challenging demands of low-torque applications such as tarp cranks and dump tarp systems. Its construction from high-quality forged carbon steel, integrated with durable plain bearings, ensures exceptional strength, longevity, and reliable torque transfer. The precise engineering of its dimensions, including specific bore types, keyway configurations, and set screw placements, guarantees seamless integration and secure fastening within industrial machinery. Offering an optimal balance of performance, durability, and low maintenance, the H3 series represents a superior investment for professionals seeking uncompromising reliability in their mechanical power transmission components. This product stands as a testament to engineering excellence, providing a dependable solution where angularity and consistent torque delivery are paramount.
