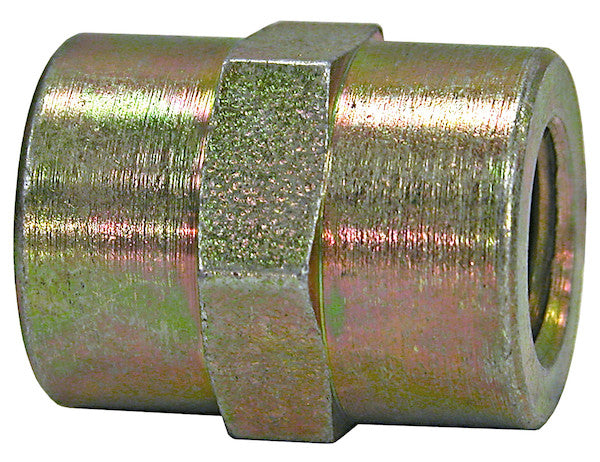

The Coupling pipe fitting from Buyers Products features tough carbon steel construction, dryseal pipe threads for a tight, secure connection, and a corrosion-resistant zinc finish. Fitting conforms to SAE specifications. Buyers Products steel pipe fittings are rated at up to 3000 PSI depending on pipe size.
Specifications
| Finish | Zinc Plated |
|---|---|
| Material | Carbon Steel |
| Shape | Straight |
| Side 1 | 1/4 NPT |
| Side 2 | 1/4 NPT |
| Style | FF |
The Buyers Products 1/4 Inch Female Pipe Thread to 1/4 Inch Female Pipe Thread Coupling represents a critical component in various industrial, hydraulic, and pneumatic systems, engineered for uncompromising performance and durability. This straight coupling is meticulously designed to facilitate secure and leak-free connections between two pipes or components featuring male 1/4-inch NPT threads. Its robust construction, adherence to stringent industry standards, and superior protective finishes make it an ideal choice for demanding applications where reliability is paramount.
Understanding the "Coupling" Functionality
A coupling, in the context of piping and fluid power systems, is a short pipe fitting or connector used to join two pipes or tubes together. Its primary function is to extend a pipe run, repair a broken pipe, or connect different sections of a system. Unlike elbows, tees, or crosses that change the direction of flow or add branches, a straight coupling like this one is specifically designed to maintain the linear path of the fluid. The Buyers Products coupling provides a seamless, robust, and permanent connection, ensuring the integrity of the conduit system. Its straightforward "straight" shape indicates that it connects two pipes of the same nominal size in a direct line, without any change in flow direction or reduction in pipe diameter.
The Significance of 1/4 Inch Female Pipe Thread (NPT)
The designation "1/4 Inch Female Pipe Thread" is central to understanding the utility and compatibility of this fitting. NPT, or National Pipe Taper, is a U.S. standard for tapered threads used on pipes and fittings to create a watertight and airtight seal when pressure-tight joints are made. The "taper" in NPT threads is crucial; as the male and female tapered threads are tightened, they wedge together, increasing metal-to-metal contact and forming a mechanical seal. This inherent sealing mechanism is further enhanced by the use of thread sealants (such as PTFE tape or pipe dope), which fill any remaining helical leak paths.
The "1/4 inch" refers to the nominal pipe size, which is an industry-standard dimension, not the actual measured diameter of the threads or the pipe's internal diameter. For 1/4 NPT, the actual outside diameter of the male thread and the inside diameter of the female thread will be larger than 1/4 inch. This nominal sizing system simplifies part selection and ensures interoperability across various manufacturers compliant with NPT standards, primarily ASME B1.20.1.
The "Female Pipe Thread" characteristic means that the coupling features internal threads on both ends (FF or Female-Female style). This design allows it to receive two externally threaded (male) pipe ends or fittings, creating a secure connection within the system. This specific configuration is highly versatile for connecting two male-threaded components, making it a fundamental element in countless fluid transfer and pneumatic applications.
Advanced Sealing with Dryseal Pipe Threads (NPTF)
The current description highlights "dryseal pipe threads for a tight, secure connection." This specification refers to NPTF (National Pipe Taper Fuel), a variant of NPT threads. NPTF threads are engineered to provide a mechanical seal without the need for thread sealant, though sealant is often still recommended for optimal performance, especially in critical or high-pressure applications. The key difference lies in the controlled truncation of the thread crests and roots and often a tighter tolerance compared to standard NPT threads. This design ensures that the crest of the male thread crushes into the root of the female thread, and vice-versa, creating a metal-to-metal interference fit that effectively eliminates spiral leak paths. This superior sealing capability makes NPTF fittings particularly valuable in fuel, hydraulic, and pneumatic systems where leakage must be absolutely minimized and system integrity is paramount, even under vibration or thermal cycling.
Engineered for Strength: Carbon Steel Construction
The choice of material, "tough carbon steel construction," is a cornerstone of this coupling's performance capabilities. Carbon steel is an alloy primarily composed of iron and carbon, known for its exceptional strength, hardness, and durability. These mechanical properties are critical for pipe fittings that must withstand high internal pressures, external forces, and mechanical stress without deforming, cracking, or failing.
Specifically, carbon steel fittings like this one often undergo a forging process during manufacturing. Forging involves shaping the steel while it's hot, which refines the grain structure of the metal, enhancing its tensile strength, impact resistance, and overall fatigue life. This process significantly contributes to the "toughness" described, making the coupling resilient in harsh operating environments. Common grades of carbon steel used for fittings include ASTM A105 for high-temperature service and ASTM A350 LF2 for low-temperature applications, though specific grade information may vary by manufacturer. The inherent strength of carbon steel makes this coupling suitable for demanding industrial applications where brass might not offer sufficient strength and stainless steel might be over-specified or cost-prohibitive.
Enhanced Durability: Corrosion-Resistant Zinc Finish
To augment the inherent strength of carbon steel and extend the service life of the fitting, it features a "corrosion-resistant zinc finish." This finishing process, commonly known as zinc plating or electro-galvanization, involves applying a thin layer of zinc to the steel surface. Zinc acts as a sacrificial coating; when exposed to corrosive elements like moisture and oxygen, the zinc layer corrodes preferentially to the underlying steel, thereby protecting the base material from rust and oxidation.
Beyond sacrificial protection, the zinc finish provides a barrier against environmental aggressors, preventing corrosive substances from reaching the carbon steel. This ensures that the fitting maintains its structural integrity and aesthetic appearance over extended periods, even in moderately corrosive environments. The zinc plating contributes significantly to the fitting's longevity, reducing the need for premature replacement and minimizing maintenance costs, particularly in applications where the fitting might be exposed to outdoor elements or industrial chemicals. The quality of the zinc finish adheres to industry standards, ensuring uniform coverage and optimal protective properties.
Performance Under Pressure: Rated Up To 3000 PSI
A critical performance specification for any pipe fitting is its pressure rating. The Buyers Products steel pipe fittings are "rated at up to 3000 PSI depending on pipe size." For a 1/4-inch carbon steel coupling, a 3000 PSI (pounds per square inch) rating indicates its capability to safely operate under very high fluid pressures. This high-pressure rating underscores the robust design and material selection, making this coupling suitable for a wide array of demanding applications.
The ability to withstand 3000 PSI allows this coupling to be confidently deployed in hydraulic systems, where pressures can frequently reach thousands of PSI, as well as in high-pressure pneumatic systems, lubrication lines, and various industrial process control applications. The pressure rating is determined by factors such as the material's yield strength, the wall thickness of the fitting, the geometry of the threads, and the overall manufacturing quality. Conformance to specifications like SAE further assures that the fitting's design and construction are validated for such high-pressure service. It is crucial for engineers and technicians to ensure that the maximum operating pressure of their system does not exceed the rated pressure of any component, including fittings, to prevent catastrophic failure and ensure safety.
Adherence to SAE Specifications
The statement "Fitting conforms to SAE specifications" provides an additional layer of assurance regarding the quality, design, and performance of this coupling. The Society of Automotive Engineers (SAE) is a globally recognized professional association that develops technical standards for the engineering of mobility-related products and systems. While SAE is often associated with the automotive industry, its standards extend across various sectors, including aerospace, commercial vehicles, and off-highway equipment, where fluid power systems are integral.
For pipe fittings, SAE standards often define dimensions, materials, testing methods, and performance criteria. Conformance to SAE specifications implies that the Buyers Products coupling has been manufactured and tested to meet rigorous industry benchmarks, ensuring dimensional accuracy, material integrity, and reliable performance. This adherence guarantees interchangeability with other SAE-compliant components and provides confidence in the fitting's ability to integrate seamlessly into professional-grade systems, performing as expected under specified conditions. It signifies a commitment to engineering excellence and reliability, vital for critical applications.
Optimal Operational Environment and Temperature Range
While not explicitly detailed in the initial description, understanding the typical operational environment for carbon steel, zinc-plated fittings is essential. Carbon steel generally performs well across a broad temperature range, typically from approximately -20°F (-29°C) to 400°F (204°C), depending on the specific grade and pressure considerations. The zinc plating's integrity can also be influenced by temperature, usually maintaining its protective qualities well within these typical industrial operating temperatures. Extreme temperatures, either very low or very high, might require specialized materials or coatings, but for the vast majority of industrial and hydraulic applications, this zinc-plated carbon steel coupling offers excellent thermal stability and performance.
Versatile Applications
The combination of a 1/4-inch NPTF connection, carbon steel construction, zinc plating, and a 3000 PSI rating makes this coupling incredibly versatile across numerous industries and applications:
- Hydraulic Systems: Indispensable for connecting hydraulic lines, cylinders, valves, and pumps in heavy machinery, construction equipment, agricultural vehicles, and manufacturing presses. The high-pressure rating is particularly crucial here.
- Pneumatic Systems: Used in compressed air lines, air tools, automation equipment, and industrial robotics where secure, leak-free connections are vital for efficiency and safety.
- Lubrication Systems: Connects lines for delivering oils and greases in machinery, ensuring continuous operation and preventing premature wear.
- Industrial Plumbing: General utility connections for water, oil, and gas lines in factory settings, chemical plants, and processing facilities.
- Process Control: Integral in connecting sensing lines, instrumentation, and control valves within complex process systems.
- Automotive and Commercial Vehicle Fleets: For various fluid transfer applications within chassis, engine compartments, and accessory systems.
Its robust construction ensures reliability in dynamic environments, under vibration, and where exposure to moderate corrosive elements is expected.
Installation Best Practices
Proper installation is paramount to achieving the full performance potential of this coupling. For NPTF dryseal threads, while designed to seal without sealant, the application of a high-quality thread sealant (such as PTFE tape or appropriate pipe dope) is highly recommended. This practice not only provides an additional layer of leak protection but also acts as an anti-galling agent, making future disassembly easier. It is crucial to:
- Ensure both male threads being connected are clean and free of debris.
- Apply sealant correctly, typically two to three wraps of PTFE tape in the direction of the thread helix on the male threads, or a thin, even layer of pipe dope.
- Tighten the fitting with appropriate torque. Overtightening can strip threads, deform the fitting, or crack adjacent components, while undertightening can lead to leaks. Reference industry guidelines or manufacturer recommendations for torque specifications.
- Inspect the connection for leaks after the system is pressurized.
The Buyers Products Advantage
Buyers Products is a respected name in the manufacturing of components for the mobile and industrial equipment markets. Their commitment to quality is evident in the design and construction of this coupling. By specifying tough carbon steel, dryseal NPTF threads, and a corrosion-resistant zinc finish, Buyers Products ensures that this coupling not only meets but often exceeds the demanding requirements of its intended applications. The adherence to SAE specifications further reinforces the brand's dedication to producing reliable, high-performance products that integrate seamlessly into complex systems, offering long-term value and operational efficiency.
Conclusion
The Buyers Products 1/4 Inch Female Pipe Thread to 1/4 Inch Female Pipe Thread Coupling stands as an exemplary component for critical fluid power and industrial piping applications. Its robust carbon steel construction, featuring advanced NPTF dryseal threads and a protective zinc finish, ensures superior strength, leak-free performance, and extended operational life. With a high-pressure rating of up to 3000 PSI and adherence to stringent SAE standards, this coupling is engineered to provide a secure and reliable connection in demanding environments. Whether deployed in hydraulic, pneumatic, or general industrial systems, this straight coupling delivers the uncompromising quality and performance essential for maintaining system integrity and operational efficiency.
