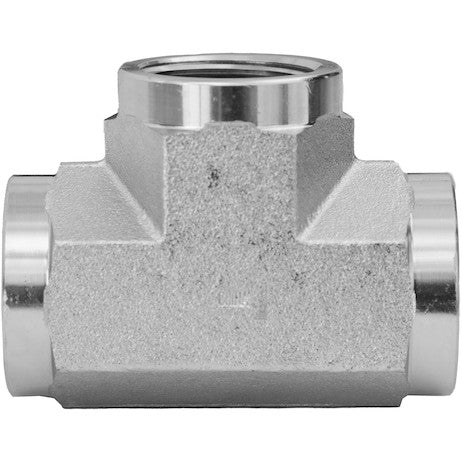

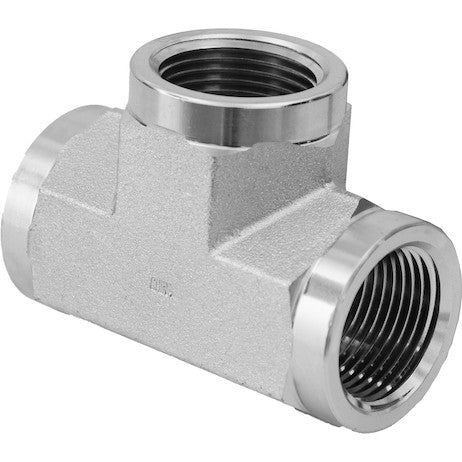

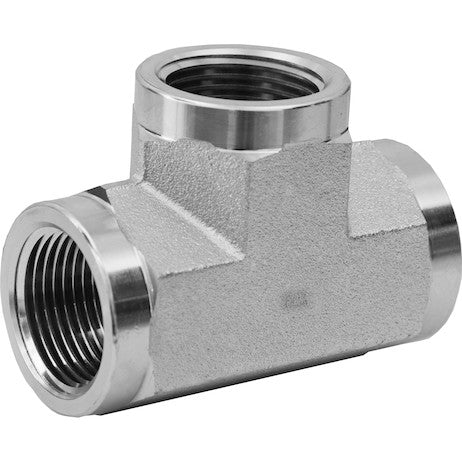

H3709X16 - Tee 1 Inch Female Pipe Thread

The Tee pipe fitting from Buyers Products is used to combine or divide flow through a pipe path. It features tough carbon steel construction, dryseal pipe threads for a tight, secure connection, and a corrosion-resistant zinc finish. Fitting conforms to SAE specifications. Buyers Products steel pipe fittings are rated at up to 3000 PSI depending on pipe size.

Specifications

Advanced Technical Overview: The 1 Inch Female NPT Carbon Steel Tee Fitting

The Buyers Products 1 Inch Female Pipe Thread Tee fitting represents a critical component in fluid power and industrial process control systems. Engineered for precision and durability, this Coupler Tee facilitates the efficient division or combination of fluid flow within a piping network. Its robust construction from high-grade carbon steel, combined with a corrosion-resistant zinc finish and meticulously engineered Dryseal NPT threads, ensures exceptional performance and longevity even in demanding operational environments. This comprehensive technical description will delve into the specific characteristics, engineering principles, and operational advantages that position this fitting as an indispensable asset for a wide range of applications.

Material Excellence: High-Strength Carbon Steel Construction

At the core of this Tee fitting's superior performance is its material composition: tough carbon steel. Carbon steel is an alloy primarily composed of iron and carbon, with carbon content typically ranging from 0.05% to 2.1% by weight. This specific material class is selected for pipe fittings due to its exceptional balance of mechanical properties, economic viability, and versatility. The inherent strength and hardness of carbon steel provide unparalleled resistance to high internal pressures and external mechanical stresses, a crucial attribute for fluid power systems operating at pressures up to 3000 PSI.

Mechanical Properties and Advantages:

• Tensile Strength: Carbon steel exhibits high tensile strength, meaning it can withstand significant pulling forces before yielding or fracturing. This property is vital for fittings subjected to system pressure fluctuations and dynamic loads.
• Yield Strength: The material’s high yield strength ensures that the fitting will not permanently deform under typical operating pressures, maintaining its structural integrity and sealing capabilities.
• Impact Resistance: Carbon steel offers good impact resistance, providing durability against incidental bumps or vibrations commonly encountered in industrial and mobile hydraulic applications.
• Fatigue Resistance: Engineered to endure repetitive stress cycles, the carbon steel construction contributes to a longer service life, minimizing the risk of fatigue failure in dynamic systems.
• Weldability: While this fitting is designed for threaded connections, the general excellent weldability of carbon steel simplifies potential modifications or integration into more complex fabricated assemblies.

The selection of carbon steel over other materials like brass or stainless steel is often driven by a cost-benefit analysis where high strength, rigidity, and affordability are paramount. For applications where extreme corrosion resistance is not the primary concern, or where a protective coating is applied, carbon steel offers an optimal solution for structural integrity and pressure handling.

Advanced Sealing Technology: Dryseal National Pipe Taper Fuel (NPTF) Threads

A critical feature highlighted in the product's description is the use of "Dryseal pipe threads for a tight, secure connection." This refers specifically to National Pipe Taper Fuel (NPTF) threads, a specialized variant of the more common National Pipe Taper (NPT) thread standard. The primary distinction of NPTF threads lies in their unique design, which enables a metal-to-metal seal without the need for additional sealants, tapes, or compounds in many applications.

NPT vs. NPTF: A Technical Distinction:

• NPT (National Pipe Taper): Standard NPT threads are tapered (1:16 taper ratio), meaning the diameter decreases along the length of the thread. The seal in an NPT connection is typically achieved by deforming the crests and roots of the threads and by using a thread sealant (like PTFE tape or pipe dope) to fill the spiral leak path that can otherwise exist.
• NPTF (National Pipe Taper Fuel/Dryseal): NPTF threads feature a precisely controlled truncation of the crests and roots, ensuring that when the male and female threads are engaged, the crest of the male thread crushes into the root of the female thread (and vice-versa). This interference fit creates a mechanical seal at the thread flanks, effectively eliminating the helical leak path inherent in standard NPT connections.

Advantages of Dryseal NPTF Threads:

• Enhanced Reliability: The metal-to-metal sealing mechanism of NPTF threads offers superior reliability, particularly in high-pressure hydraulic and pneumatic systems where sealant washout or degradation could lead to catastrophic failure.
• Reduced Assembly Time and Cost: By potentially eliminating the need for external sealants, installation time is reduced, and the cost associated with purchasing and applying sealants is negated.
• Cleanliness: The absence of sealants ensures that no foreign material can enter the fluid system, which is crucial for sensitive hydraulic components that can be damaged by contamination.
• Resistance to Vibration: The robust interference fit of NPTF threads provides excellent resistance to loosening caused by vibration, maintaining a secure connection in dynamic environments.
• Reusability: While not indefinitely reusable, NPTF connections can often be disconnected and reconnected multiple times without significant loss of sealing integrity, provided the threads are not damaged during disassembly or over-tightening.
• Compliance with SAE Standards: The use of Dryseal threads aligns with critical industry standards, including SAE J476, which specifically addresses Dryseal Pipe Threads. This adherence ensures interchangeability and performance consistency across various components and systems.

The 1 Inch Female Pipe Thread designation indicates that all three ports of this Tee fitting conform to the 1-inch nominal pipe size and feature female NPTF threading, ready to accept corresponding male NPTF pipes or fittings.

Corrosion Resistance: The Zinc Plated Finish

The Tee fitting features a "corrosion-resistant zinc finish." Zinc plating is a widely adopted electrochemical process used to deposit a thin layer of zinc onto the surface of a metal substrate, in this case, carbon steel. This surface treatment significantly enhances the longevity and operational reliability of the fitting by providing superior protection against rust and corrosion.

Mechanism of Zinc Plating:

• Sacrificial Protection: Zinc acts as a sacrificial anode. When the zinc-plated steel is exposed to corrosive elements (e.g., moisture, oxygen, salts), the zinc corrodes preferentially to the underlying steel. This cathodic protection mechanism safeguards the carbon steel, even if small areas of the coating are scratched or damaged.
• Barrier Protection: The zinc layer also provides a physical barrier, preventing direct contact between the carbon steel and corrosive agents.
• Passivation: Often, zinc plating is followed by a chromate conversion coating (passivation) that further enhances corrosion resistance and can impart different aesthetic finishes (e.g., clear, yellow, black). While not explicitly stated, it is common practice for industrial fittings to incorporate such a post-treatment.

Benefits of Zinc Finish for Pipe Fittings:

• Extended Service Life: By mitigating corrosion, the zinc finish dramatically extends the operational lifespan of the fitting, reducing maintenance requirements and replacement costs.
• Preservation of Aesthetics: The uniform zinc coating provides a clean, professional appearance, which is desirable for exposed components in various applications.
• Environmental Resilience: The coating enables the fitting to withstand exposure to a range of environmental conditions, including humidity, light chemical splashes, and outdoor exposure, without compromising structural integrity.
• Cost-Effectiveness: Zinc plating is a relatively economical process compared to other high-performance coatings or the use of inherently corrosion-resistant materials like stainless steel, offering an excellent balance of performance and cost.

Performance Rating: Up to 3000 PSI

The statement "Buyers Products steel pipe fittings are rated at up to 3000 PSI depending on pipe size" is a critical performance indicator. A pressure rating of 3000 PSI (pounds per square inch) signifies that this fitting is engineered for high-pressure fluid systems, commonly found in demanding hydraulic applications. However, the caveat "depending on pipe size" is crucial and necessitates a deeper technical understanding.

Factors Influencing Actual Pressure Rating:

• Nominal Pipe Size (NPS): For a given material and design, smaller pipe sizes generally have higher pressure ratings than larger ones due to the reduced surface area subjected to internal pressure, and thus lower total force on the pipe wall and fitting. While this fitting is 1 inch NPT, specific pressure charts from the manufacturer should always be consulted for precise application limits.
• Operating Temperature: The mechanical properties of carbon steel, including its yield strength, can degrade at elevated temperatures. Therefore, the stated 3000 PSI rating typically applies at ambient temperatures (e.g., 70°F or 21°C). Operation at higher temperatures will require derating the maximum allowable pressure.
• Fluid Medium: The nature of the fluid (e.g., oil, water, air, specific chemicals) can influence the pressure rating, especially if the fluid has corrosive properties or significantly different viscosities that affect flow dynamics and stress on the fitting.
• Dynamic vs. Static Pressure: The rating usually refers to the maximum static working pressure. Systems with significant pressure surges or pulsations may require a derated working pressure or fittings specifically designed for dynamic loads to prevent fatigue failure.
• System Design and Installation: The overall integrity of the piping system, including proper installation, alignment, and absence of external stresses (e.g., bending loads), directly impacts the fitting's ability to sustain its rated pressure.

The high-pressure capability underscores the fitting's suitability for heavy-duty applications where reliability under extreme conditions is paramount, such as in construction equipment, agricultural machinery, industrial presses, and power generation systems. Adherence to these pressure limits is essential for operational safety and system longevity.

Compliance and Quality Assurance: Conformance to SAE Specifications

The explicit mention that the "Fitting conforms to SAE specifications" is a testament to its quality, design integrity, and interchangeability. The Society of Automotive Engineers (SAE) develops and maintains a vast array of standards for engineering components, particularly within the automotive, aerospace, and commercial vehicle industries. For fluid power components like this Tee fitting, adherence to SAE standards guarantees specific performance benchmarks and dimensional tolerances.

Significance of SAE Conformance:

• Interchangeability: SAE standards ensure that fittings from different manufacturers, but adhering to the same standard, will be dimensionally interchangeable and functionally compatible. This simplifies design, procurement, and maintenance processes.
• Quality Assurance: Conformance implies that the fitting has been manufactured according to stringent quality control processes and material specifications outlined by SAE, leading to a consistently reliable product.
• Performance Reliability: SAE standards often include requirements for material properties, thread forms (e.g., SAE J476 for Dryseal Pipe Threads), pressure ratings, and testing procedures. Adhering to these ensures that the fitting will perform as expected under specified conditions.
• Industry Acceptance: SAE standards are widely recognized and respected globally. Products conforming to these standards are readily accepted in professional engineering circles, simplifying system design and certification.

For a product like a hydraulic pipe fitting, SAE standards play a crucial role in ensuring safety, preventing leaks, and maximizing the efficiency of fluid power systems. It provides an assurance that the product is not merely functional but meets rigorous industry-defined benchmarks.

Application Versatility and Design Considerations

The "Tee 1 Inch Female Pipe Thread" with its Coupler Tee shape and FF (Female-Female) style provides immense versatility across various industrial and mobile applications. Its primary function to "combine or divide flow" is fundamental to designing complex fluid circuits.

Typical Application Areas:

• Hydraulic Systems: Indispensable in hydraulic power units, mobile hydraulics (e.g., excavators, forklifts, agricultural tractors), and industrial machinery for branching lines, connecting multiple actuators to a single pump, or creating bypass circuits.
• Pneumatic Systems: Used in compressed air networks for distributing air to various tools, cylinders, or control valves.
• Industrial Process Piping: Facilitates flow management in manufacturing plants, chemical processing, and water treatment facilities where fluids need to be routed to different points from a main line.
• Lubrication Systems: Essential for distributing lubricants from a central reservoir to multiple lubrication points on machinery.
• Fuel Lines: The Dryseal NPTF threads are particularly well-suited for fuel systems, minimizing leak risks.

Design Implications:

• Flow Efficiency: The design of the Tee aims to minimize turbulence and pressure drop at the junction, ensuring efficient fluid transfer. The internal geometry is critical for smooth flow transition when dividing or combining streams.
• Space Optimization: Tee fittings offer a compact solution for creating branches in a piping system, especially valuable in applications where space is limited.
• System Flexibility: By allowing for multiple connections, the Tee provides flexibility in system design, enabling engineers to create modular and adaptable fluid networks.

Installation Best Practices and Maintenance

Proper installation is paramount to leveraging the full performance capabilities and ensuring the safety of the 1 Inch Female NPT Carbon Steel Tee fitting.

Key Installation Considerations:

• Thread Preparation: Ensure that both the male pipe threads and the female NPTF threads of the fitting are clean and free of debris, burrs, or damage. While NPTF threads are designed for a dryseal, a very light application of appropriate thread sealant may be used on the male thread (sparingly, only on the thread turns, not the end) for added assurance, particularly in critical applications or where specific industry practices dictate. However, excessive sealant can contaminate the system.
• Tool Selection: Use appropriate pipe wrenches or fitting wrenches that provide adequate leverage without damaging the fitting's exterior or deforming its shape. Avoid overtightening, as this can deform the threads and compromise the dryseal feature.
• Tightening Procedure: Engage the threads hand-tight, then use a wrench to tighten an additional 1 to 2 turns, or as specified by the manufacturer's torque recommendations. The aim is to achieve the metal-to-metal interference fit without overstressing the material.
• Alignment: Ensure proper alignment of mating components to prevent cross-threading and undue stress on the connection.
• System Flushing: After installation, the system should be thoroughly flushed to remove any residual debris or contaminants before full operational use.

Maintenance and Inspection:

• Regular Inspection: Periodically inspect all connections for signs of leakage, corrosion, or mechanical damage. The zinc finish provides significant protection, but its integrity should be monitored, especially in harsh environments.
• Pressure Testing: After initial installation or any significant system modification, perform a pressure test according to industry standards or manufacturer recommendations to verify leak-free operation.
• Component Replacement: If a fitting shows signs of thread damage, significant corrosion compromising structural integrity, or chronic leakage, it should be replaced immediately with an identical or equivalent-specifications component.

Conclusion: A Foundation of Reliability for Fluid Systems

The Buyers Products 1 Inch Female Pipe Thread Tee fitting, crafted from robust carbon steel, featuring advanced Dryseal NPT threads, and protected by a durable zinc finish, stands as an exemplar of engineering precision in fluid power components. Its adherence to SAE specifications, combined with a formidable pressure rating of up to 3000 PSI, positions it as a reliable and high-performance choice for demanding industrial, mobile, and process applications. From combining hydraulic lines to dividing pneumatic circuits, this fitting provides the structural integrity, sealing efficiency, and longevity essential for critical fluid transfer tasks. Investing in such meticulously engineered components ensures system safety, operational efficiency, and a reduced total cost of ownership over the lifespan of the equipment. For engineers, designers, and maintenance professionals seeking an uncompromising solution for fluid system branching, this Tee fitting offers a foundation of technical excellence and proven reliability.
