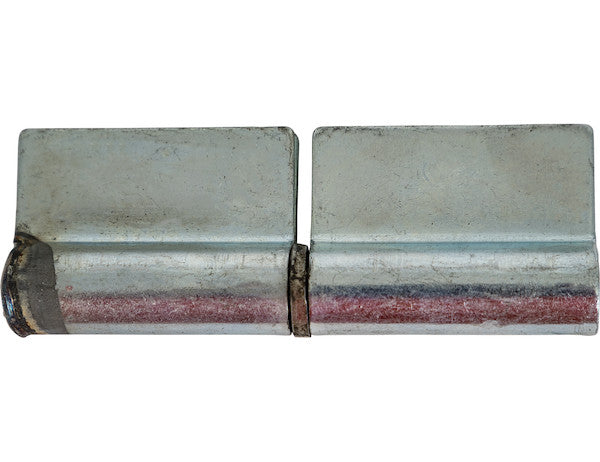

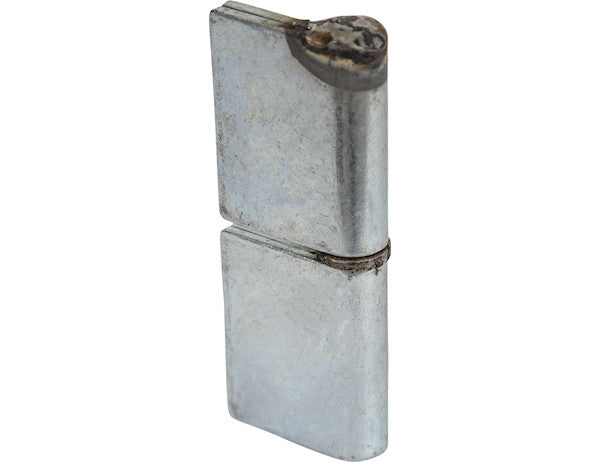

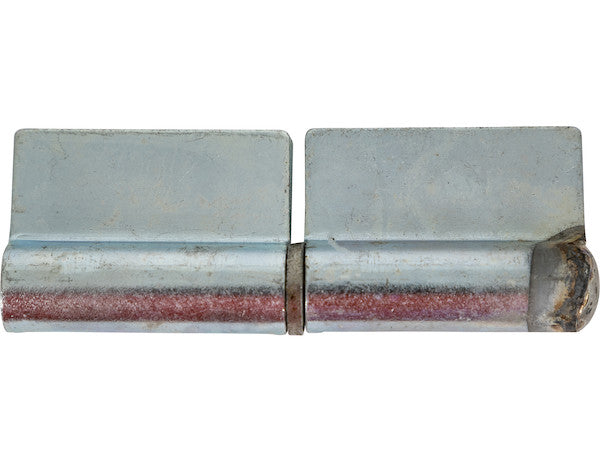

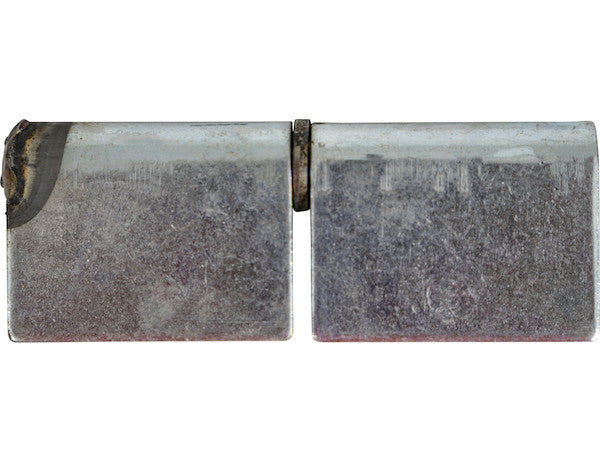

Buyers Products Zinc Plated Steel Butt Hinge has a flush-mounted wing style and a single end weld for a left-or-right-handed mount. The steel hinge is zinc-plated for corrosion resistance and has a stainless steel pin. Hinges are available with either a 3/8 in. or 1/2 in. pin.
Specifications
| Finish | Plain |
|---|---|
| Hinge Length (in.) | 4.00 |
| Material | Steel |
| Open Width (in.) | 1.25 |
| Pin Diameter (in.) | 3/8 |
| Pin Retention | Single End Weld |
Advanced Technical Overview: Steel Weld-On Butt Hinge with 3/8 Stainless Pin
The Buyers Products Steel Weld-On Butt Hinge, featuring a 3/8-inch stainless steel pin, a 1.25 x 4-inch dimension, and a durable zinc-plated finish, represents a robust and versatile solution for demanding industrial and commercial applications. Engineered for superior strength, exceptional corrosion resistance, and simplified installation, this hinge is designed to meet the rigorous requirements of heavy-duty enclosures, gates, equipment doors, and various vehicular body applications. Its technical specifications and material composition underscore a commitment to longevity, operational reliability, and structural integrity under challenging conditions.
Material Science: High-Grade Steel Construction
At the core of this hinge's formidable strength is its high-grade steel construction. Steel, an alloy primarily composed of iron and carbon, is selected for its superior mechanical properties, including high tensile strength, excellent yield strength, and inherent toughness. The specific grade of steel utilized in the manufacturing of these hinges is chosen to provide optimal weldability and load-bearing capabilities. This ensures that the hinge can withstand significant static and dynamic loads without permanent deformation or structural failure, making it ideal for applications where durability is paramount. The intrinsic properties of steel also contribute to the hinge's resistance to impact and abrasion, further extending its service life in harsh operational environments.
Corrosion Protection: Advanced Zinc Plating Process
To mitigate the detrimental effects of environmental exposure, the steel components of this butt hinge undergo a meticulous zinc plating process. Zinc plating, an electrochemical deposition method, applies a thin, protective layer of zinc onto the steel substrate. This finish is critical for enhancing the hinge's corrosion resistance, particularly in outdoor, humid, or otherwise corrosive atmospheres. Zinc acts as a sacrificial coating, preferentially corroding before the underlying steel is attacked. This galvanic protection mechanism significantly prolongs the life of the hinge by preventing rust and maintaining the structural integrity of the steel. The zinc layer also provides a uniform, aesthetically pleasing appearance and can withstand a considerable amount of wear and tear, contributing to the hinge's overall resilience.
Precision Engineering: The Stainless Steel Hinge Pin
A critical component dictating the hinge's operational smoothness and long-term durability is the 3/8-inch diameter stainless steel pin. Stainless steel is chosen for this application due to its superior inherent corrosion resistance, high strength-to-weight ratio, and excellent wear properties. Unlike conventional steel, stainless steel forms a passive chromium oxide layer on its surface, which self-repairs in the presence of oxygen, providing exceptional protection against rust and various chemical agents. The precision machining of the 3/8-inch diameter pin ensures a consistent fit within the hinge knuckles, minimizing play and friction during articulation. This precision contributes to a smoother operating cycle, reduces wear on critical bearing surfaces, and extends the operational lifespan of the hinge assembly. The robustness of the stainless steel pin also ensures it can withstand the shear forces generated by repetitive opening and closing movements, even under heavy loads.

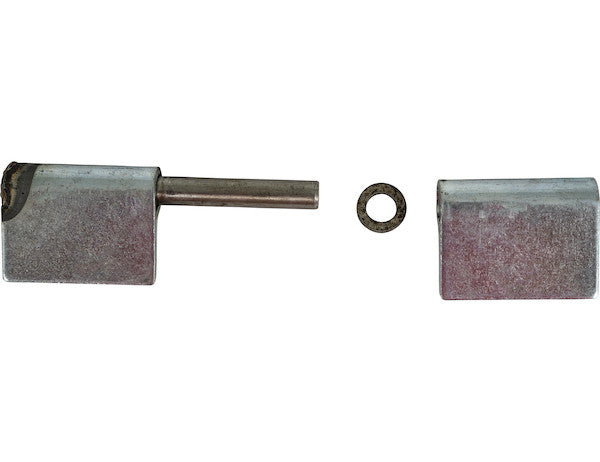

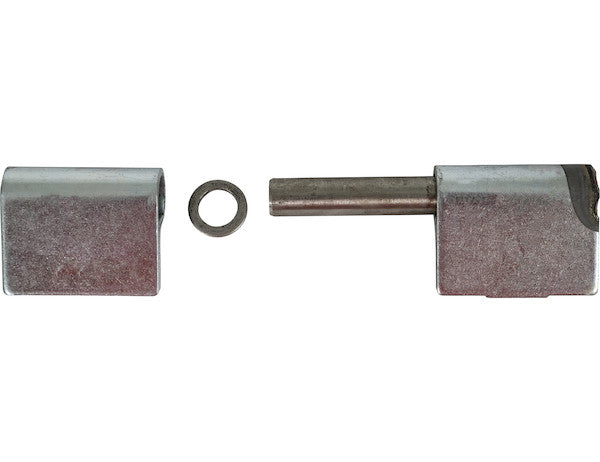

Pin Retention Mechanism: Single End Weld for Security and Flexibility
The hinge features a single end weld for pin retention, a design choice that offers a blend of security and installation flexibility. This method permanently secures one end of the stainless steel pin to a hinge leaf, preventing it from migrating or being easily removed, which enhances security and prevents tampering in certain applications. The single-end weld also contributes to the structural integrity of the hinge by ensuring consistent alignment of the pin within the barrel. While the title specifies a Left-Hand (LH) configuration for this particular product SKU, the underlying design principle of the single end weld allows for inherent adaptability during field installation. Depending on the desired swing direction and mounting orientation, the installer can effectively configure the hinge for either a left-hand or right-hand swing by simply rotating the hinge assembly before welding, a feature that provides valuable versatility for diverse project requirements. However, for streamlined ordering and typical application scenarios, the LH designation helps define its common usage.
Dimensional Accuracy: 1.25 x 4 Inch Specifications
The specified dimensions of 1.25 inches (open width) by 4 inches (hinge length) are meticulously engineered to balance strength, form factor, and application versatility. The 4-inch length provides ample surface area for secure welding and distributes load stresses effectively across the mounting surface. This length is sufficient for supporting a wide range of door sizes and weights without undue strain on the hinge or mounting substrate. The 1.25-inch open width, measured when the hinge is fully extended, defines the offset and clearance provided by the hinge assembly. This dimension is critical for designers and fabricators to ensure proper clearances for doors, lids, or panels, preventing interference with frames or adjacent structures during operation. These precise dimensions ensure compatibility with standard fabrication practices and allow for predictable performance in various structural configurations.
Weld-On Design: Superior Load Transfer and Integration
The weld-on design is a cornerstone feature of this butt hinge, offering distinct advantages over traditional bolt-on or screw-in alternatives, especially in heavy-duty and high-security applications. Welding provides a permanent, monolithic bond between the hinge leaves and the mating structural components. This eliminates mechanical fasteners, which can loosen over time due to vibration, fatigue, or tampering. The fusion achieved through welding ensures a superior transfer of load forces, distributing stress across a larger area and significantly enhancing the overall structural rigidity and integrity of the hinged assembly. Furthermore, weld-on hinges create a clean, flush appearance, eliminating protruding fastener heads that could snag or compromise aesthetics. This design is particularly advantageous for vehicle bodies, industrial equipment, and robust gate systems where maximum strength, durability, and tamper resistance are critical requirements.
Application Versatility and Performance Parameters
The robust construction and superior materials of the Buyers Products Steel Weld-On Butt Hinge make it suitable for an expansive array of demanding applications. Its inherent strength and corrosion resistance allow it to excel in environments where other hinges would rapidly degrade. Typical applications include, but are not limited to:
- Commercial and Industrial Vehicle Bodies: Doors, ramps, and compartments on trucks, trailers, recreational vehicles (RVs), and utility vans. The weld-on nature provides crucial resistance to dynamic loads and vibrations experienced during transit.
- Heavy-Duty Gates: Entrance gates for industrial facilities, agricultural properties, and secure perimeters where robust security and consistent operation are essential.
- Industrial Machinery and Equipment: Access panels, safety guards, and enclosure doors on manufacturing equipment, agricultural machinery, and construction vehicles.
- Metal Fabrications: Custom metal enclosures, storage cabinets, and toolboxes requiring strong, permanent hinging solutions.
- Security Applications: Vault doors, safe doors, and other high-security access points where tamper resistance and brute-force protection are paramount.
- Marine Applications: Though primarily zinc-plated steel, its stainless steel pin offers enhanced resistance in damp or moderately corrosive marine environments for non-critical components.
Key performance parameters for this hinge include its exceptional load-bearing capacity, resistance to torsional stresses, and fatigue life. While specific load ratings depend on the welding quality and substrate material, the robust steel and stainless steel components ensure high static and dynamic load resilience. The flush-mounted wing style further contributes to a compact and efficient design, minimizing protrusion and potential catch points.
Installation Considerations and Best Practices
Proper installation is paramount to achieving the optimal performance and longevity of the weld-on butt hinge. Installers should adhere to industry best practices for welding and fabrication:
Surface Preparation
Before welding, the mating surfaces of the hinge leaves and the structural components must be thoroughly cleaned. This involves removing all rust, paint, grease, oil, and other contaminants that could compromise weld quality. Grinding or sanding to expose bare, clean metal is often necessary to ensure a strong, defect-free weld.
Welding Process and Technique
This hinge is designed for fusion welding, commonly performed using processes such as Shielded Metal Arc Welding (SMAW), Gas Metal Arc Welding (GMAW/MIG), or Gas Tungsten Arc Welding (GTAW/TIG). The choice of welding process and filler material should be appropriate for the base steel material of the hinge and the mating structure. Skilled welders should ensure adequate penetration, proper bead formation, and avoid excessive heat input to minimize distortion of the hinge or surrounding structure. Tack welds are recommended for initial positioning and alignment, followed by continuous, robust welds that fully encapsulate the hinge leaves to the substrate.
Alignment and Spacing
Accurate alignment of the hinge components is crucial for smooth operation and even load distribution. Proper spacing between hinges (when using multiple hinges on a single door) and correct offset from the edge of the door or panel must be maintained. The hinge should be positioned to allow for the desired swing radius and prevent binding. Shims or temporary spacers may be used during the welding process to ensure correct clearances and parallelism between the hinge leaves.
Post-Weld Inspection and Finishing
After welding, visual inspection of the welds is critical to identify any defects such as cracks, porosity, or undercut. Non-destructive testing methods may be employed for critical applications. Any spatter should be removed, and the welded areas can be cleaned and painted or coated to match the surrounding structure, further enhancing corrosion resistance and aesthetic integration.
Quality Assurance and Engineering Excellence
Buyers Products is renowned for its commitment to engineering excellence and stringent quality control. Each Steel Weld-On Butt Hinge is manufactured to precise tolerances, ensuring consistent dimensions and reliable performance. The selection of materials, from the robust steel body to the corrosion-resistant zinc plating and stainless steel pin, is guided by a deep understanding of material science and application demands. This dedication to quality ensures that the hinge not only meets but often exceeds industry standards for strength, durability, and operational longevity.
In summary, the Steel Weld-On Butt Hinge with a 3/8 Stainless Pin, measuring 1.25 x 4 inches and featuring a zinc-plated finish, represents a state-of-the-art solution for heavy-duty hinging requirements. Its meticulous design, high-quality material composition, and robust construction are testament to its capability to deliver superior performance, unmatched durability, and exceptional value across a wide spectrum of demanding industrial and commercial applications.
