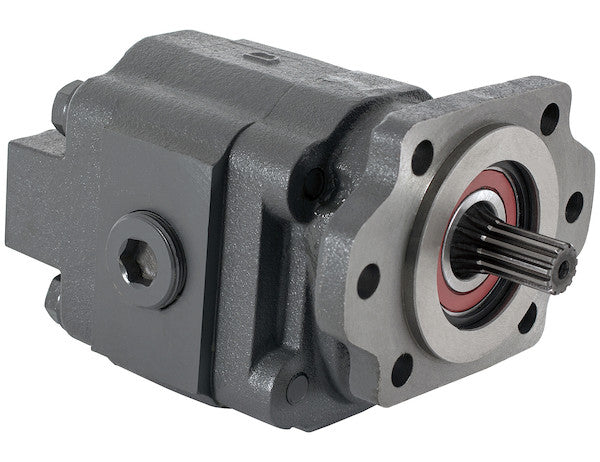

H5036221 - Hydraulic Gear Pump With 7/8-13 Spline Shaft And 2-1/4 Inch Diameter Gear

The H50 Series Hydraulic Gear Pump with Spline Shaft from Buyers Products is a sturdy, heavy duty bi-rotational pump that can be 2- or 4-bolt mounted in an SAE B mount. Choose from a range of models to meet your needs. All models feature a 7/8 in. by 13 spline shaft.

Specifications

Advanced Technical Overview: H50 Series Hydraulic Gear Pump with 7/8-13 Spline Shaft and 2-1/4 Inch Diameter Gear

The H50 Series Hydraulic Gear Pump from Buyers Products represents a pinnacle of hydraulic engineering, meticulously designed to meet the rigorous demands of industrial and mobile hydraulic applications. This robust positive displacement pump, characterized by its substantial 7/8-13 spline shaft and precisely machined 2-1/4 inch diameter gears, is engineered for superior performance, unwavering reliability, and extended service life in challenging operational environments. Its bi-directional capability and versatile SAE B 2/4 bolt mounting options further underscore its adaptability and integration ease within diverse hydraulic systems.

Fundamental Principles and Operational Mechanics of External Gear Pumps

At its core, the H50 Series operates on the well-established principles of an external gear pump. This type of positive displacement pump consists of two meshing gears – a drive gear, typically connected to an external power source via the spline shaft, and an idler gear. As these gears rotate within a close-tolerance housing, fluid is drawn into the inlet port, trapped between the gear teeth and the pump casing, and then carried around the periphery to the outlet port. The continuous meshing of the gears prevents fluid from flowing back from the outlet to the inlet, thereby forcing the trapped fluid into the system. This design offers inherent advantages, including simplicity of construction, exceptional robustness, and high volumetric efficiency, particularly under elevated pressure conditions. External gear pumps are renowned for their ability to handle moderate fluid contamination better than other pump types and deliver consistent, pulsion-minimized flow, making them ideal for a wide array of demanding hydraulic power transfer applications.

Robust Construction and Material Science: The Imperative of Cast Iron

The selection of cast iron as the primary material for the H50 Series pump body and critical internal components is a deliberate engineering choice driven by its superior mechanical properties. Cast iron provides exceptional strength and rigidity, which are paramount for maintaining precise internal clearances and resisting the significant internal pressures (up to 2500 PSI) generated during operation. Its inherent dampening characteristics effectively mitigate noise and vibration, contributing to smoother operation and reduced wear on associated components. Furthermore, cast iron exhibits excellent wear resistance, crucial for the longevity of the gear housing and bearing surfaces, especially when exposed to the continuous abrasive action of hydraulic fluid, even with optimal filtration. The thermal stability of cast iron ensures consistent performance across a broad range of operating temperatures, preventing distortion that could compromise efficiency or lead to premature failure. This material choice is fundamental to the H50 Series' heavy-duty designation, promising durability and sustained performance under severe operational stress.

Precision Gearing: The 2-1/4 Inch Diameter Gear and its Impact

Central to the H50 Series' performance is its precisely dimensioned gearing, featuring a 2-1/4 inch (2.250 inch) diameter gear with a corresponding 2.250-inch width. These dimensions are critical determinants of the pump's displacement, which is specified at 5 cubic inches per revolution. The volumetric displacement is directly proportional to the size of the gear teeth, their width, and the number of teeth. Large gears like these enable significant fluid transfer per revolution, contributing to the impressive flow rates observed across various RPMs, from 12.6 GPM at 600 RPM to 44.10 GPM at 2100 RPM. The manufacturing of these gears involves advanced precision machining and heat treatment processes to achieve extremely tight tolerances, superior surface finishes, and optimal tooth profiles, typically involute, which are essential for minimizing backlash, reducing internal leakage, and maximizing volumetric efficiency. The precise meshing of these high-quality gears ensures smooth, low-noise operation, minimizes wear, and directly translates to the pump's ability to maintain high efficiency and reliability over its operational lifespan, even under continuous high-load conditions.

Optimized Power Transmission: The 7/8-13 Spline Shaft for High Torque Applications

The H50 Series is equipped with a robust 7/8-inch diameter, 13-spline shaft, a critical component engineered for the efficient and reliable transmission of significant torque from the prime mover to the pump's internal gears. A spline shaft offers distinct advantages over a traditional keyed shaft, particularly in heavy-duty applications. The multiple mating teeth of a spline distribute torsional loads evenly across a larger surface area, significantly reducing stress concentrations and preventing premature wear or failure, especially under shock loading or frequent start-stop cycles. This design enhances the pump's resistance to torsional fatigue and provides a more secure, backlash-free connection, which is vital for maintaining precise timing between the drive and idler gears and for overall system efficiency. The 7/8-inch diameter ensures ample strength for the pump's rated torque capacity, while the 13 splines adhere to industry standards for interchangeability and robust power transfer. Furthermore, the shaft's bi-directional capability allows the pump to operate equally effectively regardless of the direction of input rotation, offering maximum flexibility in system design and installation.

Mounting Flexibility and Precise Integration: The SAE B Standard and 4.00-inch Pilot Diameter

Designed for seamless integration into a wide array of hydraulic systems, the H50 Series pump features an SAE B 2/4 bolt mount, a widely recognized industry standard that ensures broad compatibility and simplified installation. The option of either a 2-bolt or 4-bolt configuration provides flexibility, accommodating various mounting patterns and facilitating direct mounting to power take-offs (PTOs) or remote mounting arrangements. Crucially, the pump incorporates a 4.00-inch pilot diameter. The pilot diameter serves a critical function in accurately centering the pump's shaft with the prime mover's shaft or the connecting coupling. This precise concentricity is paramount for minimizing radial loads on the pump shaft bearings and preventing misalignment, which can lead to excessive vibration, accelerated wear of seals and bearings, and ultimately, premature pump failure. The integral bracket input mount type further simplifies installation, providing a sturdy and reliable foundation for the pump within the hydraulic system, whether in direct or remote configurations.

Comprehensive Hydraulic Performance Metrics: Flow, Pressure, and RPM Analysis

The H50 Series pump's performance characteristics are meticulously defined to meet the demanding requirements of various hydraulic circuits. With a nominal displacement of 5 cubic inches per revolution, the pump delivers a proportional flow rate directly tied to its rotational speed. For instance, at a moderate 600 RPM, it generates 12.6 GPM, escalating to a substantial 44.10 GPM at its upper operational range of 2100 RPM. This linear relationship between RPM and flow is a hallmark of positive displacement pumps, indicating consistent fluid delivery essential for predictable system operation. The pump is engineered to withstand a maximum operating pressure of 2500 PSI, signifying its capability to generate and sustain the forces required for heavy-duty work cycles in applications such as dump truck hydraulics, refuse compactors, and snowplow systems. This pressure rating is a critical factor in hydraulic system design, influencing component selection and ensuring the pump can effectively overcome resistive loads. The specified maximum continuous operating RPM of 2000 is carefully calibrated to optimize pump life and efficiency, balancing performance with durability. Exceeding this limit can lead to increased cavitation, excessive heat generation, reduced volumetric efficiency, and accelerated mechanical wear of internal components, thereby shortening the pump's service life.

Optimized Porting Configuration and Fluid Dynamics

Efficient fluid transfer is critical for any hydraulic pump, and the H50 Series addresses this with thoughtfully designed porting. It features a generous 1 1/2 NPT (National Pipe Tapered) inlet port and a matching 1 1/2 NPT outlet port, facilitating robust connections to the hydraulic reservoir and system actuators. The large port sizes are crucial for minimizing pressure drop across the ports, reducing fluid velocity, and preventing cavitation at the inlet, particularly under high flow demands. Cavitation, caused by the formation and collapse of vapor bubbles, can severely damage internal pump components and diminish overall system efficiency. The inclusion of a 1 1/4 NPT rear port, in addition to the standard side ports, offers enhanced versatility in plumbing configurations. This dual-porting capability allows installers to route hydraulic lines optimally, accommodating complex chassis layouts and maximizing space utilization. NPT threads, while requiring sealant for leak-proof connections, are a widely adopted standard, ensuring ease of connection with existing hydraulic infrastructure. Proper selection of hose and fitting sizes corresponding to these port dimensions is vital for maintaining hydraulic efficiency and avoiding detrimental restrictions within the system.

Broad Applications and Demanding Operational Environments

The H50 Series Hydraulic Gear Pump is specifically engineered for the most demanding applications across various industries where reliability and power are paramount. Its robust construction, high pressure capability, and substantial flow rates make it an ideal choice for:

• Construction Equipment: Driving hydraulic cylinders for excavators, loaders, and compactors.
• Waste Management: Powering the lift, tilt, and compacting mechanisms of refuse trucks.
• Material Handling: Operating forklifts, telehandlers, and other lifting equipment.
• Agricultural Machinery: Providing hydraulic power for implements, sprayers, and spreaders.
• Utility Vehicles: Supporting boom lifts, utility cranes, and other vocational truck equipment.
• Municipal Fleets: Essential for snowplows, salt spreaders, and dump body operations.

The pump's design ensures it can withstand the harsh conditions prevalent in these environments, including wide temperature fluctuations, exposure to dirt and debris, and continuous heavy-duty cycles. Its bi-directional capability further enhances its versatility, allowing it to be used in systems that require power in both directions of rotation or for simplified inventory management.

Maintenance Considerations and Longevity for Optimized Performance

To ensure the H50 Series Hydraulic Gear Pump delivers its expected long and reliable service life, adherence to proper maintenance protocols is essential. Foremost among these is the meticulous management of hydraulic fluid cleanliness. Contamination, whether particulate matter or water, is the leading cause of hydraulic component wear. Utilizing high-quality filtration systems and adhering to recommended fluid change intervals are critical. Proper installation, ensuring precise shaft alignment and securely tightened connections, minimizes undue stress on the pump and associated components. Regular inspection for external leaks, unusual noises, or excessive heat can identify potential issues before they escalate. The durable cast iron construction and robust spline shaft are designed for longevity, but even the most resilient components benefit from a proactive maintenance regimen. By following these best practices, operators can significantly extend the operational life of the H50 Series pump, maintaining its peak performance and minimizing downtime.

Conclusion: A Reliable Foundation for Critical Hydraulic Systems

The H50 Series Hydraulic Gear Pump, with its distinguished 7/8-13 spline shaft and 2-1/4 inch diameter gear, stands as a testament to engineering excellence within the hydraulic components market. Its heavy-duty cast iron construction, precise gearing, high-pressure capability, and adaptable mounting options make it an indispensable component for professionals seeking uncompromising reliability and performance. Delivering consistent flow rates across a broad RPM range and built to endure the most strenuous operational demands, this bi-rotational pump provides a robust and efficient foundation for a vast array of mobile and industrial hydraulic systems. Choosing the H50 Series means investing in a durable, high-performance solution that will consistently meet and exceed the operational expectations of critical applications.
