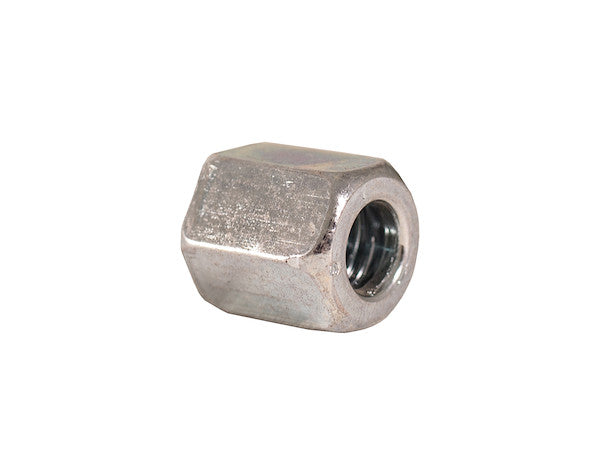

H5105X8 - 3 Piece Nut 1/2 Inch Tube O.D.

The 3 Piece Nut is part of the Buyers Products line of JIC 37-degree flare tube fittings. The fittings feature tough carbon steel construction, 3 piece flare sealing for a tight, secure connection, and a corrosion-resistant zinc finish. Fitting conforms to JIC and SAE specifications. Buyers Products tube fittings are used with copper, brass, steel, aluminum, and other tubing that can be flared. They are rated at up to 10,000 PSI depending on tube size.

Specifications

Finish	Zinc Plated
Material	Carbon Steel
Shape	Cap
Side 1	1/2 JIC (-8)
Side 2	1/2 JIC (-8)
Style	F

The Essential Role of the 3 Piece Nut in JIC 37-Degree Flare Systems: A Technical Overview for 1/2 Inch Tube O.D. Applications

The 3 Piece Nut, specifically designed for 1/2 inch Tube O.D. applications, represents a critical component within the widely utilized JIC (Joint Industry Council) 37-degree flare tube fitting standard. As a core element of the Buyers Products extensive range, this nut exemplifies robust engineering, material integrity, and precision manufacturing, ensuring reliable performance in diverse high-pressure fluid transfer systems. This detailed description will delve into the technical nuances of this component, its integration within the JIC system, material science, surface treatments, adherence to industry standards, and its broad applicability across various industrial sectors.

Understanding the JIC 37-Degree Flare System and the 3 Piece Design

The JIC 37-degree flare fitting standard is a cornerstone in hydraulic and fluid power applications globally, renowned for its robust, leak-resistant, and reusable connections. This standard dictates a metal-to-metal seal created by flaring the end of a tube at a 37-degree angle, which then mates with a corresponding 37-degree cone on the fitting body or adapter. The "3 Piece" designation refers to the three primary components that form a complete JIC connection:

1. The Nut: This is the component under discussion. Its primary function is to draw the flared tube end into firm, concentric contact with the male 37-degree seat of the fitting body. It slides over the un-flared tube and, during assembly, threads onto the body, exerting the necessary axial force to create the seal.
2. The Sleeve (or Ferrule): Positioned between the nut and the flared tube, the sleeve provides crucial support for the tube, especially at the point where it transitions from the straight tube section to the flared end. It acts as a stress-reducing component, distributing the compressive forces applied by the nut evenly around the flare and preventing tube collapse or excessive deformation, particularly during vibration or pressure fluctuations. While not always a separate piece in all flare designs (e.g., some single-piece designs combine nut and sleeve function), in a true 3-piece JIC system, the sleeve is distinct, enhancing reliability and ease of assembly.
3. The Fitting Body (or Adapter): This component provides the male 37-degree conical seat against which the flared tube end seals. It typically has a male or female pipe thread or an O-ring boss (ORB) thread on its opposite end for connection to other system components.

The 1/2 inch Tube O.D. specification indicates that this particular 3 Piece Nut is engineered to accommodate tubing with an outer diameter of precisely 0.500 inches. This dimensional accuracy is paramount for achieving a proper flare and a secure, leak-free connection, ensuring compatibility within a standardized hydraulic system. The JIC (-8) designation further solidifies this, as the dash number system in hydraulics typically correlates -8 with a 1/2 inch nominal tube size.

Material Science: The Indispensability of Carbon Steel

The selection of carbon steel for the construction of this 3 Piece Nut is a deliberate engineering decision driven by the demanding operational environments of hydraulic systems. Carbon steel offers a superior combination of mechanical properties that are essential for high-pressure fluid transfer applications:

• High Tensile Strength: Carbon steel possesses excellent tensile strength, allowing it to withstand significant pulling forces without fracturing. This is crucial for a component like a nut that is subjected to substantial tightening torques to maintain the flare seal.
• Yield Strength: The high yield strength of carbon steel ensures that the nut will not permanently deform under the operational stresses and assembly forces. This resilience is vital for maintaining the integrity of the connection over time, even under repetitive pressure cycling.
• Hardness: Carbon steel offers good hardness, which contributes to its wear resistance. This is important for the threads of the nut, which endure friction during assembly and disassembly, preserving the component's reusability.
• Fatigue Resistance: In dynamic hydraulic systems, components are frequently subjected to cyclic loading (pressure pulses). Carbon steel's inherent fatigue resistance ensures a longer service life, reducing the risk of material failure due to repeated stress.
• Cost-Effectiveness: Compared to more exotic alloys like stainless steel, carbon steel provides an optimal balance of performance and economic viability, making it a practical choice for a broad range of industrial applications.
• Machinability: Carbon steel is highly machinable, allowing for the precise manufacturing of threads and other critical features required for JIC fittings, ensuring tight tolerances and consistent quality.

The "tough" carbon steel construction referenced emphasizes that this material has been processed and heat-treated to optimize these properties, providing a robust foundation for the fitting's long-term reliability.

Corrosion Resistance: The Efficacy of Zinc Plating

Given the typical operating environments, which can expose fittings to moisture, chemicals, and abrasive elements, a durable surface treatment is critical. The 3 Piece Nut features a corrosion-resistant zinc finish, a widely adopted and highly effective method for protecting carbon steel components. Zinc plating works by forming a sacrificial layer on the surface of the steel. In the presence of corrosive agents, the zinc corrodes preferentially to the underlying steel (cathodic protection), thereby protecting the steel base material. Key aspects of zinc plating include:

• Sacrificial Protection: Zinc is electrochemically more active than iron (steel). If the coating is scratched or compromised, the zinc sacrifices itself to protect the steel underneath, preventing localized rust formation.
• Barrier Protection: The zinc layer itself acts as a physical barrier, preventing oxygen and moisture from reaching the steel surface.
• Passivation: Post-plating, the zinc typically undergoes a chromate conversion coating (e.g., clear, yellow, or black trivalent chromate). This passivation layer significantly enhances the corrosion resistance of the zinc, providing a more robust shield against environmental degradation, including resistance to "white rust" (zinc corrosion products) and "red rust" (steel corrosion products).
• Durability: The zinc finish provides a hard, abrasion-resistant surface that helps protect against minor mechanical damage during handling, installation, and operation.

This zinc finish is crucial for extending the service life of the 3 Piece Nut, maintaining its aesthetic integrity, and, more importantly, preserving its functional characteristics, such as thread engagement and sealing surface quality, even in moderately aggressive environments.

The Mechanics of 3 Piece Flare Sealing

The "3 piece flare sealing for a tight, secure connection" is the fundamental design principle that underpins the reliability of JIC fittings. This sealing mechanism relies on a precisely engineered metal-to-metal contact, eliminating the need for elastomeric O-rings or gaskets at the primary sealing interface. This has several advantages:

• High Temperature Capability: Without rubber or polymer seals, JIC fittings can operate effectively across a wider temperature range, from cryogenic conditions to extremely high temperatures where elastomers would degrade.
• Chemical Compatibility: The metal-to-metal seal is inherently compatible with a vast array of hydraulic fluids, fuels, and chemicals that might attack or swell elastomeric seals, ensuring broad applicability.
• High Pressure Performance: The robust, rigid metal seal can withstand extremely high internal pressures without extrusion or rupture, a common failure mode for soft seals in high-pressure applications.
• Reusability: When properly assembled and disassembled, the metal-to-metal seal can be repeatedly remade without compromising its integrity, provided the flare and mating seat are undamaged. This offers significant advantages in terms of maintenance and serviceability.

The sealing process begins with the careful flaring of the tube end to a precise 37-degree angle, typically using specialized flaring tools. The tube then slides through the nut and sleeve. As the nut is tightened onto the fitting body, the sleeve supports the tube, and the flared end is compressed axially against the 37-degree conical seat of the fitting body. The elastic deformation of the metals at the contact point creates a tight, hermetic seal capable of containing high-pressure fluids. Proper torque application is critical to achieve the optimal compressive force without over-tightening, which could deform the flare or fitting seat.

Adherence to JIC and SAE Specifications

The explicit statement that the fitting "conforms to JIC and SAE specifications" is a guarantee of interchangeability, performance, and safety.

• JIC (Joint Industry Council): Originating in the automotive industry, JIC standards (primarily defined by SAE J514) define the dimensions, performance requirements, and testing procedures for 37-degree flare fittings. Adherence to JIC ensures that components from different manufacturers meeting this standard will be compatible and perform as expected within a system. This standardization simplifies design, procurement, and maintenance.
• SAE (Society of Automotive Engineers): SAE is a global association of engineers and technical experts in the aerospace, automotive, and commercial vehicle industries. SAE hydraulic fitting standards (e.g., SAE J514 for Hydraulic Tube Fittings) are internationally recognized and widely adopted. Conformance to SAE specifications ensures that the 3 Piece Nut meets rigorous engineering criteria for material quality, dimensional accuracy, thread form, pressure ratings, and testing protocols. This includes aspects like thread dimensions (UNF/UN thread forms), material specifications, and performance testing under various conditions.

This dual compliance signifies that the Buyers Products 3 Piece Nut for 1/2 inch O.D. tubing is not merely a generic component but a precision-engineered part designed and manufactured to meet stringent industry benchmarks, offering reliability and peace of mind to users.

Versatile Tube Compatibility

The capacity of Buyers Products tube fittings to be "used with copper, brass, steel, aluminum, and other tubing that can be flared" highlights the versatility of the JIC 37-degree system and the robust design of the 3 Piece Nut. Each tubing material offers distinct properties suitable for specific applications:

• Copper Tubing: Known for its excellent corrosion resistance, malleability, and thermal conductivity. Commonly used in HVAC, refrigeration, and some low-to-medium pressure hydraulic lines. Its softness makes it easy to flare but requires careful handling to prevent damage.
• Brass Tubing: Offers good corrosion resistance and is slightly harder than copper. It's often used in pneumatic systems, instrumentation, and some fluid transfer applications where moderate pressure is involved.
• Steel Tubing (Carbon Steel): The workhorse of high-pressure hydraulic systems. Available in various grades (e.g., seamless, welded) and wall thicknesses, steel tubing provides the necessary strength to withstand the "up to 10,000 PSI" rating. It requires proper corrosion protection and careful flaring due to its hardness.
• Aluminum Tubing: Valued for its lightweight properties and good corrosion resistance (especially in specific alloys). Often used in aerospace, automotive (non-critical), and applications where weight reduction is paramount. Its flaring characteristics are similar to copper, requiring precise technique.
• Other Flareable Tubing: This can include specialized alloys or dual-wall tubing designed for specific fluid types or environmental conditions, as long as they possess the ductility and strength to form a proper 37-degree flare without cracking or collapsing.

The 3 Piece Nut design, with its supporting sleeve, is particularly effective across this range of materials because the sleeve helps to evenly distribute the clamping force, preventing the softer tubes from collapsing and providing robust support to harder tubes against vibration and stress concentrations. The 1/2 inch O.D. specification means that the tube size itself is a common dimension across many of these materials.

Unparalleled Pressure Rating: Up to 10,000 PSI

The stated pressure rating of "up to 10,000 PSI depending on tube size" underscores the extreme high-pressure capabilities of these JIC fittings. This level of performance is critical for demanding hydraulic applications. Factors influencing the specific pressure rating for any given application include:

• Tube Material and Wall Thickness: This is the most significant factor. Steel tubing with appropriate wall thickness is essential to achieve the highest pressure ratings. Softer materials like copper or aluminum will yield lower maximum working pressures.
• Fitting Size: Smaller diameter fittings and tubing generally tolerate higher pressures than larger ones for a given material and wall thickness due to reduced surface area for pressure to act upon and inherently stronger geometry. The 1/2 inch O.D. tube, designated as -8, is a mid-range size capable of handling substantial pressure with appropriate tubing.
• Temperature: Elevated temperatures can reduce the strength of both the tubing and the fitting material, leading to a derating of the maximum allowable pressure.
• Dynamic vs. Static Pressure: The 10,000 PSI rating typically refers to static working pressure. Dynamic pressures (pulsations, surges) will often necessitate a lower continuous working pressure or the application of safety factors.
• Assembly Quality: Proper flaring, clean threads, and correct torque application are paramount. An improperly assembled fitting will fail at pressures far below its rated capacity.
• Safety Factors: Industry standards often mandate safety factors (e.g., 4:1) between the burst pressure and the maximum working pressure to account for variations in material, manufacturing, and unforeseen operational stresses.

Achieving 10,000 PSI (approximately 690 bar) implies that these nuts and their corresponding fittings are suitable for ultra-high-pressure hydraulic circuits, often found in heavy industrial machinery, specialized testing equipment, and critical control systems where system integrity under extreme forces is non-negotiable.

Specifics from the Specifications Table: JIC (-8) and Style 'F'

The provided specifications for "Side 1: 1/2 JIC (-8)" and "Side 2: 1/2 JIC (-8)" confirm that this 3 Piece Nut is designed to connect two 1/2 inch O.D. tubes, or one 1/2 inch O.D. tube to a fitting body that also has a 1/2 JIC (-8) male connection.

• Dash Number (-8): In the hydraulic industry, "dash numbers" are a shorthand for specifying tube and hose sizes. For tube fittings, -8 typically corresponds to a 1/2-inch tube O.D. This system simplifies communication and ensures compatibility across different components and manufacturers.
• Style 'F': While "Style F" is a manufacturer-specific designation and not a universal JIC or SAE standard, within Buyers Products' catalog, it likely refers to a particular form factor or application variant of the 3 Piece Nut. This could relate to specific thread lengths, chamfers, or other minor geometric features that differentiate it from other nut styles within their product line, perhaps optimized for particular JIC fitting body configurations or assembly tools. For the end-user, it signifies a specific component within the Buyers Products ecosystem. The "Shape: Cap" might also refer to a specific end-use for this nut, if it's meant for capping off a line temporarily (which usually involves a cap plug, not just a nut), or it could be a misapplied generic descriptor. Given it's a nut, its primary function is connection, not capping. Therefore, it's more likely referring to its form factor, perhaps a hex head cap nut style, or that the table field is generic for fittings.

Applications and Installation Considerations

The high performance and robust design of the 1/2 inch 3 Piece Nut make it ideal for a vast array of heavy-duty applications:

• Heavy Construction Equipment: Excavators, bulldozers, cranes, and loaders utilize JIC fittings for their hydraulic cylinders, motors, and control valves due to high pressures and severe operating conditions.
• Agricultural Machinery: Tractors, harvesters, and implements rely on these fittings for steering, lifting, and power take-off systems.
• Industrial Hydraulic Systems: Manufacturing plants, presses, and automated assembly lines use JIC fittings for their reliability and ease of maintenance.
• Material Handling: Forklifts, conveyors, and lift tables often incorporate these fittings.
• Transportation: Commercial vehicles (trucks, buses) for various hydraulic functions (power steering, braking systems in some cases, auxiliary equipment).
• Marine and Offshore: Applications on ships, oil rigs, and subsea equipment demand corrosion resistance and high-pressure integrity.

Proper installation is paramount to achieving the rated performance. This involves:

• Precise Flaring: Using a high-quality 37-degree flaring tool to create a smooth, concentric, and crack-free flare on the tube end.
• Cleanliness: Ensuring all components are free from dirt, debris, or metal shavings that could compromise the seal or damage threads.
• Lubrication: Applying a suitable thread lubricant to the nut threads and the back of the sleeve to reduce friction during tightening, allowing for accurate torque application and preventing galling.
• Correct Torque: Adhering to manufacturer-specified torque values to achieve optimal sealing force without over-stressing the components.
• Inspection: Visually inspecting the flare and mating seat for any damage before final assembly.

The reusability of JIC fittings, facilitated by the durable carbon steel nut and its protective zinc finish, significantly contributes to reduced maintenance costs and downtime over the lifespan of a hydraulic system.

The Buyers Products Advantage

Buyers Products is synonymous with quality and reliability in the fluid power industry. Their commitment to manufacturing products like this 3 Piece Nut to exacting standards ensures that customers receive components that not only meet but often exceed industry expectations. The combination of tough carbon steel, corrosion-resistant zinc plating, adherence to JIC and SAE specifications, and robust 3 piece flare sealing technology solidifies this product's position as a premium choice for critical 1/2 inch O.D. tube applications requiring extreme pressure capabilities.

Conclusion

The 3 Piece Nut for 1/2 inch Tube O.D. from Buyers Products is far more than a simple fastening device; it is a precisely engineered component fundamental to the integrity and performance of JIC 37-degree flare hydraulic systems. Its construction from tough, zinc-plated carbon steel guarantees durability, exceptional strength, and superior corrosion resistance, while its design ensures a reliable, metal-to-metal seal capable of withstanding pressures up to 10,000 PSI. Conforming to both JIC and SAE specifications, this nut offers assured compatibility and performance across a wide spectrum of industrial applications. For engineers, technicians, and system integrators designing or maintaining high-pressure fluid transfer lines, this 3 Piece Nut represents an indispensable element of a robust and long-lasting hydraulic connection. Its proven reliability and adherence to stringent industry standards make it the ideal choice for demanding environments where system integrity and leak prevention are paramount.
