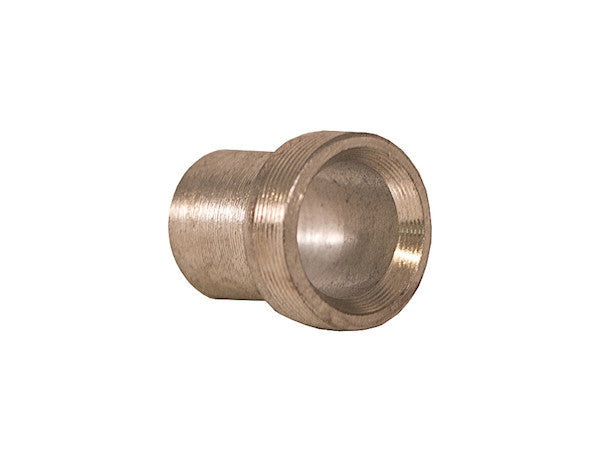

The 3 Piece Sleeve is part of the Buyers Products line of JIC 37-degree flare tube fittings. The fittings feature tough carbon steel construction, 3 piece flare sealing for a tight, secure connection, and a corrosion-resistant zinc finish. Fitting conforms to JIC and SAE specifications. Buyers Products tube fittings are used with copper, brass, steel, aluminum, and other tubing that can be flared. They are rated at up to 10,000 PSI depending on tube size.
Specifications
| Finish | Zinc Plated |
|---|---|
| Material | Carbon Steel |
| Shape | Sleeve |
| Side 1 | 1/2 JIC (-8) |
| Side 2 | 1/2 JIC (-8) |
| Style | F |
The 3 Piece Sleeve, specifically designed for 1/2 Inch Tube Outer Diameter (O.D.) applications, represents a critical component within the comprehensive Buyers Products line of JIC (Joint Industry Council) 37-degree flare tube fittings. This product is engineered to deliver unparalleled reliability and performance in demanding hydraulic and fluid transfer systems. As a foundational element of the 3-piece flare system, this sleeve plays an indispensable role in establishing and maintaining a robust, leak-free connection, ensuring optimal operational integrity and extended service life for tubing assemblies across a myriad of industrial and mobile applications.
Engineered Design and Construction Excellence
Material Science: High-Strength Carbon Steel
At the core of this 3 Piece Sleeve’s superior performance is its construction from tough carbon steel. Carbon steel is a judicious choice for hydraulic applications due to its exceptional mechanical properties. It offers a high tensile strength, typically ranging from 400 MPa to 700 MPa depending on the specific alloy and heat treatment, providing robust resistance against the significant internal pressures and external mechanical stresses inherent in high-pressure fluid systems. Its inherent ductility allows for minor deformation without catastrophic failure, which is crucial in dynamic environments where slight movement or vibration may occur. Furthermore, carbon steel exhibits excellent fatigue resistance, making it suitable for systems subject to cyclic pressure fluctuations and mechanical loading, ensuring the sleeve retains its structural integrity over countless operational cycles. The selection of carbon steel for this critical component underscores a commitment to durability and long-term reliability, providing a stable and resilient foundation for the entire flare connection.
Advanced Corrosion Protection: Zinc Plating
To augment the inherent strength of carbon steel, each 3 Piece Sleeve undergoes a meticulously applied zinc plating process. This corrosion-resistant zinc finish is not merely cosmetic; it forms a vital sacrificial layer that actively protects the underlying carbon steel from environmental degradation. Zinc plating works on an electrochemical principle: if the surface is scratched or compromised, the zinc, being more electrochemically active than steel, corrodes preferentially, thereby shielding the steel substrate. This significantly extends the service life of the fitting, particularly in harsh operating conditions where exposure to moisture, chemicals, or abrasive elements is common. The zinc finish also provides enhanced resistance to wear and tear, contributing to the fitting’s overall resilience and preserving its dimensional accuracy over time. Adherence to industry-standard plating thicknesses and specifications ensures consistent performance, preventing premature material breakdown and maintaining the aesthetic and functional integrity of the component throughout its operational lifespan.
The 3-Piece Flare Sealing Mechanism: Precision and Security
The defining characteristic of this fitting is its integration into a 3-piece flare sealing system. Unlike 2-piece flare designs where the nut directly compresses the tube flare against the fitting body, the 3-piece system incorporates this independent sleeve between the nut and the flared tube end. This design configuration offers distinct advantages in achieving a tight, secure, and resilient connection. When the nut is tightened, it first engages the sleeve, which then applies a uniform, circumferential compressive force against the back of the 37-degree flared tube. This controlled compression facilitates an optimal metal-to-metal seal between the tube flare and the precisely machined 37-degree cone seat of the fitting body. The sleeve acts as a stress distributor, preventing localized stress concentrations that can occur when a nut directly grips a flare. This distribution mitigates the risk of tube cracking or cold working, which can compromise the integrity of the flare, especially in high-vibration applications or during multiple reassemblies. The result is a connection that is exceptionally resistant to leakage, even under severe pressure and dynamic loads, thereby enhancing operational safety and efficiency.
Conformity to Industry Standards: JIC and SAE Specifications
The Buyers Products 3 Piece Sleeve, alongside its mating components, is meticulously engineered to conform to stringent JIC and SAE specifications. This adherence is paramount for ensuring interoperability, reliability, and safety across a vast array of industrial and mobile hydraulic systems.
Joint Industry Council (JIC) Standards
JIC standards, primarily derived from military specifications (MIL-F-18866), were established to standardize hydraulic fittings for interchangeability and performance across different manufacturers. The JIC 37-degree flare standard (sometimes referred to as AN Flare in military/aerospace contexts) dictates the precise geometry of the flare angle, thread sizes, and overall fitting dimensions. This standardization ensures that a JIC 37-degree flare fitting from Buyers Products will seamlessly integrate with other JIC-compliant components, regardless of their origin, provided they meet the same dimensional criteria. For the 3 Piece Sleeve, conforming to JIC standards means its internal and external dimensions, material composition, and surface finish are precisely controlled to mate perfectly with JIC nuts and fitting bodies, facilitating proper tube support and optimal sealing performance.
Society of Automotive Engineers (SAE) Specifications
Complementing JIC standards are the specifications set forth by the Society of Automotive Engineers (SAE). Specifically, SAE J514 pertains to Hydraulic Tube Fittings, encompassing 37-degree flared fittings. SAE J514 defines critical parameters such as material requirements, dimensional tolerances, thread forms (typically UN/UNF threads), testing procedures, and performance criteria. The compliance of this 3 Piece Sleeve with SAE J514 signifies that it has been manufactured to meet rigorous quality and performance benchmarks, including burst pressure, proof pressure, and vibration resistance tests. This dual compliance with JIC and SAE specifications provides an unequivocal assurance of quality, reliability, and interchangeability, making this sleeve a dependable choice for mission-critical hydraulic applications.
Dimensional Precision: 1/2 Inch Tube O.D. and JIC (-8) Sizing
The specified 1/2 Inch Tube O.D. for this 3 Piece Sleeve is a crucial dimensional attribute that ensures precise compatibility and optimal performance. In tube fitting nomenclature, the outer diameter (O.D.) of the tubing is the primary dimension for selecting the correct fitting components. A perfect match between the sleeve's internal diameter and the tube's O.D. is essential for proper support and sealing. The sleeve is designed to snugly envelop the tube, providing circumferential support and preventing the tube from collapsing or distorting under the compressive forces applied during assembly and subsequent operational pressures.
The JIC sizing convention, often expressed with a dash number, further specifies this compatibility. For a 1/2 inch tube O.D., the corresponding JIC dash size is typically -8. This nomenclature originates from expressing the tube O.D. in sixteenths of an inch (8/16 inch = 1/2 inch). This standardized sizing system eliminates ambiguity and ensures that users can confidently select the correct sleeve for their 1/2 inch O.D. tubing when constructing or repairing JIC 37-degree flare assemblies. The precision in manufacturing these dimensions is critical for the sleeve to perform its function effectively, allowing it to slide smoothly over the tube while providing sufficient interference fit to offer support without causing damage to the tube surface or hindering the flaring process.
Pressure Ratings and Performance Envelope
The Buyers Products 3 Piece Sleeve contributes significantly to the overall pressure integrity of the JIC 37-degree flare assembly, which is rated at up to 10,000 PSI depending on the tube size. While the sleeve itself is not a pressure-containing component in the same manner as the fitting body or the tube, its robust design and material properties are integral to achieving and sustaining these high-pressure ratings. The sleeve's primary role is to ensure uniform compression of the flare and provide support against tube fatigue, which indirectly dictates the maximum allowable operating pressure.
Several factors collectively determine the specific pressure rating for a complete assembly:
- Tube Material and Wall Thickness: The strength and integrity of the tube itself are paramount. Thicker walled tubing made from high-strength materials (e.g., cold-drawn seamless steel) will inherently withstand higher pressures than thinner walled or softer materials.
- Fitting Body Material and Design: The body of the fitting, which contains the 37-degree cone seat, must also be capable of withstanding the internal pressure and the forces exerted by the tightened connection. Carbon steel, as used in Buyers Products, provides excellent structural integrity.
- Nut Strength and Thread Engagement: The nut provides the compressive force. Its material strength, thread engagement with the fitting body, and resistance to galling are critical for maintaining the tightened connection under pressure.
- Assembly Procedures: Proper installation, including correct flaring of the tube and adherence to specified torque values, is crucial. Under-torquing can lead to leaks, while over-torquing can deform the flare or tube, compromising the seal and potentially reducing the pressure rating.
- Operating Conditions: Factors such as temperature, vibration, and the type of fluid being conveyed can influence the effective pressure rating. Elevated temperatures can reduce material strength, while excessive vibration can lead to fatigue failure.
The 3 Piece Sleeve's design, by distributing stress and preventing tube distortion, safeguards the delicate metal-to-metal seal from the dynamic forces often encountered in high-pressure hydraulic systems. This engineered approach extends the fatigue life of the entire connection, enabling it to reliably operate at the upper echelons of hydraulic pressure specifications for which JIC 37-degree flare fittings are renowned.
Versatile Applications Across Diverse Tubing Materials
The inherent design of the JIC 37-degree flare system, facilitated by the precision of components like this 3 Piece Sleeve, makes it exceptionally versatile for use with a broad range of tubing materials that can be flared. This adaptability is a key reason for its widespread adoption across numerous industries.
Compatible Tubing Materials:
- Steel Tubing: Commonly used in heavy-duty hydraulic applications due to its high strength and pressure resistance. Steel tubing, particularly seamless cold-drawn varieties, forms an excellent, durable flare that mates effectively with carbon steel fittings. The robust nature of the 3 Piece Sleeve provides ideal support for steel tube flares, preventing deformation under high assembly torque and operational pressure.
- Stainless Steel Tubing: Preferred in corrosive environments or where higher cleanliness standards are required. While the fitting itself is carbon steel with zinc plating, it can be used with stainless steel tubing where the environmental conditions permit the use of zinc-plated components, or where the fitting is replaced periodically. The sleeve's design ensures a consistent flare compression without damaging the typically harder stainless steel.
- Copper Tubing: Frequently utilized in lower-pressure fluid lines, instrumentation, or refrigeration systems due to its excellent ductility, thermal conductivity, and corrosion resistance. Copper tubing is easily flared, and the 3 Piece Sleeve provides gentle yet firm support to the softer copper flare, preventing over-compression or cracking.
- Brass Tubing: Similar to copper in ductility and corrosion resistance, brass tubing is suitable for various non-corrosive fluid and air systems. The sleeve ensures a stable connection with brass tubing, which, while more rigid than copper, still benefits from the distributed compression of the 3-piece design.
- Aluminum Tubing: Valued for its lightweight properties and corrosion resistance, particularly in aerospace and automotive applications. Aluminum tubing requires careful flaring due to its lower hardness, and the 3 Piece Sleeve's ability to distribute load evenly helps to protect the aluminum flare from damage during assembly and operation.
The capability to reliably connect these diverse materials under high-pressure conditions underscores the engineering flexibility and robust performance characteristics of the 3 Piece Sleeve and the JIC 37-degree flare standard. This makes Buyers Products fittings an indispensable solution for critical fluid conveyance systems across construction equipment, agricultural machinery, transportation, manufacturing facilities, and beyond.
Installation Best Practices and Maintenance Considerations
The successful performance and longevity of the 3 Piece Sleeve within a JIC 37-degree flare assembly are heavily dependent on meticulous installation and appropriate maintenance. Adhering to best practices ensures the integrity of the metal-to-metal seal and maximizes the operational life of the system.
Proper Installation Procedure:
- Tube Preparation: Begin by cutting the tubing to the precise length, ensuring a square, clean cut. Deburr both the inside and outside edges of the tube carefully. Any burrs can interfere with the flare seat, cause turbulence, or damage the sleeve/nut during assembly.
- Sleeve and Nut Placement: Crucially, slide the nut onto the tube first, followed by the 3 Piece Sleeve. It is imperative that these components are positioned correctly before the flaring process, as they cannot be added afterward.
- Flaring the Tube: Create a perfect 37-degree flare on the end of the tube using a high-quality flaring tool. The flare must be concentric, free of cracks, scratches, or uneven surfaces. The finished flare diameter should match the fitting's seat to ensure optimal sealing.
- Assembly: Insert the flared tube end into the fitting body, ensuring the sleeve seats correctly against the flare and the nut engages the threads of the fitting body smoothly.
- Torque Application: Hand-tighten the nut until snug. Then, use a calibrated torque wrench to tighten the nut to the manufacturer's specified torque value. This is a critical step; under-torquing can lead to leaks, while over-torquing can deform the flare, damage threads, or create stress concentrations, potentially leading to premature failure. The 3 Piece Sleeve helps distribute this torque force evenly, reducing the risk of flare damage.
Maintenance and Inspection:
- Routine Inspection: Regularly inspect all JIC connections for signs of leakage, corrosion, or mechanical damage. Look for fluid residue around the nut, discoloration, or deformation of the tube or fitting components.
- Retorquing: While JIC fittings are designed for long-term stability, initial retorquing after a few operational cycles (especially with new installations) can sometimes be beneficial to account for initial material settling. However, this should only be done if specified by the manufacturer and with careful attention to torque values.
- Replacement: If any component (nut, sleeve, or fitting body) shows signs of significant wear, corrosion, thread damage, or deformation, it should be replaced immediately. Never attempt to reuse a severely damaged or fatigued sleeve.
- Preventative Measures: Ensure tubing runs are properly supported to minimize vibration and external stresses on the fittings. Protect fittings from direct impact or abrasion where possible.
By adhering to these stringent installation and maintenance guidelines, users can unlock the full potential of the Buyers Products 3 Piece Sleeve and the JIC 37-degree flare system, guaranteeing a safe, efficient, and exceptionally reliable fluid transfer solution.
The Buyers Products Advantage: Reliability and Expertise
Choosing the 3 Piece Sleeve from Buyers Products is an investment in quality, reliability, and engineering expertise. As a leading manufacturer in the industry, Buyers Products is committed to delivering components that not only meet but often exceed industry standards. Their extensive experience in designing and producing hydraulic components translates into superior product performance and longevity.
The rigorous quality control processes implemented throughout the manufacturing of each 3 Piece Sleeve ensure dimensional accuracy, material integrity, and consistent zinc plating. This dedication to precision minimizes variances, guaranteeing that every sleeve will perform as expected within a JIC 37-degree flare assembly. By leveraging advanced manufacturing techniques and a deep understanding of hydraulic system demands, Buyers Products provides a sleeve that actively contributes to leak prevention, enhanced system uptime, and reduced maintenance costs over the operational life of your equipment. For engineers, technicians, and system integrators seeking dependable solutions for high-pressure fluid conveyance, the 3 Piece Sleeve for 1/2 Inch Tube O.D. from Buyers Products stands as an exemplary choice, embodying robust construction, technical conformity, and unwavering performance in the most challenging applications.
