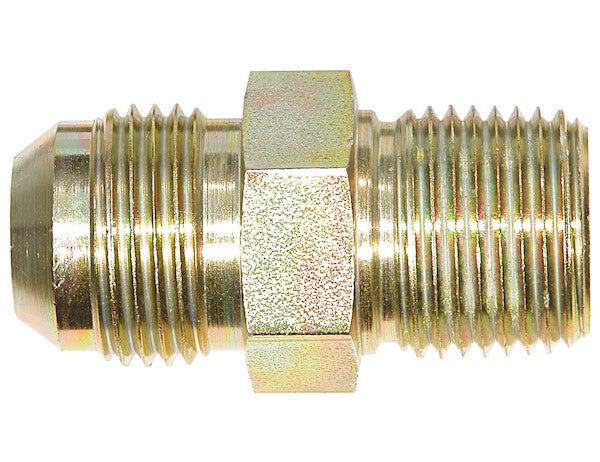

H5205X16 - Male Connector 1 Inch Tube O.D. To 1 Inch Male Pipe Thread

The Male Connector is part of the Buyers Products line of JIC 37-degree flare tube fittings. The fittings feature tough carbon steel construction, 3 piece flare sealing for a tight, secure connection, and a corrosion-resistant zinc finish. Fitting conforms to JIC and SAE specifications. Buyers Products tube fittings are used with copper, brass, steel, aluminum and other tubing that can be flared. They are rated at up to 10,000 PSI depending on tube size.

Specifications

Advanced Technical Overview: Male Connector 1 Inch Tube O.D. To 1 Inch Male Pipe Thread

This technical product description provides an in-depth analysis of the Male Connector, specifically engineered for critical fluid power applications. As an integral component within the esteemed Buyers Products line of JIC 37-degree flare tube fittings, this connector facilitates a robust and reliable transition from a 1-inch Outer Diameter (O.D.) tube to a 1-inch Male National Pipe Taper (NPT) threaded port. Manufactured from tough carbon steel and finished with a corrosion-resistant zinc plating, this fitting is designed to meet rigorous industry standards and deliver unparalleled performance in demanding operational environments.

The fundamental utility of this straight male connector lies in its ability to securely connect rigid or semi-rigid tubing systems to components featuring NPT ports. This is a common requirement across a vast array of industrial, mobile, and hydraulic applications where a reliable, leak-free connection is paramount. The dual-interface design, integrating the precision of JIC 37-degree flare technology with the ubiquitous NPT threading standard, ensures broad compatibility and ease of integration into existing or new fluid transfer systems.

Detailed Analysis of JIC 37-Degree Flare Connection (Side 1: 1 JIC -16)

The JIC (Joint Industry Council) 37-degree flare standard, codified under SAE J514, is a cornerstone of hydraulic and fluid power connections due to its exceptional reliability and reusability. The "1 JIC (-16)" designation signifies compatibility with 1-inch O.D. tubing. This connector features the male flare component, which mates with a corresponding female JIC swivel nut and a flared tube end. The conical 37-degree sealing surface is precisely machined to ensure an optimal metal-to-metal seal when compressed.

The core of the JIC flare's integrity lies in its "3-piece flare sealing" mechanism. This system comprises three distinct elements: the fitting body (with its male 37-degree cone), a sleeve, and a nut. When the nut is tightened onto the fitting body, it draws the flared tube end into firm contact with the fitting’s cone, simultaneously compressing the sleeve onto the tube. This compression forms a mechanical seal that is highly resistant to pressure, vibration, and temperature fluctuations. The sleeve not only provides additional mechanical support, reducing the risk of tube fatigue near the flare, but also enhances the sealing force by distributing the load evenly around the flared tube. The reusability of JIC connections is a significant advantage, allowing for system maintenance, component replacement, or configuration changes without compromising seal integrity, provided the mating surfaces are free from damage and properly lubricated prior to assembly.

This 1-inch JIC flare connection is suitable for a diverse range of tubing materials, including copper, brass, steel, and aluminum. The selection of tubing material depends on the application's pressure requirements, fluid compatibility, and environmental conditions. For optimal performance, it is critical that the tubing is correctly flared using appropriate tooling to achieve the precise 37-degree angle and concentricity, free from cracks, nicks, or other imperfections that could compromise the seal.

Detailed Analysis of 1-Inch Male NPT Pipe Thread Connection (Side 2: 1 NPT)

The National Pipe Taper (NPT) standard, as defined by ANSI/ASME B1.20.1, is the most prevalent pipe thread standard in the United States and Canada for general purpose sealing of pipes and fittings. The "1 NPT" designation on the second side of this male connector indicates a 1-inch nominal pipe size male taper thread. The fundamental characteristic of NPT threads is their taper, typically 3/4 inch per foot (or 1 in 16 relative to the axis). This taper allows the threads to wedge together as they are tightened, creating a mechanical interference fit that forms a seal.

Unlike parallel threads which typically rely on a gasket or O-ring for sealing, NPT threads achieve their seal primarily through the deformation of the thread flanks as they are engaged. To ensure a completely leak-tight connection, especially in fluid power applications, the use of a suitable thread sealant is essential. Common sealants include PTFE tape (Teflon tape) or liquid pipe thread compounds (pipe dope). These sealants fill any remaining helical leak paths and minor imperfections between the mating threads, enhancing the pressure-holding capability and preventing galling during assembly and disassembly. Proper application of sealant and correct torqueing are crucial for achieving a reliable NPT connection.

The male NPT thread on this connector allows it to be screwed directly into a female NPT port on a valve, pump, cylinder, manifold, or other hydraulic/pneumatic component. The robust design and precise threading ensure a secure, vibration-resistant attachment point, crucial for maintaining system integrity under dynamic operating conditions.

Material Science and Construction: Carbon Steel Excellence

The selection of carbon steel for the construction of this male connector is a deliberate engineering choice, providing an optimal balance of strength, durability, and cost-effectiveness for fluid power applications. Carbon steel, a high-strength alloy, offers exceptional resistance to mechanical stress, fatigue, and impact, ensuring a long service life even in demanding industrial environments. The manufacturing process typically involves forging, which refines the grain structure of the steel, imparting superior strength and toughness compared to cast components. Subsequent precision machining ensures that critical dimensions, such as the 37-degree flare angle and NPT thread profiles, meet the stringent tolerances required for leak-free performance.

The inherent tensile strength and yield strength of carbon steel allow this fitting to withstand the high internal pressures characteristic of hydraulic systems, rated for up to 10,000 PSI depending on tube size and specific application parameters. For the 1-inch JIC connection, proper tube wall thickness and material are critical to achieve the maximum pressure rating. The robust nature of carbon steel also contributes to the fitting's resistance against external physical damage, abrasion, and incidental impacts that may occur during installation or operation.

Corrosion Resistance: Zinc Plated Finish

To enhance the longevity and performance of the carbon steel fitting, a corrosion-resistant zinc finish is applied. Zinc plating serves as a sacrificial coating, protecting the underlying carbon steel from oxidation and rust. In the presence of moisture or corrosive agents, zinc preferentially corrodes before the steel, thereby extending the operational life of the fitting. This protective layer is particularly vital in environments exposed to humidity, chemicals, or outdoor elements, where unprotected carbon steel would quickly degrade.

The zinc plating process typically involves electroplating, where a thin layer of zinc is deposited onto the steel surface. This not only provides corrosion protection but also offers a clean, aesthetically pleasing finish. The quality and thickness of the zinc plating are critical, adhering to industry standards to ensure consistent performance and durability throughout the fitting's service life. This protective layer minimizes maintenance requirements and contributes to the overall reliability of the fluid power system by preventing premature material degradation that could lead to leaks or structural failure.

Design and Form Factor: Straight Configuration

This Male Connector features a straight configuration, indicating that the two connection ends are aligned on the same axis. The straight shape is the simplest and most common form for tube fittings, offering several advantages. It provides a direct, unobstructed flow path for the fluid, minimizing turbulence and pressure drop across the fitting. This is crucial for maintaining system efficiency and ensuring predictable fluid dynamics, especially in high-flow or high-pressure applications.

The straight design also simplifies installation in many scenarios, requiring less space compared to elbow or tee fittings. It is ideal for connecting a straight run of tubing to a component or another section of pipe where no change in direction is needed. The precision manufacturing of the straight body ensures perfect alignment between the JIC flare end and the NPT thread end, facilitating straightforward and accurate assembly.

Performance Characteristics and Operational Parameters

The performance profile of this Male Connector is characterized by its high-pressure rating, robust sealing capabilities, and compatibility with diverse fluid media and environmental conditions.

• Pressure Rating: Rated for up to 10,000 PSI, this fitting is engineered for demanding hydraulic and high-pressure pneumatic applications. The actual achievable pressure rating is contingent upon several factors, including the specific tubing material (e.g., seamless steel tubing, annealed copper), tube wall thickness, proper flaring technique, and the integrity of the NPT connection with appropriate sealant. For a 1-inch O.D. steel tube, systems can typically operate at pressures well within the requirements of most heavy-duty machinery.
• Temperature Range: Carbon steel fittings are generally capable of operating across a broad temperature range, typically from approximately -65°F to +400°F (-54°C to +204°C). The zinc plating and any applied thread sealants or lubricants must also be compatible with the operational temperature extremes.
• Flow Characteristics: The straight design with a smooth internal bore ensures minimal flow restriction and turbulence. This translates to reduced energy losses in the fluid system and efficient power transmission.
• Vibration Resistance: The JIC 37-degree flare connection, when properly assembled, offers excellent resistance to vibration and mechanical shock. The metal-to-metal seal combined with the mechanical support from the sleeve helps to dampen vibrations and maintain seal integrity over prolonged periods of dynamic operation.
• Leak Integrity: Both the JIC flare and the NPT connection are designed for high leak integrity. The 3-piece JIC flare system creates a highly reliable seal, while the tapered NPT threads, when used with appropriate thread sealant, form a durable mechanical barrier against fluid escape.
• Fluid Compatibility: Given its carbon steel construction and zinc plating, the fitting is compatible with a wide range of hydraulic oils, lubricants, and pneumatic fluids. Specific chemical compatibility should always be verified against the fluid's material safety data sheet (MSDS) and component specifications for highly aggressive or specialized fluids.

Industry Standards and Compliance

Compliance with JIC and SAE specifications underscores the reliability and interchangeability of this fitting. The JIC standard (Joint Industry Council) and SAE (Society of Automotive Engineers) J514 standard for 37-degree flared fittings ensure that this connector meets universally recognized dimensions, material properties, and performance criteria. This adherence to standards guarantees compatibility with other JIC-compliant components from various manufacturers, simplifying system design, maintenance, and parts procurement. Furthermore, it signifies that the fitting has undergone rigorous design and testing processes to ensure its fitness for purpose in critical fluid power applications, providing engineers and operators with confidence in its performance and safety.

Applications

The Male Connector 1 Inch Tube O.D. To 1 Inch Male Pipe Thread is a versatile component essential in numerous applications across diverse industries:

• Heavy Equipment: Used in construction machinery (excavators, loaders), agricultural equipment (tractors, harvesters), and mining equipment for hydraulic line connections.
• Industrial Machinery: Integral in manufacturing plants for connecting hydraulic power units to actuators, presses, and other production equipment.
• Hydraulic Power Units (HPUs): Serves as a critical interface for connecting high-pressure tubing from pumps to control valves and manifolds.
• Pneumatic Systems: While primarily known for hydraulics, JIC fittings can also be used in high-pressure pneumatic applications where robust sealing is required.
• Transportation: Found in commercial vehicles, trucks, and buses for hydraulic brake lines, power steering systems, and other fluid transfer applications.
• Marine Applications: Utilized in shipbuilding and marine systems for hydraulic steering, winches, and engine components, where corrosion resistance is paramount.
• Fluid Transfer and Process Control: Applicable in various process industries for connecting lines within instrumentation, sampling systems, and general fluid transfer lines.

Its straight configuration and ability to transition between JIC and NPT interfaces make it an indispensable component for plumbing complex fluid circuits, connecting rigid tubing runs to threaded ports on pumps, cylinders, valves, and various system components.

Installation and Maintenance Best Practices

Proper installation is paramount to achieving the full performance potential and ensuring the longevity of this Male Connector. For the JIC flare connection:

• Tube Preparation: Ensure the 1-inch O.D. tube end is cleanly cut, deburred, and properly flared to a precise 37-degree angle, free of defects.
• Lubrication: Lightly lubricate the threads of the JIC nut and the sealing surfaces of the flare with a compatible hydraulic oil or thread lubricant to prevent galling and ensure proper torque application.
• Assembly: Insert the flared tube end into the male JIC fitting, ensuring the sleeve is correctly positioned. Hand tighten the JIC nut, then use a wrench to apply the recommended torque. Avoid overtightening, which can deform the flare, or undertightening, which can lead to leaks.

For the NPT pipe thread connection:

• Thread Sealant: Apply an appropriate thread sealant (e.g., PTFE tape or liquid pipe dope) to the male NPT threads of the connector. Wrap PTFE tape clockwise, starting two threads back from the end. Apply liquid sealant evenly to the threads.
• Tightening: Thread the connector into the female NPT port until hand tight, then use a wrench to tighten to the manufacturer's recommended torque. NPT connections rely on controlled tightening to create the wedge seal; excessive force can crack components or distort threads.

Regular inspection of connections for leaks, signs of corrosion, or damage is recommended, especially in high-vibration or high-pressure applications. Retorquing may be necessary after initial system operation to account for any material seating or relaxation.

Quality Assurance and Manufacturing Excellence by Buyers Products

Buyers Products maintains a stringent commitment to quality and manufacturing excellence, ensuring that each Male Connector meets exacting standards. From the careful selection of high-grade carbon steel to the precision machining and robust zinc plating process, every step of production is meticulously controlled. Advanced quality control protocols, including dimensional checks, material composition verification, and pressure testing, are implemented to guarantee that the fittings consistently perform to JIC and SAE specifications. This dedication to quality translates into superior product reliability, reduced downtime, and enhanced safety for all applications where these fittings are deployed.

Conclusion

The Male Connector 1 Inch Tube O.D. To 1 Inch Male Pipe Thread represents a high-performance, technically superior solution for demanding fluid power interconnection requirements. Its combination of rugged carbon steel construction, advanced zinc plating for corrosion resistance, and precision-engineered JIC 37-degree flare and NPT thread interfaces ensures maximum pressure capability, leak-free operation, and long-term durability. Conforming to critical JIC and SAE standards, this fitting offers engineers and operators a reliable, interchangeable component for seamlessly integrating 1-inch O.D. tubing into NPT-ported systems across a wide spectrum of industrial and mobile applications. Its straight design optimizes fluid flow, while the robust 3-piece flare sealing mechanism and tapered NPT thread provide exceptional resistance to vibration and maintain integrity under harsh operating conditions. Choosing this Buyers Products connector means investing in a foundation of reliability and performance for your critical fluid power infrastructure.
