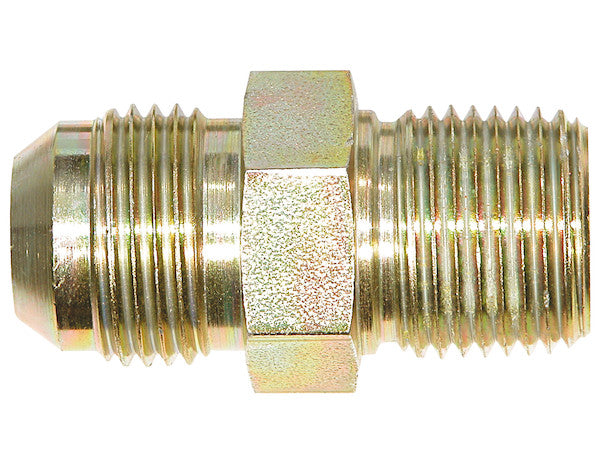

The Male Connector is part of the Buyers Products line of JIC 37-degree flare tube fittings. The fittings feature tough carbon steel construction, 3 piece flare sealing for a tight, secure connection, and a corrosion-resistant zinc finish. Fitting conforms to JIC and SAE specifications. Buyers Products tube fittings are used with copper, brass, steel, aluminum and other tubing that can be flared. They are rated at up to 10,000 PSI depending on tube size.
Specifications
| Finish | Zinc Plated |
|---|---|
| Material | Carbon Steel |
| Shape | Straight |
| Side 1 | 1/2 JIC (-8) |
| Side 2 | 3/8 NPT |
| Style | MM |
The Male Connector, precisely engineered for robust fluid transfer applications, serves as a critical interface for transitioning between distinct hydraulic connection standards. Specifically designed to integrate a 1/2 inch Outer Diameter (O.D.) tube utilizing a JIC 37-degree flare connection with a 3/8 inch Male National Pipe Taper (NPT) threaded port, this component exemplifies precision, durability, and interoperability within demanding industrial environments. As a cornerstone of the Buyers Products JIC 37-degree flare tube fitting series, it offers a reliable and standardized solution for complex hydraulic and pneumatic systems.
The primary function of this straight male connector is to provide a secure and leak-free conduit for fluid power systems. Its 'straight' configuration minimizes flow path resistance, contributing to optimal system efficiency by reducing turbulence and pressure drop. The "MM" style designation further clarifies its male-to-male threading nature, ensuring compatibility with female JIC flare tube assemblies and female NPT ports. This configuration is widely utilized in applications requiring direct connection from a flared tube line to a component featuring an NPT female port, such as pumps, valves, cylinders, or hydraulic manifolds.
At the core of this connector's design is its adherence to the JIC (Joint Industry Council) 37-degree flare standard. JIC fittings are recognized globally for their robust performance in high-pressure hydraulic applications, providing a mechanically strong and reliable metal-to-metal seal. The 37-degree flare system creates a conical mating surface, where the flared end of a tube (typically cold-formed by a flaring tool) is compressed against the conical seat of the fitting body. This compression, facilitated by a JIC flare nut and often a sleeve (though the connector body itself forms one part of the 3-piece system), establishes a positive seal capable of withstanding significant pressure, vibration, and thermal cycling. The advantages of the JIC 37-degree flare system include its excellent resistance to vibration fatigue, reusability of the connection for maintenance, and its ease of assembly and disassembly in the field. The 1/2 inch Tube O.D. specification, indicated as 1/2 JIC (-8) in the specifications, precisely defines the size of the tube this end is designed to accommodate. The "-8" dash size is a standard industry notation signifying a 8/16 inch, or 1/2 inch, tube O.D., ensuring precise fitment and system integrity.
The opposing end of this male connector features a 3/8 inch Male NPT thread. NPT (National Pipe Taper) is a widely adopted standard in North America for threaded connections on pipes and fittings. Characterized by its tapered thread profile, an NPT connection seals through metal-to-metal interference as the male and female threads are tightened. This mechanical interference creates a strong frictional seal, which is further enhanced and made leak-proof by the application of thread sealant (such as PTFE tape or pipe dope). The tapered design ensures that as the threads engage, the crests and roots of the threads deform slightly, creating a tight seal. Unlike parallel threads which often require an O-ring or gasket for sealing, NPT relies on this inherent taper and deformation. The 3/8 NPT male thread on this connector is precisely manufactured to comply with industry standards, guaranteeing compatibility and a secure seal when mated with a corresponding 3/8 NPT female port. The choice of NPT for this connection side underscores its versatility for interfacing with a broad range of industrial components and systems that commonly utilize this robust and proven threading standard for pressure-tight connections.
Material selection is paramount for the longevity and performance of hydraulic fittings, and this connector is constructed from high-quality carbon steel. Carbon steel is highly favored in the fluid power industry due to its exceptional mechanical properties, including high tensile strength, excellent fatigue resistance, and superior hardness. These characteristics enable the fitting to withstand the rigorous demands of high-pressure hydraulic circuits, providing structural integrity and resistance to deformation under constant dynamic loads. The inherent toughness of carbon steel ensures that the fitting maintains its structural form and sealing capabilities even in harsh operating conditions, where extreme pressures and mechanical stresses are commonplace. Its ability to absorb and distribute stress effectively contributes significantly to the overall reliability and safety of the hydraulic system.
To further enhance the durability and operational lifespan of the carbon steel construction, the entire fitting undergoes a corrosion-resistant zinc plating process. Zinc plating provides a sacrificial barrier against environmental corrosion, effectively preventing the underlying carbon steel from oxidizing or rusting. When exposed to corrosive elements, the zinc layer preferentially corrodes, protecting the base material. This protective finish is crucial in industrial environments where fittings may be exposed to moisture, chemicals, salt spray, and other corrosive agents. The zinc finish not only extends the product's service life by delaying the onset of rust but also maintains the aesthetic integrity of the component over time, facilitating easier identification and maintenance. This adherence to high-quality surface treatment reflects a commitment to delivering components that perform reliably in challenging operational settings and require minimal maintenance, thus reducing total cost of ownership.
Conformance to JIC and SAE (Society of Automotive Engineers) specifications is a definitive testament to the quality, interchangeability, and performance reliability of this male connector. JIC standards, particularly J514, govern the design and dimensional characteristics of 37-degree flared fittings, ensuring that fittings from different manufacturers are interoperable and adhere to strict performance criteria. SAE, a global association of engineers and technical experts, develops and publishes technical standards across various industries, including fluid power. Adherence to SAE standards in hydraulic fittings guarantees that the product meets or exceeds established benchmarks for material composition, manufacturing tolerances, pressure ratings, and environmental performance. This dual certification signifies that the connector is engineered and manufactured to stringent industry requirements, assuring users of its consistent quality, safe operation, and compatibility within diverse hydraulic systems. Such standardization simplifies design, procurement, and maintenance processes, fostering global acceptance and reliability.
The performance capabilities of this Male Connector are robust, designed to operate effectively under severe conditions. It is rated at up to 10,000 PSI (pounds per square inch), contingent upon the specific tube size and material utilized in the assembly. This impressive pressure rating underscores its suitability for high-pressure hydraulic applications, which are common in heavy machinery, industrial presses, and complex control systems. It is critical for system designers and installers to consider the weakest link in any fluid power circuit; thus, while the fitting itself is rated for high pressure, the overall system's maximum operating pressure will be determined by the lowest rated component, including the tubing itself. Factors such as tube material (e.g., steel vs. copper), tube wall thickness, operating temperature, and the quality of the flare and installation directly influence the actual achievable working pressure. Beyond pressure, the robust carbon steel construction and zinc plating allow for a broad operational temperature range, typically suitable for common hydraulic fluids, usually from -40°F to 250°F (-40°C to 121°C), ensuring stable performance across varying climatic and operational conditions. The straight configuration of the connector is also beneficial for fluid flow dynamics, minimizing restrictions and pressure losses, which is critical for maintaining system efficiency and responsiveness, especially in high-flow applications.
The versatility of this fitting extends to its compatibility with a wide array of tubing materials. It is engineered to perform reliably with copper, brass, steel, aluminum, and other tubing materials that are suitable for flaring. This broad material compatibility makes the connector an indispensable component in diverse applications, from light-duty instrumentation lines (copper, brass) to heavy-duty hydraulic power transmission (steel). The consistent performance across different tubing types is a testament to the precise manufacturing tolerances and the effective sealing mechanism of the JIC 37-degree flare system.
The applications for this Male Connector are extensive and span numerous industries. In **heavy machinery** and **construction equipment**, it facilitates the connection of hydraulic lines for actuators, motors, and control valves, enduring the high pressures and vibrations inherent to these environments. **Agricultural machinery** relies on such fittings for hydraulic steering, lifting, and power take-off systems. Within **industrial manufacturing and automation**, these connectors are integral to hydraulic presses, robotic systems, and assembly lines where precise and powerful fluid power is required. They are also found in **transportation systems**, including commercial vehicles and railway equipment, for braking, suspension, and steering hydraulics. Even in some specialized **marine applications**, where robust and corrosion-resistant connections are critical, these fittings can be employed. Their reliability makes them a preferred choice for system designers seeking high-integrity connections.
Proper installation and maintenance are crucial to maximizing the performance and lifespan of this fitting. For the JIC end, precise flaring of the tubing is essential to achieve a leak-proof seal. The flare must be concentric, free of nicks or burrs, and dimensionally accurate to mate perfectly with the fitting's 37-degree cone. Over-tightening or under-tightening the flare nut can lead to premature failure or leakage, necessitating adherence to recommended torque specifications, often provided by the tube fitting manufacturer or established industry guidelines. For the NPT end, the application of an appropriate thread sealant (e.g., PTFE thread tape or liquid pipe sealant) is mandatory to ensure a pressure-tight seal, as the tapered threads alone may not provide complete sealing. Care must be taken to apply sealant correctly, avoiding excessive amounts that could contaminate the fluid system. Regular visual inspections for signs of corrosion, leaks, or mechanical damage are recommended. Should replacement be necessary, ensuring the new fitting matches the exact specifications of the original is vital for maintaining system integrity and performance. Adhering to these best practices guarantees the optimal functionality and safety of the fluid power system.
In summary, this Male Connector represents a superior solution for critical fluid power connections, combining the strengths of JIC 37-degree flare technology with the ubiquitous NPT threading standard. Its robust carbon steel construction, safeguarded by a durable zinc plating, ensures longevity and resistance in harsh industrial settings. Designed for high-pressure applications up to 10,000 PSI and compatible with various tubing materials, this straight connector provides a reliable, leak-free, and efficient pathway for fluid transfer. Adherence to JIC and SAE standards further solidifies its position as a trusted component in diverse hydraulic and pneumatic systems, offering designers and engineers a dependable choice for ensuring the integrity and performance of their most demanding applications.
