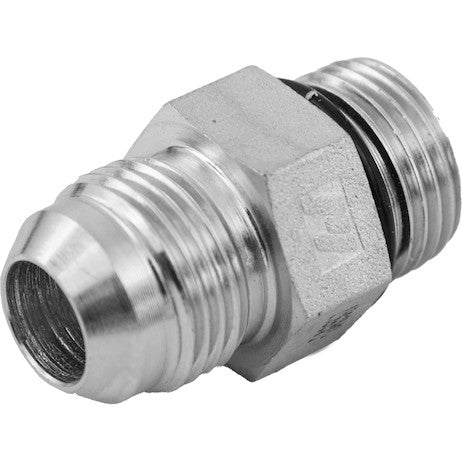

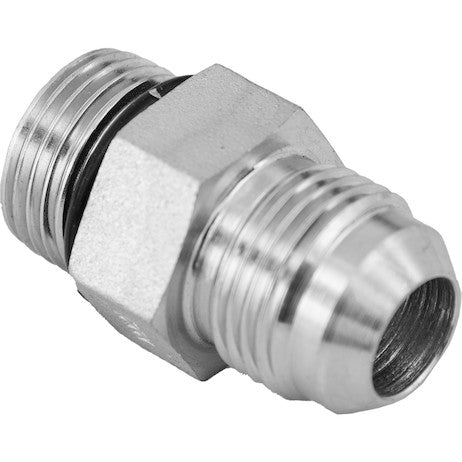

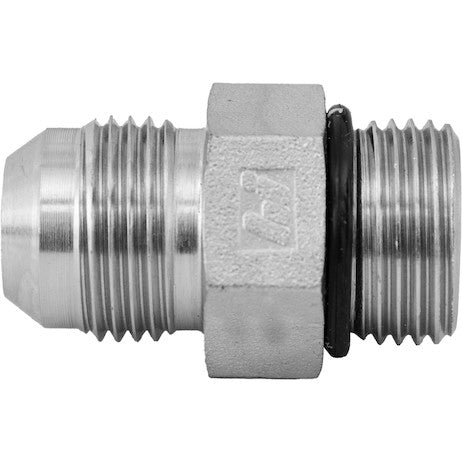

The Straight Thread O-Ring Connector is part of the Buyers Products line of JIC 37-degree flare tube fittings. The fittings feature tough carbon steel construction, 3 piece flare sealing for a tight, secure connection, and a corrosion-resistant zinc finish. Fitting conforms to JIC and SAE specifications. Buyers Products tube fittings are used with copper, brass, steel, aluminum, and other tubing that can be flared. They are rated at up to 10,000 PSI depending on tube size.
Specifications
| Finish | Zinc Plated |
|---|---|
| Material | Carbon Steel |
| Shape | Straight |
| Side 1 | 5/8 JIC (-10) |
| Side 2 | 5/8 SAE ORB (-10) |
| Style | MM |
Technical Overview: Straight Thread O-Ring Connector for High-Pressure Hydraulic Systems
The Straight Thread O-Ring Connector, specifically designed for a 5/8 Inch Tube O.D. to 5/8 Inch Port Size, represents a critical component within hydraulic and fluid transfer systems. Manufactured by Buyers Products, this fitting embodies a commitment to durability, reliability, and precision engineering. As a core element of the JIC 37-degree flare tube fittings family, it is engineered to facilitate secure, leak-proof connections in demanding operational environments. This detailed technical description will elaborate on the design principles, material science, standardization, and application benefits of this essential hydraulic connector, providing a comprehensive understanding for engineers, technicians, and system integrators.
Advanced Sealing Technology: JIC 37-Degree Flare and SAE O-Ring Boss (ORB)
This particular connector uniquely integrates two distinct yet highly effective sealing technologies: the JIC 37-degree flare on one end and the SAE O-Ring Boss (ORB) on the other. This dual-standard design allows for versatile integration into complex hydraulic circuits where robust, standardized connections are paramount.
JIC 37-Degree Flare Connection: Precision and Reliability
The JIC (Joint Industry Council) 37-degree flare fitting is a widely recognized and utilized standard in hydraulic systems across North America and beyond, primarily governed by SAE J514. Its enduring popularity stems from its fundamental design, which offers exceptional reliability under high-pressure and vibration conditions. The "37-degree" refers to the angle of the sealing surface, created when the end of a tube is flared outwards to match the male cone of the fitting. This mechanical deformation of the tube against the fitting’s cone forms a metal-to-metal seal.
The sealing mechanism of a JIC fitting, as highlighted by its "3 piece flare sealing" attribute, typically involves three primary components: the fitting body, the flare nut, and the sleeve (or ferrule). While some modern JIC designs integrate the sleeve into the flare nut, the fundamental principle remains. The tube is first flared to the precise 37-degree angle. The flare nut, pre-slipped over the tube, then engages with the fitting body’s threads. As the nut is tightened, it compresses the flared end of the tube against the conical seat of the fitting body, creating a robust, pressure-tight seal. The sleeve, if present, acts as a reinforcing collar, preventing excessive deformation or shear of the flared tube end, particularly important during high-pressure pulsations or vibration. For the 5/8 inch tube O.D. connection, this translates to a meticulously formed flare capable of withstanding significant internal pressures, ensuring the integrity of the hydraulic line.
The inherent advantages of JIC connections include their reusability, provided the flare and mating surfaces remain undamaged, and their relatively simple installation process compared to welded connections. The standardization ensured by JIC (SAE J514) means components from different manufacturers are interchangeable, simplifying system design, maintenance, and parts procurement.
SAE O-Ring Boss (ORB) Connection: Superior Leak Prevention
On the opposing side, this connector features an SAE O-Ring Boss (ORB) port, specified as a 5/8 SAE ORB (-10) connection. The ORB system, standardized under SAE J1926/ISO 11926, is renowned for its superior leak-prevention capabilities, particularly in comparison to traditional tapered pipe threads (NPT/NPTF). Unlike metal-to-metal seals or thread interference seals, the ORB connection relies on a captive O-ring for its primary sealing mechanism.
The design consists of a straight, un-tapered thread on the male connector (the fitting itself) and a corresponding straight threaded port. Crucially, at the base of the male connector's thread, there is a machined groove designed to house an elastomeric O-ring. When the male connector is threaded into the female port, the O-ring is compressed into a chamfered seat within the female port, creating a positive, face-seal. This compression of the O-ring against the flat sealing surface provides a robust, zero-leak seal that is highly effective even under dynamic pressure conditions, thermal cycling, and vibration.
For a -10 SAE ORB connection, while often nominally referred to as 5/8 inch for flow size equivalence, the actual thread specification is a 7/8-14 UNF thread (Unified National Fine thread). The "dash size" of -10 indicates a specific nominal tube O.D. or fluid passage size, and corresponds to the 7/8 inch nominal thread diameter with 14 threads per inch, fine series. This distinct thread form, coupled with the O-ring, significantly reduces the risk of leakage associated with galling or insufficient thread engagement common in tapered pipe threads. The straight threads eliminate the need for thread sealants, simplifying assembly and disassembly, and preventing potential contamination of the hydraulic fluid from sealant fragments.
The reusability of ORB connections is also a significant advantage, as the O-ring can be easily replaced, restoring the seal's integrity without damaging the fitting or port threads. This makes ORB connections ideal for systems requiring frequent maintenance or component changes.
Material Science: Carbon Steel Construction with Zinc Plating
The choice of material and surface treatment is fundamental to the performance and longevity of hydraulic fittings. This connector is constructed from "tough carbon steel" and finished with a "corrosion-resistant zinc finish," attributes that are critical for its intended applications.
High-Strength Carbon Steel
Carbon steel is the material of choice for the majority of high-pressure hydraulic fittings due to its exceptional mechanical properties. It offers an optimal balance of tensile strength, yield strength, and ductility, allowing it to withstand the immense pressures (up to 10,000 PSI depending on tube size, as specified) and dynamic loads inherent in hydraulic systems without fracturing or deforming. The ability of carbon steel to resist fatigue under cyclic pressure applications is paramount for the long-term reliability of fluid power circuits. Its inherent toughness ensures that the fitting can endure external impacts and operational stresses, contributing to the overall safety and structural integrity of the hydraulic assembly. Furthermore, carbon steel is cost-effective, making it a practical choice for widespread industrial use.
Corrosion-Resistant Zinc Plating
While carbon steel provides structural integrity, it is susceptible to oxidation and corrosion, especially in harsh or humid environments. To mitigate this, the fitting is treated with a "corrosion-resistant zinc finish" (zinc plated). Zinc plating serves as a sacrificial coating, meaning that in the presence of an electrolyte (like moisture), the zinc preferentially corrodes, protecting the underlying steel from rust. This passivation layer significantly extends the service life of the fitting, maintaining its aesthetic appearance and, more importantly, preserving its dimensional accuracy and sealing surfaces over time.
Zinc plating, often followed by a chromate conversion coating (e.g., clear, yellow, or black chromate), enhances corrosion resistance further by sealing the porous zinc layer and increasing its passive film stability. This protective finish is crucial for applications exposed to outdoor elements, corrosive fluids, or industrial atmospheres, ensuring reliable operation and reducing maintenance frequency and costs associated with premature material degradation.
Dimensional Precision and Standardization
The specific dimensions of 5/8 Inch Tube O.D. and 5/8 Inch Port Size, combined with the "MM" (Male-Male) style, are central to the connector's function and interchangeability.
5/8 Inch Tube O.D. (-10 JIC)
The "5/8 Inch Tube O.D." refers to the outer diameter of the tubing with which the JIC end of the fitting is designed to interface. In the hydraulic industry, this is commonly referred to by a "dash size," where -10 corresponds to 10/16 or 5/8 of an inch. This standardization ensures that when a -10 JIC fitting is specified, it will precisely match a 5/8 inch O.D. tube, facilitating proper flaring and connection. The JIC 37-degree flare standard ensures that the connection is dimensionally consistent across manufacturers, promoting ease of assembly and maintenance.
5/8 Inch Port Size (-10 SAE ORB)
The "5/8 Inch Port Size" on the SAE ORB side also relates to the -10 dash size. As previously detailed, while nominally 5/8 inch for line size, the actual thread dimension for a -10 ORB port is 7/8-14 UNF. This precise thread specification, combined with the O-ring boss design, guarantees a consistent, high-integrity connection with corresponding female ORB ports found on valves, pumps, cylinders, or manifolds. The "straight" shape of the connector means it provides a direct, inline fluid path, minimizing flow restriction and turbulence.
"MM" (Male-Male) Style Configuration
The "Style: MM" designation indicates that this is a Male-Male connector. This means both ends of the fitting have external threads and sealing surfaces (a male JIC flare and a male SAE ORB thread with an O-ring boss). This configuration is ideal for directly connecting a flared tube to a female ORB port, or for adapting between a male JIC line and a female ORB port on a component. Its straight form factor is optimal for applications requiring a direct, unobstructed connection point without any directional change.
Operating Parameters: Pressure Rating and Tubing Compatibility
The specified pressure rating of "up to 10,000 PSI depending on tube size" and compatibility with various tubing materials underscore the connector's versatility and robustness.
High-Pressure Capability
A rating of up to 10,000 PSI signifies that this connector is suitable for extremely high-pressure hydraulic systems, typical in heavy machinery, industrial presses, and specialized testing equipment. The exact maximum working pressure for any given assembly is determined by the weakest link in the system, which includes the tubing material, wall thickness, and the specific design of the fitting. The robust carbon steel construction and the inherently strong JIC flare and ORB O-ring seals are engineered to collectively withstand these extreme forces. Adherence to proper installation procedures, including correct flaring and torque specifications, is critical to achieving and maintaining these high-pressure ratings safely.
Broad Tubing Compatibility
The fitting's compatibility with "copper, brass, steel, aluminum, and other tubing that can be flared" highlights its broad utility. This compatibility is crucial in environments where different tubing materials are selected based on specific application requirements such as flexibility, corrosion resistance, weight, or cost. Steel tubing (carbon or stainless) is common for high-pressure, heavy-duty hydraulic lines. Copper and brass are often used for lower-pressure applications, instrumentation lines, or where corrosion resistance is a factor. Aluminum tubing offers a lightweight alternative where weight is a concern. The critical factor is that the tubing must be capable of being flared to the precise 37-degree angle required for the JIC connection without cracking or excessive work hardening, ensuring a durable, leak-proof seal.
Applications and Industry Relevance
Given its technical specifications, this Straight Thread O-Ring Connector is indispensable across a wide spectrum of industries and applications requiring reliable fluid conveyance:
- Mobile Hydraulics: Essential in construction equipment (excavators, loaders), agricultural machinery (tractors, harvesters), and heavy-duty trucks, where high pressures, vibration, and environmental exposure are common.
- Industrial Hydraulics: Integral to manufacturing plants, automation systems, machine tools, and hydraulic presses, providing critical connections for power transmission and control.
- Marine Applications: Used in marine vessels and offshore platforms for steering, propulsion, and auxiliary systems, benefiting from the zinc plating's corrosion resistance in saline environments.
- Oil and Gas: Employed in exploration, drilling, and processing equipment, where robust, high-pressure, and leak-proof connections are non-negotiable for safety and operational efficiency.
- Material Handling: Found in forklifts, cranes, and other lifting equipment, ensuring the safe and reliable operation of hydraulic cylinders and motors.
- Heavy Equipment Manufacturing: Utilized by OEMs to build robust and reliable hydraulic systems for their machinery.
Its dual-standard design (JIC to ORB) is particularly valuable in systems that interface with components from various manufacturers or integrate legacy JIC lines with modern ORB-equipped components, offering flexible system design and maintenance.
Installation Best Practices and Maintenance Considerations
Optimal performance and longevity of the Straight Thread O-Ring Connector depend significantly on correct installation and diligent maintenance.
- Tubing Preparation: For the JIC flare side, the tubing must be cut squarely, deburred thoroughly, and flared accurately to a 37-degree angle using appropriate tooling. Any imperfections in the flare can compromise the seal.
- O-Ring Inspection and Lubrication: For the ORB side, the O-ring should always be inspected for cuts, nicks, or signs of degradation before installation. It is advisable to lightly lubricate the O-ring with a compatible hydraulic fluid to ensure proper seating and prevent twisting during assembly, which could lead to leaks.
- Torque Specifications: Adhering to manufacturer-recommended torque specifications is paramount for both JIC and ORB connections. Over-tightening can deform the flare or crush the O-ring, while under-tightening can result in leaks. Using a calibrated torque wrench is highly recommended.
- Cleanliness: Maintaining scrupulous cleanliness throughout the installation process is vital. Contaminants can score sealing surfaces, damage O-rings, or introduce particulate matter into the hydraulic system, leading to component wear and system failure.
- Routine Inspection: Regular inspection of hydraulic connections for signs of leakage, corrosion, or mechanical damage is essential for preventative maintenance. Prompt replacement of worn O-rings or damaged fittings can prevent costly system downtime.
Conclusion
The Straight Thread O-Ring Connector, 5/8 Inch Tube O.D. to 5/8 Inch Port Size, from Buyers Products, stands as a testament to precision engineering and robust manufacturing. Its integration of JIC 37-degree flare and SAE O-Ring Boss technologies, combined with tough carbon steel construction and corrosion-resistant zinc plating, makes it an indispensable component for high-performance hydraulic systems. Conforming to critical JIC and SAE specifications, this fitting guarantees interchangeability, reliability, and superior leak prevention across a multitude of demanding industrial and mobile applications. Its capability to handle pressures up to 10,000 PSI and compatibility with diverse tubing materials underscore its versatility and value. For engineers and technicians seeking uncompromising quality and secure fluid conveyance, this connector provides a dependable and efficient solution, ensuring the integrity and longevity of hydraulic circuits.
