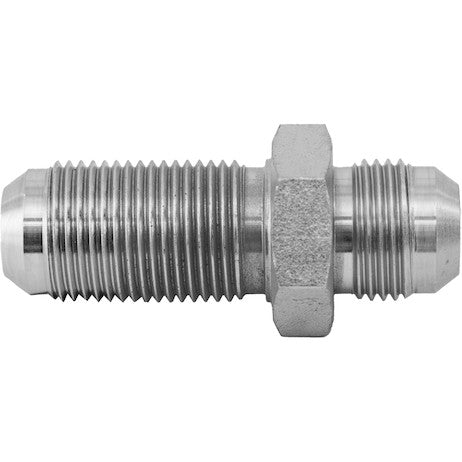

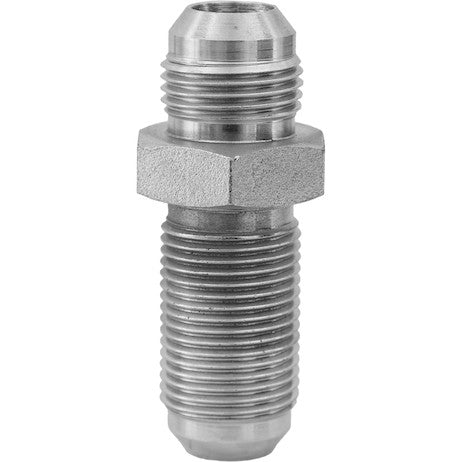

The Bulkhead Union is part of the Buyers Products line of JIC 37 degree flare tube fittings. The fittings feature tough carbon steel construction, 3 piece flare sealing for a tight, secure connection, and a corrosion-resistant zinc finish. Fitting conforms to JIC and SAE specifications. Buyers Products tube fittings are used with copper, brass, steel, aluminum, and other tubing that can be flared. They are rated at up to 10,000 PSI depending on tube size.
Specifications
| Finish | Zinc Plated |
|---|---|
| Material | Carbon Steel |
| Shape | Bulkhead |
| Side 1 | 5/8 JIC (-10) |
| Side 2 | 5/8 JIC (-10) |
| Style | MM |
Advanced Technical Overview: Bulkhead Union for 5/8 Inch O.D. Tubing
The Buyers Products Bulkhead Union, specifically designed for 5/8 inch outer diameter (O.D.) tubing, represents a critical component in the construction of robust and reliable hydraulic and fluid transfer systems. Engineered to meet the rigorous demands of industrial and mobile applications, this fitting embodies precision, durability, and adherence to established industry standards. This comprehensive description delves into the technical specifications, functional advantages, and operational considerations that distinguish this particular bulkhead union within the broader landscape of hydraulic connectivity solutions.
Functional Design and Purpose of a Bulkhead Union
A bulkhead union serves the specialized function of connecting two sections of tubing through a panel, wall, or bulkhead, maintaining the integrity of the fluid path while providing structural support for the tubing as it passes from one compartment or side to another. This design is paramount in applications where hydraulic lines must traverse enclosures, chassis, or structural partitions, isolating different operational zones while facilitating fluid communication. The Bulkhead Union for 5/8 inch O.D. tubing achieves this by incorporating an extended body section, typically threaded, that secures the fitting to the panel using a lock nut. This not only anchors the tubing firmly but also prevents chafing and potential damage to the lines at the point of penetration, a common vulnerability in unprotected passthroughs. The dual-sided JIC 37-degree flare connections ensure that both ends of the union provide an identical, high-performance sealing interface for the respective tubes.
The JIC 37-Degree Flare System: A Pillar of Hydraulic Reliability
At the core of this Bulkhead Union's design is its utilization of the JIC (Joint Industry Council) 37-degree flare system, a widely adopted standard for medium to high-pressure fluid power applications. This system is defined by SAE J514 and ISO 8434-2, ensuring global interchangeability and consistent performance. The JIC connection comprises three primary components: the fitting body (in this case, the union itself), a tube nut, and the flared end of the tube. The tube is flared to a precise 37-degree conical shape, which then mates with a corresponding 37-degree conical seat machined into the fitting body. As the tube nut is tightened over the tube, it draws the flared tube end firmly against the fitting's seat, creating a metal-to-metal seal. The 3-piece flare sealing mechanism highlighted in the product's specifications refers to the tube nut, the sleeve (or ferrule), and the fitting body. While many JIC connections are two-piece (nut and body), the inclusion of a sleeve, often used with harder tubing, provides additional benefits by absorbing vibration and preventing the tube from twisting during tightening, thereby enhancing the seal's longevity and reliability, especially in dynamic environments. The 37-degree angle is strategically chosen for its optimal balance between sealing effectiveness and material stress, allowing for a robust, reusable, and leak-resistant connection capable of withstanding significant operational pressures and vibrations.
Material Science: Carbon Steel and Zinc Plating for Unyielding Performance
The selection of carbon steel as the primary material for this Bulkhead Union underscores a commitment to structural integrity and operational longevity. Carbon steel is highly valued in hydraulic applications for its exceptional tensile strength, yield strength, and fatigue resistance. These properties are critical for fittings subjected to high internal pressures, dynamic loads, and mechanical stresses inherent in hydraulic systems. The material's inherent hardness resists deformation under clamping forces and the repeated stresses of pressure cycling, ensuring the conical seat maintains its precise geometry for consistent sealing performance. Furthermore, carbon steel offers good machinability, allowing for the precise manufacturing of the 37-degree flare seat and threads, which are paramount for proper sealing and assembly.
To augment the intrinsic properties of carbon steel, the Bulkhead Union features a corrosion-resistant zinc finish. Zinc plating acts as a sacrificial coating, providing galvanic protection to the underlying carbon steel. In the presence of an electrolyte (such as moisture), the zinc preferentially corrodes, protecting the steel from rust and oxidation. This protective layer significantly extends the operational lifespan of the fitting, particularly in challenging environments where exposure to humidity, chemicals, or abrasive substances is common. The zinc finish also contributes to a cleaner appearance and provides a degree of lubricity during assembly, aiding in proper torque application and reducing thread galling. The robust nature of this coating ensures that the fitting maintains its structural and aesthetic integrity even after prolonged exposure to harsh conditions.
Precision in Sizing: The 5/8 Inch Tube O.D. Designation (-10 JIC)
The designation "5/8 Inch Tube O.D." precisely defines the intended application for this bulkhead union, corresponding to a nominal dash size of -10 in the JIC standard. In hydraulic sizing conventions, the dash number often correlates to the tube's outer diameter in sixteenths of an inch. Thus, -10 signifies 10/16 inch, which simplifies to 5/8 inch. This standardized sizing ensures compatibility with 5/8 inch O.D. tubing, as well as with other -10 JIC components such as hoses, adapters, and valves. The internal bore of the fitting is meticulously designed to match the flow characteristics suitable for 5/8 inch tubing, minimizing pressure drops and turbulence, which are crucial for maintaining system efficiency and preventing cavitation. For a 5/8 inch tube, typical applications might involve moderate flow rates and pressures, bridging the gap between smaller instrumentation lines and larger main hydraulic circuits. Understanding the specific flow area and pressure capabilities associated with this size is vital for hydraulic engineers in system design and component selection, ensuring optimal performance and safety margins.
Adherence to JIC and SAE Specifications: A Guarantee of Quality
Compliance with JIC (Joint Industry Council) and SAE (Society of Automotive Engineers) specifications is not merely a marketing claim but a fundamental assurance of quality, interchangeability, and performance. JIC standards, primarily covered by SAE J514 for Hydraulic Tube Fittings, provide a comprehensive framework for the design, dimensions, materials, and performance requirements of these fittings. Adherence to these standards guarantees that the Buyers Products Bulkhead Union will seamlessly integrate with other JIC-compliant components from various manufacturers, facilitating ease of repair, replacement, and system expansion. SAE J514 specifically dictates critical parameters such as the 37-degree flare angle, thread dimensions (UNF/UNS for JIC fittings), material specifications, and test procedures, ensuring that the fitting meets stringent criteria for pressure integrity, leak resistance, and durability. This commitment to industry standards is vital for maintaining safety, reducing downtime, and simplifying inventory management within complex hydraulic systems.
Versatility Across Tubing Materials and High-Pressure Capabilities
The design flexibility of JIC 37-degree flare fittings, including this Bulkhead Union, allows for its use with a diverse range of tube materials. As stated, it is compatible with copper, brass, steel, aluminum, and other tubing that can be properly flared. Each material offers distinct advantages:
- Copper and Brass: Often used for lower pressure applications, instrumentation lines, or in environments where corrosion resistance is paramount (e.g., marine or plumbing). They are relatively easy to flare.
- Steel (Carbon Steel and Stainless Steel): The most common choice for hydraulic systems due to their high strength and pressure capabilities. Carbon steel offers a good balance of strength and cost, while stainless steel is preferred for corrosive environments or extreme temperatures. Flaring steel tubing requires specialized tools and techniques due to its hardness.
- Aluminum: Chosen for its lightweight properties, often found in aerospace or mobile applications where weight reduction is critical. Requires careful flaring to avoid cracking.
The ability of this Bulkhead Union to connect to various tubing types expands its utility across numerous industrial sectors, enabling engineers to select the optimal tubing material based on specific application requirements for pressure, temperature, chemical compatibility, and environmental factors.
Regarding its pressure rating, the statement "rated at up to 10,000 PSI depending on tube size" highlights the critical relationship between the fitting and the tubing it connects. While the fitting itself is designed for high-pressure service, the ultimate working pressure of an assembly is dictated by the weakest link. For a 5/8 inch O.D. tube, the wall thickness and material properties will significantly influence the pressure it can safely withstand. For example, a heavy-wall seamless steel tube will tolerate much higher pressures than a thin-wall copper tube of the same O.D. Hydraulic engineers must perform calculations based on ASME B31.3 or other relevant pressure piping codes to determine the safe working pressure for the specific tube being used, incorporating appropriate safety factors (typically 4:1 for static pressure and 2:1 for dynamic pressure applications). The 10,000 PSI figure represents the maximum capability of the fitting design itself when paired with adequately robust tubing, positioning this bulkhead union for use in demanding high-pressure hydraulic circuits, such as those found in heavy machinery, industrial presses, and oil & gas equipment, where system reliability under extreme conditions is non-negotiable.
Installation and Maintenance Best Practices
Proper installation is paramount to achieving the advertised performance and longevity of the Bulkhead Union. The process begins with meticulous tube preparation: the tubing must be cut squarely, deburred internally and externally, and thoroughly cleaned to remove any metal shavings or contaminants that could compromise the seal or contaminate the hydraulic fluid. Flaring must be performed using a high-quality, precision flaring tool, ensuring a perfectly concentric, smooth, and crack-free 37-degree flare. Any imperfections in the flare can lead to leakage or premature failure. The tube nut and, if used, the sleeve, are then slipped over the tube, followed by the insertion of the flared tube end into the union body. Initial tightening should be done by hand until snug, followed by wrench tightening to the manufacturer's recommended torque specifications. Overtightening can deform the flare, damage the fitting seat, or strip threads, while undertightening will result in leakage. For bulkhead applications, the lock nut must be tightened securely against the panel to prevent movement and ensure structural stability. Regular inspection of connections for leaks, corrosion, or signs of wear is crucial for preventive maintenance, especially in systems subjected to vibration or pressure cycling. The reusability of JIC fittings means that if a connection needs to be broken for maintenance, it can typically be reassembled without compromising the seal, provided the flared tube end and the fitting seat are in good condition.
Broad Spectrum of Applications
The robust design and adherence to international standards make the 5/8 inch Bulkhead Union an ideal choice for a vast array of industrial and mobile hydraulic applications. Its primary function in routing fluid lines through panels makes it indispensable in:
- Heavy Equipment: Construction machinery, agricultural vehicles, mining equipment, where hydraulic lines frequently pass through chassis components or engine compartments.
- Industrial Machinery: Machine tools, presses, manufacturing equipment, where fluid power is integral and control panels often require through-panel connections.
- Marine and Offshore: Shipboard hydraulic systems, offshore drilling rigs, where durable, corrosion-resistant connections are vital for reliability in harsh saltwater environments.
- Process Control: Chemical processing plants, refineries, and power generation facilities, where fluid sampling lines or control actuation lines need to traverse different zones.
- Transportation: Commercial vehicles, railway systems, and specialized transport applications that utilize hydraulic braking, steering, or auxiliary systems.
Its high-pressure capability further expands its utility into more demanding sectors, ensuring that even under severe operating conditions, fluid integrity is maintained.
Conclusion
The Buyers Products Bulkhead Union for 5/8 Inch Tube O.D. represents a meticulously engineered solution for critical fluid conveyance requirements. Its foundation in the universally recognized JIC 37-degree flare system, combined with high-strength carbon steel construction and a corrosion-resistant zinc finish, guarantees a component that is not only highly durable but also supremely reliable. Adherence to JIC and SAE specifications ensures seamless integration and consistent performance across diverse hydraulic applications. The capability to accommodate various tubing materials and withstand pressures up to 10,000 PSI, when appropriately paired with compatible tubing, underscores its versatility and robust design. For engineers and system integrators seeking a dependable, high-performance bulkhead fitting to ensure the integrity and longevity of their hydraulic and fluid transfer systems, this product offers an optimal combination of technical excellence, standards compliance, and practical utility, making it an indispensable element in modern fluid power design.
