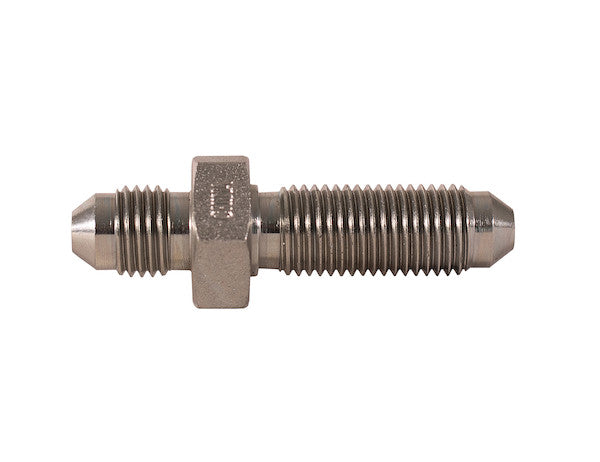

The Bulkhead Union is part of the Buyers Products line of JIC 37 degree flare tube fittings. The fittings feature tough carbon steel construction, 3 piece flare sealing for a tight, secure connection, and a corrosion-resistant zinc finish. Fitting conforms to JIC and SAE specifications. Buyers Products tube fittings are used with copper, brass, steel, aluminum, and other tubing that can be flared. They are rated at up to 10,000 PSI depending on tube size.
Specifications
| Finish | Zinc Plated |
|---|---|
| Material | Carbon Steel |
| Shape | Bulkhead |
| Side 1 | 3/4 JIC (-12) |
| Side 2 | 3/4 JIC (-12) |
| Style | MM |
The Bulkhead Union, designed for a 3/4 Inch Tube O.D., represents a critical component in the secure and efficient routing of fluid power lines through panels, walls, or enclosures. This product, part of the distinguished Buyers Products line, exemplifies precision engineering and robust construction, adhering strictly to industry-recognized JIC 37-degree flare tube fitting standards. Its fundamental purpose is to provide a leak-proof, high-pressure connection that allows a continuous fluid path to traverse a physical barrier, isolating separate operational zones while maintaining hydraulic or pneumatic integrity.
At the core of this fitting’s design is the renowned JIC 37-degree flare system. JIC, or Joint Industry Council, specifications are widely adopted in fluid power applications due to their proven reliability, reusability, and robust sealing mechanism. The "37-degree flare" refers to the angle of the conical sealing surface on both the tube end and the fitting body. When a properly flared tube end is mated with the fitting body and secured by a corresponding flare nut, a metal-to-metal seal is created. This specific Bulkhead Union enhances this fundamental design by incorporating a "3-piece flare sealing" mechanism. This typically refers to the interaction of the flared tube, the flare nut, and the fitting body itself, which collectively form a robust and dependable seal capable of withstanding significant pressure and vibration. The absence of elastomeric seals in the primary connection point means that the sealing performance is less susceptible to temperature extremes, chemical degradation, or aging common with O-rings, thereby offering superior long-term reliability in demanding environments.
Constructed from tough carbon steel, this Bulkhead Union is engineered for exceptional durability and mechanical strength. Carbon steel is the material of choice for countless hydraulic and industrial applications due to its excellent tensile strength, yield strength, and fatigue resistance. These properties are crucial for components subjected to high internal pressures, dynamic loads, and mechanical stresses inherent in fluid power systems. The specific grade of carbon steel utilized is selected to ensure optimal machinability for precise manufacturing processes, resulting in tight tolerances and consistent product quality, while also providing the necessary structural integrity for applications requiring sustained high-pressure operation. This inherent toughness ensures the fitting can endure the rigors of industrial environments, resisting deformation and structural failure over extended periods of service.
Further enhancing the longevity and operational reliability of this fitting is its corrosion-resistant zinc finish. Zinc plating serves as a sacrificial coating, protecting the underlying carbon steel from oxidation and environmental degradation. In the presence of corrosive agents or moisture, the zinc coating preferentially corrodes, thereby preserving the structural integrity of the steel. This barrier protection is vital in hydraulic systems where exposure to moisture, chemicals, or abrasive substances is common. The zinc finish not only extends the service life of the fitting but also maintains its aesthetic appearance and functional performance, reducing the need for premature replacement and minimizing system downtime. The quality of this finish adheres to stringent industry standards, ensuring consistent protection across all surfaces of the fitting.
The Bulkhead Union conforms rigorously to both JIC and SAE (Society of Automotive Engineers) specifications. Adherence to these international standards is paramount in the fluid power industry. JIC standards (such as JIC F-161 for hydraulic tube fittings) and SAE standards (specifically SAE J514 for Hydraulic Tube Fittings) dictate critical parameters including dimensions, thread forms, material properties, pressure ratings, and testing methodologies. By conforming to these specifications, Buyers Products guarantees that this Bulkhead Union is dimensionally interchangeable with other JIC-compliant components from various manufacturers, facilitating ease of integration, repair, and maintenance across diverse hydraulic and pneumatic systems. This standardization eliminates compatibility issues, streamlines procurement, and ensures that the fitting meets universally recognized benchmarks for performance and safety.
One of the key advantages of Buyers Products tube fittings, including this Bulkhead Union, is their versatile compatibility with a wide range of tubing materials. This fitting can be reliably used with copper, brass, steel, aluminum, and other tubing materials capable of being flared. This broad compatibility offers significant flexibility for system designers and installers. Steel tubing (e.g., carbon steel, stainless steel) is typically employed for high-pressure hydraulic applications due to its superior strength. Copper and brass tubing are often preferred for lower-pressure applications, instrumentation lines, or where corrosion resistance and ease of bending are priorities. Aluminum tubing offers advantages in weight-sensitive applications. Regardless of the chosen tubing material, the critical factor for ensuring a secure and leak-free connection with a JIC fitting is the precise and correct formation of the 37-degree flare on the tube end. Proper flaring tools and techniques are essential to create the optimal sealing surface and maintain the integrity of the connection under operational pressures.
The impressive pressure rating of "up to 10,000 PSI depending on tube size" highlights the robust design and engineering of this Bulkhead Union. This high-pressure capability underscores its suitability for demanding hydraulic systems found in heavy machinery, industrial presses, and other high-force applications. It is crucial to understand that the ultimate pressure rating for a complete tubing assembly is a function of multiple interdependent factors, including the material and wall thickness of the tubing itself, the specific operational temperature, the presence of dynamic pressure fluctuations (pressure spikes), and the quality of the installation. While the fitting itself is designed to withstand extreme pressures, the weakest link in the system will determine the maximum safe operating pressure. Therefore, engineers and technicians must always ensure that all components within a fluid power circuit are appropriately rated for the system’s maximum anticipated pressure, incorporating adequate safety factors to prevent catastrophic failure.
Diving deeper into the specific specifications, the "Shape: Bulkhead" is central to this product's utility. A bulkhead fitting is specifically designed to allow fluid lines to pass through a panel or wall, providing a secure and sealed interface. Unlike a standard union, which simply connects two tubes in a straight line, a bulkhead union features an extended threaded body that passes through a pre-drilled hole in a panel, secured on either side by a bulkhead nut. This arrangement mechanically fastens the fitting to the panel, preventing movement and providing strain relief for the connected tubing. It effectively compartmentalizes sections of a hydraulic or pneumatic system, preventing fluid leakage from one side of a barrier to another, and protecting internal components or environments. This functionality is indispensable in complex machinery, control cabinets, and vehicles where clean, organized, and protected routing of fluid lines is critical.
The sizing of this particular fitting is specified as "3/4 JIC (-12)" for both Side 1 and Side 2. The "3/4" refers to the nominal outside diameter (O.D.) of the tubing it is designed to connect. The "(-12)" is a dash size code commonly used in the fluid power industry, which numerically corresponds to the tubing O.D. in sixteenths of an inch (12/16ths = 3/4 inch). This consistent sizing for both sides indicates that it is a direct union, designed to connect two identical 3/4 inch O.D. tubes, each terminated with a male JIC 37-degree flare, across a bulkhead. The "Style: MM" further clarifies this configuration, denoting that the fitting itself provides two connection points that are typically female JIC 37-degree cones, designed to receive male JIC 37-degree flared tube ends. This symmetrical design ensures straightforward installation and consistent flow characteristics.
Proper installation is paramount to achieving the full performance benefits and safety features of this Bulkhead Union. The process begins with meticulous tube preparation: cutting the tube squarely, deburring both the inside and outside edges to eliminate potential stress concentrators and flow obstructions, and then precisely flaring the tube end to the correct 37-degree angle. The integrity of the flare is crucial; it must be free of cracks, scratches, or unevenness. During assembly, the flare nut is slipped over the tube, and the flared end is seated firmly into the fitting body. Tightening the flare nut compresses the flared tube against the 37-degree cone of the fitting, forming the metal-to-metal seal. While torque specifications are available, a common practice involves tightening the nut finger-tight, then applying an additional 1/6 to 1/4 turn with a wrench. Over-tightening can deform the flare or fitting, while under-tightening can lead to leaks. The bulkhead nut, which secures the fitting to the panel, should also be tightened securely to prevent rotation and ensure mechanical stability. Post-installation, a thorough leak check using appropriate methods (e.g., pressure testing, leak detection fluid) is essential before commissioning the system.
The applications for such a robust Bulkhead Union are extensive and diverse across numerous industries. In heavy equipment and construction machinery, they facilitate the routing of hydraulic lines for actuators, motors, and control valves through machine chassis or operator cabins, providing protection from external damage and enhancing aesthetic appeal. In industrial manufacturing and automation, these fittings are crucial for pneumatic and hydraulic systems on production lines, allowing precise control and power transmission across different sections of machinery or through protective enclosures. Marine applications leverage these fittings for fluid lines in engine rooms or control systems, where environmental isolation and corrosion resistance are critical. They are also found in specialized vehicles, agricultural machinery, and power generation equipment, anywhere that high-pressure fluid transfer needs to securely breach a physical barrier while maintaining system integrity and operational safety. The reliability offered by JIC 37-degree flare fittings, combined with the structural advantage of a bulkhead design, makes this component an indispensable choice for engineers seeking dependable fluid conveyance solutions.
In summary, the Buyers Products Bulkhead Union for 3/4 Inch Tube O.D. is a high-performance fluid power component engineered for secure, high-pressure, and reliable connections through panel barriers. Its carbon steel construction, protective zinc finish, and adherence to stringent JIC and SAE standards ensure superior durability and inter-system compatibility. The 3-piece flare sealing mechanism provides a leak-proof, metal-to-metal seal suitable for pressures up to 10,000 PSI, depending on tubing specifics. Its versatility in connecting various tube materials and its specific bulkhead design make it an essential solution for complex hydraulic and pneumatic architectures across a multitude of industrial and mobile applications. This fitting represents a commitment to quality, performance, and long-term operational excellence in fluid power systems.
