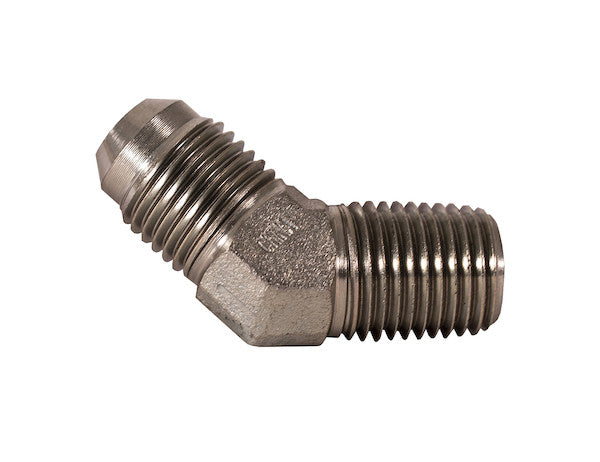

The 45?? Male Elbow is part of the Buyers Products line of JIC 37 degree flare tube fittings. The fittings feature tough carbon steel construction, 3 piece flare sealing for a tight, secure connection, and a corrosion-resistant zinc finish. Fitting conforms to JIC and SAE specifications. Buyers Products tube fittings are used with copper, brass, steel, aluminum, and other tubing that can be flared. They are rated at up to 10,000 PSI depending on tube size.
Specifications
| Finish | Zinc Plated |
|---|---|
| Material | Carbon Steel |
| Shape | 45?? Elbow |
| Side 1 | 1/2 JIC (-8) |
| Side 2 | 3/8 NPT |
| Style | MM |
The 45° Male Elbow, part of the distinguished Buyers Products line of JIC 37-degree flare tube fittings, represents a critical component in fluid transfer systems demanding precision, durability, and leak-proof performance. This meticulously engineered fitting is specifically designed to facilitate a 45-degree change in fluid direction, connecting a 1/2-inch Outer Diameter (O.D.) flared tube to a 3/8-inch Male Pipe Thread (NPT) port. Its construction from robust carbon steel, coupled with a corrosion-resistant zinc finish, ensures unparalleled longevity and operational reliability across a diverse range of industrial, mobile, and agricultural applications. Adhering strictly to both JIC and SAE specifications, this fitting guarantees interchangeability and consistent performance within standardized hydraulic and pneumatic systems.
The strategic selection of a 45-degree elbow, as opposed to a 90-degree counterpart, often serves specific engineering objectives related to minimizing pressure drop, optimizing flow characteristics, and navigating complex spatial constraints within a system layout. A 45-degree bend typically introduces less turbulent flow and therefore a lower head loss compared to a sharper 90-degree turn, which can be critical in systems where maintaining specific flow rates and pressures is paramount. Furthermore, the intermediate angle provides greater flexibility in tubing routing, allowing for smoother transitions and potentially reducing the total number of fittings required in certain configurations. This design choice contributes to a more efficient and less restrictive fluid path, enhancing overall system performance and energy efficiency.
Central to this fitting's design is its integration into the JIC 37-degree flare system. JIC, originally an acronym for the Joint Industry Council and now largely standardized under SAE J514, represents a globally recognized standard for hydraulic tube fittings. The 37-degree flare connection is a precision metal-to-metal sealing mechanism. It operates by cold-forming the end of a tube into a 37-degree cone, which then mates precisely with a corresponding 37-degree cone on the fitting body. A female JIC nut is slid over the tube before flaring and, once tightened, compresses the flared tube end against the male fitting's cone, creating an exceptionally tight and secure seal. This three-part sealing interaction—comprising the flared tube, the JIC male fitting, and the JIC female nut—is celebrated for its superior leak resistance, especially under high-pressure and high-vibration conditions. The 1/2-inch O.D. specification for the tube side corresponds to the -8 dash size in JIC nomenclature, a widely adopted industry convention for designating nominal tube sizes in sixteenths of an inch (i.e., 8/16 = 1/2 inch). This standardized sizing ensures precise compatibility and interchangeability with other JIC components, simplifying system design, maintenance, and parts procurement. The inherent reusability of JIC connections, allowing for repeated assembly and disassembly without compromising seal integrity (provided the flare and fitting surfaces remain undamaged), presents a significant advantage in applications requiring routine servicing or component replacement.
On the opposing end, the fitting features a 3/8-inch Male Pipe Thread, conforming to the National Pipe Taper (NPT) standard. NPT threads are distinctive for their tapered design, where the threads themselves provide the primary seal when tightened. As the male and female tapered threads engage, the flanks of the threads deform slightly, creating a metal-to-metal interference fit that effectively blocks spiral leakage paths. For optimal sealing performance with NPT connections, the application of an appropriate thread sealant—such as PTFE tape or pipe dope—is highly recommended. This sealant fills any microscopic voids between the thread crests and roots, enhancing the leak-proof integrity and providing lubrication for smoother assembly. The 3/8-inch nominal pipe size indicates the approximate inside diameter of the pipe or port to which it connects, rather than a direct measurement of the thread O.D., which adheres to specific NPT dimensional standards. The use of NPT threads is ubiquitous in various industrial sectors, including process control, general plumbing, and instrumentation, due to its robust sealing capability and widespread availability. This dual connection type—JIC flare on one side and NPT thread on the other—renders the 45° Male Elbow an extremely versatile adapter for bridging different fluid conveyance methodologies within a single system.
The material composition of this fitting, specifically tough carbon steel, is a cornerstone of its exceptional performance characteristics. Carbon steel is an alloy primarily composed of iron and carbon, with carbon content typically ranging up to 2.1% by weight. This carefully controlled carbon percentage, along with the presence of other alloying elements in trace amounts, imparts significant mechanical properties crucial for high-pressure fluid applications. Carbon steel exhibits high tensile strength, excellent yield strength, and commendable hardness, making it inherently resistant to deformation under extreme internal pressures and external mechanical stresses. Its robust nature ensures the fitting can withstand the dynamic forces and vibrations often encountered in industrial machinery and mobile hydraulic systems without fracturing or suffering premature fatigue. Furthermore, carbon steel offers a cost-effective solution compared to stainless steel while still delivering superior performance over materials like brass in demanding high-pressure environments. The inherent ductility of carbon steel also allows for precise machining and thread cutting, ensuring the intricate dimensions required for both the JIC flare cone and the NPT threads are consistently met, which is paramount for achieving reliable seals. Its structural integrity under various thermal conditions also contributes to its suitability for a broad operational temperature range, a critical factor in many industrial processes.
To augment the inherent strength of carbon steel and provide critical protection against environmental degradation, the fitting is finished with a corrosion-resistant zinc plating. Zinc plating is a metallurgical process where a thin layer of zinc is applied to the surface of the carbon steel substrate. This coating serves as a sacrificial layer, providing cathodic or galvanic protection. In the presence of moisture and oxygen, zinc preferentially corrodes before the underlying steel, thereby preventing rust and oxidation of the base metal. This significantly extends the operational lifespan of the fitting, especially in environments exposed to humidity, water, or various industrial chemicals that could otherwise accelerate corrosion. Beyond its protective qualities, the zinc finish also contributes to the aesthetic appeal of the fitting, providing a clean, bright appearance that is indicative of a quality industrial component. The adherence to modern plating standards ensures that the zinc coating is uniform, durable, and free from defects that could compromise its protective capabilities. This surface treatment is particularly vital for fittings used in outdoor applications, marine environments, or any setting where moisture and corrosive agents are prevalent, ensuring the integrity of the fluid system is maintained over extended periods.
The "3-piece flare sealing" mentioned in the description refers to the comprehensive mechanism by which the JIC connection achieves its unparalleled seal integrity. While JIC connections are often conceptually understood as two-piece (male fitting and nut), the actual seal is created by the interaction of three distinct elements: the male fitting's 37-degree cone, the precisely flared 37-degree end of the tube, and the JIC nut that applies axial force to compress the flared tube end against the fitting's cone. This intricate interplay ensures a metal-to-metal seal that is both highly reliable and resistant to leakage under dynamic conditions. The quality of this seal is critically dependent on several factors: the concentricity and smoothness of the tube flare, the absence of scratches or imperfections on the sealing surfaces of both the fitting and the flared tube, and the application of the correct torque during assembly. Proper torque ensures sufficient compression without over-stressing the components, which could lead to deformation or premature failure. This sealing methodology is highly effective against pressure pulsations, thermal cycling, and mechanical vibrations, making it a preferred choice in demanding hydraulic and pneumatic applications where system reliability is non-negotiable.
Compliance with JIC and SAE specifications is not merely a label; it represents an assurance of quality, safety, and interchangeability. The JIC standard (specifically SAE J514 for hydraulic tube fittings) dictates precise dimensional tolerances, material requirements, and performance criteria for flare fittings. By conforming to these internationally recognized standards, the Buyers Products 45° Male Elbow ensures seamless integration into existing systems utilizing JIC components from various manufacturers. This standardization eliminates compatibility issues, simplifies inventory management, and guarantees that the fitting will perform to expected industrial benchmarks. SAE (Society of Automotive Engineers) specifications further underscore the robust engineering principles applied to these fittings, reflecting rigorous testing and design validation for use in demanding applications, including automotive and heavy equipment. This adherence to standards is crucial for preventing system failures, ensuring operational safety, and maintaining the efficiency of hydraulic and pneumatic circuits across different industrial landscapes.
The impressive pressure rating of "up to 10,000 PSI depending on tube size" highlights the high-performance capability of these fittings. This maximum operating pressure is a critical parameter that dictates where and how the fitting can be safely and effectively deployed. The actual pressure rating for any specific application is influenced by a confluence of factors including the material and wall thickness of the tubing being used, the exact size of the fitting, the temperature of the fluid, and the dynamic nature of the pressure (static vs. pulsating). For instance, thicker-walled, harder tubing materials will generally allow for higher pressure ratings. The "up to 10,000 PSI" rating positions this fitting firmly within the realm of high-pressure hydraulic systems, such as those found in construction equipment, industrial presses, and specialized machinery. Engineers and system designers must carefully calculate the maximum expected operating pressure for their specific application and select fittings and tubing with appropriate safety factors, ensuring that the components can comfortably withstand anticipated loads without risk of rupture or leakage. This high-pressure capability, combined with the robust construction and reliable sealing mechanisms, underscores the suitability of this elbow for critical fluid power applications.
The versatility of this 45° Male Elbow is further underscored by its compatibility with a wide array of tubing materials, including copper, brass, steel, aluminum, and other materials that can be reliably flared. This broad material compatibility allows for flexibility in system design, enabling engineers to select the most appropriate tubing based on fluid type, temperature, pressure, and cost considerations. For example, steel tubing is often chosen for high-pressure hydraulic lines due to its strength, while copper or aluminum might be preferred for their corrosion resistance or lighter weight in specific applications. Regardless of the tubing material, the critical factor for a successful JIC connection is the quality of the flare itself—it must be concentric, smooth, and precisely angled to ensure an optimal metal-to-metal seal with the fitting's cone. This adaptability to various tubing types broadens the application spectrum of the fitting, making it an invaluable component across diverse industries, from heavy construction and agricultural machinery to manufacturing automation and marine systems. The ability to route fluid lines with a 45-degree turn while maintaining material versatility and high-pressure integrity provides significant design advantages in complex fluid power circuits.
In conclusion, the 45° Male Elbow, with its 1/2-inch JIC (-8) tube O.D. and 3/8-inch NPT male pipe thread, stands as a testament to precision engineering and robust manufacturing. Its specific angular design facilitates optimized fluid flow and adaptable routing, while its adherence to JIC 37-degree flare and NPT standards ensures broad compatibility and reliable performance. Constructed from high-strength carbon steel and fortified with a corrosion-resistant zinc finish, this fitting is built to withstand the most demanding operational environments, offering exceptional durability and an extended service life. The sophisticated 3-piece flare sealing mechanism, coupled with the inherent integrity of NPT tapered threads, delivers an exceptionally leak-proof connection, capable of handling pressures up to 10,000 PSI. This comprehensive blend of material excellence, design sophistication, and strict adherence to industry specifications makes the Buyers Products 45° Male Elbow an indispensable component for professionals seeking uncompromising reliability and efficiency in their fluid transfer systems. Its versatility across various tubing materials further solidifies its position as a preferred choice for a multitude of industrial, mobile, and specialized applications where performance, safety, and longevity are paramount.
