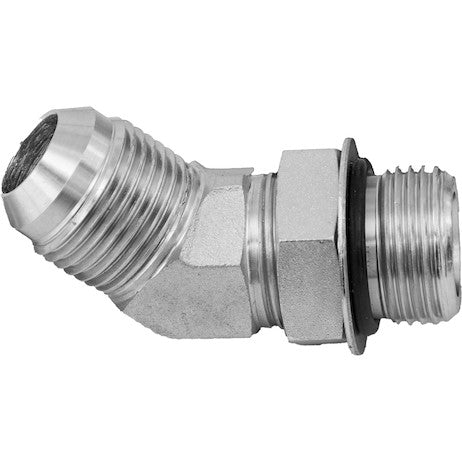

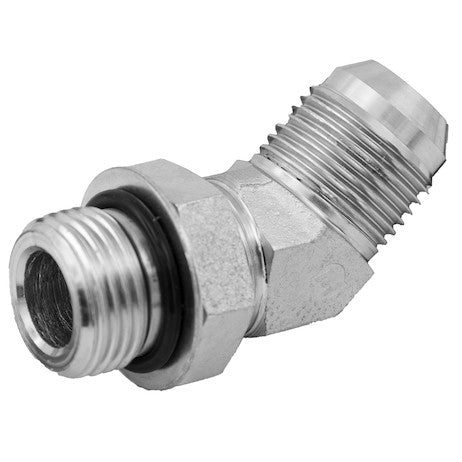

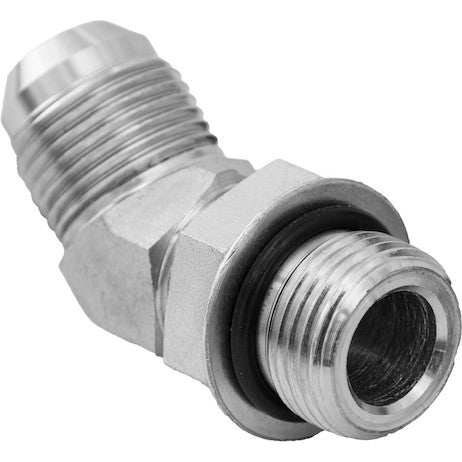

The Straight Thread O-Ring 45?? Elbow is part of the Buyers Products line of JIC 37 degree flare tube fittings. The fittings feature tough carbon steel construction, 3 piece flare sealing for a tight, secure connection, and a corrosion-resistant zinc finish. Fitting conforms to JIC and SAE specifications. Buyers Products tube fittings are used with copper, brass, steel, aluminum, and other tubing that can be flared. They are rated at up to 10,000 PSI depending on tube size.
Specifications
| Finish | Zinc Plated |
|---|---|
| Material | Carbon Steel |
| Shape | 45?? Elbow |
| Side 1 | 3/4 JIC (-12) |
| Side 2 | 3/4 SAE ORB (-12) |
| Style | MM |
Technical Overview: Straight Thread O-Ring 45° Elbow for High-Performance Hydraulic Systems
The Straight Thread O-Ring 45° Elbow, featuring a 3/4 Inch Tube O.D. to 3/4 Inch Port Size, represents a pinnacle of hydraulic connectivity engineering within the Buyers Products portfolio. This meticulously designed fitting is engineered to provide superior reliability, exceptional leak-free performance, and long-term durability in the most demanding fluid power applications. Its construction from robust carbon steel, enhanced by a corrosion-resistant zinc finish, ensures a product that not only meets but often exceeds the rigorous performance expectations of modern industrial and mobile hydraulic systems. Conforming to stringent JIC and SAE specifications, this fitting guarantees interchangeability and consistent quality, providing a secure and efficient conduit for critical fluid transfer.
Precision Engineering: The 45° Elbow Configuration
The choice of a 45-degree elbow geometry is a deliberate design decision driven by specific functional requirements in hydraulic routing. Unlike straight connectors, angular fittings like this 45° elbow are essential for navigating complex machinery layouts, providing necessary changes in direction without resorting to excessive tube bending, which can compromise tube integrity, restrict flow, and induce stress concentrations. The 45-degree angle offers a balanced approach, providing significant directional change while generally inducing less pressure drop and flow turbulence compared to a sharper 90-degree bend. This characteristic is critical for maintaining system efficiency and minimizing energy losses, particularly in systems with high flow rates or viscous fluids.
From a fluid dynamics perspective, the internal curvature of the 45° elbow is optimized to facilitate smooth flow transitions. Abrupt changes in flow direction can lead to cavitation, increased turbulence, and localized pressure drops, all of which can degrade system performance and accelerate component wear. The carefully engineered sweep of this elbow helps to mitigate these phenomena, promoting laminar flow where possible and reducing the impact of turbulent eddies. Mechanically, the 45° form factor also plays a role in managing vibrational stresses. By distributing forces over a slightly longer path than a straight connection might, and by allowing for more flexibility in tube routing, it can help absorb and dissipate kinetic energy, contributing to the overall longevity of the hydraulic line.
Furthermore, in constrained environments, the ability to introduce a precise 45-degree change in direction can be invaluable for compact system designs, allowing for optimal component placement and maintenance accessibility. This fitting's specific design, combining a JIC 37-degree flare connection on one side for tubing and an SAE Straight Thread O-Ring Boss (ORB) on the other for port connection, makes it incredibly versatile for connecting flared tubing to threaded ports or valves, precisely where such angular routing is often required.
Advanced Sealing Technologies: JIC 37-Degree Flare and SAE ORB
The efficacy and reliability of any hydraulic system hinge critically on the integrity of its connections. This Straight Thread O-Ring 45° Elbow integrates two of the industry's most trusted and robust sealing mechanisms: the JIC 37-degree flare and the SAE Straight Thread O-Ring Boss (ORB). This dual-technology approach ensures a connection that is not only secure against high pressures but also exceptionally resistant to leakage and vibrational fatigue.
JIC 37-Degree Flare Connection (Side 1: 3/4 JIC (-12))
The JIC (Joint Industry Council) 37-degree flare connection is a historically proven and widely adopted standard in hydraulic and fluid transfer systems, primarily codified under SAE J514. Its principle relies on a metal-to-metal seal achieved by mating a 37-degree conical flare on the end of a tube with a corresponding 37-degree seat on the fitting. The "3-piece flare sealing" described in the product overview refers to the standard components that comprise a complete JIC assembly: the flare fitting (the elbow in this case), the flare nut, and typically a sleeve. While the elbow itself provides the male 37-degree flare, it connects to a female flare nut and sleeve, which together grip the flared tubing.
The mechanism is as follows: The tube end is flared to a precise 37-degree angle using a specialized flaring tool. A flare nut is then slipped over the tube, followed by a sleeve (if used, common for vibration damping and structural support). When the flare nut is tightened onto the male JIC fitting, it compresses the flared tube end against the fitting's conical seat, creating a high-pressure, metal-to-metal seal. The sleeve, if present, acts as a stress distributor, reducing the mechanical load on the tube flare itself, enhancing vibration resistance and reusability.
Key advantages of the JIC 37-degree flare include its robust sealing capability under high pressures (up to 10,000 PSI, depending on tube size and material), excellent resistance to vibration, and its inherent reusability. The metal-to-metal contact, when properly torqued, provides a highly durable seal that is not susceptible to degradation from common hydraulic fluids or moderate temperature fluctuations. This connection is specifically designed for use with a range of ductile tubing materials such as copper, brass, steel, and aluminum, all of which can be reliably cold-formed into the required 37-degree flare. The 3/4 inch Tube O.D. specification (-12 JIC size) indicates the specific tubing diameter this side of the elbow is designed to accommodate, ensuring precise fit and performance.
SAE Straight Thread O-Ring Boss (ORB) Connection (Side 2: 3/4 SAE ORB (-12))
The SAE Straight Thread O-Ring Boss (ORB) connection, standardized under SAE J1926 (and ISO 11926), represents a modern advancement in hydraulic sealing technology, specifically designed for superior leak resistance. Unlike tapered pipe threads (e.g., NPT) that rely on thread interference for a seal, ORB fittings utilize a straight thread combined with an elastomeric O-ring to achieve a leak-proof connection.
The sealing principle is fundamentally different. The straight threads on the male ORB end (on this elbow) engage with corresponding straight threads in a female ORB port. These threads primarily provide mechanical retention, preventing the fitting from backing out. The actual fluid seal is created by the compression of an elastomeric O-ring, which sits in a precision-machined groove (the "boss") at the base of the male thread. As the fitting is tightened into the port, the O-ring is compressed between the male fitting's boss and the face of the female port, forming a soft, highly effective radial seal. A hex nut or a jam nut (for adjustable fittings) typically secures the fitting in place once the desired orientation is achieved.
The benefits of the ORB connection are substantial: it offers significantly improved leak resistance compared to tapered threads, even under impulse and vibration conditions. The O-ring provides a dynamic seal that can accommodate minor imperfections in the sealing surfaces and is less prone to damage from overtightening. It also minimizes the risk of thread galling and allows for repeated assembly and disassembly without compromising the seal, unlike pipe threads that can wear out. The 3/4 inch Port Size (-12 ORB size) specifies the nominal diameter of the port that this connection will mate with, ensuring system compatibility. The selection of O-ring material is crucial and should be based on the fluid type, operating temperature, and pressure of the application.
"MM" Style Interpretation
The "MM" style designation typically indicates that both connecting ends of the fitting are male. In the context of this specific product, it means that the 45° elbow itself features a male JIC 37-degree flare connection on one end (designed to accept a female flare nut over a flared tube) and a male SAE ORB straight thread on the other end (designed to screw into a female ORB port). This configuration is standard for many adapter and elbow fittings that transition between different connection types.
Material Selection and Surface Treatment: Carbon Steel and Zinc Plating
The foundational integrity of this hydraulic fitting is rooted in its material selection and subsequent surface treatment, both critical for its performance under harsh operating conditions.
Carbon Steel Construction
The choice of carbon steel as the primary material for this fitting is a strategic engineering decision driven by its exceptional mechanical properties suitable for high-pressure hydraulic applications. Carbon steel offers a superior combination of high tensile strength, yield strength, and toughness, making it inherently resistant to the immense forces and pressures encountered in hydraulic circuits, which can reach up to 10,000 PSI depending on the specific application and connected tubing. Its excellent fatigue resistance means the fitting can withstand continuous pressure cycling without premature failure, a common stressor in dynamic hydraulic systems.
Compared to other materials like brass (which offers good corrosion resistance but lower strength) or stainless steel (which offers superior corrosion resistance but at a higher cost and sometimes with different machining characteristics), carbon steel provides an optimal balance of strength, durability, and cost-effectiveness. It is particularly well-suited for applications where high mechanical load bearing and pressure containment are paramount. The specific grade of carbon steel would be selected to ensure machinability for precision threads and sealing surfaces while maintaining the desired mechanical properties.
Corrosion-Resistant Zinc Finish
While carbon steel provides the necessary strength, it is susceptible to corrosion, particularly in environments exposed to moisture, chemicals, or atmospheric oxygen. To address this, the fitting is treated with a corrosion-resistant zinc finish, typically applied through an electroplating process. This zinc plating serves a dual purpose:
- Barrier Protection: The layer of zinc acts as a physical barrier, isolating the underlying carbon steel from corrosive elements in the environment.
- Sacrificial Anode Protection (Galvanic Protection): Zinc is electrochemically more active than steel. If the zinc coating is scratched or compromised, the zinc will preferentially corrode (act as a sacrificial anode) before the underlying steel, thereby protecting the steel base material from rust and corrosion. This cathodic protection mechanism significantly extends the service life of the fitting.
The zinc plating also provides an aesthetically pleasing finish and can offer some lubricity for easier assembly of threaded connections. The finish typically conforms to industry standards for coating thickness and adhesion, ensuring long-term protection against various environmental factors encountered in industrial, agricultural, construction, and transportation applications.
Performance Metrics and Specifications
Understanding the performance envelope of the Straight Thread O-Ring 45° Elbow is crucial for proper system design and safe operation.
- Pressure Rating: The fitting is rated for pressures up to 10,000 PSI. It is imperative to note that the ultimate pressure rating of a complete assembly is often dictated by the weakest link, which can be the tubing itself (material, wall thickness, condition), the flaring process, or other connected components. For example, thin-walled aluminum tubing will have a significantly lower pressure rating than heavy-walled steel tubing, even when connected to the same fitting. Therefore, the "depending on tube size" caveat is critical; engineers must verify that the selected tubing and assembly practices can withstand the intended operating pressures.
- Temperature Range: While carbon steel maintains its mechanical properties over a broad temperature range, the operating temperature limits are primarily influenced by the elastomeric O-ring used in the ORB connection. Standard O-rings, typically made of Nitrile (Buna-N), are generally suitable for temperatures ranging from approximately -40°F to +250°F (-40°C to +121°C). For applications outside this range, specialized O-ring materials (e.g., Viton for higher temperatures, silicone for extreme low temperatures, EPDM for specific chemical compatibility) would be required, and their compatibility with the hydraulic fluid must be confirmed.
- Flow Rate Characteristics: The internal bore diameter of the fitting is sized to match the nominal flow capacity of the 3/4 inch tubing. While any change in direction or cross-section introduces some pressure drop, the 45° elbow design minimizes this effect compared to more acute angles. This helps maintain system efficiency and prevents excessive heat generation or energy loss within the hydraulic circuit.
- Vibration Resistance: Both the JIC flare and the ORB seal inherently offer good vibration resistance. The metal-to-metal contact of the JIC flare, especially with a sleeve, provides a rigid connection. The O-ring in the ORB connection, being an elastomeric component, can absorb and dampen some vibrational energy, maintaining its seal integrity even in dynamic environments.
- Leakage Prevention: The combination of a meticulously formed JIC flare seal and the positive O-ring seal of the ORB connection provides a formidable barrier against fluid leakage, reducing environmental contamination, fluid loss, and system inefficiencies.
Compliance with Industry Standards: JIC and SAE
Adherence to industry standards is non-negotiable for hydraulic components, ensuring safety, reliability, and interchangeability. This Buyers Products fitting is designed and manufactured in strict conformance with both JIC and SAE specifications, making it a globally recognized and dependable component.
- JIC Specifications: The Joint Industry Council (JIC) standards were originally developed in the United States to ensure interchangeability and performance consistency across various manufacturers for hydraulic fittings. The 37-degree flare standard (often linked with SAE J514) dictates the precise dimensions, tolerances, and surface finishes required for flare connections, guaranteeing that a JIC fitting from one manufacturer will reliably mate with a JIC component from another. This standardization is critical for maintenance, repair, and overall system compatibility.
-
SAE Specifications: The Society of Automotive Engineers (SAE) sets forth a comprehensive array of standards for fluid power components. For this fitting:
- SAE J514: Governs hydraulic tube fittings, including the 37-degree flared type. It covers dimensions, materials, pressure ratings, and testing procedures.
- SAE J1926 (also known as ISO 11926): Details dimensions for O-ring face seal fittings and O-ring boss connections. This standard ensures the precise geometry of the straight threads and O-ring grooves required for reliable ORB sealing.
- ISO Standards: While explicitly stating JIC and SAE, it's worth noting that these U.S.-centric standards often have direct counterparts or closely related specifications within the International Organization for Standardization (ISO) framework, such as ISO 8434-2 for 37° flared fittings and ISO 11926 for ORB connections. This ensures that products conforming to JIC/SAE are often compatible in a global context.
Installation, Maintenance, and System Integration
Proper installation and routine maintenance are paramount to achieving the rated performance and longevity of this fitting.
-
Installation Procedures:
- Tube Preparation: For the JIC end, the 3/4 inch tubing must be cut squarely, deburred meticulously both internally and externally, and then flared to a perfect 37-degree angle using a high-quality flaring tool. Any imperfections in the flare can lead to leakage.
- Lubrication: Lightly lubricate the O-ring on the ORB connection with a compatible hydraulic fluid or O-ring lubricant to aid assembly and prevent twisting or damage. For JIC connections, a small amount of thread lubricant on the nut threads can help achieve proper torque without galling.
- Torque Values: Adhere strictly to manufacturer-recommended torque specifications for both the JIC flare nut and the ORB connection. Overtightening can deform components, damage the O-ring or flare, and induce stress, while undertightening can lead to leaks.
- Alignment: Ensure proper alignment of the tube and fitting before tightening to prevent cross-threading or excessive stress on the connections. The 45° elbow offers flexibility but should not be used to compensate for significant misalignments.
- Cleanliness: All components and system ports must be absolutely clean and free of contaminants to prevent system damage and ensure proper sealing.
-
Maintenance Considerations:
- O-Ring Replacement: O-rings are wear items and should be inspected periodically. They must be replaced if signs of cracking, hardening, softening, or permanent deformation are observed. Always replace with O-rings of the correct size and material compatible with the system fluid and temperature.
- Flare Inspection: Periodically inspect the JIC flare connections for any signs of damage, scoring, or deformation, especially if leakage occurs or the connection has been disassembled multiple times.
- Retorquing: In some high-vibration systems, a periodic check and retorquing of fittings might be advisable after initial break-in, though ORB connections are generally more resistant to loosening.
- System Compatibility: Ensure that all other components in the hydraulic circuit (hoses, tubes, pumps, valves, cylinders, and fluids) are compatible with each other and the operating conditions. Incompatible materials or pressure ratings can lead to system failure.
Applications and Industry Impact
The Straight Thread O-Ring 45° Elbow is an indispensable component across a broad spectrum of industries, owing to its robust design and dual-seal integrity.
- Mobile Hydraulics: Widely utilized in construction equipment (excavators, loaders), agricultural machinery (tractors, harvesters), forestry equipment, and municipal vehicles. Its ability to withstand shock, vibration, and high pressures makes it ideal for these dynamic and often harsh environments.
- Industrial Machinery: Found in manufacturing plants, heavy presses, material handling equipment, and robotics, where precise fluid control and reliable connections are critical for operational efficiency and safety.
- Transportation: Employed in heavy-duty trucks, trailers, and specialized vehicles for applications such as power steering, braking systems, suspension systems, and auxiliary hydraulic functions.
- Marine Applications: Suitable for certain marine hydraulic systems where corrosion resistance and reliable high-pressure performance are required, though specific anti-corrosion coatings might be needed for saltwater environments beyond standard zinc plating.
- Oil and Gas: Used in some segments of the oil and gas industry for non-critical hydraulic lines and auxiliary systems where JIC and ORB connections are standard.
The core benefit delivered to end-users across these sectors is reliability. By minimizing the risk of leaks, reducing maintenance frequency, and ensuring consistent performance, this fitting contributes directly to increased uptime, enhanced safety, and ultimately, a lower total cost of ownership for hydraulic systems. Its conformance to established standards also simplifies procurement and ensures long-term support and availability of compatible components.
Conclusion
The Straight Thread O-Ring 45° Elbow, 3/4 Inch Tube O.D. To 3/4 Inch Port Size, from Buyers Products, represents a meticulously engineered solution for demanding hydraulic applications. By combining the proven strength of carbon steel, the corrosion protection of zinc plating, and the synergistic leak-prevention capabilities of JIC 37-degree flare and SAE ORB sealing technologies, this fitting offers unparalleled reliability and performance. Its precise 45-degree angular design facilitates efficient fluid routing in complex systems, minimizing flow disruptions while adhering strictly to industry-recognized JIC and SAE specifications. This commitment to quality and technical excellence ensures that the fitting provides a secure, efficient, and durable connection for critical fluid power transfer, making it an essential component for engineers and technicians seeking optimal performance and longevity in their hydraulic systems.
