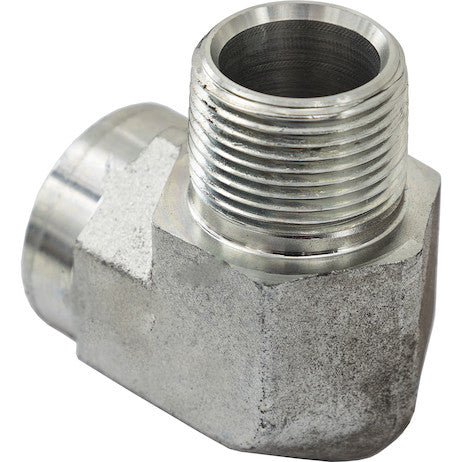

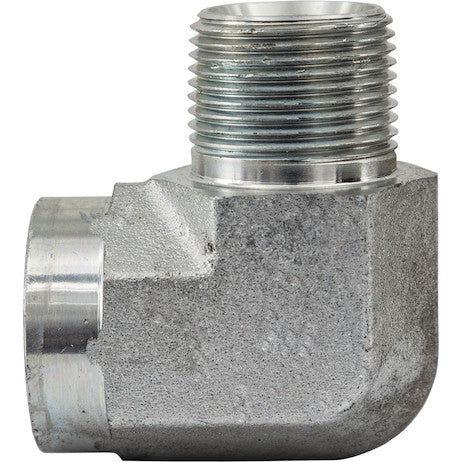

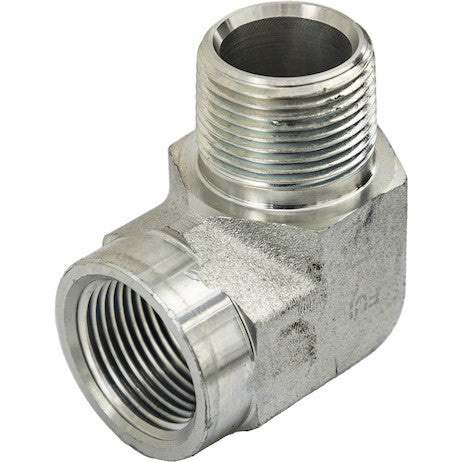

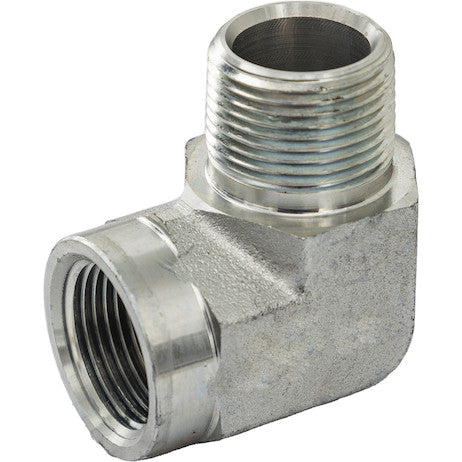

H5455X16 - 90?? Female Elbow 1 Inch Tube O.D. To 1 Inch Female Pipe Thread

The 90?? Female Elbow is part of the Buyers Products line of JIC 37 degree flare tube fittings. The fittings feature tough carbon steel construction, 3 piece flare sealing for a tight, secure connection, and a corrosion-resistant zinc finish. Fitting conforms to JIC and SAE specifications. Buyers Products tube fittings are used with copper, brass, steel, aluminum, and other tubing that can be flared. They are rated at up to 10,000 PSI depending on tube size.

Specifications

The 90° Female Elbow with a 1 Inch Tube O.D. to 1 Inch Female Pipe Thread interface represents a critical component in fluid power systems, meticulously engineered to facilitate directional changes within high-pressure lines while ensuring robust, leak-free connections. This particular fitting, a cornerstone of the Buyers Products JIC 37-degree flare tube fitting series, is designed for applications demanding exceptional reliability and operational integrity in environments where performance cannot be compromised. Its specialized configuration allows for seamless integration between a flanged tube assembly and a threaded pipe port, bridging two distinct, yet complementary, sealing methodologies.

At the core of this fitting's design is its 90-degree elbow shape, a geometrically precise bend that enables the rerouting of fluid flow by exactly a quarter turn. This is indispensable in complex hydraulic layouts where space constraints or equipment orientation necessitate precise angular adjustments in tubing runs. The internal fluid dynamics considerations for such a bend are significant; a well-engineered elbow minimizes pressure drop and turbulence, ensuring efficient power transfer and mitigating potential cavitation effects within the system. The smooth internal bore and controlled radius of the bend are crucial for preserving laminar flow characteristics where possible, or at least for managing turbulent flow effectively to prevent energy losses and material erosion over time.

The primary connection mechanism on one side of this fitting is based on the Joint Industry Council (JIC) 37-degree flare standard, specifically tailored for a 1-inch Outer Diameter (O.D.) tube. The JIC standard, formally recognized as SAE J514, defines a comprehensive system for hydraulic tube fittings, ensuring interchangeability and consistent performance across various manufacturers. The 37-degree flare is a key feature, creating a metal-to-metal seal when the flared end of the tube is compressed between the conical seat of the fitting body and the mating surface of a flare nut and sleeve. This three-piece construction—comprising the body, a separate sleeve, and a nut—is instrumental in achieving a highly secure and repeatable connection. The sleeve, in particular, serves a dual function: it supports the tube to prevent collapse or excessive stress concentration at the flare, and it provides a bearing surface for the nut, allowing for rotation during assembly without twisting the tube itself. The 37-degree angle is strategically chosen for its optimal balance of sealing efficiency and resistance to tube work hardening during the flaring process, making it highly resilient against vibration and pressure surges inherent in dynamic hydraulic applications. The "1 JIC (-16)" designation precisely indicates that this side accommodates a 1-inch O.D. tube, with the "-16" dash size referring to 16/16ths of an inch, confirming the 1-inch measurement.

The opposite connection point features a 1-inch Female National Pipe Taper (NPT) thread. NPT is a widely adopted standard for threaded pipe connections in North America, characterized by its tapered profile. Both the external (male) and internal (female) threads are conical, meaning the diameter of the thread decreases along its length. When a male NPT thread is screwed into a female NPT port, this taper causes the threads to wedge together, creating a mechanical interference fit that forms the primary seal. While the metal-to-metal contact of the tapered threads provides a substantial seal, thread sealants (such as PTFE tape or pipe dope) are typically employed to fill any microscopic helical leak paths and lubricate the threads, facilitating proper tightening and ensuring a leak-proof connection, especially in higher pressure or critical applications. The 1-inch NPT size refers to the nominal pipe size, which, contrary to intuition, does not directly correspond to the physical thread diameter but rather to the internal diameter of the pipe it typically connects to, adhering to historical pipe sizing conventions.

The material selection for this fitting is critical to its performance and longevity. Constructed from tough carbon steel, the elbow offers an exceptional combination of high tensile strength, excellent yield strength, and robust fatigue resistance. These mechanical properties are paramount for fittings operating under the intense cyclic pressures and forces characteristic of hydraulic systems, where failure can lead to catastrophic system downtime or safety hazards. Carbon steel, known for its ductility, can withstand significant stress before fracturing, and its hardness contributes to resistance against wear and abrasion, prolonging the service life of the fitting. The manufacturing process involves precision machining to achieve the intricate geometries of both the JIC flare seat and the NPT threads, ensuring strict adherence to dimensional tolerances that are essential for leak-free performance and compatibility with standard components.

To augment the inherent strength of carbon steel and provide superior resistance against environmental degradation, the fitting is finished with a corrosion-resistant zinc plating. Zinc plating is an electrochemical process where a thin layer of zinc is deposited onto the surface of the steel. This coating acts as a sacrificial layer, preferentially corroding before the underlying steel is attacked, thereby providing cathodic protection. The zinc finish also forms a barrier against moisture, oxygen, and various corrosive chemicals, which are frequently encountered in industrial, mobile, and outdoor hydraulic applications. The "Zinc Plated" finish specified enhances the aesthetic appeal of the fitting while significantly extending its operational lifespan, particularly in environments exposed to humidity, salt spray, or other corrosive agents. This protective layer ensures that the fitting maintains its structural integrity and sealing effectiveness over prolonged periods, reducing maintenance requirements and total cost of ownership.

Adherence to JIC and SAE specifications is not merely a statement of compliance; it is a fundamental assurance of quality, interoperability, and safety. JIC (Joint Industry Council) standards originated in the manufacturing industry to standardize hydraulic and pneumatic components, facilitating interchangeability and reducing complexity in system design and maintenance. SAE International (formerly the Society of Automotive Engineers) provides a vast array of standards, including SAE J514 for Hydraulic Tube Fittings, which meticulously details dimensions, materials, and performance requirements for 37-degree flared fittings. Conformance to these rigorous industry benchmarks means that this Buyers Products fitting will seamlessly integrate with other JIC/SAE compliant components from various manufacturers, minimizing compatibility issues and streamlining procurement. Furthermore, these standards often incorporate extensive testing protocols for burst pressure, impulse cycling, and vibration resistance, ensuring that the fitting meets stringent performance criteria for demanding hydraulic applications, including those rated at up to 10,000 PSI depending on the tube size and specific configuration.

The versatility of Buyers Products tube fittings extends to their compatibility with a wide array of tubing materials. They are engineered for reliable use with copper, brass, steel, aluminum, and other types of ductile tubing that can be properly flared. This broad compatibility allows engineers and technicians significant flexibility in system design, enabling selection of the optimal tubing material based on factors such as fluid compatibility, pressure requirements, weight considerations, and cost. For each material, precise flaring techniques are paramount. A properly formed flare, free from cracks, nicks, or excessive thinning, is the critical interface for the JIC metal-to-metal seal. The precision of the fitting's flare seat ensures an ideal mating surface for such properly prepared tubing.

The impressive pressure rating of up to 10,000 PSI (pounds per square inch) underscores the robust engineering and high-quality construction of this elbow. It is important to note that this rating is contingent upon the specific tube size and material used in conjunction with the fitting. Smaller diameter tubes, due to their higher inherent strength-to-volume ratio, can often withstand greater internal pressures. Factors contributing to this high-pressure capability include the high-strength carbon steel material, the geometry of the 37-degree flare which distributes sealing forces effectively, the precise machining tolerances, and the robust design of the fitting body itself. In practical hydraulic system design, a safety factor is invariably applied, meaning the fitting's operational pressure should be well below its ultimate burst pressure to account for cyclic fatigue, temperature fluctuations, and unexpected load conditions, thereby ensuring long-term reliability and preventing catastrophic failures.

The "Style: MF" designation refers to "Male-Female," which in the context of hydraulic fittings typically describes the threading or connection type on each end. However, in this specific case, considering Side 1 is a JIC flare (which connects to a flared tube, where the fitting body has a male cone for the tube's female flare) and Side 2 is a Female NPT thread, the "MF" here is best interpreted as the fitting providing a male-style connection interface on one side (the JIC flare for the tube) and a female-style connection interface on the other (the NPT port). More precisely, the JIC end forms a connection with a flared tube, which effectively becomes a "female" connection to the male cone of the fitting body, while the NPT end is explicitly a female thread, designed to receive a male NPT pipe or component.

Applications for this 90° Female Elbow are diverse and critical across numerous industrial and mobile sectors. It is an indispensable component in heavy machinery such as excavators, bulldozers, and cranes, where hydraulic power controls movement and implements. In agricultural equipment, it manages fluid flow for steering, lifting, and power take-off systems. Industrial manufacturing facilities utilize these fittings in presses, robotic systems, and assembly lines requiring precise hydraulic control. Automotive applications extend to heavy-duty trucks and specialty vehicles for braking, power steering, and suspension systems. The fitting's ability to withstand high pressures, resist corrosion, and maintain a secure connection makes it ideal for environments where reliability under extreme conditions is non-negotiable.

Proper installation and maintenance are crucial for maximizing the performance and longevity of this fitting. The initial step involves meticulously preparing the tube: cutting it squarely, deburring both the inside and outside edges to prevent damage to the flare seat, and then forming a precise 37-degree flare using a high-quality flaring tool. When assembling the JIC connection, it is vital to ensure that the flare nut and sleeve are properly positioned over the tube before flaring. During tightening, specific torque values, often provided by the manufacturer or derived from SAE standards, should be strictly adhered to. Overtightening can deform the flare or gall the threads, compromising the seal and potentially leading to premature failure. Undertightening, conversely, will result in a leak. For the NPT connection, appropriate thread sealant should be applied to the male NPT thread before engagement, ensuring complete thread coverage without excessive application that could contaminate the fluid system. Regular inspection for signs of wear, corrosion, or leakage around both connections is recommended as part of routine maintenance protocols for hydraulic systems. Prompt identification and replacement of any compromised fittings are essential to uphold system integrity and operational safety.

In summary, the 90° Female Elbow with a 1 Inch Tube O.D. to 1 Inch Female Pipe Thread from Buyers Products is an exemplary solution for complex hydraulic routing challenges. Its design leverages the robust JIC 37-degree flare system for tube connections and the established NPT standard for pipe interfaces, providing a flexible and dependable transition. The use of high-grade carbon steel, meticulously zinc-plated for enhanced corrosion resistance, ensures exceptional durability and extended service life in demanding environments. Adherence to rigorous JIC and SAE specifications guarantees superior performance, universal compatibility, and a high degree of safety, validated by its impressive pressure rating up to 10,000 PSI. This fitting is not merely a conduit for fluid; it is a precisely engineered component that embodies reliability, efficiency, and safety, making it an indispensable asset in the construction and maintenance of high-performance fluid power systems across a multitude of critical applications.
