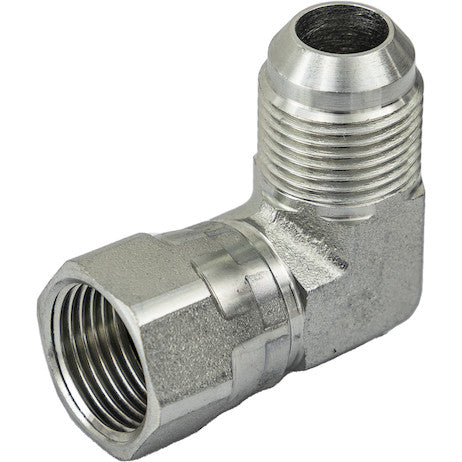

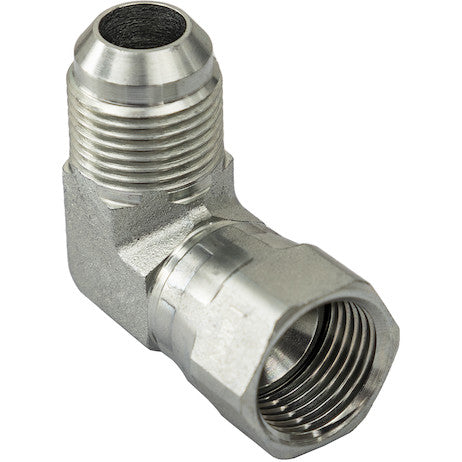

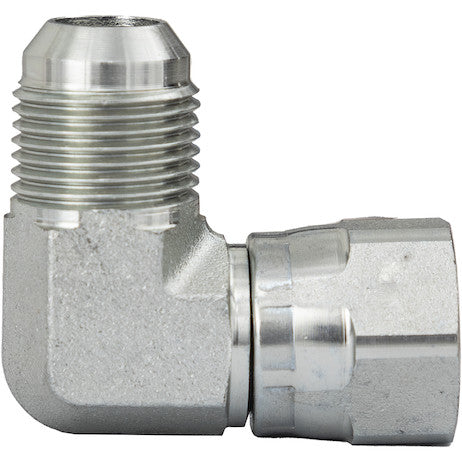

The Swivel Nut 90?? Elbow is part of the Buyers Products line of JIC 37 degree flare tube fittings. The fittings feature tough carbon steel construction, 3 piece flare sealing for a tight, secure connection, and a corrosion-resistant zinc finish. Fitting conforms to JIC and SAE specifications. Buyers Products tube fittings are used with copper, brass, steel, aluminum, and other tubing that can be flared. They are rated at up to 10,000 PSI depending on tube size.
Specifications
| Finish | Zinc Plated |
|---|---|
| Material | Carbon Steel |
| Shape | 90?? Elbow |
| Side 1 | 5/8 JIC (-10) |
| Side 2 | 5/8 JIC (-10) |
| Style | MF |
The Swivel Nut 90?? Elbow, precision-engineered for 5/8 inch tube O.D. connections, is a critical component within high-performance hydraulic and pneumatic systems. As part of the Buyers Products JIC 37-degree flare tube fitting line, this elbow facilitates essential directional changes in fluid conveyance paths, ensuring system integrity and optimal flow. Its 90-degree configuration is vital for navigating complex layouts, bypassing obstructions, and optimizing space without compromising fluid dynamics or pressure stability. The integrated swivel nut mechanism enhances installation flexibility, allowing for precise alignment, reducing torsional stress on tubing, and expediting assembly. This technical overview explores the advanced engineering, robust materials, and operational advantages of this specific Swivel Nut 90?? Elbow, highlighting its role in demanding fluid power applications.
Central to this fitting's superior performance is its strict adherence to the Joint Industry Council (JIC) 37-degree flare standard, a benchmark widely recognized for reliability in high-pressure applications. The JIC system utilizes a metal-to-metal sealing principle: a precisely flared 37-degree tube end mates with a corresponding 37-degree conical seat in the fitting body. This design creates a mechanically robust, leak-proof connection, superior to sealant-dependent pipe threads. The 37-degree angle optimizes sealing surface area, extrusion resistance, and ease of assembly. JIC flare systems achieve their seal through controlled compression, offering reusability and resistance to vibration or thermal cycling. The Swivel Nut 90?? Elbow flawlessly integrates these principles with meticulously machined flare seats for exceptional sealing. The 5/8 inch tube O.D. specification (-10 size equivalent) signifies compatibility with standard tubing dimensions critical for moderate to high flow and pressure requirements.
Material selection is paramount for hydraulic components, and this Swivel Nut 90?? Elbow utilizes robust carbon steel construction. Carbon steel is chosen for its exceptional mechanical properties: high tensile strength, superior yield strength, and remarkable fatigue resistance. These attributes enable the fitting to withstand significant internal pressures, external stresses, and dynamic loads common in heavy machinery, industrial robotics, and mobile equipment without deformation or failure. Its inherent toughness ensures structural integrity under continuous operation in arduous industrial environments. Carbon steel also offers excellent machinability, crucial for the precision manufacturing of intricate flare angles, threads, and smooth swivel nut operation, all vital for optimal JIC sealing. Buyers Products' choice of carbon steel underscores a commitment to components designed for maximum longevity and reliability in critical fluid power applications.
To protect the carbon steel from environmental degradation, the fitting features a high-quality, corrosion-resistant zinc finish. This zinc plating acts as a sacrificial coating, providing galvanic protection to the steel substrate. In corrosive environments, the zinc layer preferentially oxidizes, preserving the steel's integrity and significantly extending the fitting's operational life. This protection is vital in environments exposed to moisture, chemicals, or salt spray, preventing rust and preserving integrity. Beyond protection, the zinc finish provides a superior aesthetic and smoother surface, aiding in easier identification, handling, and installation. This durable plating ensures the Swivel Nut 90?? Elbow maintains functional and visual characteristics even under prolonged exposure to harsh conditions, reducing replacement frequency and minimizing costly system downtime.
The "3-piece flare sealing" mechanism highlights the robust and reliable nature of the connection. While the core JIC seal is metal-to-metal contact, the "3-piece" aspect refers to the synergistic interaction of the fitting body (with its 37-degree cone), the separate swivel nut, and the precisely formed 37-degree flare on the tube end. This assembly allows the swivel nut to slide freely over the tube, engage the fitting's male threads, and, upon tightening, apply controlled, circumferential compressive force to the flared tube. This force presses the tube flare uniformly against the fitting's conical seat, creating a high-integrity, leak-proof seal. The independent swiveling action of the nut prevents rotational stress on the tube and facilitates easy alignment, ensuring perfect mating of sealing surfaces. This multi-component interaction optimally distributes sealing forces, enhancing resilience against vibration, pressure fluctuations, and mechanical shock for consistent security in dynamic conditions.
Compliance with both JIC and SAE (Society of Automotive Engineers) specifications is fundamental to this Swivel Nut 90?? Elbow's certified quality and universal applicability. SAE standards, particularly J514 for Hydraulic Tube Fittings, align closely with JIC 37-degree flare fittings, ensuring interchangeability and consistent performance across manufacturers. This dual compliance confirms the fitting meets stringent criteria for dimensions, material properties, performance testing, and quality control. For engineers and system integrators, this provides assurance of seamless integration into existing JIC/SAE-compliant hydraulic and pneumatic architectures. It streamlines design, minimizes compatibility issues, and contributes to overall system safety and reliability. This commitment reflects Buyers Products' dedication to delivering superior, globally recognized components.
The versatility of Buyers Products' tube fittings, including this Swivel Nut 90?? Elbow, is evident in its broad compatibility with various tubing materials. It performs optimally with copper, brass, steel, aluminum, and other ductile materials reliably flared to a 37-degree angle. Tubing material choice depends on application requirements like fluid compatibility, pressure rating, temperature range, and environmental conditions. Steel tubing, for instance, is preferred for high-pressure industrial hydraulics due to superior strength, while copper and brass offer corrosion resistance in lower-pressure contexts. Aluminum provides a lightweight alternative. The JIC flare design, when precisely executed, consistently produces a smooth, concentric flare for an impervious seal. This multi-material compatibility simplifies inventory and allows deployment across diverse projects without specialized fitting types, provided the tubing achieves the necessary flare without compromise.
A critical characteristic underscoring this fitting's robust design is its impressive pressure rating: up to 10,000 PSI, contingent on the specific tube size and material. This high-pressure capability positions the Swivel Nut 90?? Elbow for heavy-duty industrial and mobile hydraulic applications demanding extreme forces. The actual maximum operating pressure for an assembly depends on factors like tube wall thickness, material grade, flare quality, correct torque application, and operating temperature. However, the fitting itself is meticulously engineered with substantial cross-sections and optimized mechanical properties to withstand immense pressures. This high rating ensures a significant safety margin, even in dynamic systems experiencing pressure spikes. It reflects the engineering precision and material selection inherent in Buyers Products fittings, designed to exceed performance expectations. Users must verify the entire tubing assembly's pressure rating meets or surpasses the system's maximum anticipated operating pressure for safe, reliable operation.
The integrated 90-degree elbow configuration is a fundamental functional requirement in many fluid power layouts. In complex machinery and compact hydraulic systems, tubing paths often necessitate sharp directional changes around structural components or confined spaces. This precisely manufactured 90-degree elbow facilitates these turns efficiently without introducing significant pressure drops or flow restrictions that could compromise system performance. Its smooth internal bore and optimized bend radius minimize turbulence, promoting laminar flow, enhancing efficiency, and preventing excessive heat generation. The elbow's compact design also contributes to space optimization, enabling denser hydraulic manifolds. Combined with the swivel nut feature, installation flexibility is unparalleled. The nut's independent swivel action allows technicians to achieve perfect alignment, even in difficult locations, speeding assembly and preventing bending stresses on components. This fosters a stress-free connection, critical for long-term reliability in vibrating or dynamically loaded systems.
Beyond technical specifications, the Swivel Nut 90?? Elbow offers substantial operational and economic advantages. Its reusability is a key benefit; JIC flare connections can typically be disassembled and reassembled multiple times without compromising the seal, assuming the tube flare and fitting cone seat remain undamaged. This is invaluable for maintenance, troubleshooting, and system modifications, leading to reduced material waste and lower lifecycle costs. The JIC system's simplicity aids field maintenance, requiring only standard tools. The tight, secure connection from the 3-piece flare sealing mechanism drastically minimizes fluid leakage risks—paramount in hydraulics to prevent contamination, safety hazards, and operational inefficiencies. Robust carbon steel and zinc plating extend service intervals and reduce downtime, as the fitting resists wear, corrosion, and fatigue, enhancing equipment productivity.
The application spectrum for this Swivel Nut 90?? Elbow is remarkably expansive. It is widely used in heavy construction equipment (excavators, bulldozers, cranes), agricultural machinery (tractors, harvesters), and industrial manufacturing plants (hydraulic presses, robotics, automated lines). Mobile hydraulic applications (utility vehicles, refuse trucks) and the marine industry (steering systems, winches) also rely on these robust connections. The consistent 5/8 inch tube O.D. across both sides makes it ideal for maintaining continuity in fluid paths of this dimension, enabling precise assembly of complex hydraulic networks. Its high-pressure handling capability suits both primary and auxiliary circuits, providing essential directional changes without creating bottlenecks or points of weakness.
To maximize performance, longevity, and safety, strict adherence to proper installation and maintenance protocols is essential for the Swivel Nut 90?? Elbow. Tubing must be cut squarely, meticulously deburred, and flared to a precise 37-degree angle with a high-quality flaring tool for a smooth, concentric sealing surface. During assembly, hand-tighten the swivel nut until the flared tube firmly contacts the fitting's cone seat. Final tightening requires a torque wrench, applying manufacturer-specified torque values to prevent under-tightening (leaks) and over-tightening (deformation, damage, premature failure). Regular inspection of fittings and tubing for wear, corrosion, or damage is crucial. Any leakage, however minor, should be addressed promptly by re-tightening or replacing components. Adhering to these best practices ensures optimal performance, safety, and longevity of hydraulic and pneumatic systems, safeguarding investment in high-quality components.
In conclusion, the Swivel Nut 90?? Elbow for 5/8 inch tube O.D. embodies precision engineering for demanding fluid power applications. Its robust carbon steel construction, protected by a corrosion-resistant zinc finish, ensures exceptional durability and extended lifespan. The JIC 37-degree flare design, combined with its 90-degree configuration and flexible swivel nut, guarantees a tight, secure, and easily installable connection capable of withstanding up to 10,000 PSI. Conforming to JIC and SAE standards, this fitting offers universal compatibility and certified reliability across industrial, mobile, and specialized applications. Its versatility with multiple tubing materials and inherent reusability underscore its economic and operational value. By utilizing this premium-grade fitting, engineers and technicians invest in the integrity, efficiency, and safety of their fluid power systems, ensuring long-term, leak-free performance even in the most challenging operating environments. This Swivel Nut 90?? Elbow is an enabler for sophisticated hydraulic and pneumatic architectures, delivering unparalleled performance and peace of mind.
