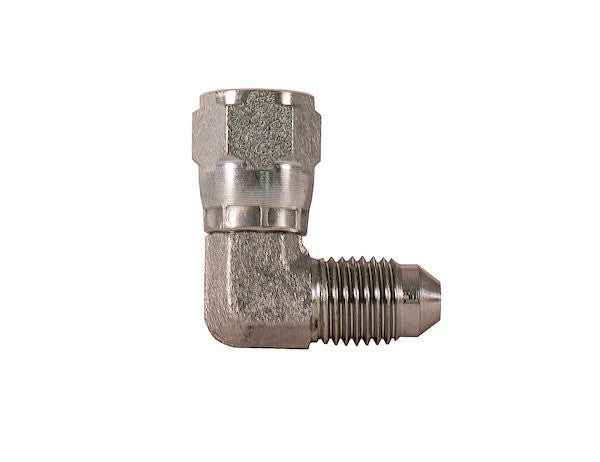

The Swivel Nut 90?? Elbow is part of the Buyers Products line of JIC 37 degree flare tube fittings. The fittings feature tough carbon steel construction, 3 piece flare sealing for a tight, secure connection, and a corrosion-resistant zinc finish. Fitting conforms to JIC and SAE specifications. Buyers Products tube fittings are used with copper, brass, steel, aluminum, and other tubing that can be flared. They are rated at up to 10,000 PSI depending on tube size.
Specifications
| Finish | Zinc Plated |
|---|---|
| Material | Carbon Steel |
| Shape | 90?? Elbow |
| Side 1 | 3/4 JIC (-12) |
| Side 2 | 3/4 JIC (-12) |
| Style | MF |
The Swivel Nut 90-degree Elbow for 3/4 inch Outside Diameter (O.D.) tubing is a critical component in hydraulic and fluid transfer systems. Part of the Buyers Products JIC 37-degree flare tube fittings series, it delivers unparalleled reliability and secure connections in demanding environments. Its 90-degree bend optimizes fluid routing and space utilization. Fabricated from robust carbon steel with a corrosion-resistant zinc plating, it ensures longevity and consistent performance. Conforming rigorously to JIC and SAE specifications, it guarantees interchangeability and adherence to industry standards for quality and safety. This description details its technical attributes, design principles, and application versatility.
Advanced Engineering and Material Science: The Swivel Nut 90-Degree Elbow
The strength and integrity of this Swivel Nut 90-degree Elbow stem from its meticulous design and high-grade materials. Precision-manufactured from tough carbon steel, known for exceptional tensile strength, yield strength, and fatigue resistance, it is ideal for high-pressure hydraulic systems subject to dynamic stresses. Carbon steel's ability to withstand significant forces without deformation contributes directly to extended operational life. Precise machining ensures critical features like the 37-degree flare angle and thread profiles are within stringent tolerances, essential for a reliable, leak-proof seal.
The exterior features a corrosion-resistant zinc plating, providing advanced defense against rust and environmental corrosion. Zinc's higher reactivity than steel means it oxidizes preferentially, safeguarding the underlying carbon steel. This protective barrier is vital in harsh contexts like outdoor or marine environments. The plating not only extends service life but also maintains a professional aesthetic, adhering to rigorous industry standards for uniform coverage and optimal adhesion.
The 90-degree elbow configuration offers substantial benefits in hydraulic system layout. It enables efficient tubing routing around obstructions, changes fluid flow direction, and optimizes system footprint. Internal geometry is engineered to mitigate turbulent flow and minimize pressure drop, preserving hydraulic efficiency and preventing cavitation. A smooth, uninterrupted bore ensures consistent fluid flow characteristics, imperative for precise control or high flow rates. This optimized design minimizes energy losses, contributing to overall power efficiency and extending component service life.
A distinctive feature is the integrated swivel nut mechanism, profoundly enhancing installation ease and flexibility. It permits the fitting to be securely tightened onto a male flare component without rotating the entire tube assembly, invaluable for pre-bent or rigid tubing, preventing torsional stresses. Independent nut rotation simplifies alignment, reduces installation time, and mitigates damage risk. This ensures a consistently secure connection, even in confined spaces. The "Side 1: 3/4 JIC (-12)" and "Side 2: 3/4 JIC (-12)" with "Style: MF" typically indicate one Male Flare (MF) termination and one Female Swivel Nut, offering a versatile and robust connection point for 3/4 inch JIC flare components.
The JIC 37-Degree Flare Standard: Foundation of Hydraulic Integrity
The Swivel Nut 90-degree Elbow is integral to the JIC (Joint Industry Council) 37-degree flare tube fitting system, standardized under SAE J514. This globally recognized standard defines dimensional specifications, performance prerequisites, and testing methodologies for hydraulic tube fittings, ensuring universal compatibility, robust reliability, and consistent safety across diverse hydraulic applications. Its pervasive adoption underscores proven efficacy and versatility in critical fluid power systems.
The cornerstone is the unique 37-degree flare angle, chosen for superior sealing in high-pressure hydraulic operations. Unlike 45-degree flares (automotive/low-pressure), the 37-degree flare delivers a more robust metal-to-metal sealing interface. During assembly, the flared tube end is compressed between the 37-degree conical seat of the fitting body and the matched internal 37-degree taper of the swivel nut. This generates a sophisticated mechanical seal highly resistant to leakage, even under extreme pulsating pressures and vibrations. The precision of this metal-to-metal contact negates elastomeric seals, which are susceptible to degradation from fluid incompatibility, temperature fluctuations, or mechanical abrasion.
The "3-piece flare sealing" principle refers to the synergistic interaction between the swivel nut, flared tube, and fitting body. For modern JIC 37-degree fittings, the integrity of the flared tube end is paramount. As the swivel nut tightens onto the male flare section, it draws the flared tube end into firm contact with the elbow body's conical seat. This action induces a slight, controlled tube deformation, creating a uniform, circumferential seal. This design ensures sealing force is evenly distributed, maximizing leak resistance. The robust nature of this metal-to-metal seal makes JIC fittings exceptionally dependable where uncompromising fluid containment is non-negotiable.
The swivel nut's role in this sealing mechanism is crucial, allowing installers to apply necessary torque for a secure seal without imparting undesirable twisting motion to the tube. This is vital for complex, rigidly fixed tubing runs. Independent nut rotation streamlines assembly and reduces stress/damage risks. This flexibility ensures optimal sealing compression is consistently applied, leading to a durable and leak-free connection over prolonged rigorous operation.
This fitting offers optimal compatibility with an extensive spectrum of flareable tubing materials: copper, brass, steel (carbon/stainless), and aluminum. Each provides distinct performance attributes—from ductility/corrosion resistance to highest strength/pressure ratings—enhancing the elbow's versatility for diverse system designs and environmental challenges.
Uncompromised Performance and Adherence to Global Standards
The Swivel Nut 90-degree Elbow is engineered for high-performance, evidenced by its pressure rating of up to 10,000 PSI (contingent on tube size/material). This capability underscores its suitability for severe-duty hydraulic systems in construction, heavy machinery, and industrial automation where pressures often exceed 5,000 PSI. The robust design provides a substantial safety margin against burst pressure; Buyers Products rigorously tests fittings to exceed benchmarks, instilling confidence in system reliability.
Strict adherence to JIC and SAE specifications (e.g., SAE J514) ensures the fitting is dimensionally and functionally interchangeable with other JIC fittings. This standardization simplifies inventory, streamlines repairs, and guarantees reliable sourcing without compatibility issues. It signifies rigorous design, material selection, manufacturing, and testing by industry authorities, ensuring consistent quality, performance, and safety—non-negotiable for critical hydraulic applications.
The "3/4 JIC (-12)" for both Side 1 and Side 2 indicates compatibility with 3/4 inch Outside Diameter (O.D.) tubing. The "-12" dash size corresponds to 12/16 inch or 3/4 inch. This uniform sizing implies the 90-degree elbow connects two 3/4 inch JIC-flared tubing segments for directional change. With "Style: MF" (Male Flare), a common configuration is a female swivel nut end to a male flare end, creating a versatile connection point with rotational adjustment for 3/4 inch tubing assemblies.
Operational temperature range for carbon steel fittings with zinc plating is broad, accommodating most industrial hydraulic fluids, typically from -65°F to 400°F (-54°C to 204°C). Material properties remain stable, ensuring mechanical strength and sealing integrity are uncompromised.
Internal architecture is optimized for superior fluid dynamics. The smooth bore and gradual bend radius minimize flow restriction and turbulence, reducing pressure drop. This is crucial for system efficiency, especially in high-flow applications, contributing to overall power efficiency and extending component longevity.
Versatile Applications and Indispensable Industry Relevance
The Swivel Nut 90-degree Elbow is indispensable across diverse industries: construction (heavy equipment, boom articulation), agriculture (tractors, harvesters, field repairs), industrial machinery (presses, robotics, 10,000 PSI capacity), marine (steering, winches, saltwater protection), and transportation (trucks, braking, suspension, JIC reliability for safety). For end-users, this translates to enhanced system reliability, reduced leaks, simplified maintenance, and extended service life, increasing operational uptime and lowering total cost of ownership.
Precision Installation and Optimized System Longevity: Best Practices for JIC Fittings
Optimal performance depends on meticulous installation and maintenance. The swivel nut simplifies assembly, but best practices are essential for a leak-proof connection.
Flaring technique for 3/4 inch tubing is paramount: precise 37-degree angle, smooth, burr-free. Specialized tools are required, especially for steel, to guarantee flare integrity. Improper flaring leads to leaks.
Cleanliness during assembly is critical. Dirt/metal particles damage hydraulic components. All parts must be cleaned before assembly.
Torque specifications are mandatory. Overtightening damages flare/threads; undertightening causes leaks. The swivel nut permits precise torque without tube rotation.
Inspection for leaks, corrosion, or damage is advised. Promptly addressing minor issues prevents larger failures. Zinc finish indicates protection; any compromise should be addressed.
System compatibility is key. Verify fluid type, pressure, and temperature ratings. 3/4 JIC (-12) sizing ensures correct component matching for optimal performance.
Conclusion: The Quintessence of Hydraulic Connection Excellence
The Swivel Nut 90-degree Elbow, 3/4 Inch Tube O.D., from Buyers Products embodies pinnacle engineering for demanding applications. Its robust carbon steel, corrosion-resistant zinc finish, and precision 37-degree JIC flare conform strictly to industry standards, ensuring unparalleled reliability. The innovative swivel nut design guarantees simplified installation and a secure, leak-free connection, withstanding pressures up to 10,000 PSI. Essential for heavy construction, agricultural machinery, or complex industrial systems, this fitting delivers critical directional change and connection integrity for efficient, safe, and enduring fluid power transmission. Investing in this high-quality component ensures long-term operational excellence and bolsters overall hydraulic system durability and efficiency.
