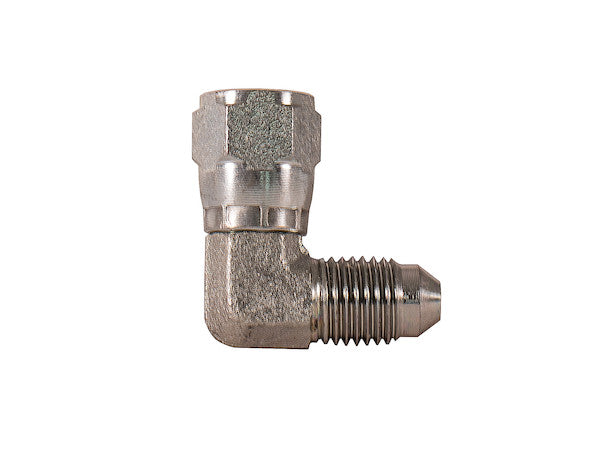

H5506X16 - Swivel Nut 90?? Elbow 1 Inch Tube O.D.

The Swivel Nut 90?? Elbow is part of the Buyers Products line of JIC 37 degree flare tube fittings. The fittings feature tough carbon steel construction, 3 piece flare sealing for a tight, secure connection, and a corrosion-resistant zinc finish. Fitting conforms to JIC and SAE specifications. Buyers Products tube fittings are used with copper, brass, steel, aluminum, and other tubing that can be flared. They are rated at up to 10,000 PSI depending on tube size.

Specifications

Finish	Zinc Plated
Material	Carbon Steel
Shape	90?? Elbow
Side 1	1 JIC (-16)
Side 2	1 JIC (-16)
Style	MF

Technical Deep Dive: The Swivel Nut 90° Elbow for 1-Inch Tube O.D.

In the realm of hydraulic and pneumatic systems, the integrity and performance of fluid conveyance components are paramount. The Swivel Nut 90° Elbow for 1-inch Tube O.D. from Buyers Products represents a critical component designed to meet the rigorous demands of industrial, mobile, and agricultural applications. This highly engineered fitting is a quintessential example of JIC (Joint Industry Council) 37-degree flare technology, known for its robust construction, reliable sealing, and operational flexibility.

Understanding the JIC 37-Degree Flare System

The foundation of this Swivel Nut 90° Elbow lies in the widely recognized JIC 37-degree flare standard, codified under SAE J514. This standard was developed to provide a universally interchangeable and dependable sealing method for fluid power systems. Unlike pipe threads (NPT) which rely on deformation and sealant for sealing, JIC fittings achieve their seal through a metal-to-metal contact between a flared tube and a cone-shaped fitting body. The 37-degree angle refers to the included angle of the cone and the flare, creating an interference fit when the components are tightened.

The operational principle of the JIC flare seal is ingeniously simple yet highly effective. A piece of tubing is precisely flared to a 37-degree angle. This flared end is then positioned against the 37-degree cone seat of the fitting body. A swivel nut, which typically slides over the tubing, is then threaded onto the fitting body, drawing the flared tube end firmly into contact with the fitting's cone. This mechanical compression creates a leak-tight, high-pressure seal without the need for additional O-rings or sealants, although in some critical applications, O-rings might be incorporated into specialized JIC variants or adapters. The elegance of this design ensures that the seal improves under pressure, as the internal fluid pressure helps to force the flared tube against the fitting seat, reinforcing the connection.

A key advantage of the JIC system is its reusability. Unlike many other fitting types that suffer from wear or require replacement after disassembly, JIC connections can be disconnected and reconnected multiple times, provided the flare on the tubing remains in good condition and the threads are not damaged. This reusability is invaluable for maintenance, troubleshooting, and system modifications, significantly reducing downtime and replacement costs over the life cycle of a system. Furthermore, the robust metal-to-metal seal is highly resistant to vibration, thermal cycling, and pressure pulsations, which are common stresses in dynamic hydraulic systems.

The Significance of the 90-Degree Elbow Configuration

The “90° Elbow” shape of this fitting is crucial for effective system design and routing. In any complex fluid power system, straight runs of tubing are often impractical or impossible. Changes in direction are frequently necessary to navigate around obstacles, align components, or optimize space utilization. While tubing can be bent, performing a proper, high-quality bend in 1-inch O.D. tubing, especially with thicker walls, can be challenging. Improper bending can lead to several problems:

• Flow Restriction: Sharp or poorly formed bends can significantly reduce the internal diameter of the tube, causing increased pressure drop, turbulence, and reduced flow efficiency.
• Material Stress: Bending induces stress in the tubing material. Excessive stress can lead to work hardening, cracking, or premature fatigue failure, particularly in high-pressure or vibratory environments.
• Kinking: Inadequate bending techniques can result in kinking, which severely obstructs flow and weakens the tube structurally.
• Installation Difficulty: Achieving precise, repeatable bends on-site can be time-consuming and requires specialized tools and skilled labor.

The Swivel Nut 90° Elbow eliminates these issues by providing a pre-formed, optimized directional change. Its engineered geometry ensures that the internal flow path maintains its full cross-sectional area as much as possible, minimizing pressure losses and turbulence. This is vital for maintaining system efficiency and ensuring predictable fluid power delivery. The smooth, gradual internal radius of the elbow helps to guide the fluid flow efficiently around the bend, reducing energy loss and heat generation. For a 1-inch tube O.D. fitting, this ensures that the designed flow rates and pressures are maintained throughout the system, which is critical in power transmission applications where even minor restrictions can impact performance.

The Advantage of the Swivel Nut Design

The "Swivel Nut" feature is a cornerstone of JIC fitting design, offering unparalleled ease of installation and maintenance. Without a swivel nut, one would have to rotate either the entire fitting body or the entire length of tubing to achieve a tight connection, which is often impractical or impossible in confined spaces or with rigid tubing runs. The swivel nut mechanism functions by allowing the nut to rotate freely around the fitting's body and the tubing, while the fitting body itself remains stationary. This independent rotation offers several significant benefits:

• Simplified Assembly: Installers can align the fitting body and the flared tube accurately without concern for rotational constraints. Once aligned, the swivel nut can be easily tightened onto the male threads of the fitting body, drawing the flare into the seat.
• Prevention of Tube Twisting: In systems with long or pre-bent tubes, forcing rotation to achieve connection can induce torsional stress in the tubing, potentially leading to material fatigue or loosening of other connections. The swivel nut eliminates this risk entirely.
• Enhanced Reusability: The ability to loosen and retighten the nut without disturbing the tube or other components prolongs the life of the entire assembly and facilitates quick field repairs or component replacements.
• Precise Torque Application: With the ability to isolate the tightening action to just the nut, operators can apply the specified torque accurately, ensuring optimal seal compression without over-stressing the components.

For a 1-inch Tube O.D. application, which typically involves substantial tubing and potentially rigid installations, the swivel nut feature is indispensable. It transforms what could be a cumbersome and error-prone installation into a straightforward and reliable process.

Material Excellence: Carbon Steel Construction

The choice of material for hydraulic fittings is paramount to their performance and longevity. The Swivel Nut 90° Elbow is constructed from "tough carbon steel," a material renowned for its exceptional mechanical properties suitable for high-pressure fluid power applications. Carbon steel offers:

• High Tensile Strength: Carbon steel possesses significant strength, enabling it to withstand the immense internal pressures and external forces encountered in hydraulic systems, often exceeding 5,000 PSI, and in some applications, up to 10,000 PSI as stated.
• Excellent Ductility: While strong, carbon steel also exhibits good ductility, meaning it can deform plastically without fracturing. This property is crucial in flare fittings, as it allows the metal-to-metal seal to conform slightly under compression, creating a more robust and forgiving seal. It also provides a margin of safety against sudden pressure spikes.
• Fatigue Resistance: Hydraulic systems are subject to continuous pressure cycles and vibrations. Carbon steel's inherent fatigue resistance ensures the fitting maintains its structural integrity over extended operational periods.
• Cost-Effectiveness: Compared to exotic alloys like stainless steel, carbon steel offers a more economical solution without significantly compromising performance in many industrial environments.
• Machinability and Weldability: Carbon steel is highly machinable, allowing for the precise manufacturing of threads, flare seats, and complex geometries. While fittings are typically machined from bar stock or forgings, the material's properties allow for intricate designs necessary for high-performance components.

The manufacturing process for such fittings often involves precision machining from high-quality bar stock or hot forging, followed by cold working. Forging enhances the material’s grain structure, improving its strength and resistance to fatigue. The "3 piece flare sealing" mentioned in the description refers to the interaction of the fitting body, the flare on the tube, and the nut/sleeve assembly that compresses the flare, all working in concert to create the seal.

Corrosion Resistance: The Zinc Plated Finish

While carbon steel provides excellent structural integrity, it is susceptible to corrosion, particularly in environments exposed to moisture, chemicals, or saltwater. To mitigate this, the Swivel Nut 90° Elbow features a "corrosion-resistant zinc finish." Zinc plating serves as a sacrificial coating, protecting the underlying carbon steel through galvanic action. If the coating is scratched or compromised, the zinc corrodes preferentially to the steel, thus extending the life of the fitting. Common types of zinc plating used for hydraulic fittings often include a trivalent chromate passivation layer, which enhances the corrosion resistance beyond that of plain zinc and provides a clear or yellow iridescent appearance. This finish not only protects against red rust (iron oxide) but also offers a degree of aesthetic appeal, contributing to the overall professional appearance of a hydraulic assembly. The durability of the zinc plating is critical in industrial settings where fittings may be exposed to harsh operating conditions, including dirt, dust, water, and various hydraulic fluids or lubricants. A well-applied zinc coating ensures that the fitting maintains its functional integrity and appearance throughout its service life, reducing the need for premature replacement due to rust.

Pressure Rating: Up to 10,000 PSI Capability

The impressive pressure rating "up to 10,000 PSI (depending on tube size)" underscores the robust engineering of this JIC fitting. This high-pressure capability is a testament to the combination of strong carbon steel material, precision manufacturing, and the inherent strength of the JIC 37-degree flare connection. The pressure rating of a fitting is not an isolated characteristic; it is influenced by several interdependent factors:

• Material Strength: As discussed, high-grade carbon steel provides the necessary tensile and yield strength.
• Wall Thickness and Geometry: The thickness of the fitting walls and the specific geometry of the threads and flare seat are crucial in containing high pressures.
• Thread Engagement: Adequate thread engagement between the swivel nut and the fitting body is vital to distribute stress evenly and prevent thread stripping under pressure.
• Tube Material and Wall Thickness: The maximum operating pressure of an assembly is ultimately limited by the weakest link. While the fitting itself may be rated for 10,000 PSI, the actual system pressure must also consider the burst pressure and working pressure ratings of the attached 1-inch O.D. tubing, which varies significantly based on its material (e.g., steel, stainless steel) and wall schedule.
• Flaring Quality: A perfectly formed 37-degree flare on the tube is essential. Imperfections can create stress concentrations, leading to leaks or failure at lower pressures.

Fittings rated for such high pressures are indispensable in heavy-duty applications such as construction equipment, mining machinery, offshore drilling platforms, and large industrial hydraulic presses. Ensuring that all components in a hydraulic circuit, including fittings, hoses, and tubing, are rated for or exceed the maximum anticipated system pressure is a critical safety consideration and a fundamental aspect of hydraulic system design.

Compatibility and Versatility with Various Tubing Materials

The Swivel Nut 90° Elbow is designed for broad compatibility, indicated by its suitability for "copper, brass, steel, aluminum, and other tubing that can be flared." This versatility makes it an invaluable component across diverse industries. Each tubing material possesses unique characteristics that influence its flaring process and application:

• Steel Tubing: Commonly used in high-pressure hydraulic applications due to its strength. Requires robust flaring tools and careful technique.
• Copper Tubing: Softer and more ductile, making it easier to flare but generally suitable for lower pressure applications, or for pneumatic, fuel, and lubrication lines.
• Brass Tubing: Offers good corrosion resistance and machinability, often used in pneumatic and lower-pressure hydraulic systems.
• Aluminum Tubing: Lightweight and corrosion-resistant, used where weight is a concern, such as in aerospace or automotive applications, typically for moderate pressures.

Regardless of the tubing material, proper flaring technique is paramount. A clean, burr-free cut and a smooth, concentric 37-degree flare without cracks or thinning at the apex are essential for creating a reliable, leak-proof seal. The ability of the JIC fitting to adapt to various tube materials underscores its universal appeal in fluid power connections.

Adherence to JIC and SAE Specifications (SAE J514)

The statement that the "Fitting conforms to JIC and SAE specifications" is a crucial indicator of quality and interchangeability. SAE J514 is the primary standard governing 37-degree flare fittings, ensuring that components from different manufacturers can be reliably interconnected. This conformity guarantees:

• Dimensional Accuracy: All critical dimensions, including thread size (1 JIC, or -16 in this case, meaning 1-inch nominal tube O.D.), flare angle, and nut dimensions, adhere to strict tolerances. This ensures perfect mating with other standard JIC components.
• Material Quality: Specifications often outline minimum material requirements, ensuring that the carbon steel used meets performance criteria for strength and durability.
• Performance Benchmarks: Fittings conforming to SAE J514 are designed to withstand specific pressure, temperature, and vibration conditions.
• Interchangeability: This is perhaps the most significant benefit. System designers and maintenance personnel can confidently select components from various suppliers, knowing they will fit and perform as expected, simplifying sourcing and reducing proprietary lock-ins.

For the 1-inch JIC (-16) size, specifically, this means the fitting will seamlessly integrate into systems designed around this common hydraulic size, ensuring predictable flow characteristics and connection integrity. The "MF" style designation in the specifications typically refers to a Male Flare end and a Female Swivel Nut end, which is standard for an elbow connecting to a flared tube on one side and providing a male flare connection for another swivel nut on the other, or vice versa. Given the title "Swivel Nut 90 Degree Elbow," it most commonly means it has a swivel nut connection on one side (female JIC) and a male JIC flare connection on the other. However, with "Side 1: 1 JIC (-16)" and "Side 2: 1 JIC (-16)," and the overall "Swivel Nut Elbow" description, it is designed for a single tube connection point where the swivel nut allows for flexible installation of the tubing, while the male flare portion of the elbow connects to another female JIC port. In the context of the title, it's typically a male JIC on one end to which a flared tube with a swivel nut connects, and the other end of the elbow is the swivel nut that connects to another male JIC fitting or port. The -16 designation refers to the 1-inch nominal size for the tube, meaning a tube with a 1-inch outside diameter is used with this fitting, which is a common size for high-flow hydraulic lines. This precision in sizing and standardization is fundamental to reliable hydraulic system construction.

Applications and System Integration

The Swivel Nut 90° Elbow for 1-inch Tube O.D. finds extensive use across a multitude of heavy-duty applications:

• Mobile Hydraulics: Essential in construction equipment (excavators, loaders), agricultural machinery (tractors, harvesters), and forestry equipment where fluid lines must navigate complex chassis and withstand constant vibration and environmental exposure.
• Industrial Hydraulics: Utilized in manufacturing plants for machinery like presses, injection molding machines, and automation systems requiring robust and reliable connections for power transmission.
• Transportation: Employed in commercial vehicles, rail systems, and marine applications for hydraulic steering, braking, and lifting mechanisms.
• Energy Sector: Found in oil and gas exploration equipment, power generation facilities, and renewable energy systems.
• Pneumatic Systems: While primarily known for hydraulics, JIC fittings can also be effectively used in high-pressure pneumatic applications where similar sealing integrity and robust construction are required.

Integrating this fitting into a system involves more than just physical connection. Engineers must consider flow rates, pressure drops, system vibration, thermal expansion and contraction, and potential galvanic corrosion if dissimilar metals are used elsewhere in the system. The 1-inch O.D. size indicates this fitting is designed for substantial fluid flow, suitable for main lines or circuits requiring high volume and minimal restriction.

Installation Best Practices and Maintenance

To ensure the maximum performance and longevity of the Swivel Nut 90° Elbow, adherence to proper installation and maintenance procedures is critical:

• Proper Flaring: Use a high-quality, calibrated flaring tool to create a perfectly concentric and smooth 37-degree flare on the 1-inch O.D. tubing. Ensure the tube end is cut square and deburred before flaring.
• Lubrication: A light coating of compatible hydraulic fluid on the threads and the back of the swivel nut can facilitate smooth tightening and prevent galling, especially with carbon steel.
• Torque Specification: Always tighten the swivel nut to the manufacturer's recommended torque specification. Over-tightening can deform the flare or damage the threads, leading to leaks or premature failure. Under-tightening will result in a leaky connection. Torque wrenches are essential for consistent and reliable installations.
• Inspection: Before system pressurization, visually inspect all connections for proper alignment and tightness. After initial pressurization, check for leaks using appropriate detection methods.
• Reusability: While JIC fittings are reusable, always inspect the flare on the tubing and the seat of the fitting for any signs of damage, scoring, or deformation before reassembly. Replace damaged components as necessary.

By following these best practices, operators can ensure that the Swivel Nut 90° Elbow delivers its intended performance, contributing to a safe, efficient, and reliable fluid power system.

Conclusion: A Benchmark for Performance and Reliability

The Swivel Nut 90° Elbow for 1-inch Tube O.D. from Buyers Products stands as a testament to precision engineering and robust construction within the demanding world of fluid power. Its adherence to the globally recognized JIC 37-degree flare standard, coupled with its heavy-duty carbon steel construction and protective zinc finish, ensures a leak-proof connection capable of withstanding pressures up to 10,000 PSI. The intelligent 90-degree elbow design optimizes fluid flow and simplifies routing, while the swivel nut feature revolutionizes installation ease and reusability. Compatible with a broad range of tubing materials and specified for a 1-inch outer diameter, this fitting is an indispensable component for system designers and maintenance professionals seeking unparalleled reliability and performance in critical hydraulic and pneumatic applications. Choosing this Buyers Products fitting means investing in components that meet rigorous industry standards, offering peace of mind and contributing to the operational excellence and longevity of your fluid power systems.
