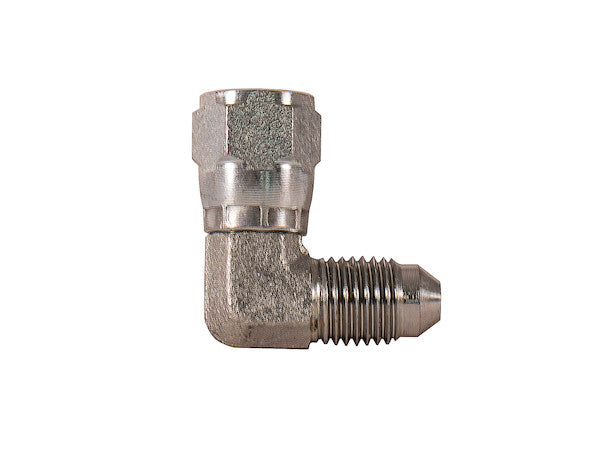

The Swivel Nut 90?? Elbow is part of the Buyers Products line of JIC 37 degree flare tube fittings. The fittings feature tough carbon steel construction, 3 piece flare sealing for a tight, secure connection, and a corrosion-resistant zinc finish. Fitting conforms to JIC and SAE specifications. Buyers Products tube fittings are used with copper, brass, steel, aluminum, and other tubing that can be flared. They are rated at up to 10,000 PSI depending on tube size.
Specifications
| Finish | Zinc Plated |
|---|---|
| Material | Carbon Steel |
| Shape | 90?? Elbow |
| Side 1 | 3/8 JIC (-6) |
| Side 2 | 3/8 JIC (-6) |
| Style | MF |
The Swivel Nut 90° Elbow, designed for 3/8 Inch Tube O.D., represents a critical component within hydraulic and fluid power systems, embodying precision engineering, robust material selection, and adherence to stringent industry standards. As an integral part of the Buyers Products JIC 37-degree flare tube fitting line, this product is meticulously engineered to establish secure, leak-proof connections in demanding operational environments. Its construction from high-grade carbon steel, complemented by a durable zinc-plated finish, ensures both mechanical integrity and exceptional corrosion resistance, crucial for longevity and reliability in industrial applications. The 90-degree elbow configuration offers significant advantages in system design and tubing routing, enabling efficient directional changes without compromising flow or pressure.
The Joint Industry Council (JIC) 37-degree flare system, to which this fitting conforms, is a globally recognized standard for medium to high-pressure fluid transfer applications. The defining characteristic of the JIC system is its 37-degree flare angle, which forms a metal-to-metal seal between the flared end of the tube and the conical seat of the fitting body. This sealing mechanism is inherently robust, providing excellent resistance to vibration, pressure surges, and temperature fluctuations, which are common in hydraulic systems. Unlike elastomeric seals, a properly assembled JIC connection does not rely on an O-ring or gasket, making it less susceptible to chemical degradation, extrusion, or hardening over time. The "3 piece flare sealing" mentioned refers to the interaction between the fitting body, the flared tube end (which acts as one "piece"), and the swivel nut. In some interpretations, a separate sleeve might be considered the third piece, but the primary sealing action is achieved by compressing the flared tube against the fitting’s cone using the swivel nut.
Material science plays a pivotal role in the performance of the Swivel Nut 90° Elbow. The choice of carbon steel as the base material is deliberate and strategic. Carbon steel possesses an excellent balance of properties essential for hydraulic components: high tensile strength to withstand significant internal pressures, good ductility to resist brittle fracture under stress, and moderate hardness for wear resistance. These attributes ensure the fitting's structural integrity, even in systems operating at pressures up to 10,000 PSI, as indicated, depending on the specific tube characteristics. Furthermore, carbon steel is cost-effective and readily available, making it a practical choice for industrial-grade fittings. The manufacturing process involves precision machining to achieve the critical 37-degree flare angle and thread tolerances, ensuring a consistent and reliable seal. The integrity of the material also contributes to its resistance against fatigue, a common failure mode in components subjected to cyclic pressure loading.
The zinc-plated finish is more than a superficial coating; it is a critical layer of protection against environmental degradation. Zinc plating provides sacrificial corrosion protection. In the presence of an electrolyte (such as moisture), zinc corrodes preferentially to steel, thereby protecting the underlying carbon steel from rust. This electrochemical process significantly extends the lifespan of the fitting, especially in environments exposed to humidity, water, or corrosive agents. The zinc finish typically includes a chromate conversion coating, which passivates the zinc layer, enhancing its corrosion resistance and giving it a specific color (e.g., clear, yellow, or black chromate). This dual-layer protection prevents the formation of "white rust" (zinc corrosion) and subsequently "red rust" (iron corrosion), maintaining the aesthetic appeal and functional integrity of the fitting over extended periods. Regular inspection of the plating for damage is crucial in maintaining its protective capabilities.
The 90-degree elbow configuration is a fundamental design element for hydraulic system architects. It facilitates efficient and clean routing of tubing in confined spaces or where abrupt directional changes are necessary. By utilizing an elbow fitting, designers can avoid sharp bends in the tubing itself, which can lead to several problems: kinking, reduced flow efficiency, increased pressure drop, and creation of stress points that could lead to premature tube failure. The use of a pre-formed 90-degree elbow ensures a smooth, consistent bend radius, optimizing fluid flow and minimizing turbulence. This not only enhances system performance but also contributes to the longevity of the entire fluid conduit system by reducing localized stress concentrations on the tubing. The precise manufacturing of the elbow ensures that the flow path through the fitting is as unrestricted as possible, critical for maintaining system pressure and efficiency.
The specification "3/8 Inch Tube O.D." refers to the outer diameter of the tubing with which this fitting is designed to interface. In the JIC system, fittings are often designated by "dash sizes," where each dash represents 1/16th of an inch. Therefore, a 3/8 inch tube O.D. corresponds to a -6 dash size (6/16 = 3/8). This standardization simplifies component selection and ensures compatibility across different manufacturers conforming to JIC standards. The precision of the tube O.D. is paramount for achieving a proper flare and a reliable seal. Any deviation in tube diameter or wall thickness can compromise the integrity of the flare, leading to leaks or system failure. The design of the swivel nut allows for easy and secure connection to the flared tube end. The nut itself freely rotates around the body of the fitting, simplifying installation by allowing the tube to be aligned without rotating the entire assembly. This 'make-up' feature significantly reduces installation time and effort, particularly in complex hydraulic circuits.
The pressure rating of "up to 10,000 PSI depending on tube size" highlights the high-performance capability of these JIC fittings. While the fitting itself is robust, the overall pressure capacity of the connection is a function of the weakest link in the system, which often includes the tubing material, wall thickness, and the quality of the flare itself. Factors influencing the maximum operating pressure include the yield strength of the tube material, the method of flaring (single vs. double flare), and the torque applied to the swivel nut during assembly. Proper installation techniques, including clean cuts, deburred edges, and precise flaring tools, are absolutely critical to achieving the specified pressure ratings. Engineers typically apply safety factors to these maximum ratings, often designing systems to operate at a fraction of the component's burst pressure to ensure reliability and prevent catastrophic failures. The JIC 37° flare is known for its excellent fatigue resistance under pulsating pressures, making it suitable for dynamic hydraulic applications where system pressures fluctuate rapidly.
The Swivel Nut 90° Elbow is compatible with a wide range of tubing materials, including copper, brass, steel, and aluminum, provided they can be properly flared. Each material offers distinct advantages: steel tubing provides high strength and is often used in heavy-duty hydraulic applications; stainless steel (though not explicitly mentioned for the fitting material) offers superior corrosion resistance in aggressive environments; copper and brass are easier to flare and bend, suitable for lower pressure applications or those requiring vibration dampening; and aluminum tubing is lightweight, ideal for applications where weight reduction is critical. The compatibility of JIC fittings across these materials makes them highly versatile for various industrial and mobile hydraulic systems, including construction equipment, agricultural machinery, material handling systems, marine applications, and factory automation.
Adherence to JIC and SAE specifications (specifically SAE J514 for Hydraulic Tube Fittings) is a cornerstone of this product's quality and interchangeability. These standards dictate critical dimensions, material properties, pressure ratings, and testing procedures for hydraulic fittings. Conformance ensures that fittings from different manufacturers can be interchanged without compromising system integrity, facilitating maintenance and parts sourcing globally. SAE J514 outlines detailed requirements for the design, construction, and performance testing of 37-degree flare fittings, including proof pressure tests, burst pressure tests, and vibration tests. These rigorous testing protocols guarantee that the fitting can withstand the demanding conditions of hydraulic service. For instance, burst pressure tests ensure the fitting can hold pressures significantly higher than its rated working pressure before failure, providing a critical safety margin. The global acceptance of these standards underscores the reliability and proven performance of JIC fittings.
Proper installation is paramount for the long-term reliability and leak-free operation of any JIC fitting. The process begins with carefully preparing the tubing: cutting it to the correct length, ensuring a square end, and meticulously deburring both the inside and outside edges to prevent potential damage to the flare seat or restriction of fluid flow. The tube must then be flared using a specialized 37-degree flaring tool, ensuring a smooth, concentric, and crack-free flare. Any imperfections in the flare can lead to leakage paths. Before assembly, all components – the fitting body, the swivel nut, and the flared tube end – must be clean and free of contaminants, debris, or damage. Lubricating the threads of the swivel nut with a compatible fluid (e.g., hydraulic oil or anti-seize compound) can facilitate proper torque application and prevent galling. The swivel nut should be hand-tightened first, then torqued to the manufacturer's specified value using a calibrated torque wrench. Over-tightening can deform the flare or gall the threads, while under-tightening will result in a leak. A correct torque ensures sufficient compression for a robust metal-to-metal seal. The "make-up" aspect of the swivel nut design allows the nut to rotate independently, preventing twisting of the tube during assembly, which is a common cause of installation error in fixed-nut fittings.
The advantages of utilizing the Swivel Nut 90° Elbow are manifold. Its high-pressure capability makes it suitable for demanding hydraulic applications. The metal-to-metal JIC flare seal provides exceptional vibration resistance, crucial in mobile and heavy industrial equipment where dynamic loads and constant movement are prevalent. This type of fitting is also inherently reusable, provided the sealing surfaces and threads remain undamaged, making it a cost-effective choice over the lifespan of a system as components may need to be disassembled for maintenance or modification. Its standardization through JIC and SAE specifications ensures broad compatibility and ease of sourcing. The 90-degree elbow shape facilitates optimal system layout, reducing the need for custom tube bending and associated stresses. The combination of carbon steel construction and zinc plating offers a durable, corrosion-resistant solution for fluid transfer. Ultimately, this fitting provides a robust, reliable, and technically sound solution for engineers and technicians designing or maintaining fluid power systems where performance and durability are non-negotiable.
In conclusion, the Swivel Nut 90° Elbow, with its 3/8 Inch Tube O.D. and JIC 37-degree flare design, stands as a testament to precision manufacturing and adherence to industry-leading standards. Its careful selection of carbon steel for strength, zinc plating for corrosion resistance, and the functional design of a 90-degree swivel nut elbow combine to deliver a component of superior performance. Rated for high-pressure applications and conforming to critical JIC and SAE specifications, it provides a trusted and interchangeable solution for connecting various types of tubing in complex hydraulic, pneumatic, and fluid transfer systems. Its robust design minimizes the risk of leaks, reduces maintenance requirements, and ensures prolonged operational integrity, making it an indispensable element in demanding industrial and mobile equipment environments where reliability and safety are paramount. Investing in such meticulously engineered components ensures system efficiency, longevity, and peace of mind for operators and designers alike.
