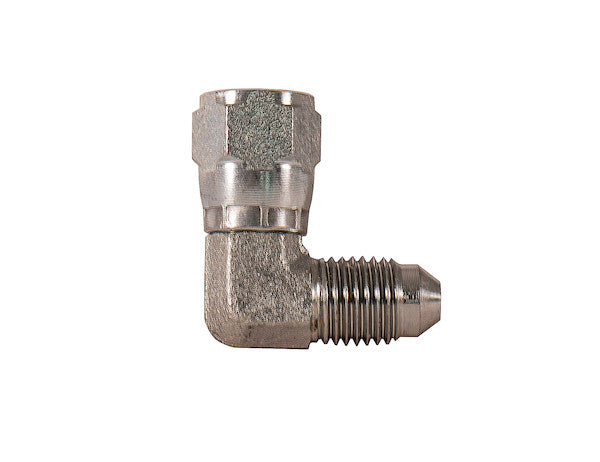

The Swivel Nut 90?? Elbow is part of the Buyers Products line of JIC 37 degree flare tube fittings. The fittings feature tough carbon steel construction, 3 piece flare sealing for a tight, secure connection, and a corrosion-resistant zinc finish. Fitting conforms to JIC and SAE specifications. Buyers Products tube fittings are used with copper, brass, steel, aluminum, and other tubing that can be flared. They are rated at up to 10,000 PSI depending on tube size.
Specifications
| Finish | Zinc Plated |
|---|---|
| Material | Carbon Steel |
| Shape | 90?? Elbow |
| Side 1 | 1/2 JIC (-8) |
| Side 2 | 1/2 JIC (-8) |
| Style | MF |
The Swivel Nut 90° Elbow, a critical component within the Buyers Products extensive range of JIC 37-degree flare tube fittings, represents a pinnacle of precision engineering and robust construction designed for demanding fluid power applications. This specific fitting, characterized by its 90-degree angle and 1/2 inch tube O.D. compatibility, serves a vital role in directing fluid flow in hydraulic and pneumatic systems where space constraints and intricate routing necessitate reliable angular connections.
At its core, this fitting leverages the industry-standard JIC (Joint Industry Council) 37-degree flare system, renowned globally for its exceptional reliability, high-pressure capabilities, and ease of assembly and disassembly. The JIC standard, primarily governed by SAE J514 for Hydraulic Tube Fittings, mandates specific dimensional and performance criteria, ensuring interchangeability and consistent performance across various manufacturers. The 37-degree flare angle is meticulously engineered to provide a metal-to-metal seal between the flared tube end and the mating cone of the fitting body. This design minimizes the reliance on elastomeric seals, making JIC fittings particularly well-suited for high-pressure applications, fluctuating temperatures, and environments where chemical compatibility with rubber or plastic seals could be an issue. The inherent simplicity and robust nature of this sealing mechanism contribute significantly to the long-term integrity of fluid conveyance systems.
The "3-piece flare sealing" mechanism described for this product is a defining characteristic of superior JIC fittings. This assembly typically comprises three distinct components working in concert: the fitting body (with its 37-degree male cone), a flared tube end (prepared to a matching 37-degree female cone), and a swivel nut with a sleeve. The sleeve, or nut and sleeve combination, is critical. The tube is flared at its end to a 37-degree angle. The sleeve is placed over the tube before flaring, followed by the swivel nut. When the swivel nut is tightened onto the male flare of the fitting body, it draws the flared tube end securely against the fitting's mating cone. The sleeve provides support behind the flare, preventing radial distortion and buttressing the tube against vibration and mechanical stress. This arrangement creates a highly reliable, leak-resistant connection capable of withstanding significant operational pressures and dynamic forces, ensuring fluid containment even under severe operating conditions. The design allows the tube to be firmly seated without twisting it during assembly, a crucial advantage that enhances system integrity and simplifies maintenance.
The material composition of this Swivel Nut 90° Elbow is of paramount importance. Constructed from tough carbon steel, the fitting offers superior mechanical properties critical for hydraulic and industrial applications. Carbon steel is chosen for its high tensile strength, excellent ductility, and fatigue resistance, enabling it to endure the constant pulsations, vibrations, and high internal pressures characteristic of fluid power systems. Its inherent robustness guards against material deformation, cracking, and premature wear, thereby contributing to the safety and longevity of the entire hydraulic circuit. The selection of carbon steel ensures that the fitting can withstand not only hydrostatic pressures but also external mechanical stresses that may arise from system layout or environmental factors, ensuring structural integrity throughout its operational lifespan.
Complementing the inherent strength of carbon steel is the corrosion-resistant zinc finish. This surface treatment is not merely aesthetic; it serves a crucial functional purpose in extending the service life of the fitting, particularly in harsh industrial or outdoor environments where exposure to moisture, chemicals, and other corrosive agents is common. Zinc plating provides sacrificial anodic protection to the underlying carbon steel. In the presence of an electrolyte (such as water), the zinc coating corrodes preferentially to the steel, thus protecting the steel substrate from rust and degradation. This protective layer significantly enhances the fitting's durability, reduces maintenance requirements, and helps to maintain the clean operation of the hydraulic system by preventing the ingress of corrosive particles that could contaminate the fluid. The zinc finish also contributes to easier assembly by providing a smoother, less frictional surface for the nut to turn, while also giving the fitting a professional and clean appearance that is often expected in high-quality industrial components.
The designation "Swivel Nut 90° Elbow" itself speaks volumes about its functional advantages. The 90-degree elbow configuration is essential for redirecting tubing runs, allowing for clean, efficient routing around obstacles or within confined spaces. This angular change minimizes the need for tube bending, which can introduce stress points or reduce flow efficiency if not executed perfectly. The "swivel nut" feature is a significant ergonomic and engineering advantage. It means that one end of the elbow (the female JIC end) features a free-spinning nut that can be tightened without rotating the entire elbow body or the attached tube. This capability greatly simplifies installation, especially in multi-port manifolds or complex assemblies where precise alignment is critical and rotating rigid tubing sections is impractical or impossible. The swivel nut allows the technician to orient the elbow's body for optimal routing before tightening the connection, facilitating a quicker, more accurate, and less labor-intensive assembly process. In this specific "MF" (Male-Female) configuration, one end is a female swivel JIC connection designed to accept a flared tube, while the other end is a male JIC connection designed to thread into a mating female JIC port or component, providing a versatile interface for system integration.
The specified "1/2 Inch Tube O.D." and "1/2 JIC (-8)" sizing is critical for ensuring precise compatibility within fluid systems. The "1/2 Inch Tube O.D." refers to the outer diameter of the tubing with which this fitting is designed to be used. The "-8" dash size is a commonly used industry standard for designating fitting and hose sizes, where each dash unit corresponds to 1/16th of an inch. Thus, an "-8" fitting is designed for a 8/16 inch, or 1/2 inch, tube or port. This precise dimensional control, mandated by JIC and SAE specifications, guarantees that when properly assembled, the fitting forms a secure, leak-free connection with corresponding components, maintaining the integrity of the hydraulic or pneumatic circuit and preventing pressure drops or fluid loss. Adherence to these standardized dimensions is crucial for maintenance, repair, and system expansion, ensuring that components from different manufacturers can be reliably interconnected.
The robust pressure rating of "up to 10,000 PSI depending on tube size" underscores the high-performance capabilities of this fitting. This rating indicates its suitability for extremely demanding hydraulic applications where high fluid pressures are generated to actuate heavy machinery or power industrial processes. The actual maximum operating pressure for any given assembly is not solely determined by the fitting but is a complex function of several factors, including the material and wall thickness of the tubing, the specific fluid temperature, the system dynamics (e.g., pressure spikes, vibrations), and the overall quality of the flared connection. While the fitting itself is designed to withstand 10,000 PSI, the weakest link in the system will dictate the ultimate safe operating pressure. For instance, thicker-walled, high-strength steel tubing will allow for higher pressures than thinner-walled copper or aluminum tubing, even with the same fitting. Buyers Products' commitment to these high-pressure ratings reflects their dedication to engineering safety and performance into every component, providing users with the confidence that their fluid systems can operate reliably under extreme conditions, subject to proper system design and installation practices.
The versatility of Buyers Products tube fittings extends to their compatibility with a wide array of tubing materials, including copper, brass, steel, and aluminum, as well as other flareable tubing. This broad compatibility makes the Swivel Nut 90° Elbow adaptable to diverse applications across numerous industries. Copper tubing, often used in refrigeration or low-pressure fluid transfer, benefits from the JIC flare's reliable seal. Brass tubing, known for its corrosion resistance and ease of workability, is also an excellent match. Steel tubing, particularly carbon steel and stainless steel variants, is prevalent in heavy-duty hydraulic systems due to its strength and pressure capacity, where the JIC fitting's robust construction is essential. Aluminum tubing offers advantages in weight reduction and corrosion resistance for specific applications. The ability to utilize this single fitting type across different tubing materials simplifies inventory management, streamlines procurement, and offers design flexibility, allowing engineers to select the optimal tubing for their specific performance and environmental requirements while maintaining a consistent and reliable connection standard.
Applications for this Swivel Nut 90° Elbow are extensive, ranging from heavy construction equipment and agricultural machinery to industrial manufacturing lines, material handling systems, and commercial transportation fleets. In construction, these fittings are found in hydraulic cylinders, booms, and steering systems, where reliability under extreme stress and outdoor exposure is paramount. Agricultural machinery relies on these robust connections for hydraulic control of implements and steering. Manufacturing facilities utilize them in automated production lines for both hydraulic power and pneumatic controls. They are crucial in fluid power systems for transferring hydraulic oil, lubricating fluids, fuel, and compressed air, ensuring leak-free performance even when subjected to dynamic loads, severe vibrations, and extreme temperature variations. Their precision and robust design make them indispensable components in modern industrial infrastructure, where system downtime due to connection failure can be costly.
Proper installation and maintenance are key to realizing the full benefits of this high-quality fitting. The precise 37-degree flare on the tube end must be formed accurately using appropriate flaring tools to ensure an optimal metal-to-metal seal. The tube cut must be clean and square, and deburred to prevent stress concentrations or flow restrictions. During assembly, the swivel nut should be hand-tightened first, followed by controlled torque application using a wrench. Over-tightening can deform the flare or gall the threads, compromising the seal, while under-tightening can lead to leaks. The presence of the swivel nut greatly simplifies this process by preventing twisting of the tube or alignment issues. Regular inspections for signs of wear, corrosion, or leaks are recommended as part of a comprehensive maintenance schedule to ensure continued system integrity and operational safety. The reusability of JIC fittings, provided the flared tube end and fitting body remain undamaged, offers a significant advantage in terms of serviceability and cost-effectiveness over the life of the equipment, allowing for easy component replacement or system modifications.
In conclusion, the Swivel Nut 90° Elbow with 1/2 Inch Tube O.D. from Buyers Products embodies a commitment to engineering excellence and industrial reliability. Its adherence to stringent JIC and SAE specifications, coupled with its robust carbon steel construction and protective zinc plating, ensures superior performance in demanding hydraulic and pneumatic environments. The intelligent design of the 90-degree elbow with a swivel nut facilitates precise routing and simplified installation, while its compatibility with a wide range of tube materials and impressive 10,000 PSI pressure rating highlight its versatility and capability. This fitting is not merely a connector; it is a meticulously engineered component designed to deliver dependable, leak-free fluid conveyance, contributing significantly to the operational efficiency, safety, and longevity of critical industrial systems across diverse sectors. It represents an investment in system integrity and peace of mind for engineers and operators alike.
