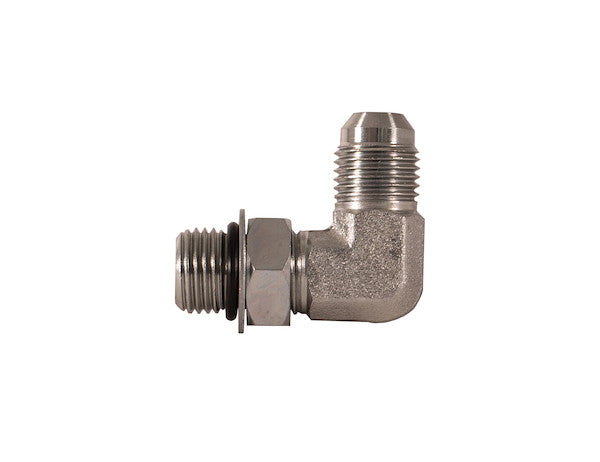

The Straight Thread O-Ring 90?? Elbow is part of the Buyers Products line of JIC 37 degree flare tube fittings. The fittings feature tough carbon steel construction, 3 piece flare sealing for a tight, secure connection, and a corrosion-resistant zinc finish. Fitting conforms to JIC and SAE specifications. Buyers Products tube fittings are used with copper, brass, steel, aluminum, and other tubing that can be flared. They are rated at up to 10,000 PSI depending on tube size.
Specifications
| Finish | Zinc Plated |
|---|---|
| Material | Carbon Steel |
| Shape | 90?? Elbow |
| Side 1 | 3/4 JIC (-12) |
| Side 2 | 3/4 SAE ORB (-12) |
| Style | MM |
The Straight Thread O-Ring 90?? Elbow, a distinguished component within the Buyers Products extensive line of hydraulic fittings, represents a critical element for efficient and reliable fluid conveyance in demanding industrial and mobile applications. This specific fitting is engineered to seamlessly integrate a 3/4 inch outer diameter (O.D.) tube utilizing a JIC 37-degree flare connection with a 3/4 inch port featuring an SAE O-Ring Boss (ORB) straight thread. Designed as a 90-degree elbow, it provides a crucial directional change in tubing runs, enabling optimal system layout and space utilization without compromising hydraulic performance or integrity.
At its core, this fitting is a testament to precision engineering and robust material science. Constructed from high-quality carbon steel and finished with a durable zinc plating, it offers exceptional resistance to the rigorous conditions inherent in hydraulic systems, including high pressures, vibrations, and corrosive environments. The meticulous design ensures adherence to both JIC (Joint Industry Council) and SAE (Society of Automotive Engineers) specifications, guaranteeing interoperability and adherence to stringent industry standards for performance and safety. Buyers Products' commitment to quality is evident in every aspect of this fitting, from its structural integrity to its specialized sealing mechanisms.
Advanced Sealing Technologies: JIC 37-Degree Flare and SAE O-Ring Boss
The efficacy of any hydraulic system hinges on the reliability of its connections, and this Straight Thread O-Ring 90?? Elbow excels by combining two industry-leading sealing technologies: the JIC 37-degree flare and the SAE O-Ring Boss (ORB). Each mechanism is specifically designed to prevent leaks under extreme operational pressures and dynamic stresses.
JIC 37-Degree Flare Connection: This side of the elbow is designed for a 3/4 inch O.D. tube, designated as a -12 dash size in the JIC standard. The JIC 37-degree flare connection is a metal-to-metal sealing system widely recognized for its robustness and ease of assembly. The "3-piece flare sealing" mentioned in the product description refers to the interaction of three distinct components: the fitting body (with its 37-degree conical seat), a flare nut, and a sleeve. During installation, the tube end is flared to a 37-degree cone, which then mates precisely with the conical seat of the fitting body. The flare nut, when tightened, compresses the flared tube end against the fitting's seat, creating a secure, leak-tight metal-to-metal seal. The sleeve, positioned between the nut and the flared tube, provides structural support to the flared tube, preventing distortion and enhancing vibration resistance, particularly critical in mobile hydraulic applications. This design ensures mechanical integrity and a superior seal even under fluctuating pressures and mechanical vibrations. The compatibility with various tubing materials—including copper, brass, steel, and aluminum—underscores its versatility, provided these materials possess the ductility required for proper flaring.
SAE O-Ring Boss (ORB) Straight Thread Connection: The other end of this 90?? elbow features a 3/4 inch SAE ORB straight thread, also corresponding to a -12 dash size, designed to connect to a female threaded port. The SAE O-Ring Boss system (conforming to SAE J1926/ISO 11926 standards) is revered for its superior leak-free performance. Unlike tapered pipe threads (NPT) that rely on thread deformation and thread sealant for sealing, the ORB system utilizes an O-ring compressed in a precisely machined groove. As the male ORB fitting is threaded into the female port, the O-ring is compressed between the face of the male fitting and the bottom of the O-ring boss in the female port, forming an impenetrable soft seal. This mechanism eliminates the need for thread sealants, prevents galling, and significantly reduces the risk of overtightening and subsequent damage to the port. The straight threads ensure full engagement and uniform load distribution, further enhancing the connection's resistance to vibration and pressure surges. This O-ring seal provides exceptional sealing reliability, making it ideal for high-pressure hydraulic and pneumatic applications where even the slightest leakage is unacceptable.
Material Science and Surface Engineering: Carbon Steel and Zinc Plating
The choice of material and surface treatment for hydraulic fittings is paramount to their longevity and performance. Buyers Products has selected carbon steel for its intrinsic mechanical advantages and paired it with a robust zinc plating for enhanced environmental protection.
Carbon Steel Construction: Carbon steel is the material of choice for this fitting due to its exceptional strength-to-weight ratio and cost-effectiveness. It offers superior tensile strength, yield strength, and hardness, which are critical properties for components subjected to high internal pressures and external mechanical stresses in hydraulic systems. The inherent toughness of carbon steel provides excellent resistance to fatigue, wear, and abrasion, ensuring that the fitting can withstand millions of pressure cycles and harsh operational environments without structural degradation. This material choice allows the fitting to be rated for pressures up to 10,000 PSI, contingent on the connected tube size and wall thickness, underscoring its suitability for heavy-duty applications. Furthermore, carbon steel maintains its structural integrity across a broad temperature range typical of hydraulic fluids, from extreme cold start-ups to elevated operating temperatures.
Corrosion-Resistant Zinc Plating: To protect the carbon steel from rust and other forms of environmental corrosion, the fitting undergoes a zinc plating process. Zinc plating serves as a sacrificial coating, providing galvanic protection to the underlying steel. In the presence of moisture or corrosive agents, the zinc corrodes preferentially to the steel, thus extending the life of the fitting. This finish significantly enhances the fitting's durability in outdoor environments, marine applications, or any setting where exposure to humidity, chemicals, or road salts is a concern. Beyond its protective qualities, the zinc plating also provides a clean, professional aesthetic, facilitating easier inspection and maintenance. This dual-layer protection ensures that the fitting maintains its functional and structural integrity over an extended service life, reducing downtime and maintenance costs.
Precision Engineering and Conformance to Industry Standards
The design and manufacturing of the Straight Thread O-Ring 90?? Elbow strictly adhere to recognized industry standards, specifically JIC and SAE specifications. This commitment to standards ensures not only compatibility with a vast array of hydraulic components but also guarantees a level of quality and performance that users can trust.
JIC Standards: The JIC 37-degree flare standard (often referenced by SAE J514) defines the dimensions, tolerances, and performance requirements for flared tube fittings. Adherence to these specifications means that the 3/4 JIC (-12) end of this fitting will reliably connect with any JIC-compliant flared tube or component, ensuring leak-free performance and mechanical strength. The consistency in manufacturing to JIC standards simplifies system design, assembly, and maintenance, making it a preferred choice for many hydraulic applications worldwide.
SAE Standards: The SAE O-Ring Boss (ORB) standard (SAE J1926/ISO 11926) governs the dimensions and performance of straight thread O-ring ports and fittings. The 3/4 SAE ORB (-12) end of this elbow is manufactured to precise SAE specifications, ensuring perfect mating with corresponding SAE ORB ports. This standardization is critical for achieving the specified leak-free seal and pressure rating. By conforming to both JIC and SAE standards, Buyers Products provides a versatile fitting that integrates seamlessly into diverse hydraulic systems, enhancing overall system reliability and performance.
Performance Capabilities and Operational Advantages
This 90?? elbow is engineered not just for connection but for optimized performance within high-pressure hydraulic circuits. Its design attributes contribute significantly to system efficiency, safety, and longevity.
High Pressure Rating: With a rating of up to 10,000 PSI, depending on the tube size and wall thickness, this fitting is suitable for an extremely broad range of high-pressure hydraulic applications. This robust pressure capability is a direct result of the superior material properties of carbon steel, the secure sealing mechanisms of both JIC and ORB connections, and the precision manufacturing processes employed. It instills confidence in system designers and operators that critical hydraulic circuits will maintain integrity under severe operational loads.
Optimized Flow Characteristics: The 90-degree elbow shape is expertly designed to facilitate directional changes in fluid flow with minimal pressure drop and turbulence. The internal geometry is smooth, reducing resistance and ensuring efficient fluid transfer. This optimization helps maintain system efficiency, reduce energy consumption, and prevent premature wear on pumps and other hydraulic components.
Vibration and Shock Resistance: Hydraulic systems, particularly in mobile equipment, are frequently exposed to significant vibrations and hydraulic shock. The combination of the JIC 3-piece flare design and the elastomeric O-ring seal of the ORB connection provides exceptional resistance to loosening and leakage caused by dynamic forces. The O-ring in particular offers a degree of resilience that helps absorb minor movements and maintain a seal, making the ORB connection superior in highly dynamic environments compared to traditional tapered pipe threads.
Versatile Applications Across Industries
The robust construction and superior sealing technology of the Straight Thread O-Ring 90?? Elbow make it an indispensable component across numerous industries and applications:
- Mobile Hydraulics: Essential for construction equipment (excavators, loaders), agricultural machinery (tractors, harvesters), material handling equipment (forklifts, cranes), and utility vehicles, where space constraints necessitate precise hose routing and connections must withstand extreme conditions.
- Industrial Machinery: Utilized in manufacturing plants for automation systems, presses, machine tools, and power units, ensuring reliable operation of stationary hydraulic equipment.
- Transportation: Integrated into heavy-duty trucks, buses, and specialized vehicles for braking systems, power steering, and hydraulic lift mechanisms.
- Marine Applications: Suitable for shipboard hydraulic systems, steering gear, winches, and cargo handling, where resistance to corrosion and high reliability are paramount.
- Mining and Forestry: Employed in heavy machinery operating in harsh, abrasive environments, where durability and leak prevention are critical for safety and operational continuity.
Installation Best Practices and Maintenance Considerations
Proper installation and routine maintenance are crucial to maximizing the performance and lifespan of the Straight Thread O-Ring 90?? Elbow.
Installation: For the JIC flare end, ensure the tube is properly flared to a 37-degree angle, free of burrs and nicks. Lubricate the threads of the flare nut and the sealing surfaces to prevent galling and ensure proper torque application. For the SAE ORB end, inspect the O-ring for any damage or contamination before installation. Lightly lubricate the O-ring with a compatible hydraulic fluid or O-ring lubricant. Thread the fitting into the port by hand until the O-ring makes contact, then apply the recommended torque value. Overtightening can damage the O-ring or the port threads, while undertightening can lead to leaks. Always refer to manufacturer's torque specifications for both JIC and ORB connections.
Fluid Compatibility: While the fitting itself is carbon steel and zinc-plated, the O-ring material (typically Buna-N or Viton, though not specified for this product, it’s standard practice) must be compatible with the hydraulic fluid being used. Incompatible O-rings can swell, shrink, or degrade, leading to system failure.
Maintenance: Regular inspection for signs of wear, corrosion, or leakage is recommended. Minor surface corrosion on the zinc plating can often be addressed, but significant pitting or structural damage necessitates replacement. Leaks at the JIC flare may require re-tightening or replacement of the flared tube end. Leaks at the ORB connection might indicate O-ring degradation, requiring simple O-ring replacement.
Conclusion
The Straight Thread O-Ring 90?? Elbow from Buyers Products is more than just a hydraulic fitting; it is a critical, high-performance component designed for the most demanding fluid power systems. Its intelligent combination of a JIC 37-degree flare connection for 3/4 inch O.D. tubing and an SAE O-Ring Boss straight thread for a 3/4 inch port, coupled with its robust carbon steel construction and corrosion-resistant zinc finish, sets a benchmark for reliability and efficiency. Conforming rigorously to JIC and SAE standards, this fitting ensures maximum pressure retention up to 10,000 PSI, superior leak prevention, and exceptional resistance to vibration and environmental factors. For engineers and technicians requiring uncompromising quality and dependable performance in their hydraulic assemblies, this 90?? elbow offers a precision-engineered solution that guarantees long-term operational integrity and contributes significantly to the overall safety and effectiveness of the hydraulic system.
