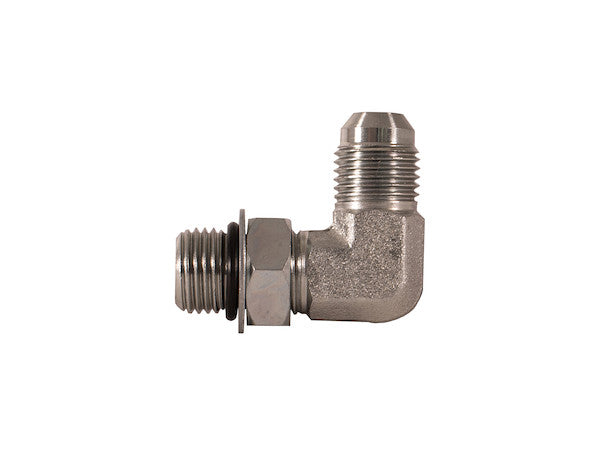

The Straight Thread O-Ring 90?? Elbow is part of the Buyers Products line of JIC 37 degree flare tube fittings. The fittings feature tough carbon steel construction, 3 piece flare sealing for a tight, secure connection, and a corrosion-resistant zinc finish. Fitting conforms to JIC and SAE specifications. Buyers Products tube fittings are used with copper, brass, steel, aluminum, and other tubing that can be flared. They are rated at up to 10,000 PSI depending on tube size.
Specifications
| Finish | Zinc Plated |
|---|---|
| Material | Carbon Steel |
| Shape | 90?? Elbow |
| Side 1 | 3/8 JIC (-6) |
| Side 2 | 3/8 SAE ORB (-6) |
| Style | MM |
Advanced Technical Overview: Straight Thread O-Ring 90?? Elbow for High-Pressure Fluid Systems
The Straight Thread O-Ring 90?? Elbow from Buyers Products represents a critical component in the design and implementation of robust hydraulic and fluid transfer systems. Engineered for precision and enduring performance, this fitting is specifically designed to facilitate secure, leak-free connections in applications demanding high operational pressures and reliable fluid routing. Its combination of JIC 37-degree flare and SAE Straight Thread O-Ring Boss (ORB) technologies, coupled with high-grade carbon steel construction and a corrosion-resistant zinc finish, positions it as an indispensable solution across a multitude of industrial and mobile hydraulic environments. This detailed exposition will delve into the intricate technical specifications, design philosophies, and practical advantages that underscore the superior utility of this particular elbow fitting.
Design and Functional Superiority of the 90?? Elbow Configuration
The fundamental geometry of a 90-degree elbow fitting is inherently optimized for fluid system layout and efficiency. In complex hydraulic circuits, the need to alter the direction of tubing or hose runs is ubiquitous. A 90-degree elbow provides a compact and mechanically sound method to achieve this, minimizing the bending radius that would otherwise be required for tubing, thereby reducing potential stress points, flow restrictions, and the overall footprint of the system. This specific elbow, designed with a 3/8 inch tube O.D. on one side and a 3/8 inch port size on the other, offers precise angular redirection, crucial for optimal space utilization and aesthetic routing in confined or densely packed machinery compartments. The ability to route lines efficiently mitigates the risk of abrasion, kinking, and strain on adjacent components, ultimately contributing to the longevity and operational integrity of the entire hydraulic assembly.
The Advanced Sealing Mechanism: Straight Thread O-Ring Boss (ORB)
One of the distinguishing features of this elbow is its Straight Thread O-Ring Boss (ORB) connection, conforming to SAE J1926 and ISO 11926 standards. The ORB sealing principle is highly regarded in hydraulic engineering for its exceptional leak prevention capabilities, especially under dynamic pressure fluctuations and vibration. Unlike tapered pipe threads (NPT) which rely on deformation of threads for a metal-to-metal seal and often require sealant, the ORB connection achieves its seal through a captive O-ring compressed between the face of the fitting and a chamfered boss on the mating port. The straight threads ensure a mechanically strong, non-wedging connection, while the elastomeric O-ring provides a resilient, repeatable, and virtually leak-proof seal. This design minimizes the risk of overtightening leading to thread damage and ensures consistent sealing performance across multiple assembly and disassembly cycles. The 3/8 inch port size, denoted as -6 in the SAE dash size convention, signifies its compatibility with standard hydraulic ports prevalent in modern machinery. The inherent reliability of the ORB system makes it ideal for critical applications where fluid containment is paramount, reducing downtime associated with leaks and maintenance.
JIC 37?? Flare Connection: A Pillar of Hydraulic Reliability
The other primary connection type on this elbow is the JIC (Joint Industrial Council) 37-degree flare, compliant with SAE J514 and ISO 8434-2 standards. The JIC flare system is a venerable and widely adopted standard in the fluid power industry, renowned for its robust and dependable metal-to-metal sealing characteristics. This fitting incorporates a 3-piece flare sealing design, which typically includes a flare nut, a flare sleeve, and the flared tubing end. The 37-degree cone on the fitting body mates precisely with a complementary 37-degree flare formed on the end of the tubing. When the flare nut is tightened, it compresses the flared tubing against the fitting's conical seat, creating a rigid, high-pressure seal. The sleeve component supports the tubing, particularly against vibration and torque, preventing localized stress concentrations and potential fatigue failures at the flare. This 3-piece design offers superior vibration resistance and allows for repeated assembly and disassembly without compromising the seal integrity, provided the flare on the tube remains unmarred. The 3/8 inch tube O.D., also designated as -6, ensures compatibility with commonly specified hydraulic tubing, making this fitting highly versatile for repair and new system fabrication.
Material Science: The Strength of Carbon Steel
The selection of carbon steel as the primary construction material for this fitting is a deliberate choice driven by the rigorous demands of hydraulic applications. Carbon steel offers an exceptional balance of mechanical properties, including high tensile strength, yield strength, and excellent ductility, which are crucial for components subjected to high internal pressures and external stresses. Its inherent toughness provides superior resistance to impact and fatigue, vital in dynamic operational environments characterized by shock loads and vibrations. Furthermore, carbon steel exhibits good weldability and machinability, enabling the production of precise and structurally sound fittings. The metallurgical composition of the carbon steel used by Buyers Products is carefully controlled to ensure consistency in mechanical performance, providing the foundational strength required to withstand system pressures reaching up to 10,000 PSI, depending on the specific tube size and application parameters. This robust material choice ensures longevity and reliability, minimizing the risk of catastrophic failure under extreme operating conditions.
Corrosion Resistance: The Efficacy of Zinc Plating
To augment the inherent strength of carbon steel, this Straight Thread O-Ring 90?? Elbow features a high-performance zinc-plated finish. Zinc plating acts as a sacrificial coating, providing galvanic protection to the underlying carbon steel. In the presence of an electrolyte (such as moisture), the zinc corrodes preferentially to the steel, effectively shielding the base metal from rust and oxidation. This electroplating process creates a uniform, adherent layer that significantly enhances the fitting's resistance to environmental degradation, including exposure to humidity, mild chemicals, and abrasive wear. The zinc finish not only extends the operational lifespan of the fitting but also maintains its aesthetic integrity, which is important for system inspection and maintenance. This corrosion protection is essential for fittings operating in outdoor environments, marine applications, or industrial settings where exposure to corrosive agents is commonplace, ensuring the fitting retains its functional and structural properties over extended periods.
Pressure Rating and System Integration
Rated for operational pressures up to an impressive 10,000 PSI (dependent on tube size and wall thickness), this fitting is engineered to perform reliably in the most demanding high-pressure hydraulic circuits. The ability to withstand such extreme pressures is a testament to the robust design, meticulous manufacturing tolerances, and the synergistic properties of carbon steel and the sophisticated sealing mechanisms (ORB and JIC flare). When integrating this fitting into a hydraulic system, it is imperative to consider the overall pressure rating of all components within the circuit, including the tubing, hoses, pumps, and valves, to ensure that the weakest link does not compromise system integrity. The 3/8 inch nominal size (-6) is common in medium to heavy-duty applications where significant power transfer is required. Proper installation techniques, including correct torquing for ORB connections and precise flaring for JIC, are critical to achieving and maintaining the rated pressure performance, thereby preventing leaks and ensuring safe operation.
Versatile Tubing Compatibility
The JIC 37-degree flare connection on this fitting is highly versatile, designed for use with a broad spectrum of commonly encountered tubing materials. This includes copper, brass, steel, and aluminum tubing, provided they are suitable for flaring and meet the necessary pressure requirements of the application. Each material offers specific advantages: copper for malleability and corrosion resistance in certain environments, brass for ease of fabrication and good corrosion resistance, steel for maximum strength and pressure capability, and aluminum for lightweight applications where strength-to-weight ratio is critical. The critical factor for reliable sealing with JIC connections is the quality of the flare itself. A properly formed 37-degree flare, free from imperfections, cracks, or excessive thinning, is essential for a leak-proof and durable connection. This broad compatibility makes the Buyers Products Straight Thread O-Ring 90?? Elbow an adaptable solution for diverse hydraulic system designs and repair scenarios across various industries.
Technical Deep Dive: Dash Sizes and Male-Male Configuration
The notation "3/8 JIC (-6)" for Side 1 and "3/8 SAE ORB (-6)" for Side 2 refers to the industry-standard dash size convention. In hydraulic fittings, the dash size typically represents the nominal outside diameter of the tubing in sixteenths of an inch. Thus, a "-6" dash size indicates 6/16 inch, which simplifies to 3/8 inch. For the JIC connection, this directly correlates to the 3/8 inch tube O.D. that the fitting is designed to accept. For the SAE ORB port, the "-6" refers to the specific thread size (typically 9/16-18 UNF-2B/2A for -6 ORB) and the corresponding O-ring boss size, designed to mate with a 3/8 inch nominal port. The "MM" (Male-Male) style designation indicates that both ends of this 90-degree elbow fitting feature male threads and male flare cones, meaning they are designed to connect into corresponding female ports or components (e.g., a female JIC swivel nut and a female ORB port). This male-male configuration is common for adapters and directional fittings, providing flexibility in system assembly.
Strategic Applications Across Industries
The robust engineering and versatile design of the Straight Thread O-Ring 90?? Elbow make it an ideal component for a wide array of demanding industrial and mobile hydraulic applications. This fitting is extensively utilized in heavy equipment such as excavators, bulldozers, and loaders, where hydraulic systems are subjected to immense forces, constant vibration, and harsh environmental conditions. In agriculture, it finds application in tractors, combines, and various implements, ensuring reliable fluid transfer for steering, lifting, and power take-off functions. Manufacturing automation relies on such fittings for precise control in robotic systems, presses, and material handling equipment. Furthermore, its high-pressure capability and leak-resistant properties are invaluable in the transportation sector, including commercial trucks and marine vessels, where safety and operational continuity are paramount. The 90-degree elbow configuration is particularly beneficial in these contexts for optimizing hydraulic line routing within constrained spaces, reducing hose length, and preventing kinks or excessive bends that could impede flow or accelerate wear.
Installation Best Practices and Maintenance Considerations
Proper installation is crucial for maximizing the performance and longevity of this high-pressure fitting. For the JIC 37-degree flare connection, meticulous preparation of the tubing is essential. This involves cutting the tubing squarely, deburring both the inside and outside diameters to prevent damage to the flare seat or O-ring, and then forming a clean, concentric 37-degree flare using a high-quality flaring tool. The flare nut should be tightened to the manufacturer's recommended torque specifications to ensure an optimal seal without overtightening, which can deform the flare or fitting. For the SAE ORB connection, the O-ring should be lightly lubricated with a compatible hydraulic fluid or grease to prevent pinching or damage during assembly and to facilitate proper seating. The fitting should be threaded into the mating port finger-tight, then tightened with a wrench to the specified torque. Regular inspection of hydraulic systems, including fittings, for signs of wear, corrosion, or leakage is critical. O-rings should be replaced if they show signs of cracking, hardening, or flattening. Adherence to these best practices ensures system integrity, operational safety, and extended service life.
Adherence to Industry Standards: JIC and SAE Compliance
The conformity of this fitting to JIC (Joint Industrial Council) and SAE (Society of Automotive Engineers) specifications is a cornerstone of its reliability and interchangeability within the global fluid power industry. JIC standards, particularly relating to 37-degree flares, were developed to provide a common framework for hydraulic connections, ensuring that components from different manufacturers could be reliably interconnected. SAE standards, such as SAE J514 for flare fittings and SAE J1926 for O-Ring Boss ports, provide detailed dimensional and performance criteria, including thread specifications, materials, and pressure ratings. Compliance with these widely recognized standards guarantees that the Buyers Products Straight Thread O-Ring 90?? Elbow meets rigorous performance benchmarks, facilitating system design, maintenance, and sourcing. This adherence underscores a commitment to quality, safety, and compatibility, providing engineers and technicians with confidence in its performance within standardized hydraulic architectures. International equivalents, such as ISO 8434-2 for 37° flare connectors and ISO 11926 for O-ring ports, further solidify its global applicability.
The Buyers Products Advantage: Engineering Excellence and Reliability
As a product from Buyers Products, this Straight Thread O-Ring 90?? Elbow embodies the brand's unwavering commitment to engineering excellence, durability, and practical utility in the most demanding applications. Buyers Products has established a reputation for manufacturing high-quality components that not only meet but often exceed industry standards. Every fitting undergoes stringent quality control processes, from raw material inspection to final product verification, ensuring consistent performance and reliability. The meticulous design and manufacturing process account for factors such as fatigue resistance, pressure surge tolerance, and environmental resilience. By choosing Buyers Products, customers are investing in components that are backed by extensive research and development, robust construction, and a deep understanding of the challenges faced in hydraulic and fluid power systems. This commitment translates into reduced operational costs, minimized downtime, and enhanced safety for end-users across various sectors.
Conclusion: A Pinnacle of High-Pressure Fluid Connection Technology
In summation, the Straight Thread O-Ring 90?? Elbow with 3/8 inch Tube O.D. to 3/8 inch Port Size from Buyers Products is a meticulously engineered component, purpose-built for high-pressure, high-performance hydraulic and fluid transfer systems. Its innovative combination of a leak-proof SAE ORB connection and a robust JIC 37-degree flare, fabricated from durable zinc-plated carbon steel, ensures unparalleled reliability and longevity. The strategic 90-degree configuration optimizes fluid routing in confined spaces, while its compliance with leading JIC and SAE standards guarantees universal compatibility and dependable performance. Capable of handling pressures up to 10,000 PSI, this fitting is an essential asset for professionals seeking uncompromised quality, superior sealing integrity, and resilient operation in the most arduous industrial, mobile, and agricultural environments. This elbow stands as a testament to Buyers Products' dedication to delivering premium hydraulic solutions.
