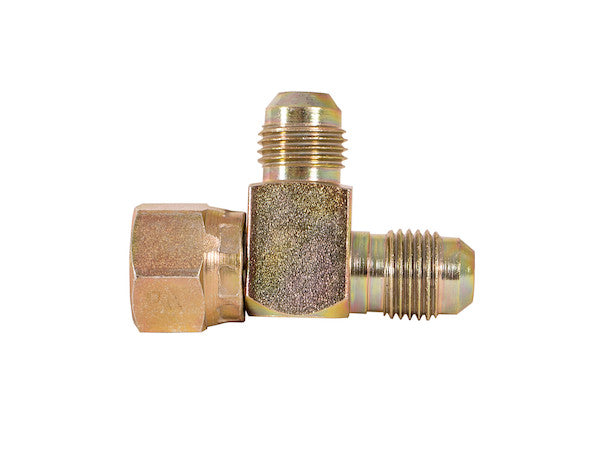

The Swivel Nut Run Tee is part of the Buyers Products line of JIC 37 degree flare tube fittings. The fittings feature tough carbon steel construction, 3 piece flare sealing for a tight, secure connection, and a corrosion-resistant zinc finish. Fitting conforms to JIC and SAE specifications. Buyers Products tube fittings are used with copper, brass, steel, aluminum, and other tubing that can be flared. They are rated at up to 10,000 PSI depending on tube size.
Specifications
| Finish | Zinc Plated |
|---|---|
| Material | Carbon Steel |
| Shape | Run Tee |
| Side 1 | 1/2 JIC (-8) |
| Side 2 | 1/2 JIC (-8) |
| Style | MF |
Comprehensive Technical Overview: Swivel Nut Run Tee 1/2 Inch Tube O.D.
The Swivel Nut Run Tee, a key component in the Buyers Products JIC 37-degree flare tube fitting series, is engineered for precise, durable fluid transfer in demanding hydraulic and pneumatic systems. Designed for robust branching with 1/2 inch outer diameter (O.D.) tubing, this fitting integrates high-grade carbon steel and an advanced, corrosion-resistant zinc-plated finish. This combination ensures exceptional resilience against mechanical stress and environmental degradation, guaranteeing extended operational integrity. Strict adherence to JIC (Joint Industry Council) and SAE (Society of Automotive Engineers) specifications assures uncompromising reliability, global interchangeability, and universal compatibility.
Central to the Swivel Nut Run Tee’s superior performance is its JIC 37-degree flare technology. Evolving from stringent military and aerospace requirements, JIC fittings represent the industry benchmark for secure, leak-proof connections in high-pressure fluid power. The 37-degree flare angle optimizes metal-to-metal sealing, providing significant advantages in vibration and pressure pulse resilience. The "3 piece flare sealing" principle describes the synergistic interaction: the fitting body’s precisely machined 37-degree cone, the expertly flared tube end, and the compressive force applied by the swivel nut. When tightened, this creates an impervious, high-integrity seal, minimizing fluid egress and facilitating connection reusability.
The material selection of high-grade carbon steel is paramount for the Swivel Nut Run Tee's application in demanding hydraulic systems. Carbon steel offers a critical balance of high tensile strength, ductility, and fatigue resistance—properties indispensable for components subjected to intense internal pressures, external impacts, and continuous stress cycling. Buyers Products employs specific grades of carbon steel, under rigorous quality control, ensuring uniform microstructure and consistent mechanical performance. This material provides inherent resilience against extreme forces prevalent in heavy machinery, industrial automation, and commercial vehicle hydraulic systems. Excellent machinability permits manufacturing fittings with tight tolerances, crucial for an optimal JIC flare seal, balancing superior performance with cost-effectiveness for high-pressure fluid power applications.
Enhancing carbon steel's intrinsic strength, the Swivel Nut Run Tee features a robust zinc-plated finish. This surface treatment provides crucial galvanic protection, acting as a sacrificial layer to shield underlying steel from rust and corrosion. In environments characterized by moisture, chemicals, or abrasive particulates, this coating substantially extends the fitting's operational lifespan. The zinc layer preferentially corrodes, safeguarding the base material from degradation. Modern zinc plating processes integrate chromate passivation, further boosting corrosion resistance by establishing a durable barrier that inhibits zinc oxidation. This results in a fitting maintaining structural integrity and quality over extended periods, reducing maintenance needs and replacement expenses. Uniform application across all surfaces is vital for comprehensive protection, preventing localized corrosion and preserving connection integrity.
The "Run Tee" configuration creates a branch line aligned with the main flow path, providing efficient fluid distribution. This design is fundamental for managing complex hydraulic layouts, enabling seamless integration of multiple actuators or hydraulic components. The swivel nut inclusion significantly enhances installation ease and system integrity. This rotational flexibility allows for precise angular adjustment of tubing connections prior to final tightening, simplifying assembly in confined spaces and minimizing misaligning tubes. Crucially, swivel capability reduces torsional stresses on the tubing, a common cause of premature fatigue and leakage. This enables stress-free tube routing and alignment, substantially contributing to long-term reliability and integrity of the entire hydraulic assembly under operational conditions.
The specification "1/2 Inch Tube O.D." precisely defines the outside diameter of compatible tubing. This dimensional parameter directly impacts flow characteristics, pressure capacity, and overall system integration. For 1/2 inch O.D. tubing, the fitting ensures optimal seal and mechanical connection, maximizing fluid flow while minimizing pressure drop. The corresponding JIC (-8) dash size is an industry standard facilitating component selection and ensuring global compatibility. This standardization is vital for design, procurement, and maintenance. Buyers Products tube fittings accommodate a wide array of tubing materials, including copper, brass, steel, and aluminum, highlighting their exceptional versatility. While each material offers unique properties, the prerequisite is accurate flaring to a precise 37-degree angle, forming a smooth, concentric, and burr-free sealing surface. Appropriate flaring tools and skilled techniques are essential for a reliable, leak-free connection.
A hallmark of these JIC 37-degree flare tube fittings is their impressive pressure rating, specified at "up to 10,000 PSI depending on tube size." This high-pressure capability positions the Swivel Nut Run Tee for critical deployment in the most demanding hydraulic and pneumatic systems where unwavering system integrity is paramount. The effective working pressure rating is a function of numerous factors: tube material, wall thickness, operational temperature, system dynamics (e.g., pressure surges), and specific fitting design. Thicker-walled, higher tensile strength materials inherently accommodate greater pressures. Buyers Products engineers its fittings to incorporate significant safety factors against burst pressure, ensuring reliable performance within specified parameters and minimizing catastrophic failure risks. This rigorous approach is crucial for heavy construction equipment or industrial applications operating under immense loads, where component integrity impacts both efficiency and safety. The 10,000 PSI rating underscores a robust design suitable for a broad spectrum of heavy-duty industrial and mobile hydraulic applications.
Conformity to JIC and SAE specifications is fundamental for quality, interchangeability, and safety. JIC standards standardize hydraulic components, enabling seamless interchangeability. These specifications meticulously detail critical dimensions, material compositions, pressure ratings, and testing methodologies. SAE also provides comprehensive standards, such as SAE J514, outlining dimensions and performance requirements for 37-degree flared tube fittings. Adhering to these internationally recognized benchmarks, the Swivel Nut Run Tee assures interoperability with other compliant components and systems worldwide. This standardization streamlines design, procurement, and maintenance, ensuring components meet rigorous criteria for cyclic pressure endurance, temperature resistance, and vibration tolerance—vital for long-term operational reliability. This translates to reduced downtime, optimized operational costs, and enhanced system safety for end-users.
Optimal installation and diligent maintenance are crucial for maximizing service life and ensuring leak-free performance. Pre-installation procedures are critical: squaring the tube cut, thoroughly deburring edges, and meticulously cleaning the tube. Flaring requires specialized tools and precise execution to create a smooth, concentric, 37-degree flare. Imperfections invariably lead to compromised sealing and premature failure. During assembly, applying suitable lubricant to threads and the back of the swivel nut reduces friction, enables accurate torque application, and prevents galling. Adherence to manufacturer-specified torque values is paramount; insufficient torque causes leaks, while excessive torque can deform the flare or damage threads. Post-installation, a comprehensive system pressure test is mandatory. Regular inspection for corrosion, wear, or damage, especially in dynamic applications, forms an essential part of a robust preventive maintenance strategy, enhancing system reliability and longevity.
In summary, the Swivel Nut Run Tee 1/2 Inch Tube O.D. from Buyers Products exemplifies superior engineering and unwavering commitment to quality. Its meticulous design, premium carbon steel construction, and resilient zinc plating confirm its suitability for critical fluid power applications across diverse industries. Adherence to JIC and SAE standards guarantees dimensional accuracy, interoperability, and a performance benchmark meeting the most rigorous industrial demands. For engineers and system integrators requiring a reliable, high-pressure, and versatile solution for branching 1/2 inch O.D. tubing in hydraulic or pneumatic circuits, this Swivel Nut Run Tee offers an optimal balance of strength, corrosion resistance, and ease of installation, representing a long-term investment in system integrity and efficiency.
