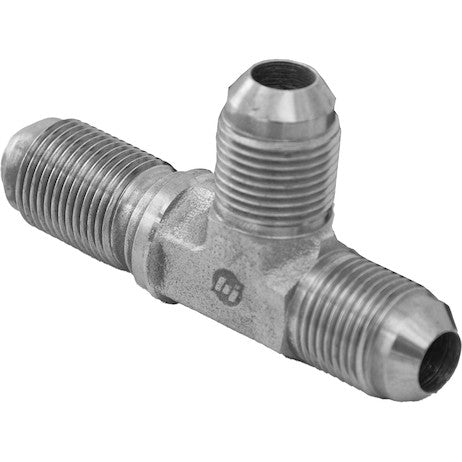

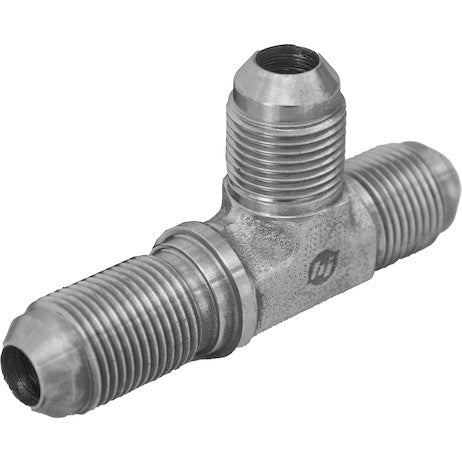

H5726X8 - Bulkhead Tee 1/2 Inch Tube O.D.

The Bulkhead Run Tee is part of the Buyers Products line of JIC 37 degree flare tube fittings. The fittings feature tough carbon steel construction, 3 piece flare sealing for a tight, secure connection, and a corrosion-resistant zinc finish. Fitting conforms to JIC and SAE specifications. Buyers Products tube fittings are used with copper, brass, steel, aluminum, and other tubing that can be flared. They are rated at up to 10,000 PSI depending on tube size.

Specifications

Finish	Zinc Plated
Material	Carbon Steel
Shape	Bulkhead Run Tee
Side 1	1/2 JIC (-8)
Side 2	1/2 JIC (-8)
Style	MF

Advanced Technical Overview: Bulkhead Tee 1/2 Inch Tube O.D.

The Bulkhead Run Tee, specified for 1/2 inch tube outside diameter (O.D.), represents a critical component in the meticulous design and robust execution of modern fluid transfer systems. As a product from Buyers Products, it embodies a confluence of precision engineering, material science, and adherence to stringent industry standards, making it indispensable for applications demanding exceptional reliability and performance. This fitting serves a dual fundamental purpose: it facilitates the division or combination of fluid lines, characteristic of a tee configuration, while simultaneously providing a secure, sealed passage for a fluid conduit through a panel, wall, or enclosure via its integrated bulkhead feature. The 1/2 inch O.D. is a widely utilized dimension, striking an optimal balance between volumetric flow capacity and spatial footprint, making it suitable for a broad spectrum of moderate to high-pressure hydraulic and pneumatic applications across diverse industrial landscapes.

The Foundational Role of the Bulkhead Feature

The integration of a bulkhead mechanism within a tube fitting is a design imperative for systems requiring fluid lines to traverse physical barriers without compromising system integrity or cleanliness. A bulkhead fitting is intrinsically designed to anchor a tube rigidly to a panel, effectively isolating different compartments or environments while maintaining a hermetic seal against pressure differential and external contaminants. This is achieved through a distinct construction comprising a threaded fitting body, a sealing washer (often elastomeric or metallic), and a locknut. During installation, the fitting body is inserted through a pre-drilled aperture in the panel, the sealing washer is positioned against the panel on one side, and the locknut is then threaded onto the fitting body from the opposite side, securely clamping the panel between the fitting body and the locknut. This precise clamping action, combined with the sealing washer, establishes a robust, leak-proof barrier. The strategic advantages of employing a bulkhead fitting are manifold: it enables highly organized and aesthetic routing of tubing, protects the tubing from abrasive contact with panel edges, significantly dampens vibrational transfer across the barrier, simplifies maintenance procedures by creating accessible demarcation points, and ultimately enhances overall system safety and operational longevity. For the 1/2 inch tube O.D., this means providing a stable, high-performance pass-through for critical fluid lines that are often subjected to dynamic forces and harsh operating conditions.

The Efficacy of the Tee Configuration

A tee fitting, by definition, is engineered to create a branching point within a fluid conduit system. This enables fluid flow to be diverted from a main line into a secondary line, or conversely, allows the confluence of two separate fluid streams into a single output. In the context of the "Bulkhead Run Tee," as specified, the nomenclature denotes a particular geometric and functional arrangement. Typically, a "run tee" implies that two of the connections are aligned along a continuous path (the "run"), with the third connection forming a branch at a 90-degree angle. For this specific Bulkhead Run Tee, the description indicates that "Side 1" and "Side 2" are both 1/2 JIC (-8), signifying the two main connections of the run. The bulkhead feature is then integrated, most commonly as the third, branching connection, though in some configurations, one of the run connections might itself incorporate the bulkhead. This design allows the fluid line to pass through a panel and simultaneously provide a junction for another line. This configuration offers profound flexibility in hydraulic and pneumatic circuit design, enabling complex routing solutions within constrained envelopes, or facilitating the seamless integration of subsystems across different compartments, such as within the chassis of heavy machinery or the compartments of industrial processing units. The 1/2 inch O.D. further dictates a practical balance for system flow demands in such branching scenarios.

JIC 37-Degree Flare Standard: The Cornerstone of Reliability

The JIC (Joint Industry Council) 37-degree flare standard is a globally recognized benchmark for tube fitting connections, particularly within high-pressure hydraulic and pneumatic systems. Its widespread adoption stems from its inherent reliability, ease of assembly, and exceptional performance characteristics. At its core, the JIC standard mandates a metal-to-metal seal achieved by compressing a 37-degree flared tube end against a corresponding 37-degree conical seat within the fitting body. This stands in stark contrast to pipe thread connections (e.g., NPT), which rely on thread deformation and sealants for sealing. The key advantages of the JIC 37-degree flare system are numerous: it offers superior resistance to leakage under high pressure and vibration, crucial in dynamic environments; it facilitates repeated assembly and disassembly without degradation of the sealing surface, extending component lifespan and simplifying maintenance; it provides excellent pressure ratings, making it suitable for demanding applications up to 10,000 PSI as specified for this product; and its universal acceptance ensures broad interchangeability of components from various manufacturers, streamlining sourcing and reducing inventory complexities. Compliance with SAE J514 further reinforces its standing as a robust and dependable connection technology, underscoring its engineering integrity for the 1/2 inch tube O.D. specification.

The Sophistication of 3-Piece Flare Sealing

The Bulkhead Run Tee leverages a 3-piece flare sealing system, an advanced design specifically chosen for its enhanced performance over simpler 2-piece configurations in critical applications. This system comprises three distinct components working in concert to form a secure, leak-proof connection:

1. The Fitting Body: This is the main component featuring the precisely machined 37-degree conical seat against which the flared tube end will bear.
2. The Sleeve (or Nut Collar): Positioned over the tube, this critical component provides support to the tube behind the flare. Its primary function is to distribute the clamping force exerted by the nut uniformly around the tube and to isolate the tube from the rotational torque of the nut. This isolation prevents the tube from twisting or undergoing torsional stress during tightening, a common cause of tube fatigue and potential failure in 2-piece systems.
3. The Flared Tube Nut: This component threads onto the fitting body. As it is tightened, it compresses the sleeve and, in turn, pulls the flared end of the tube firmly against the 37-degree conical seat of the fitting body.

The synergistic action of these three elements results in a superior metal-to-metal seal that is exceptionally resilient to vibration, pressure pulsations, and thermal cycling. The sleeve’s role in preventing tube twisting during assembly significantly reduces the risk of cold working or damaging the flare, thereby preserving the integrity of the seal and extending the operational life of both the fitting and the tubing. This robust sealing mechanism is particularly vital for the 1/2 inch tube O.D. in high-pressure fluid power systems.

Material Science: Carbon Steel for Uncompromising Durability

The choice of carbon steel as the primary construction material for this Bulkhead Run Tee underscores its design intent for high-strength, high-pressure applications. Carbon steel possesses an exceptional combination of mechanical properties that are paramount for tube fittings in demanding environments:

• High Tensile Strength: It can withstand significant pulling forces without fracturing, ensuring the fitting remains intact even under extreme hydraulic loads.
• Excellent Yield Strength: This property denotes the maximum stress the material can endure before undergoing permanent deformation. High yield strength ensures the fitting maintains its precise geometry under operational pressures, preserving the integrity of the JIC seal.
• Impact Resistance: Carbon steel offers robust resistance to sudden shock loads and impacts, which are common in mobile hydraulic equipment and heavy industrial machinery.
• Fatigue Resistance: In systems subjected to constant pressure pulsations or vibrations, the ability of carbon steel to resist crack initiation and propagation is crucial for long-term reliability.

The manufacturing process, often involving forging, further refines the material's grain structure, enhancing its density and mechanical properties compared to fittings machined from simple bar stock. While other materials like brass or stainless steel have their niches, carbon steel provides an optimal balance of strength, durability, and cost-effectiveness for the vast majority of severe-duty hydraulic and pneumatic applications. This material selection guarantees that the 1/2 inch Bulkhead Run Tee can perform reliably in the most challenging operational scenarios.

Corrosion Resistance: The Efficacy of Zinc Plating

To augment the inherent strength of carbon steel and ensure prolonged service life, the Bulkhead Run Tee features a corrosion-resistant zinc finish. Zinc plating serves as a sacrificial coating, providing galvanic protection to the underlying steel. The mechanism is electrochemical: in the presence of an electrolyte (such as moisture or a corrosive agent), zinc preferentially corrodes before the steel, effectively protecting the fitting body from rust and degradation. This layer of protection is vital in environments where fittings are exposed to humidity, condensation, mild chemicals, or outdoor elements, preventing the formation of red rust that can compromise structural integrity and aesthetic appearance. The quality of zinc plating is characterized by its thickness, adhesion, and uniformity, all of which contribute to its protective efficacy. Modern zinc plating processes often incorporate chromate conversion coatings (e.g., clear or yellow chromate) as a post-treatment to further enhance corrosion resistance and provide a passive layer that self-repairs minor scratches. This robust protective layer ensures that the fitting maintains its functional and visual integrity over an extended operational lifespan, minimizing maintenance requirements and preserving system reliability, especially critical for a 1/2 inch O.D. fitting often integrated into external or exposed assemblies.

High-Pressure Performance: Rated Up to 10,000 PSI

The stated pressure rating of "up to 10,000 PSI" (approximately 690 bar) for these Buyers Products tube fittings signifies an exceptional capability for severe-duty applications. This classification places the Bulkhead Run Tee in a category reserved for the most demanding hydraulic and pneumatic systems where immense forces are harnessed. It is crucial, however, to understand that the actual maximum working pressure of an assembled system is a function of its weakest link. Therefore, while the fitting itself is engineered to withstand such pressures, the overall system pressure rating must be determined by considering all interconnected components, including:

• Tube Material and Wall Thickness: The specified 1/2 inch O.D. tubing must be of a high-strength material (e.g., seamless cold-drawn steel) with appropriate wall thickness to endure the internal pressure without bursting or deforming.
• Operating Temperature: Elevated temperatures can reduce the mechanical strength of materials, thus derating pressure capabilities.
• Fluid Dynamics: Systems experiencing frequent pressure pulsations, hydraulic shock, or surge pressures require fittings with adequate safety factors to prevent fatigue failure.
• System Design and Safety Factors: Engineers typically apply substantial safety factors to ensure that components operate well within their design limits, even under transient conditions.

Applications that routinely leverage such high-pressure capabilities include heavy industrial presses, specialized oil and gas extraction equipment, certain aerospace ground support systems, and large-scale construction machinery. The inherent strength of the carbon steel construction combined with the integrity of the 37-degree JIC flare connection makes this 1/2 inch Bulkhead Run Tee a reliable choice for these extreme pressure environments, where component failure can lead to catastrophic consequences.

Versatility in Tubing Compatibility

The Bulkhead Run Tee is designed for broad compatibility with a range of flareable tubing materials, including copper, brass, steel, and aluminum. This versatility allows engineers to select the optimal tubing material based on specific application requirements, encompassing factors such as pressure, temperature, fluid compatibility, weight, and cost.

• Steel Tubing: Predominantly used in high-pressure hydraulic applications due to its superior strength and rigidity. Requires robust flaring tools and precise technique. The 1/2 inch steel tubing, particularly seamless varieties, perfectly complements the fitting's 10,000 PSI rating.
• Copper Tubing: Favored for lower-pressure applications, refrigeration, and fluid lines where ductility and ease of flaring are paramount. Copper offers good thermal conductivity and corrosion resistance in specific non-aggressive environments.
• Brass Tubing: Shares similar characteristics with copper but offers slightly enhanced strength and wear resistance, making it suitable for moderate pressure and general-purpose applications where resistance to certain corrosive fluids is beneficial.
• Aluminum Tubing: Valued for its lightweight properties, making it ideal for aerospace, automotive, and other applications where weight reduction is a critical design constraint. It is easier to flare than steel but requires careful handling to prevent damage.

Crucially, regardless of the material, the tubing must possess sufficient ductility to form a clean, uncracked 37-degree flare without excessive thinning at the apex, which is essential for achieving a reliable and leak-free metal-to-metal seal with the JIC fitting. Proper material selection for the 1/2 inch tube O.D. ensures system performance aligns with the fitting's capabilities.

Adherence to Industry Standards: JIC and SAE

The conformity of this Bulkhead Run Tee to both JIC and SAE specifications is a testament to its quality, reliability, and interoperability within a global industrial context. These standards are not merely guidelines; they are comprehensive frameworks that dictate dimensional tolerances, material properties, manufacturing processes, and performance criteria.

• JIC (Joint Industry Council): Historically pivotal in the standardization of hydraulic components, particularly flare fittings. JIC specifications ensure that fittings from different manufacturers are dimensionally interchangeable and perform to a consistent standard, simplifying design, maintenance, and replacement across industries.
• SAE (Society of Automotive Engineers): A globally recognized professional organization that develops standards across various engineering disciplines. For hydraulic tube fittings, SAE J514 is the authoritative standard, encompassing JIC 37-degree flare fittings. Adherence to SAE J514 means the fitting meets rigorous specifications for thread forms, material composition, pressure ratings, and test methods.

The profound benefits of compliance include: enhanced interchangeability, which reduces supply chain complexities and minimizes downtime; assured safety, as fittings meeting these standards have undergone testing to withstand specified pressures and environmental conditions; guaranteed performance consistency, allowing engineers to design with predictable component behavior; and simplified system design, as standardized components integrate seamlessly. For a 1/2 inch tube O.D. fitting, adherence to these benchmarks ensures that it is a professional-grade component trusted in critical applications worldwide.

Precision Installation: Key to Optimal Performance

While the Bulkhead Run Tee is engineered for exceptional reliability, its ultimate performance hinges significantly on correct installation procedures. Meticulous attention to detail during installation is paramount for achieving a leak-free, high-pressure-resistant connection and maximizing the operational lifespan of the entire fluid system. The fundamental steps for proper installation include:

1. Tube Preparation: The tubing must be cut squarely and cleanly, followed by thorough deburring of both the internal and external edges. Any burrs or sharp edges can impede proper flare formation or damage the fitting's sealing surface. The tube interior must also be meticulously cleaned to remove any debris, metal shavings, or contaminants that could be introduced into the hydraulic system.
2. Flaring: A high-quality, dedicated 37-degree flaring tool must be used to create a precise and uniform flare. The flare must be smooth, concentric, free of cracks, and of the correct thickness. An improper flare is the most common cause of fitting leaks and potential system failure. The nut and sleeve must be slipped onto the tube *before* the flaring process.
3. Assembly: The flared tube end should be carefully aligned squarely with the fitting body's conical seat to prevent cross-threading or misalignment. The nut is then hand-tightened until the flare makes initial contact with the seat.
4. Torquing: Final tightening requires a wrench and adherence to manufacturer-specified torque values. Overtightening can deform the flare, stress the tubing, and damage the fitting body, leading to premature failure. Undertightening, conversely, will result in inadequate sealing and leaks. A general guideline is typically 1/4 to 1/2 turn past hand-tight, but specific torque specifications for the 1/2 JIC (-8) size from Buyers Products or relevant SAE standards should always be consulted and applied with a calibrated torque wrench for critical applications.
5. Inspection and Testing: After assembly, a visual inspection for proper seating and absence of damage or cross-threading is essential. The system should then be subjected to a pressure test to verify seal integrity under operational conditions before being put into service.

Adhering to these best practices ensures the 1/2 inch Bulkhead Run Tee performs to its full potential, providing a secure and durable fluid connection.

Troubleshooting and Proactive Maintenance

Even with optimal installation, proactive troubleshooting and maintenance are critical for sustaining the long-term reliability of fluid systems utilizing bulkhead tees.

Common Issues:

• Leaks: The predominant issue, often stemming from improper flaring (cracks, uneven thickness), insufficient or excessive torque, contaminated sealing surfaces, or tube damage. Identifying the source of a leak typically involves disassembling, inspecting components for damage, cleaning, and reassembling with correct procedures.
• Tube Pull-out: Usually indicates inadequate tightening of the nut or incorrect assembly of the sleeve, leading to insufficient grip on the tube.
• Fitting Damage: Cross-threading, using ill-fitting tools, or applying excessive force can damage the threads or sealing surfaces, necessitating replacement.

Maintenance Strategies:

• Regular Inspection: Periodically inspect fittings for any signs of external leakage, corrosion, or physical damage, especially in high-vibration or corrosive environments.
• Re-Torquing: In systems prone to vibration or thermal cycling, a cautious re-torquing of connections may be beneficial, but always consult manufacturer guidelines to avoid overtightening.
• Component Replacement: Any fitting showing signs of wear, damage, or persistent leakage should be replaced immediately to prevent catastrophic system failure.
• Fluid Cleanliness: Maintaining high fluid cleanliness levels prevents internal contamination that can erode sealing surfaces or clog flow paths, indirectly impacting fitting performance.

Effective maintenance prolongs the life of the 1/2 inch Bulkhead Run Tee and ensures uninterrupted, safe operation of the entire fluid power system.

Advantages and Enduring Value Proposition

The Bulkhead Tee 1/2 Inch Tube O.D. from Buyers Products delivers a compelling value proposition rooted in its engineering excellence and robust construction:

• Uncompromising Reliability: The JIC 37-degree flare, coupled with the 3-piece sealing system and carbon steel construction, forms an exceptionally reliable connection resistant to leaks, vibrations, and pressure fluctuations.
• Superior Durability: Crafted from tough carbon steel and protected by a corrosion-resistant zinc finish, the fitting is built to withstand harsh operating conditions and provide extended service life.
• Enhanced Serviceability: The JIC flare design allows for repeated assembly and disassembly without degradation of the sealing surface, simplifying maintenance and reducing downtime.
• Safety Assurance: Rated for pressures up to 10,000 PSI and conforming to stringent JIC and SAE specifications, this fitting minimizes the risk of catastrophic failures, safeguarding personnel and equipment.
• System Flexibility: The bulkhead tee configuration offers versatile routing options, enabling complex hydraulic circuits to be neatly and securely integrated through panels and enclosures.
• Cost-Effectiveness (Total Cost of Ownership): While professional-grade fittings may represent a slightly higher initial investment than lower-quality alternatives, their longevity, reduced maintenance requirements, and the prevention of costly fluid leaks or system failures result in a significantly lower total cost of ownership over the operational life of the equipment.

These advantages collectively position this 1/2 inch Bulkhead Run Tee as an intelligent and indispensable component for any high-performance fluid power application.

Ideal Applications and Target Industries

The robust design and high-performance specifications of the Bulkhead Tee 1/2 Inch Tube O.D. make it an ideal choice across a wide array of demanding industrial and mobile applications:

• Heavy Construction Equipment: Essential for hydraulic systems in excavators, bulldozers, loaders, and cranes, where high pressures, vibrations, and outdoor exposure are commonplace.
• Agricultural Machinery: Used in tractors, harvesters, and specialized farm equipment for reliable hydraulic control systems.
• Industrial Machinery: Critical for automation systems, presses, molding machines, and various manufacturing equipment requiring precise and high-pressure fluid transfer.
• Transportation and Commercial Vehicles: Integrated into hydraulic braking systems, power steering, and auxiliary functions in heavy-duty trucks, buses, and specialized commercial vehicles like refuse trucks.
• Mining and Forestry Equipment: Designed to withstand the extreme pressures and abrasive environments encountered in mining and logging operations.
• Oil & Gas Exploration: Utilized in drilling rigs, wellhead control systems, and offshore platforms where reliability under extreme pressure and corrosive conditions is paramount.
• Marine Applications: Employed in shipboard hydraulic systems for steering, winches, and cargo handling, often exposed to saltwater and demanding operational cycles.
• Power Generation: Incorporated into hydraulic control systems for turbines and auxiliary equipment in power plants.

These diverse applications underscore the versatility and critical importance of a high-quality 1/2 inch Bulkhead Run Tee in maintaining operational efficiency and safety across vital sectors of the economy.

Conclusion

In summary, the Bulkhead Tee 1/2 Inch Tube O.D. from Buyers Products stands as a paradigm of excellence in fluid power connection technology. Its meticulous design, integrating the highly respected JIC 37-degree flare standard with a robust 3-piece sealing mechanism, ensures unparalleled integrity and resistance to leakage even under extreme conditions. Fabricated from tough carbon steel with a protective zinc finish, it offers exceptional durability and corrosion resistance, essential for longevity in challenging environments. With a formidable pressure rating of up to 10,000 PSI and strict adherence to both JIC and SAE specifications, this fitting guarantees reliability, interchangeability, and safety. Its compatibility with various flareable tubing materials and its intrinsic design for passing fluid lines through panels provide exceptional versatility for system architects. For professionals seeking a dependable, high-performance solution to manage complex fluid routing and secure conduit penetrations in industrial, mobile, and heavy-duty applications, the Bulkhead Run Tee 1/2 Inch Tube O.D. represents an engineering investment that ensures system integrity, operational efficiency, and long-term peace of mind.
