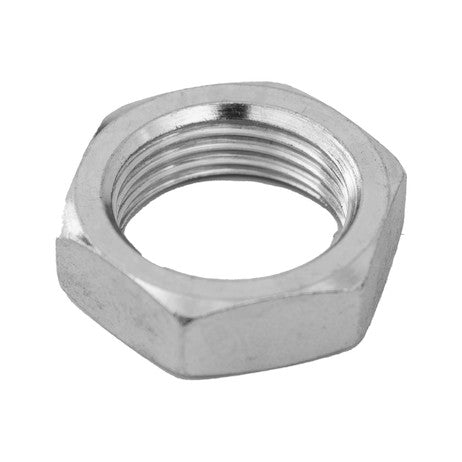

The Bulkhead Nut is part of the Buyers Products line of JIC 37 degree flare tube fittings. The fittings feature tough carbon steel construction, 3 piece flare sealing for a tight, secure connection, and a corrosion-resistant zinc finish. Fitting conforms to JIC and SAE specifications. Buyers Products tube fittings are used with copper, brass, steel, aluminum, and other tubing that can be flared. They are rated at up to 10,000 PSI depending on tube size.
Specifications
| Finish | Zinc Plated |
|---|---|
| Material | Carbon Steel |
| Shape | Bulkhead Nut |
| Side 1 | 5/8 JIC (-10) |
| Side 2 | 5/8 JIC (-10) |
| Style | F |
Introduction to the Bulkhead Nut 5/8 Inch Tube O.D.
The Bulkhead Nut, specifically designed for a 5/8 inch tube O.D., represents a critical component within hydraulic and pneumatic systems, facilitating robust and reliable fluid power connections. As an integral part of the esteemed Buyers Products line of JIC 37-degree flare tube fittings, this component is engineered to meet the stringent demands of industrial applications where integrity, durability, and leak-free performance are paramount. This comprehensive description aims to delve into the technical specifications, operational principles, material science, and application versatility of this essential fitting, providing a professional understanding for engineers, technicians, and procurement specialists.
JIC (Joint Industry Council) 37-degree flare fittings are globally recognized and widely adopted for their exceptional sealing capabilities and ease of assembly. The 37-degree flare design, a cornerstone of high-pressure fluid transfer, ensures a metal-to-metal seal that remains stable even under extreme vibrational stress and significant pressure differentials. The Bulkhead Nut's role in this system is to secure a flared tube through a panel or bulkhead, providing a stable and anchored connection point that resists movement and maintains system integrity. Its precise 5/8 inch tube O.D. designation indicates compatibility with specific tubing dimensions, ensuring standardized interchangeability and performance across various systems.
Engineering Excellence: JIC 37-Degree Flare Technology
The JIC 37-degree flare fitting standard, codified by SAE J514, has been a benchmark in fluid power systems for decades, celebrated for its robust design and dependable performance. The core principle involves flaring the end of a tube to a 37-degree cone, which then mates with a corresponding 37-degree seat on the fitting body. A nut, in this case, the Bulkhead Nut, threads onto the fitting body, compressing the flared tube end against the seat. This compression creates a mechanical, metal-to-metal seal that is highly resistant to leakage, even under dynamic pressure conditions and thermal cycling. The "3-piece flare sealing" mechanism, as referenced in the product description, often refers to the interaction between the nut, the flared tube end, and the fitting body's seat, ensuring optimal compression and alignment to establish a reliable seal.
The advantages of the 37-degree flare include its inherent resistance to overtightening, as the metal-to-metal contact limits further deformation once the seal is achieved. This design minimizes the risk of tube damage or compromised seals due to excessive torque. Furthermore, the ability to disassemble and reassemble these connections multiple times without significant degradation of the sealing surface is a key operational benefit, simplifying maintenance and repair procedures in complex hydraulic circuits. The Bulkhead Nut’s design integrates seamlessly into this system, providing the necessary mechanical anchor for panel-mounted connections, critical for organizing fluid lines and isolating vibration from the primary connection point.
Material Science: Tough Carbon Steel Construction
The selection of tough carbon steel for the construction of Buyers Products JIC 37-degree flare tube fittings, including this Bulkhead Nut, is a deliberate engineering choice driven by the demanding environments in which these components operate. Carbon steel, a versatile alloy of iron and carbon, offers an excellent balance of strength, ductility, and machinability, making it ideal for high-pressure hydraulic applications. Its high tensile strength ensures that the fitting can withstand significant internal pressures (up to 10,000 PSI depending on tube size) without yielding or fracturing, providing a critical safety factor in fluid power systems.
Specifically, carbon steel exhibits superior resistance to the mechanical stresses inherent in flare fittings, such as the compressive forces exerted during assembly and the vibrational loads experienced during operation. The material's inherent toughness allows it to absorb energy and deform plastically before fracturing, which is a desirable characteristic in components subjected to dynamic loads. The manufacturing process for these fittings typically involves precision machining of high-grade carbon steel bar stock, followed by heat treatment processes to optimize the material's microstructure for maximum strength and fatigue resistance. This meticulous material selection and processing ensure the longevity and reliability of the Bulkhead Nut in critical applications, delivering consistent performance over an extended operational lifespan.
Advanced Corrosion Resistance: Zinc Plated Finish
Corrosion is a pervasive threat in industrial environments, capable of compromising the integrity and functional lifespan of metallic components. To counteract this, the Bulkhead Nut features a high-quality zinc-plated finish. Zinc plating is an electrochemical process where a thin layer of zinc is deposited onto the surface of the carbon steel. This sacrificial coating provides exceptional corrosion resistance through two primary mechanisms: barrier protection and galvanic protection.
As a barrier, the zinc layer physically separates the underlying carbon steel from corrosive elements such as moisture, oxygen, and various chemicals. More significantly, zinc acts as a sacrificial anode. If the coating is scratched or compromised, exposing the steel beneath, the zinc will corrode preferentially to the steel. This galvanic protection mechanism ensures that the structural integrity of the carbon steel fitting is maintained, even if minor surface damage occurs, significantly extending the operational life of the component. The zinc finish also provides a clean, aesthetically pleasing appearance and can often be further enhanced with chromate conversion coatings (e.g., yellow, clear, black chromate) to improve corrosion resistance and provide specific visual identification. This robust surface treatment is essential for applications exposed to varying environmental conditions, from high humidity to chemical splashes, safeguarding the fitting's performance over extended periods and reducing maintenance frequency.
The Reliability of 3-Piece Flare Sealing
The product description highlights a "3-piece flare sealing" mechanism, a critical design feature contributing to the robust and leak-proof connections provided by Buyers Products JIC 37-degree flare tube fittings. While the nomenclature "3-piece" can sometimes refer to the nut, sleeve, and fitting body in compression fittings, in the context of a JIC flare, it primarily emphasizes the combined elements that collaboratively establish the seal: the precisely flared tube end, the male 37-degree cone on the fitting body, and the compressive force applied by the Bulkhead Nut. The Bulkhead Nut, by securely anchoring and compressing the tube, is integral to establishing this reliable, high-pressure seal.
This sealing method offers several distinct advantages over other connection types. Firstly, it creates a robust metal-to-metal seal, which is inherently resistant to high pressures and temperatures that might degrade elastomeric seals. Secondly, the conical geometry of the flare promotes self-alignment during assembly, reducing the likelihood of cross-threading or improper seating. The gradual compression of the flared tube against the fitting's seat ensures an even distribution of sealing forces, minimizing stress concentrations and maximizing the sealing surface area. This design contributes significantly to the fitting's ability to withstand up to 10,000 PSI, depending on the tube size and material, making it suitable for the most demanding hydraulic and pneumatic applications. The ability to achieve such high-pressure ratings reliably is a testament to the precision engineering and material quality inherent in these JIC fittings, ensuring long-term operational integrity.
Adherence to JIC and SAE Specifications
Conformity to established industry specifications is not merely a matter of compliance but a fundamental assurance of quality, interchangeability, and performance. The Buyers Products Bulkhead Nut, along with its associated JIC 37-degree flare fittings, is engineered to conform rigorously to both JIC (Joint Industry Council) and SAE (Society of Automotive Engineers) specifications. Specifically, these fittings typically adhere to SAE J514, which defines the dimensional, material, and performance requirements for hydraulic tube fittings. Adherence to these standards guarantees that the fitting will seamlessly integrate with other JIC-compliant components from various manufacturers, facilitating design flexibility and simplifying procurement processes.
JIC standards were initially developed in the mid-20th century to standardize hydraulic connections across various industries, enhancing safety and efficiency. SAE J514 subsequently became the overarching standard, incorporating JIC requirements and further refining them. These specifications dictate critical parameters such as thread types (typically UNF/UN for American standards), thread pitch, flare angle tolerance (precisely 37 degrees), material composition limits, surface finish requirements, and pressure ratings for different sizes. By adhering to these stringent standards, Buyers Products ensures that each Bulkhead Nut offers predictable performance, reliable sealing, and long-term durability, minimizing the risk of system failures due to incompatible or substandard components. This commitment to standardization underscores the professional-grade quality of these fittings, providing confidence in their application within critical systems.
Versatile Tube Compatibility and Pressure Ratings
A key attribute of Buyers Products tube fittings, including the Bulkhead Nut, is their exceptional versatility regarding tube material compatibility. These fittings are explicitly designed for use with a wide array of tubing materials, including copper, brass, steel, aluminum, and other materials that possess the ductility required for proper flaring. This broad compatibility allows engineers to select the optimal tubing material for specific application requirements, whether it's the inherent corrosion resistance of brass, the high strength of steel, or the lightweight properties of aluminum. The critical factor for successful application is the tube's ability to be properly flared to the precise 37-degree angle, forming a smooth, consistent sealing surface without cracks or deformities, which is crucial for achieving a reliable metal-to-metal seal.
The pressure rating of these fittings is impressive, capable of handling up to 10,000 PSI, depending on the specific tube size and wall thickness. This high-pressure capability makes them indispensable in demanding hydraulic power applications such as heavy machinery, industrial presses, and mobile equipment, where fluid pressures can be extremely high. The maximum operating pressure is not solely determined by the fitting itself but is a function of the entire connection system, including the tube material, wall thickness, and the quality of the flare. For a 5/8 inch tube O.D. Bulkhead Nut, the precise pressure rating would be specified in engineering tables that correlate tube dimensions and material properties with safe operating pressures. Buyers Products provides comprehensive data to ensure that systems are designed within safe operating limits, preventing catastrophic failures and ensuring operational integrity across various demanding applications.
Applications and Industry Use Cases
The 5/8 inch Tube O.D. Bulkhead Nut finds extensive application across a multitude of industries where reliable, high-pressure fluid transfer is essential. Its robust design and adherence to JIC/SAE standards make it a preferred choice in demanding environments. Key industry sectors include:
- Hydraulics and Fluid Power: Indispensable in hydraulic circuits for heavy equipment, industrial machinery, and agricultural vehicles, where high pressures and frequent operational cycles demand absolute reliability. Bulkhead fittings are crucial for routing hydraulic lines through chassis, control panels, and other structural elements, providing secure and organized connection points.
- Automotive and Transportation: Utilized in commercial vehicles, specialized automotive systems, and braking systems (where applicable), offering durable connections that can withstand vibration, road shock, and environmental exposure.
- Marine Applications: Essential for fluid handling systems on boats, ships, and offshore platforms, where resistance to corrosion and robust construction are paramount due to exposure to saltwater and harsh marine conditions.
- Industrial Manufacturing: Employed in various manufacturing processes involving fluid transfer, such as lubrication systems, cooling lines, and pneumatic controls, contributing to the efficiency and safety of production lines by maintaining system integrity.
- Oil and Gas: Used in non-critical hydraulic and fluid transfer lines within exploration, production, and refining operations, where high-pressure resilience and material integrity are vital for safe and continuous operation.
- Aerospace (Ground Support): While primary flight systems use specialized aerospace fittings, JIC fittings are common in ground support equipment and maintenance facilities for hydraulic test stands and service vehicles due to their reliability and standardization.
The specific 5/8 inch O.D. caters to mid-range flow requirements, balancing fluid volume with pressure capabilities, making it a versatile choice for a broad spectrum of engineering designs. The bulkhead functionality allows for neat and secure installation, minimizing exposed tubing runs and protecting connections from accidental damage, which is vital in space-constrained or high-traffic operational areas.
Installation Best Practices and Longevity
Achieving optimal performance and longevity from the Bulkhead Nut and its associated JIC fittings relies heavily on correct installation procedures. Precision and attention to detail during assembly are paramount. Key best practices include:
- Tube Preparation: Ensure the tube end is cut square and deburred meticulously, both internally and externally, to prevent stress concentrations and facilitate a clean, consistent flare.
- Flaring Process: Use a high-quality, calibrated 37-degree flaring tool to create a smooth, concentric, and crack-free flare. Visually inspect the flare carefully for any imperfections that could compromise the seal.
- Lubrication: Apply a thin film of compatible hydraulic fluid or an anti-seize compound to the threads of the nut and the flare cone prior to assembly. This reduces friction, prevents galling, and ensures accurate torque application, leading to a more reliable, leak-proof seal.
- Initial Engagement: Hand-tighten the Bulkhead Nut onto the fitting body until snug. This step ensures proper alignment and engagement of the threads before final tightening, preventing cross-threading.
- Torque Application: Utilize a calibrated torque wrench to tighten the nut to the manufacturer's specified torque values. Overtightening can deform the flare or fitting body, leading to leaks or material fatigue, while undertightening results in an insufficient seal. The JIC standard often specifies specific turns-from-finger-tight (TFFT) values as an alternative guideline for various sizes.
- Leak Testing: After installation, always conduct a thorough leak test of the entire system at operating pressure before putting it into service. This verifies the integrity of all connections under realistic conditions.
- Vibration Control: In high-vibration environments, consider using robust tube clamps and supports in conjunction with bulkhead fittings to further secure tubing and mitigate fatigue on the connections, enhancing overall system stability and longevity.
Regular inspection and maintenance, including checking for signs of corrosion, wear, or leakage, will significantly contribute to the extended service life of these fittings. The robust carbon steel construction and zinc plating are designed for durability, but proper installation and environmental considerations are crucial for maximizing their inherent longevity and ensuring continuous, reliable operation.
Conclusion: Unwavering Quality and Performance
The Bulkhead Nut for 5/8 inch Tube O.D. from Buyers Products epitomizes engineering excellence in fluid power components. Its foundation in tough carbon steel, coupled with a corrosion-resistant zinc finish, guarantees a durable solution capable of withstanding the rigors of industrial, mobile, and marine environments. The unwavering adherence to JIC and SAE specifications ensures universal compatibility and predictable performance, making it a reliable choice for critical applications demanding leak-free and high-pressure capabilities up to 10,000 PSI. With its robust 3-piece flare sealing mechanism, wide tube material compatibility, and ease of installation when following best practices, this Bulkhead Nut delivers a superior connection solution. For professionals requiring robust, standardized, and dependable hydraulic and pneumatic fittings, the Buyers Products Bulkhead Nut stands as an optimal selection, ensuring system integrity and operational efficiency for years to come.
