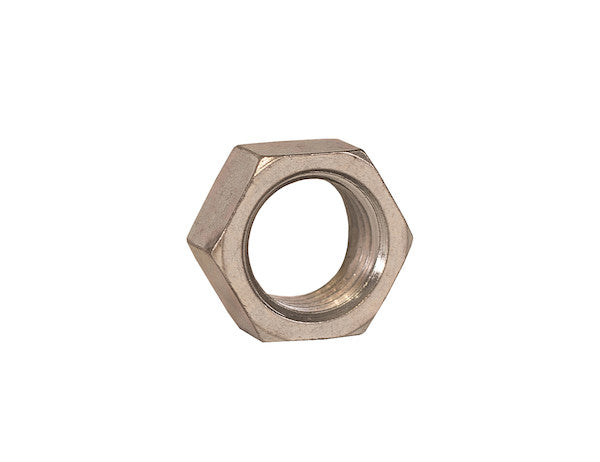

H5924X6 - Bulhead Nut 3/8 Inch Tube O.D.

The Bulkhead Nut is part of the Buyers Products line of JIC 37 degree flare tube fittings. The fittings feature tough carbon steel construction, 3 piece flare sealing for a tight, secure connection, and a corrosion-resistant zinc finish. Fitting conforms to JIC and SAE specifications. Buyers Products tube fittings are used with copper, brass, steel, aluminum, and other tubing that can be flared. They are rated at up to 10,000 PSI depending on tube size.

Specifications

The Bulkhead Nut with a 3/8 Inch Tube O.D. represents a critical component within hydraulic and pneumatic systems, specifically designed for applications requiring secure and durable pass-through connections. As an integral part of the Buyers Products JIC 37-degree flare tube fitting series, this component is engineered to deliver exceptional performance, reliability, and longevity across a wide spectrum of demanding industrial and mobile environments. Its robust construction, adherence to stringent industry standards, and meticulously designed sealing mechanism make it an indispensable choice for professional-grade fluid conveyance systems.

Understanding the Bulkhead Nut's Functionality

A bulkhead nut serves a specialized purpose in fluid systems: to secure a tube fitting or adapter through a panel, wall, or bulkhead, creating a robust and leak-proof connection point. In this specific configuration, the Bulkhead Nut is designed to accommodate a 3/8 inch Outer Diameter (O.D.) tube, facilitating a secure anchor for the JIC 37-degree flare connection. This mechanism allows for the seamless passage of fluid lines through structural barriers without compromising the integrity of the system or the barrier itself. Its design ensures that once installed, the connection remains stable, resisting vibrations, pressure fluctuations, and mechanical stresses common in dynamic operating conditions. The inherent strength of the carbon steel material and the precision of its manufacturing ensure that the bulkhead penetration remains a point of strength, not vulnerability.

The JIC 37-Degree Flare System: An Industry Standard for Fluid Power

The Joint Industry Council (JIC) 37-degree flare system is a globally recognized standard for hydraulic and pneumatic connections, revered for its simplicity, effectiveness, and reusability. The "37-degree" refers to the angle of the flare on the end of the tube, which mates with a corresponding 37-degree tapered seat on the fitting body. This precise metal-to-metal seal forms the core of its sealing integrity. Unlike pipe threads that often rely on thread deformation or sealants, JIC connections achieve their seal through precise mechanical interference and compression. Key advantages of the JIC 37-degree flare system, in which this Bulkhead Nut operates, include:

• High-Pressure Capability: Engineered for significant pressures, making it ideal for robust hydraulic applications.
• Vibration Resistance: The robust mechanical connection resists loosening under vibration, crucial for mobile equipment and dynamic environments.
• Leak-Free Performance: The metal-to-metal seal, when properly torqued, provides a highly reliable and leak-proof connection, minimizing fluid loss and system contamination.
• Reusability: JIC fittings can be disassembled and reassembled multiple times without compromising seal integrity, greatly facilitating maintenance, inspection, and system modifications.
• Ease of Assembly: Standardized tools and straightforward procedures make installation efficient and accessible for trained personnel.
• Interchangeability: Conforming to JIC and SAE standards ensures interchangeability with components from diverse manufacturers, simplifying procurement, inventory management, and field repairs globally.

Understanding the 3-Piece Flare Sealing Mechanism

The term "3 piece flare sealing" employed in the product description refers to the critical components involved in establishing the secure, leak-tight connection typical of JIC 37-degree flare systems. This mechanism primarily involves:

1. The Fitting Body: This component features a precisely machined 37-degree conical seating surface.
2. The Flared Tube End: The end of the tubing, accurately flared to a matching 37-degree angle, forms the crucial sealing surface.
3. The Nut (Bulkhead Nut in this instance): This component applies the axial compressive force, drawing the flared tube end into intimate contact with the fitting body's conical seat.

When the Bulkhead Nut is tightened, it draws the flared tube end into firm contact with the 37-degree seating surface of the mating JIC adapter or fitting body. This compression creates a strong metal-to-metal seal. The precision manufacturing of both the tube flare and the fitting seat is paramount. Any irregularities can lead to stress concentrations or potential leak paths. The system relies on the controlled, ductile deformation of the softer flared tube material against the harder fitting material to effectively fill any microscopic imperfections, thereby creating a robust pressure boundary that resists leakage under varying operating conditions.

Material Excellence: Tough Carbon Steel Construction

The selection of carbon steel as the primary construction material for this Bulkhead Nut is fundamental to its high-performance capabilities. Carbon steel offers a superior balance of mechanical properties essential for demanding hydraulic components:

• High Tensile and Yield Strength: Carbon steel exhibits exceptional resistance to both pulling forces (tensile strength) and permanent deformation (yield strength), ensuring the fitting withstands high internal pressures without deforming or fracturing.
• Fatigue Resistance: In systems subjected to pulsating pressures, vibrations, or cyclic loading, carbon steel's inherent fatigue resistance is crucial. It significantly extends the operational life of the fitting, minimizing the risk of failure over prolonged periods of dynamic stress.
• Impact Resistance: Possessing good toughness, carbon steel allows the fitting to absorb shocks and impacts without catastrophic failure, a vital attribute for components in mobile and heavy machinery applications.
• Machinability: The specific grade of carbon steel chosen is optimized for precision machining, enabling the tight tolerances required for effective JIC flare seating and consistent seal integrity.

The "tough" attribute signifies that the carbon steel utilized in Buyers Products fittings is specifically selected and processed to optimize its performance under demanding conditions, striking an ideal balance between hardness for durability and ductility for reliable sealing.

Corrosion Protection: The Role of Zinc Plating

Fluid conveyance systems are frequently exposed to challenging operational environments, including moisture, chemicals, and abrasive particles, all of which can accelerate corrosion. To counteract these effects, the Bulkhead Nut features a high-quality corrosion-resistant zinc finish. Zinc plating provides several critical benefits:

• Sacrificial Protection (Galvanic Action): Zinc is electrochemically more active than steel. In the event of minor scratches or damage to the coating, the zinc preferentially corrodes, thereby protecting the underlying carbon steel from rust and extending the component's functional lifespan.
• Barrier Protection: The applied zinc layer forms a physical barrier that prevents corrosive agents, such as oxygen and moisture, from directly contacting the steel substrate.
• Enhanced Durability: The zinc coating contributes to the surface hardness, offering improved resistance to minor abrasions and wear, further bolstering the fitting's overall durability.
• Aesthetics: A uniform and consistent zinc finish provides a clean, professional appearance, which is often a desirable quality in industrial and commercial applications.

The quality of the zinc plating, encompassing its thickness, adhesion, and uniformity, is meticulously controlled by Buyers Products, ensuring that the fitting maintains its functional and aesthetic integrity even in harsh operating conditions.

Adherence to JIC and SAE Specifications: A Guarantee of Quality and Compatibility

The compliance of this Bulkhead Nut with both JIC (Joint Industry Council) and SAE (Society of Automotive Engineers) specifications is a definitive indicator of its superior quality, performance reliability, and universal compatibility within the fluid power industry.

• JIC Specifications: These standards primarily define the critical 37-degree flare angle, thread forms, and essential dimensional specifications necessary for interchangeability. JIC standards ensure that a JIC fitting manufactured by Buyers Products will reliably mate with JIC fittings or adapters from any other manufacturer conforming to the same standard. This global standardization significantly simplifies system design, component procurement, and maintenance procedures.
• SAE Specifications (Specifically SAE J514): The Society of Automotive Engineers (SAE) J514 standard comprehensively covers hydraulic tube fittings, including the 37-degree flared type. SAE J514 dictates detailed dimensional specifications, stringent material requirements, and rigorous performance testing criteria. These tests include burst pressure evaluation, impulse testing (simulating pressure cycles), and vibration resistance assessments. By conforming to SAE J514, this Bulkhead Nut offers users assurance of its engineered performance and proven reliability under demanding operational conditions, signifying that it has undergone thorough validation to meet the exacting requirements for critical hydraulic and pneumatic systems.

Versatile Tubing Compatibility

The JIC 37-degree flare system, supported by this Bulkhead Nut, exhibits remarkable versatility in tubing compatibility. It is engineered for secure connections with a variety of materials, provided they possess the necessary ductility for proper flaring:

• Copper Tubing: Frequently utilized in lower-pressure applications, instrumentation lines, and air systems due to its excellent ductility, corrosion resistance, and thermal conductivity.
• Brass Tubing: Offers similar properties to copper, including good ductility and corrosion resistance, making it suitable for general industrial, automotive, and plumbing applications.
• Steel Tubing (Carbon Steel, Stainless Steel): The predominant choice for high-pressure hydraulic applications due to its superior strength, durability, and resistance to fatigue. Seamless cold-drawn steel tubing, in particular, is engineered to withstand extreme pressures and mechanical stress.
• Aluminum Tubing: Highly valued for its lightweight properties and inherent corrosion resistance, aluminum tubing is commonly specified in aerospace, automotive, and other applications where weight reduction is a critical design factor.

The successful formation of a precise 37-degree flare is paramount for all these materials, as the integrity of the JIC connection relies on the ductile deformation of the tube end against the fitting's conical seat.

Exceptional Pressure Rating: Up to 10,000 PSI

The stated capability of "Rated at up to 10,000 PSI depending on tube size" highlights the extraordinary high-pressure capacity of this fitting series. It is vital to understand that the ultimate pressure rating of any fluid system is determined by its weakest component. For JIC flare systems, the tube material, its wall thickness, and the quality of the flare itself are paramount determinants of the overall system's pressure capability:

• Tube Material and Wall Thickness: High-strength materials such as seamless steel tubing with a greater wall thickness will inherently accommodate significantly higher pressures than softer or thinner-walled tube materials.
• Flaring Quality: A perfectly formed, smooth, and entirely crack-free flare is indispensable for achieving the maximum pressure rating. Any imperfections, such as nicks, scratches, or unevenness, can introduce stress risers or compromise the sealing surface, thereby substantially reducing the effective pressure capacity and increasing the risk of leakage or catastrophic failure.
• Application-Specific Factors: Dynamic loads, temperature fluctuations, and the specific type of fluid (e.g., hydraulic oil, high-pressure gas, water) can also influence the safe operating pressure and must be carefully considered during system design.

The 10,000 PSI rating signifies that when coupled with appropriately specified tubing and meticulous installation techniques, these Buyers Products fittings are engineered for deployment in extremely demanding high-pressure hydraulic applications, significantly exceeding the requirements of many standard industrial systems. This robust performance renders them ideal for critical roles in heavy machinery, construction equipment, agricultural implements, and other applications where uncompromising system integrity under high pressure is non-negotiable.

Installation and Best Practices for Optimal Performance

Achieving the full performance potential and longevity of the Bulkhead Nut and the entire JIC flare system is contingent upon strict adherence to proper installation protocols.

1. Tube Preparation: Begin by ensuring the tubing is cut squarely and meticulously deburred both internally and externally. The tube end must be clean, free from burrs, chips, and any contaminants.
2. Flaring Procedure: Utilize a precision 37-degree flaring tool to create a smooth, concentric, and flawless flare. Critical inspection of the flare for any imperfections, cracks, or unevenness is mandatory. The flare must precisely match the specified diameter for proper seating.
3. Bulkhead Nut Installation: For the bulkhead nut specifically, it threads onto the external threads of a corresponding bulkhead adapter or fitting body. This assembly is then inserted through a pre-drilled hole in a panel or wall. The bulkhead nut is tightened on one side of the panel, effectively clamping and securing the bulkhead fitting in place.
4. Lubrication: Apply a thin, compatible film of hydraulic fluid or an appropriate lubricant to the threads of the nut and the back face of the flare (if connecting directly to a flared tube). This lubrication reduces friction during tightening, facilitating proper seating of the metal-to-metal seal and preventing thread galling.
5. Initial Hand Tightening: Begin by threading the nut onto the mating fitting body by hand until it is finger-tight and fully seated.
6. Wrench Tightening and Torque: Employ a wrench to tighten the nut. The precise torque value is critical and varies based on the tube size, material, and specific manufacturer recommendations. Over-tightening can lead to permanent deformation of the flare or fitting, while under-tightening will result in leakage. Always consult SAE J514 or the manufacturer's technical specifications for recommended torque values. A common guideline for steel JIC fittings is typically a quarter to a half turn past hand-tight, but this should always be verified against specific torque charts for the exact component and tube size.
7. Final Bulkhead Securing: Once the bulkhead fitting is in position through the panel, ensure the bulkhead nut is tightened firmly against the panel. Often, a flat washer or an O-ring is incorporated between the bulkhead fitting and the panel to enhance sealing and prevent rotation of the fitting within the panel.

Adherence to these best practices ensures a robust, reliable, leak-free, and long-lasting connection, thereby preserving the integrity and operational efficiency of the entire fluid system.

Broad Spectrum of Industrial and Mobile Applications

The versatility, robust construction, and high-pressure capabilities of the 3/8 Inch Tube O.D. Bulkhead Nut make it an indispensable component across an extensive array of applications within numerous industries:

• Heavy Equipment: Extensively utilized in construction machinery (e.g., excavators, bulldozers, loaders), agricultural equipment (e.g., tractors, harvesters, implements), and mining machinery for critical hydraulic and pneumatic lines that demand high reliability under severe operating conditions.
• Industrial Hydraulics: Employed in manufacturing plants for powering units, hydraulic presses, robotics, and complex automation systems where precise and powerful fluid transfer is essential for operational continuity.
• Commercial Transportation: Found in commercial vehicles, heavy-duty trucks, buses, and specialized transport equipment for brake lines, power steering systems, and hydraulic lift mechanisms.
• Marine and Offshore Applications: Vital for hydraulic steering systems, engine controls, and various fluid systems on commercial and recreational vessels, benefiting significantly from the zinc plating's enhanced corrosion resistance in challenging marine and saltwater environments.
• Oil and Gas Industry: Crucial for fluid control and transfer applications in exploration, production, and refining equipment, where extreme durability and high-pressure ratings are paramount for safety and operational efficiency.
• Process Control and Instrumentation: Used in chemical processing plants, refineries, and pharmaceutical facilities for instrumentation lines and process fluid transfer, where reliable, leak-free connections are non-negotiable for system integrity and safety.
• Automotive Aftermarket & Specialty Vehicles: Applied in custom hydraulic systems, performance modifications, and specialized vehicle builds where bespoke fluid routing and robust connections are required.

Technical Specifications: A Deeper Analysis

Revisiting the specific technical attributes with an enhanced perspective:

• Finish: Zinc Plated: This surface treatment provides not only a protective barrier but also galvanic (sacrificial) corrosion protection to the underlying carbon steel, significantly extending the component's service life, particularly in environments exposed to moisture or corrosive agents. The plating process strictly adheres to relevant industrial standards for thickness and uniformity.
• Material: Carbon Steel: Selected for its optimal balance of mechanical properties including high tensile strength, yield strength, excellent fatigue resistance, and good machinability. These properties ensure the structural integrity required for high-pressure applications and the precision necessary for effective flare sealing.
• Shape: Bulkhead Nut: This component is specifically designed with internal threading to mate with the external threading of a bulkhead adapter or fitting. Its primary function is to securely fasten a bulkhead fitting through a panel, creating a stable pass-through connection point for fluid lines.
• Side 1: 3/8 JIC (-6): This specification precisely denotes that the bulkhead fitting (which this nut secures) is designed to accept a 3/8 inch Outer Diameter (O.D.) tube connection on its first port, featuring the universally recognized JIC 37-degree flare standard. The "-6" is the common dash size, directly corresponding to a 3/8 inch tube O.D. (6/16 inch). This standardized nomenclature is critical for ensuring compatibility within fluid power systems.
• Side 2: 3/8 JIC (-6): This indicates that the bulkhead fitting, when secured by this nut, provides an identical 3/8 JIC (-6) connection on its second port, typically on the opposite side of the panel. This allows for a continuous fluid path through the bulkhead, maintaining consistency in connection standards.
• Style: F: In the context of Buyers Products JIC 37-degree flare fittings, "Style F" likely refers to a specific design variant or configuration of their bulkhead adapter body that this nut is engineered to perfectly complement. While general JIC nomenclature focuses on basic shapes, "Style F" within a manufacturer's range often indicates a precise form factor, thread series, or a particular duty rating for the corresponding bulkhead fitting, ensuring optimal fit, secure engagement, and adherence to specific design requirements within their product line.

Conclusion: The Foundation of Reliable Fluid Power

The Bulkhead Nut with a 3/8 Inch Tube O.D. from Buyers Products represents a cornerstone of engineering excellence in fluid power components. Its robust carbon steel construction, meticulously enhanced by a corrosion-resistant zinc finish, guarantees exceptional durability and extended service life even in the most demanding operational environments. Comprehensive adherence to both JIC 37-degree flare and SAE specifications ensures universal compatibility, seamless integration, and unequivocally guaranteed performance across a vast array of hydraulic and pneumatic applications. The inherent strength of the JIC system, synergistically combined with the precision of its 3-piece flare sealing mechanism, provides a supremely reliable, leak-proof connection capable of safely withstanding pressures up to 10,000 PSI, contingent upon the chosen tubing and proper installation. This component transcends mere fastening; it serves as a critical, high-integrity interface specifically designed to maintain the absolute integrity and efficiency of high-performance fluid transfer systems as they pass through structural barriers. For engineers, system designers, and maintenance professionals who demand unparalleled reliability, precision, and longevity in their fluid power circuits, this Bulkhead Nut represents a superior, technically sound choice. It embodies a perfect balance of advanced material science, rigorous mechanical design, and unwavering adherence to established industry standards, ensuring that every connection point through a panel is as structurally sound and secure as the rest of the fluid line, thereby contributing significantly to the overall safety, efficiency, and operational lifespan of the entire system.
